GRP эпоксидное стекловолокно Pultruded FRP плоская полоса

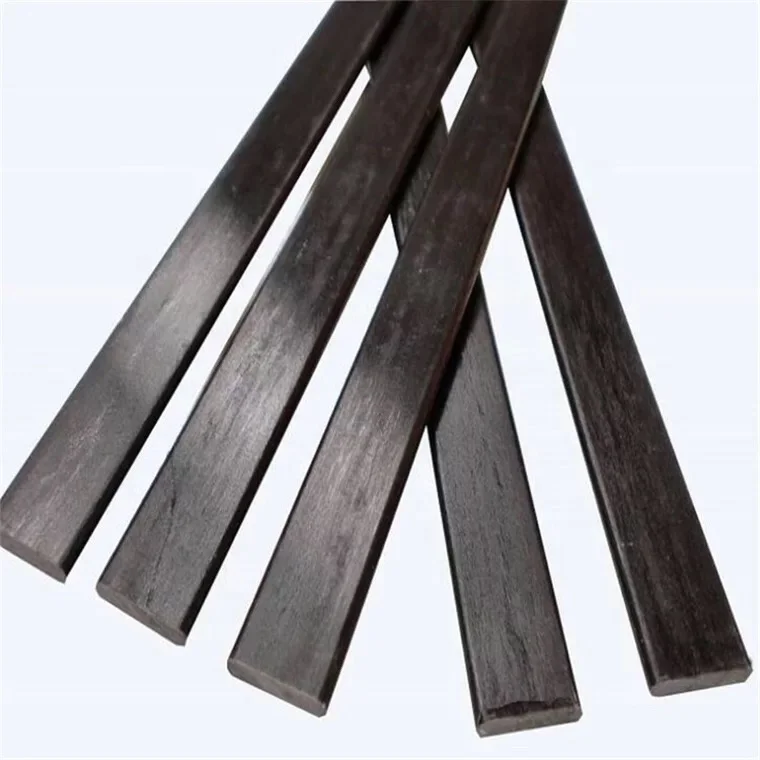

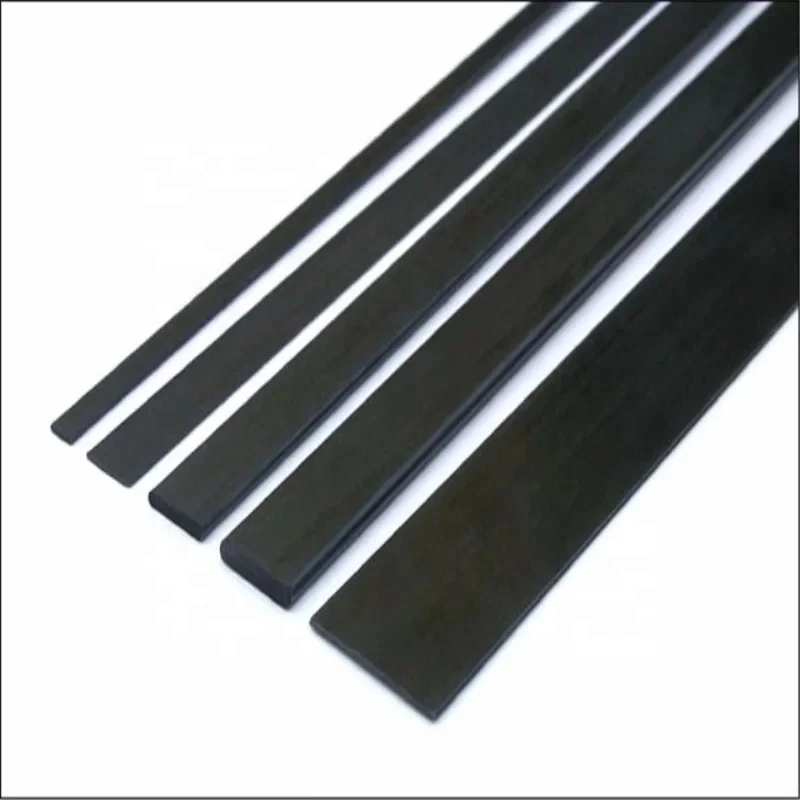

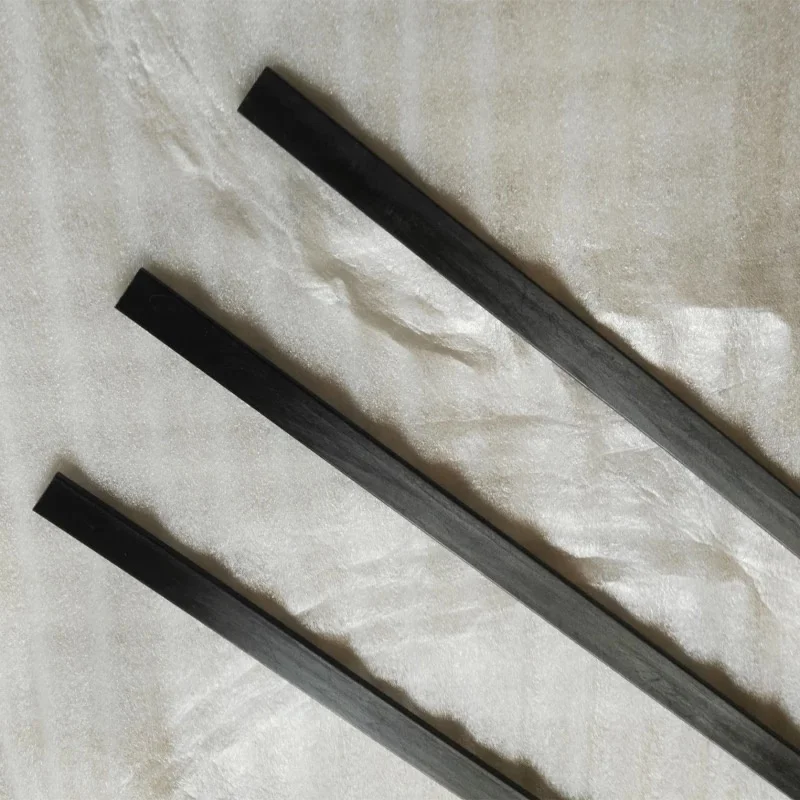

GRP Epoxy Fiberglass Pultruded FRP Flat Strip

FRP Strip is manufactured using pultrusion process. Glass mat and roving are drawn through a resin bath and pulled through a heated die to form the desired shape.We are offering wide range of pultrusion products for the pultrusion process.

Other Profiles include FRP Angle,Square Tube,Round tube,I-Beam, Wide flange beams,T-bar,U-Channel, Round Rod,Kick plate. etc.

frp strip, frp strip, frp strip, frp strip, frp strip, frp strip, frp strip, frp strip, frp strip, frp strip, frp strip, frp strip

-------------------------------Pultrusion Process of FRP Strip------------------------------

-------------------------------Various Applications of FRP Strip----------------------------

   This series of products is suitable for all kinds of kites, flying saucers, Frisbees, curtains, PCB equipment, fans, baby game blankets, fishing tails, beach flags, aviation models, car antennas, luggage, handbags, soccer gates, switch cutting and toy supports, etc. .

-------------------------------------Features of FRP Strip-----------------------------------

----------------------------------Standard Size of FRP Strip--------------------------------

-----------------------------Other FRP Pultrusion Profile Shape------------------------------

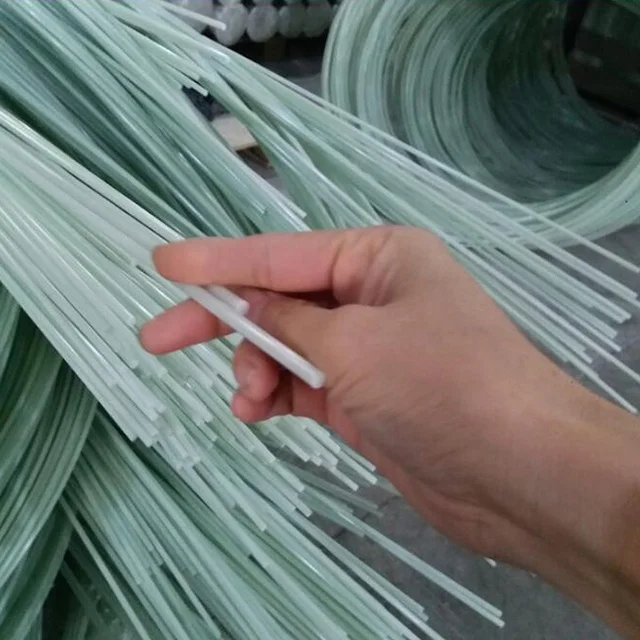

          FRP Rod

             FRP I Beams

            FRP C Channel

            FRP Pipe

      FRP Rectangular Tube

          FRP Square Tube

Molding process: pultrusion
Features:
(1) The tensile strength of the high-stretched profile is 150-300 MPa, the bending strength is 200-300 MPa, and the bending strength retention rate after the artificial accelerated aging of 1000 h can reach 78%.
(2) Low deformation rate The length change of the FRP pultruded profile after 1000 h artificial accelerated aging is +0.03%, and the width change rate is -0.07%. Therefore, the geometry and size of the article made from the pultruded profile can be maintained for a long period of time.
(3) High heat distortion temperature The hot deformation temperature of the pultruded profile is 186 ° C, which does not soften at high temperature, and does not become brittle at -60 ° C, ensuring normal use at various ambient temperatures.
(4) Low water absorption rate The water absorption rate of ordinary glass fiber reinforced plastic products is less than 0.5%, while the water absorption rate of pultruded profiles is only 0.257%, which is suitable for use in humid environments.
(5) Thermal insulation coefficient The heat transfer coefficient of the pultruded profile is close to that of rigid PVC. The thermal insulation coefficient of the single-frame double-glass insulation window made of it is only 2.69W/(m2?K). The thermal insulation coefficient of the same type of window made of steel and aluminum is up to 4.0W/(m2?K), which indicates that the energy saving of FRP doors and windows is obvious.
(6) Strong corrosion resistance The tensile strength of the pultruded profile was immersed in 3% HCI aqueous solution for 24 h, and the hardness retention rate was 95%. After immersion in 3% NaCl aqueous solution for 24 h, the hardness retention rate was 89%. Therefore, the doors and windows made of FRP pultruded profiles are not only suitable for general residential buildings, hotels, restaurants, but also for industrial plants in coastal areas and corrosive working environments.
(7) Adapt to the environmental requirements The production process used for processing pultruded profiles has the characteristics of low noise, high efficiency, low power consumption, low pollution, etc., and meets the relevant national environmental requirements.
details:
      The utility model has the advantages of light weight, high strength, good elasticity, stable and precise size, and has excellent characteristics such as insulation, non-heat conduction, flame retardancy, beautiful appearance and easy maintenance, so it is a substitute for steel and other materials in a corrosive environment. Good products, and widely used in: sports equipment products, flagpoles, hoods, tents, curtains, benchmarks, exhaust fan columns, car antennas, construction, bridge reinforcement, mechanical drive shafts, golf clubs, yard fences, kite skeletons, aluminum The film balloon skeleton, umbrella skeleton, bracket blanket skeleton, RC skeleton, luggage skeleton, fishing gear accessories, etc., its specifications are: 0.8mm----35mm (general common specifications), special specifications can be opened according to customer needs.

Top Industry provide you with the most professional products and services

Henan Top Industrial Technology Co., Ltd. is located in Longyuan Lake International Plaza,Shanyang District, Jiaozuo City, Henan Province.With 10 pultrusion production lines and several sets of hydropress,the company is devoted into the design and production of molded profiles,pultruded profiles and hand lay-up products of fiber reinforced plastic.

Main products include FRP grating,pultruded FRP profiles,FRP cable trays,FRP tubes,FRP support beams,hand lay-up FRP products and others.and we accept customized products according to customer requirements.

The products have been sold all over China and exported to North America, Western Europe, Japan, Southeast Asia and other countries&regions.
