polyester film for electrical insulation

Product Description

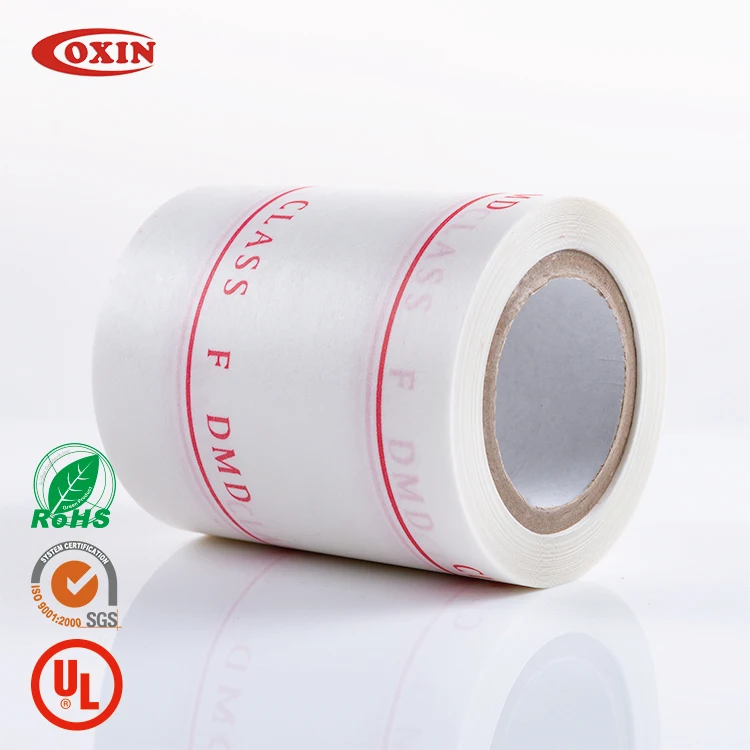

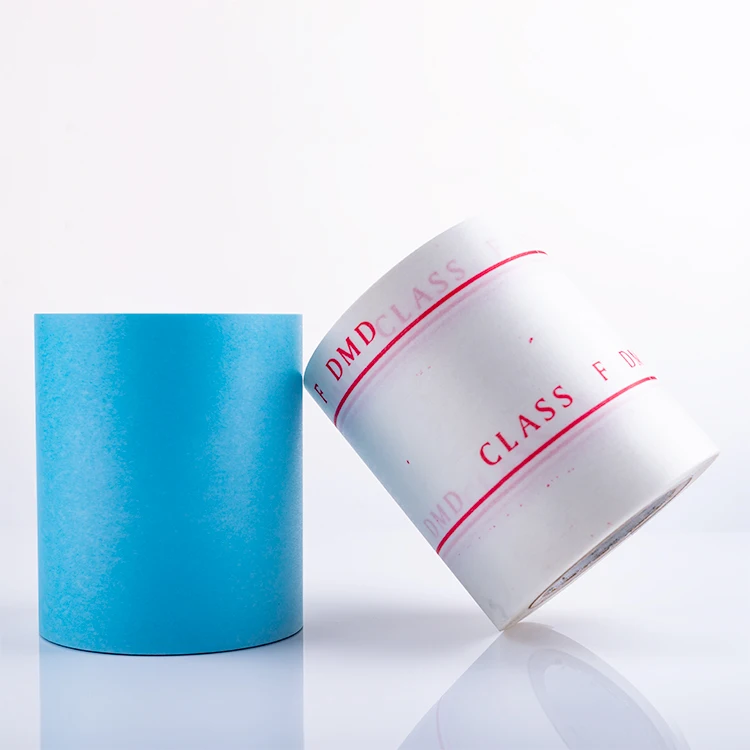

Polyester Film/Polyester Fibre Nonwoven Fabric Flexible Laminate(DMD)

polyester film for electrical insulation

Specifications

Items			Unit	Index
Nominal Thickness			mm	0.09	0.15	0.20	0.25	0.30	0.35	0.40	0.45
Nominal Grammage			g/m2	90	150	210	280	350	420	490	560
Thickness Tolerance			mm	±0.02	±0.02	±0.03	±0.03	±0.035	±0.04	±0.04	±0.04
Grammage Tolerance			g/m2	±13	±22	±32	±39	±46	±58	±66	±68
Tensile Stength	MD	No Bending	N/10mm	≥60	≥80	≥120	≥150	≥170	≥200	≥300	≥300
	MD	Bended		≥60	≥80	≥105	≥130	≥150	≥180	≥220	≥250
	TD	No bending		≥60	≥80	≥105	≥130	≥150	≥180	≥220	≥250
	TD	Bended		≥50	≥70	≥95	≥120	≥130	≥160	≥200	≥230
Breakdown Voltage	No Bending		kv	≥4	≥7	≥9	≥11	≥13	≥15	≥18	≥19
Breakdown Voltage	Bended		kv	≥3	≥6	≥8	≥10	≥12	≥14	≥17	≥18
Elogation	MD		%	≥10				≥5
Elogation	TD		%	≥15				≥5
Long-term Temperature Value			℃	≥155℃
Storage Time			month	12
Normal Adhesion				No delamination
Thermal Adhesion				No delamination, No blistering, No adhesive flow

Composite Process

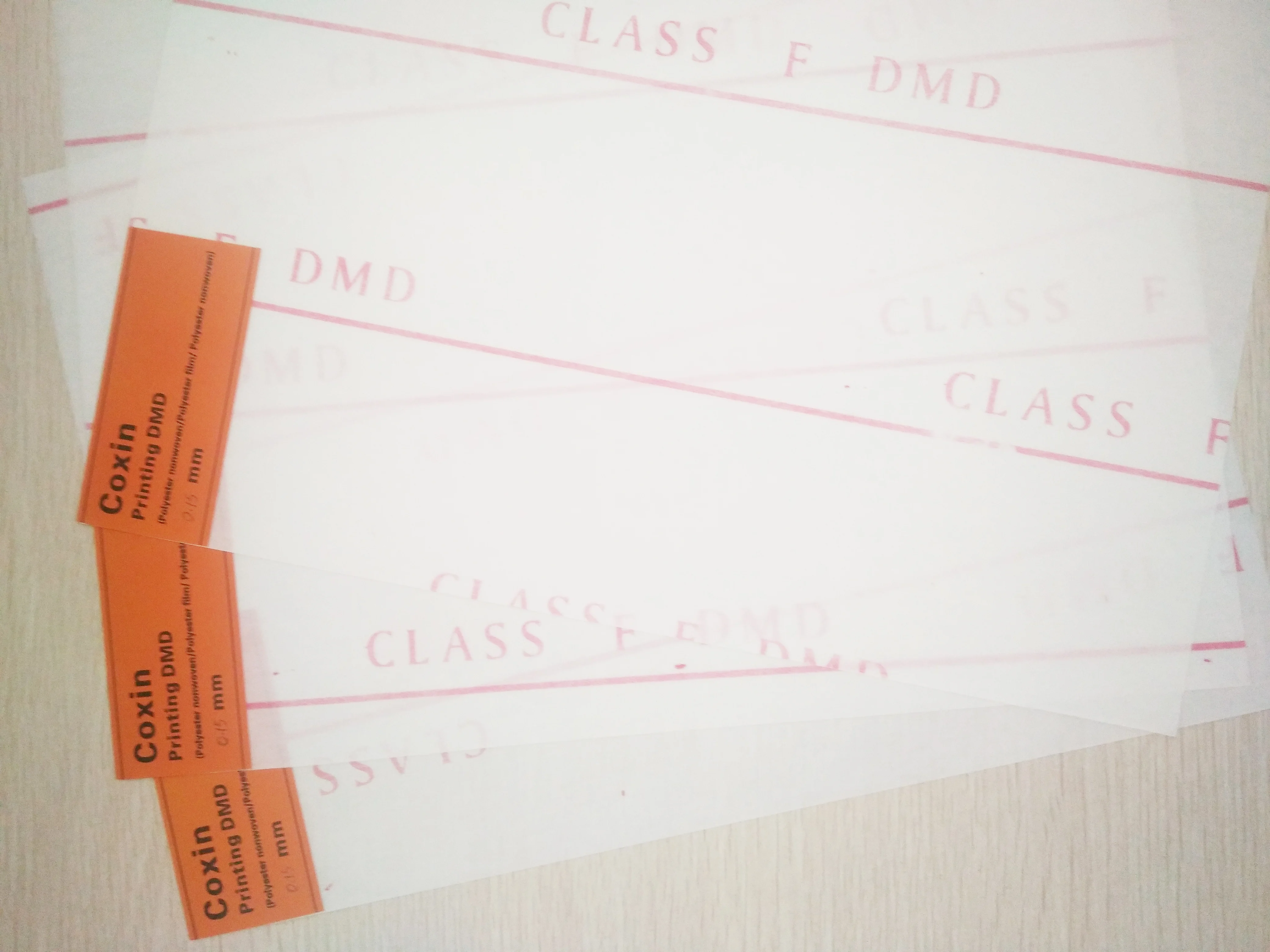

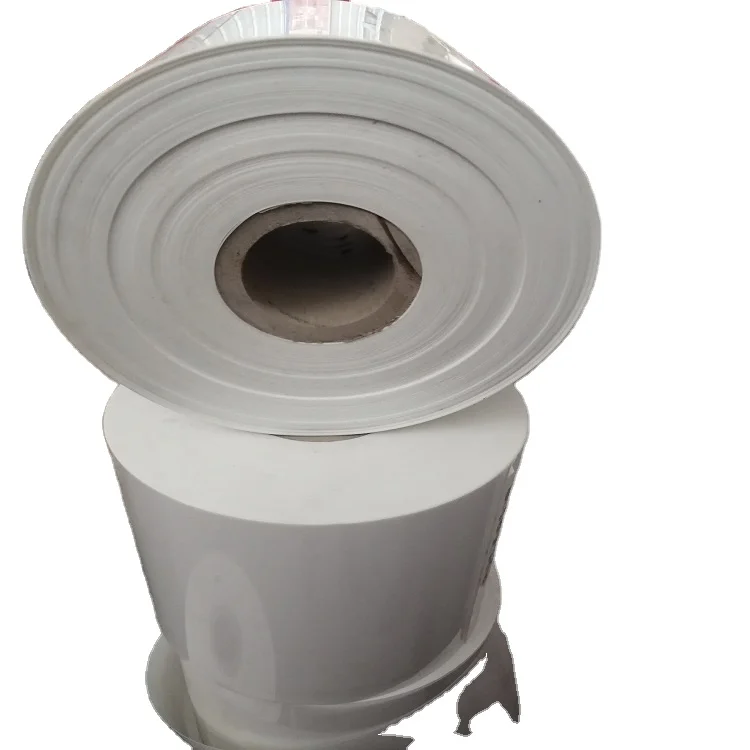

Polyester film/ polyester fiber nonwoven fabric laminate (DMD) is a threelayer composite paper made of polyester fiber nonwoven cloth (D) laminated on both sides of polyester film (M).

Applications

It is widely applicable for slot insulation, interturn insulation and inner insulation in Class B F H electric motors, transformers and other electrical apparatus

Certifications

polyester film for electrical insulation

Packaging & Shipping

Packing details:

Wrapped by protective film and cartons.
Packed with export standard pallets.
Pasting with labels.

polyester film for electrical insulation

FAQ

FAQ

Q: Are you trading company or manufacturer?

A: We are a manufacturer for ten years.

Q: How long is the delivery time?

A: Generally it is 5-15 days if the goods are in stock, or it is 15-30 days.

Q: Do you provide samples ? is it free or extra?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What are your terms of payment?

A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment.

Company Information

Factory Overview

polyester film for electrical insulation

Sichuan Coxin Insulating Material Co,. Ltd. is located in Deyang City of Sichuan Province, the Chinese largest heavy machinery manufacturing base, where transportation is convenient. Coxin has various professional engineers, technicians and advanced equipment. Coxin can provide a wide range of electrical insulating material: flexible composite (DM, DMD, PMP, PET, DMDM), Epoxy impregnating DMD, Saturated DMD, fish paper composite with polyester film, polyester film, polyester fiber nonwoven fleece, glass-fiber netting (Mesh), Diamond Dotted DMD, Diamond Dotted Film , Diamond Dotted Paper (DDP), NHN, NMN, GHG, etc.

Our products have been exporting to more than 20 countries worldwide such as Malaysia, Korea, Japan, Thailand, Germany, USA, Italy, France, Mexico, Turkey, Brazil, etc.
