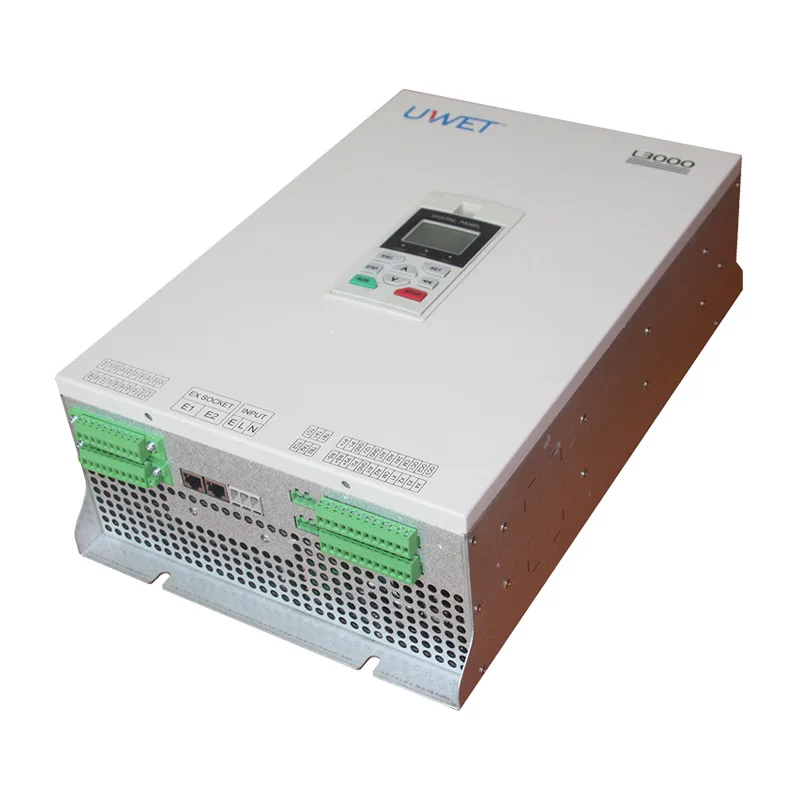

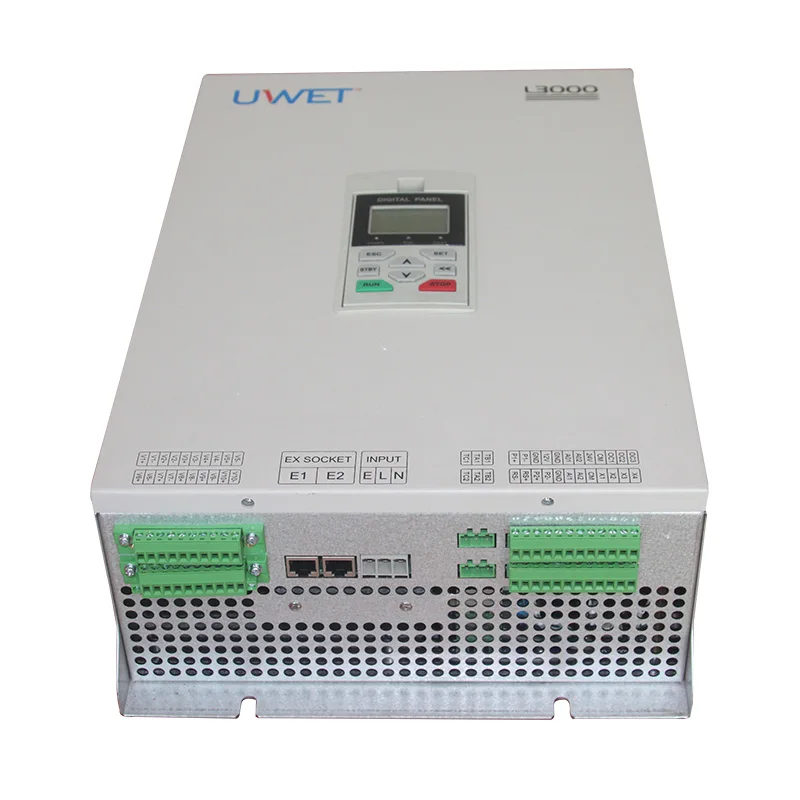

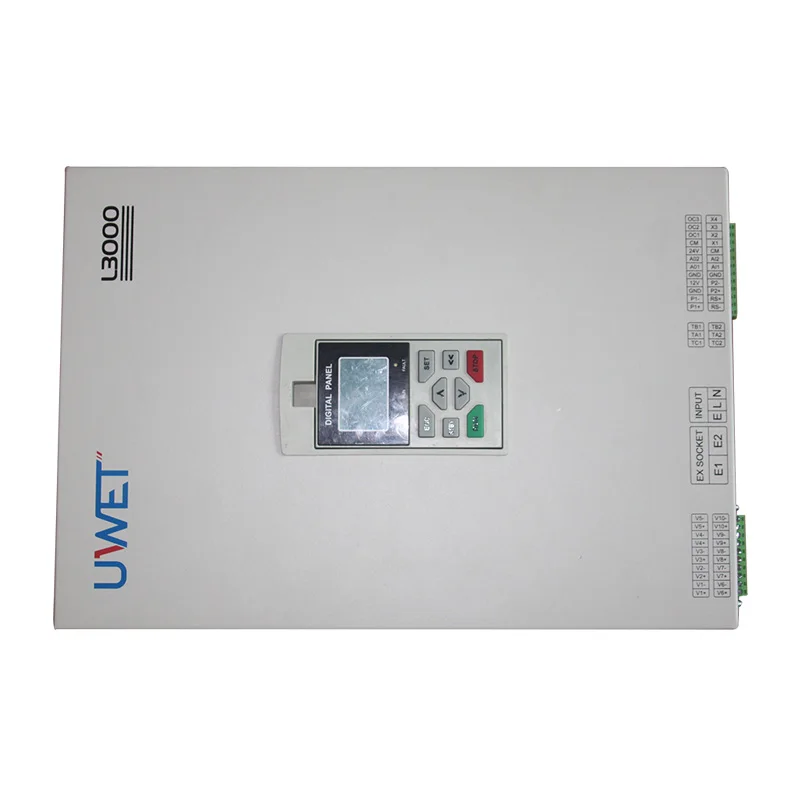

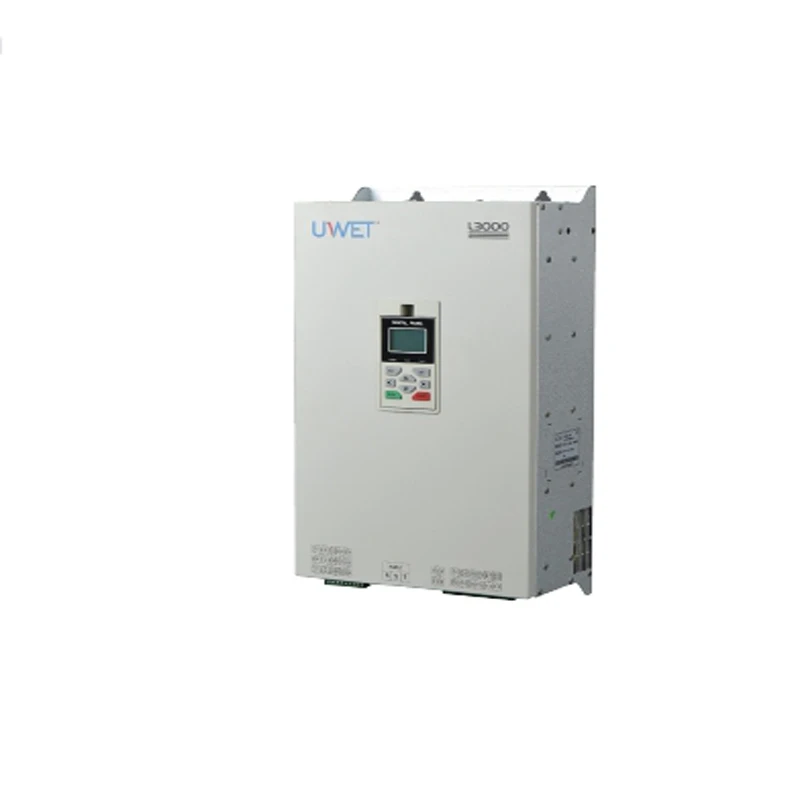

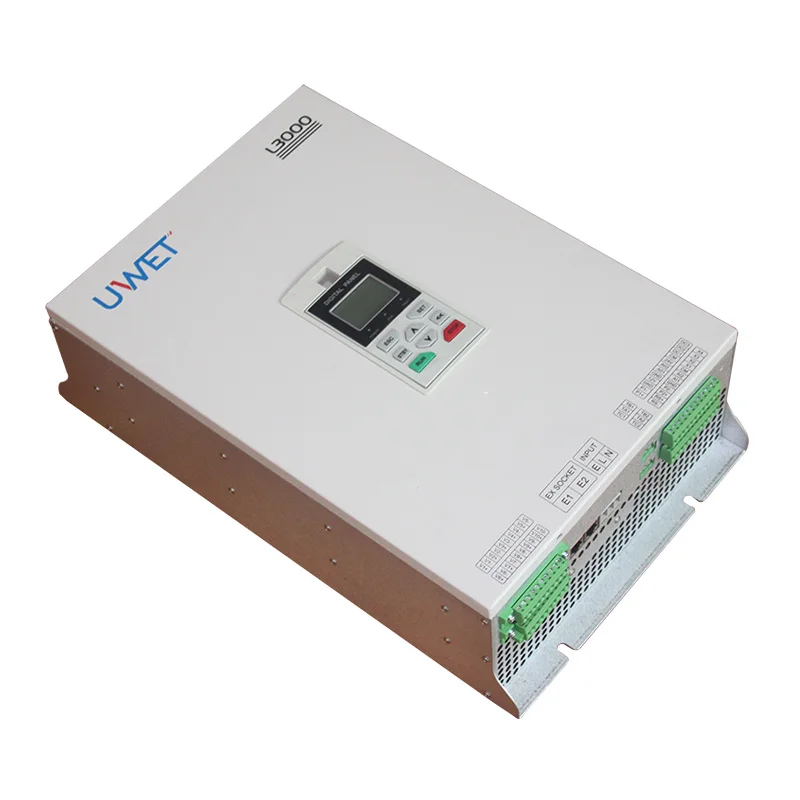

Прямая поставка с завода 3000 Вт В 18 мкФ конденсаторы для медицинских УФ ламп

Input

AC 3PH 360V-400V/   1PH 200-220V       50/60Hz

Voltage allowable range

Determined by model

Output

Voltage

 Determined by model

0.3K Hz ~2K Hz

Overload capability

110% 10min

Control Mode

vector control

Control Characteristic

Power setting

Resolution

1%

Current limitation

Power allowable setting

Voltage  limitation

110% of rated lamp tube Voltage

power limitation

Maximum rated output power of the lamp

Under-voltage suppression in operation

Especially for users with low grid voltage and frequent fluctuation of grid voltage, even below the allowable voltage range, the system can maintain the longest running time according to unique algorithm and residual energy allocation strategy.

Typical Function

Standby

 sets standby power consumption when equipment is intermittent for energy-saving applications

Working time record

can read lamp working time in operation

RS485 Communication

Standard Configuration RS485 Communication Interface, Running and Stopping Commands and Machine Status Reading

Operation

Using external Dry Contact Control to Start and Stop

Fault analysis

with function of fault record query and fault cause analysis

Display

Operation panel display

operation

Status

Monitor output voltage, output current, set power, output power, etc.

parameter  setting

Set the relevant parameter values according to actual requirements.

Protection / Alarm

Protection / Alarm of Over current, overvoltage, under voltage, overtemperature, short circuit, internal memory failure

environment

Ambient temperature

-10ºC--+50ºC(not frozen)

Ambient humidity

Below 90%(no frost)

Ambient environment

Indoor (no direct sunlight, no corrosion, no flammable gas, no oil mist, no dust, etc.)

Below 1000m

Structure

degree of protection

IP52

Cooling method

Independent air-duct design forced air cooling
