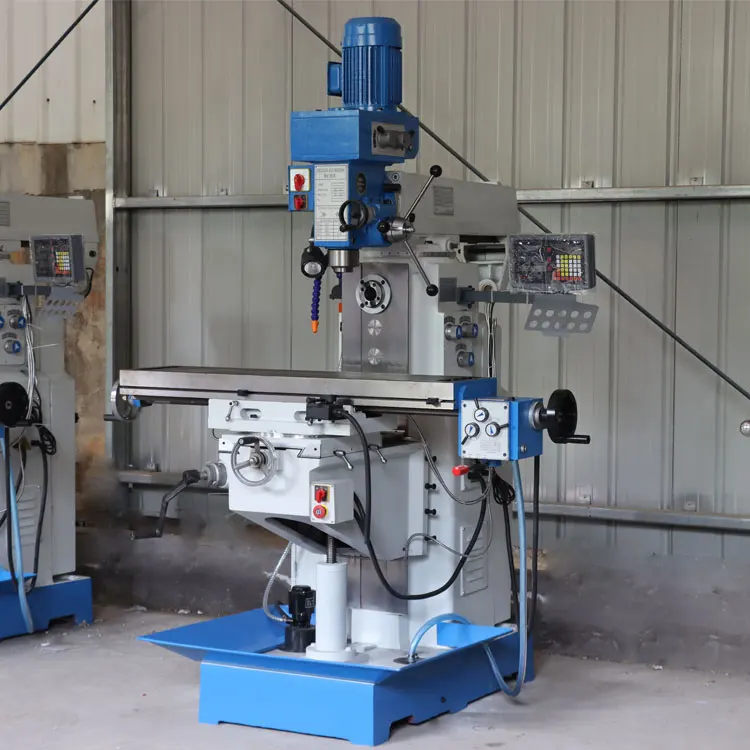

Настольная мельница с зубчатой головкой сверлильный станок ZX6350C и фрезерный цена
- Категория: >>>
- Поставщик: Zaozhuang Wojie CNC Machinery Co. Ltd.
Сохранить в закладки 62161754648:
Описание и отзывы
Характеристики
Detailed Images
The main performance characteristics:
Using rectangular guide machine is Rigid good,

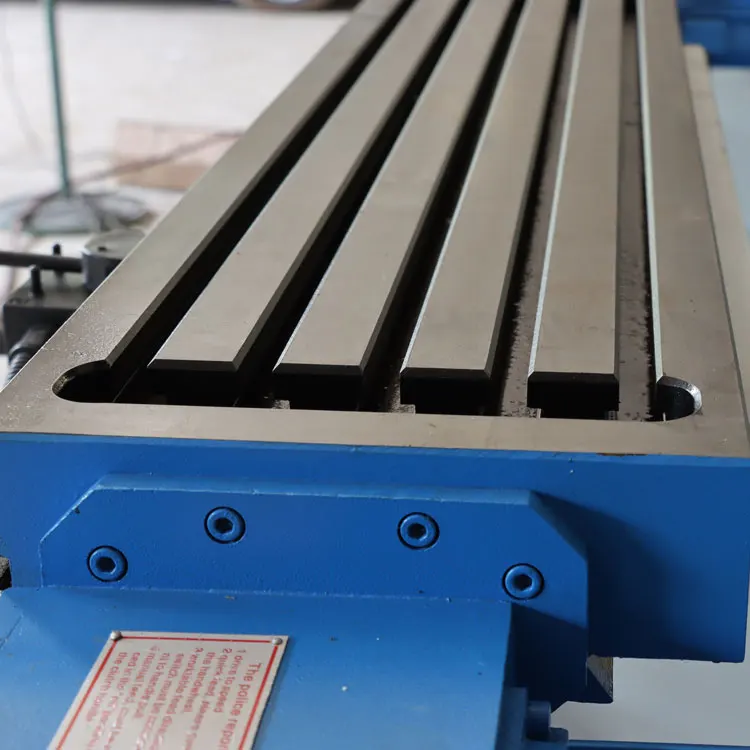

Work table and guide rail through the ultra audio spark quenching.

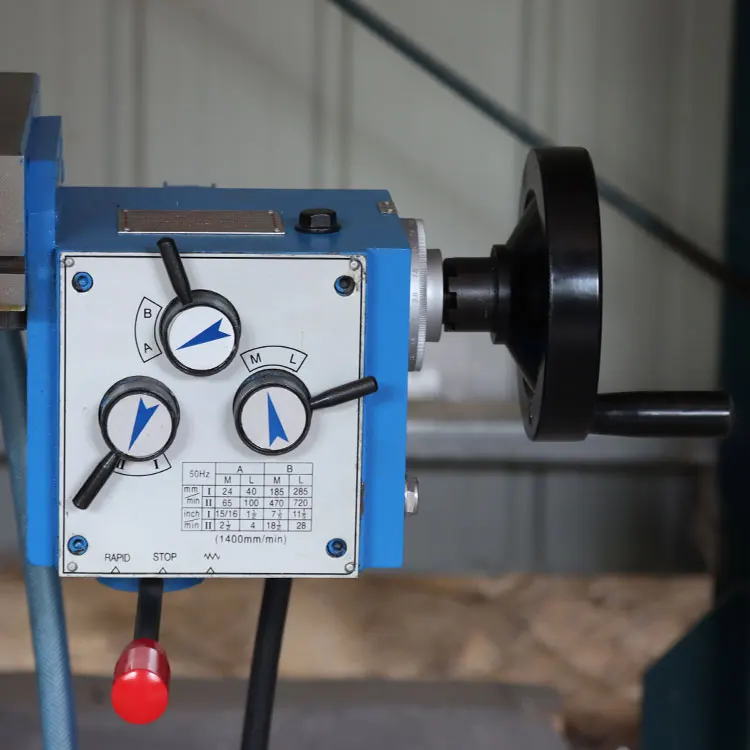

Work bench X. Y all are gear drive automatic feed, Z to the electric lift.
Milling head can be rotated 45 degrees,
DRO supplied at extra cost.
Application:
Universal milling and drilling machine is a kind of general metal cutting machine tool.
Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc cutter,
molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane, grooves,
holes, and other gear. Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries
of the ideal processing equipment.
Product main technical parameters:
Using rectangular guide machine is Rigid good,
Work table and guide rail through the ultra audio spark quenching.
Work bench X. Y all are gear drive automatic feed, Z to the electric lift.
Milling head can be rotated 45 degrees,
DRO supplied at extra cost.
Application:
Universal milling and drilling machine is a kind of general metal cutting machine tool.
Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc cutter,
molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane, grooves,
holes, and other gear. Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries
of the ideal processing equipment.
Product main technical parameters:
Specifications | Units | ZX6350C |
Table size | mm | 1200x280 |
Table stroke | mm | 600x230 |
Distance from spindle nose to table surface | mm | 110-470 |
Spindle travel | mm | 120 |
Max. drilling dia. | mm | 50 |
Max. tapping dia. | mm | M16 |
Max. vertical milling dia. | mm | 25 |
Max. end milling width | 100 | |
Spindle speed range | rpm | 115-1750(V) 38-1310(H) |
Spindle motor power | KW | 0.85/1.5(V) 2.2(H) |
Overall dimensions | mm | 1580x1330x2250 |
Machine weight | Kg | 1350 |
Standard Accessories Optional Accessories
1. Milling Chuck 1. DRO
2. Drilling Chuck 2. Y/Zaxis automatic feed
3. Draw bar 3. Universal dividing head
4. Inner hexagon spanner 4. Rotary work table.
5. Work light 5. Clamping kit
6. Reduction sleeve
7. Spindle arbor
8. wrench
9. Machine vice
10.Horizontal milling arbor
1. Milling Chuck 1. DRO
2. Drilling Chuck 2. Y/Zaxis automatic feed
3. Draw bar 3. Universal dividing head
4. Inner hexagon spanner 4. Rotary work table.
5. Work light 5. Clamping kit
6. Reduction sleeve
7. Spindle arbor
8. wrench
9. Machine vice
10.Horizontal milling arbor
Product Description
Related Products
Sales And Service Network
Company Information
Packaging & Shipping
FAQ
1. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight .
When we receive the advance payment, we will start to make production.when the machine is ready , we will take pictures to you.after we got your balance payment. we will send the machine to you.
2. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
3.When is the delivery time?
A: If the machine you will order is standard machine, we can ready the machine within 15days. if some special machines will be some longer. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.we will give you the answer accordingly.
4. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
5. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.
6. What is the package of the machines?
A: The machines standard will be packed in plywood case.
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight .
When we receive the advance payment, we will start to make production.when the machine is ready , we will take pictures to you.after we got your balance payment. we will send the machine to you.
2. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
3.When is the delivery time?
A: If the machine you will order is standard machine, we can ready the machine within 15days. if some special machines will be some longer. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.we will give you the answer accordingly.
4. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
5. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.
6. What is the package of the machines?
A: The machines standard will be packed in plywood case.
Contact Us
Похожие товары
FQ брендовая подходящая цветная игрушка деревянная детская 3d-головоломка
Легкий гранулированный Кальций-карбонат PCC 1250 mesh Caco3 для ПВХ-труб, китайский осажденный Кальций-карбонат для продажи
99,00 $ - 295,00 $
Опора для заднего бампера подходит KIA SOUL 09 866302K010
Высокое сопротивление механическому воздействию нейлоновая плёнка для соуса упаковка рулона пленки
Прямая поставка с завода доска для дрифта для подростков и начинающих 2808 детский четырехколесный скейтборд из клена с двойным наклоном, один дро
3,50 $ - 6,50 $

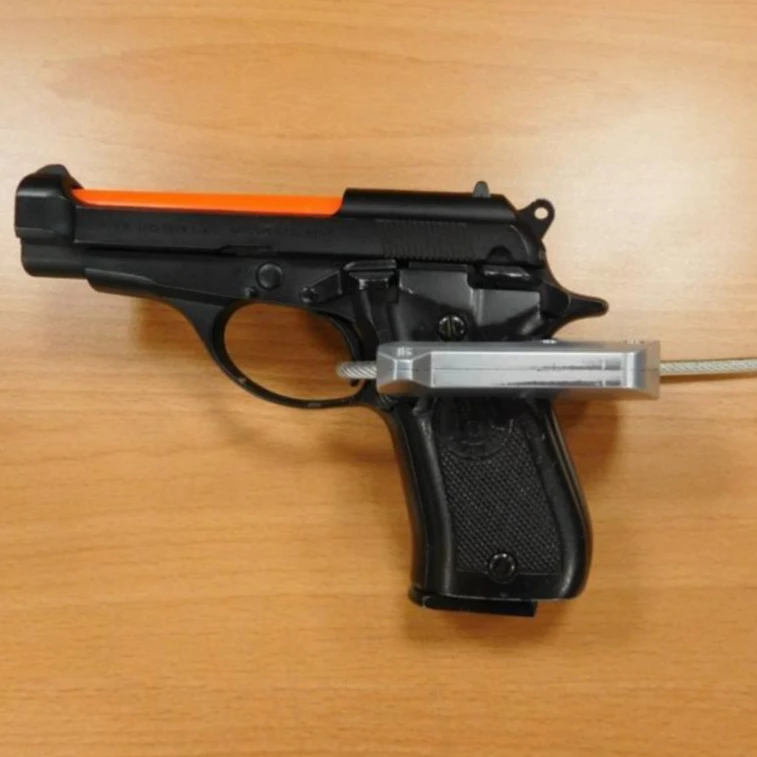

Длина кабеля Блокировка блокировки
