industrial  embedded fanless computer with Apollo lake N4200 CPU and on board 4G RAM 6*COM

Product Description



Features of Our industrial computer



1.Intel Skylake/Kaby lake-U serial Processor;

2.onboard 2G\\4G memory;

3.5*RS-232,1*RS-485/RS-422;

4.onboard 32/64/128G SSD storage(optional);;

5.DC12V Power supply(wide voltage 8-36V Power supply for optional)

6.size: 209*122*70mm



Specification of our industrial computer

Model

PBOX-E8

Chassis

Colour

Silver

Dimension

209mm*122mm*70mm(L*W*H)

Construction

Fanless

material

High quality Aluminum Alloy

Motherboard

Chip set

Intel Kaby lake-U SOC

Processor

Skylake/Kaby lake-Ui3-6100/i5-6200/7200u//i7-6500u/7500u serial CPU

Graphics

Onboard Intel® HD Graphics (depends on processor)

Memory

Onboard DDR3 2GB/4GB Ram,can add one Ram socket , max to be 16GB Ram

Expansion

2*Mini-PCIe slot,Support PCIe and USB device

Storage

SSD

Support 1*MSATA SSD

HDD

1*SATA3.0

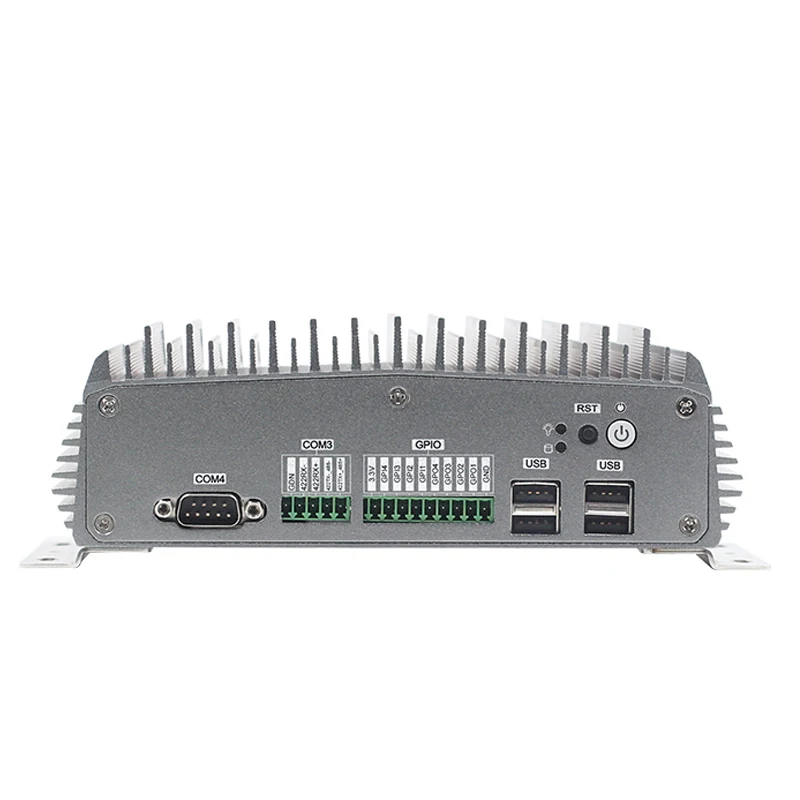

Front I / O

GPIO

1*GPIO

COM

1*COM(RS232),1*COM(RS422/485Phoenix terminal interface )

USB

4*USB 2.0

button

1* fast switch button

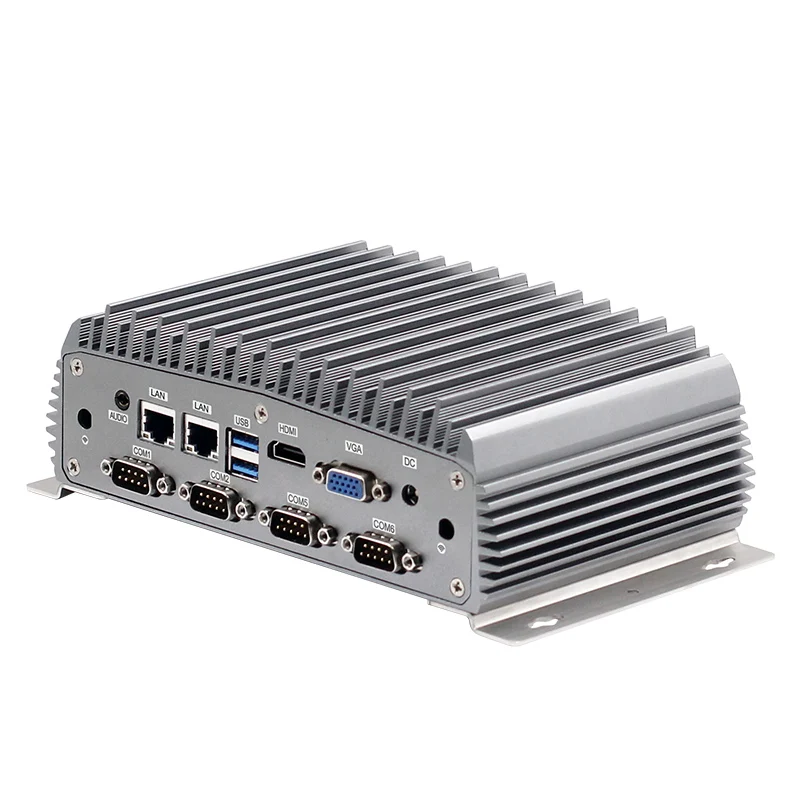

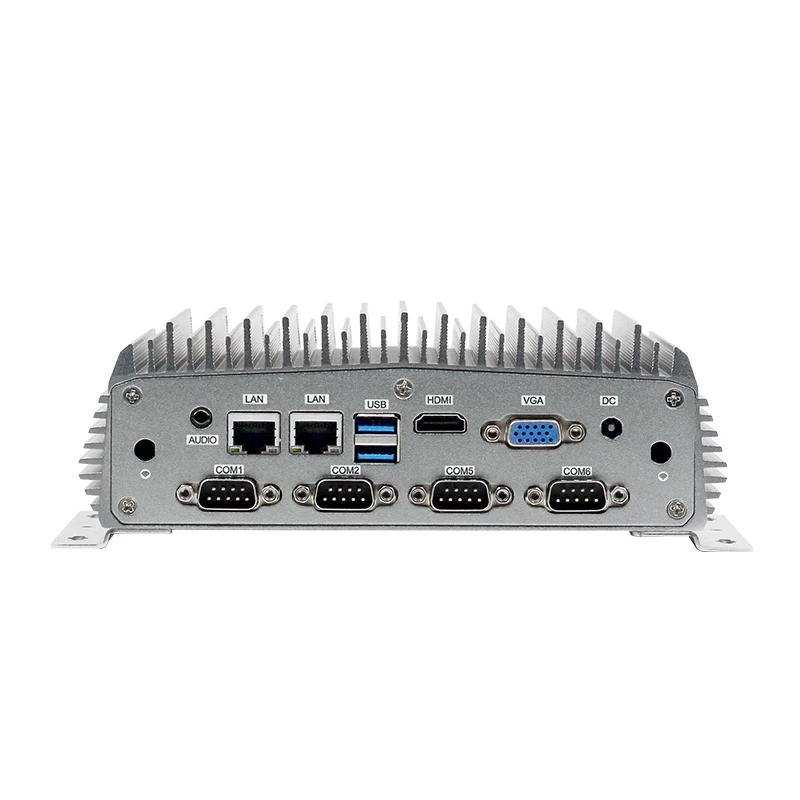

Back I/O

Video

1*MIC,1*AUDIO

COM

4*COM(RS232)

Display

1 * HDMI, 1 * VGA

USB

2*USB 3.0

Connector

1*DC power connector,2*WIFI antenna interface(Optional)

Lan

2*1000M Lan

Power

Power supply

DC12V Power supply(wide voltage 8-36V Power supply for optional)

Reliability

Operating Temp.

0℃~45℃

Storage Temp.

-20℃~70℃

Relative humidity

5%-95%, no condensing

Vibration

0.5g rms/5-500HZ/random/operating

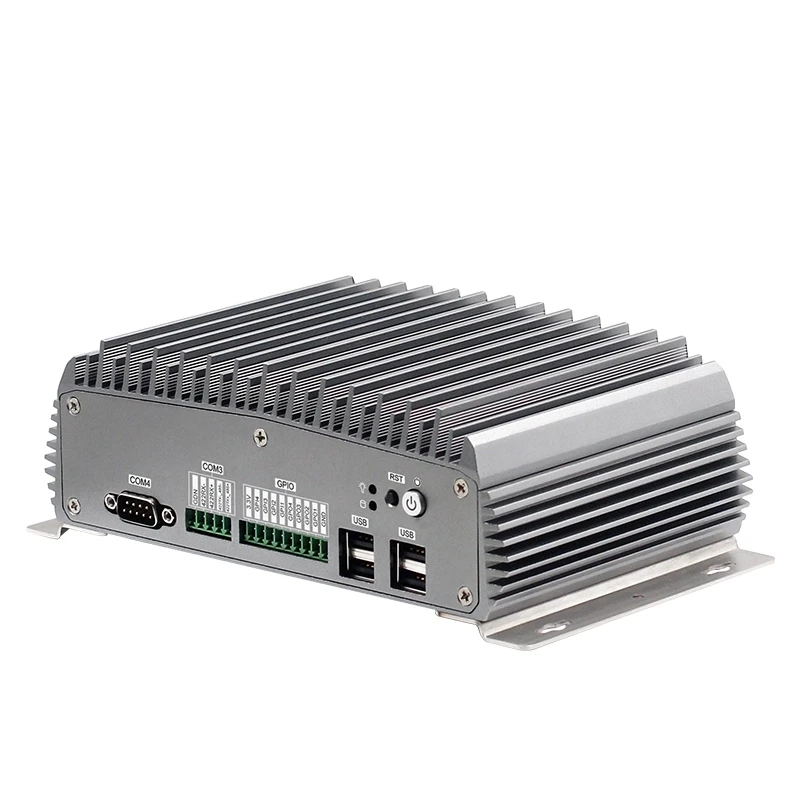

Detailed Images









Packaging & Shipping



 1.Delivery      Time: 1 ~ 3 Days for one sample, 25 Working days for a large quantity.

 2.Packaging Ways: Each pc for one neutral box,

 3.Shipping    Ways: For small amount, we advise our customer to take DHL, Fedex, UPS.

                                  For a large quantity, we can support to ship by air or by sea.




Our Services



1.We can provide OEM/ODM services .

2.We can sell one sample for your test .

3.High-quality product and competitive price.

4.1 years Warranty, the second year and the third year,

   we can repair it ,but we will charge for the parts that need to change.



Company Information




FAQ



Q1: Can you put Our brand name (logo) on these products
A1:  Yes,.We can support OEM/ODM service, the process of customization is following:
       1:provide your specific requirement.    2:our design engineer draw the design draft.
       3:you confirm the design draft.            4.we start produce it.



Q2:  What payment method do you accept?
A2:   T/T,Western Union,PayPal.



Q3: What is the Minimum Order Quantity(MOQ)?
A3:  We can sell one piece sample for your test.



Q4: What is the lead time of your products?
A4:  1-3 days for one sample, 15 working days for a large quantity.



Q5: Will it be ok to run the device 24 hrs a day 7 days a week, just like a desktop pc? will it be overheated?
A5: There's no problem with running the device 24/7. I've done it for about a month and have had no problems. Just set your monitor to sleep when you're not using the computer.



Q6: How does your factory do related quality control?
A6: Quality is top priority. We firstly check the motherboard quality after manufacturing, secondly check the computer before storage in warehouse and thirdly check before shipping out.



Q7: What’s the warranty of motherboard or MINI PC?
A7: Non-artificial damage,1 years warranty,the second year and the third year,
   we can repair it free. but we will charge for the parts that need to change.



Q8: Are you a factory or trading company?
A8: We are the professional consumer electronics manufacturer which located in SHENZHEN, China



Q9: If we come to China, can you arrange the visiting to your factory?
A9: We warmly welcome and look forward to your visiting to our factory at any time.



"Quality assurance" is our eternal pursuit and promise. Welcome your any inquiry about

our products. We will try our best to help you.
