Автоматизированная система оплаты парковки для системы безналичных карт
- Категория: >>>
- Поставщик: Shenzhen Cardlan Technology Co. LtdShenzhen Ltd
Сохранить в закладки 62170063272:
Описание и отзывы
Характеристики

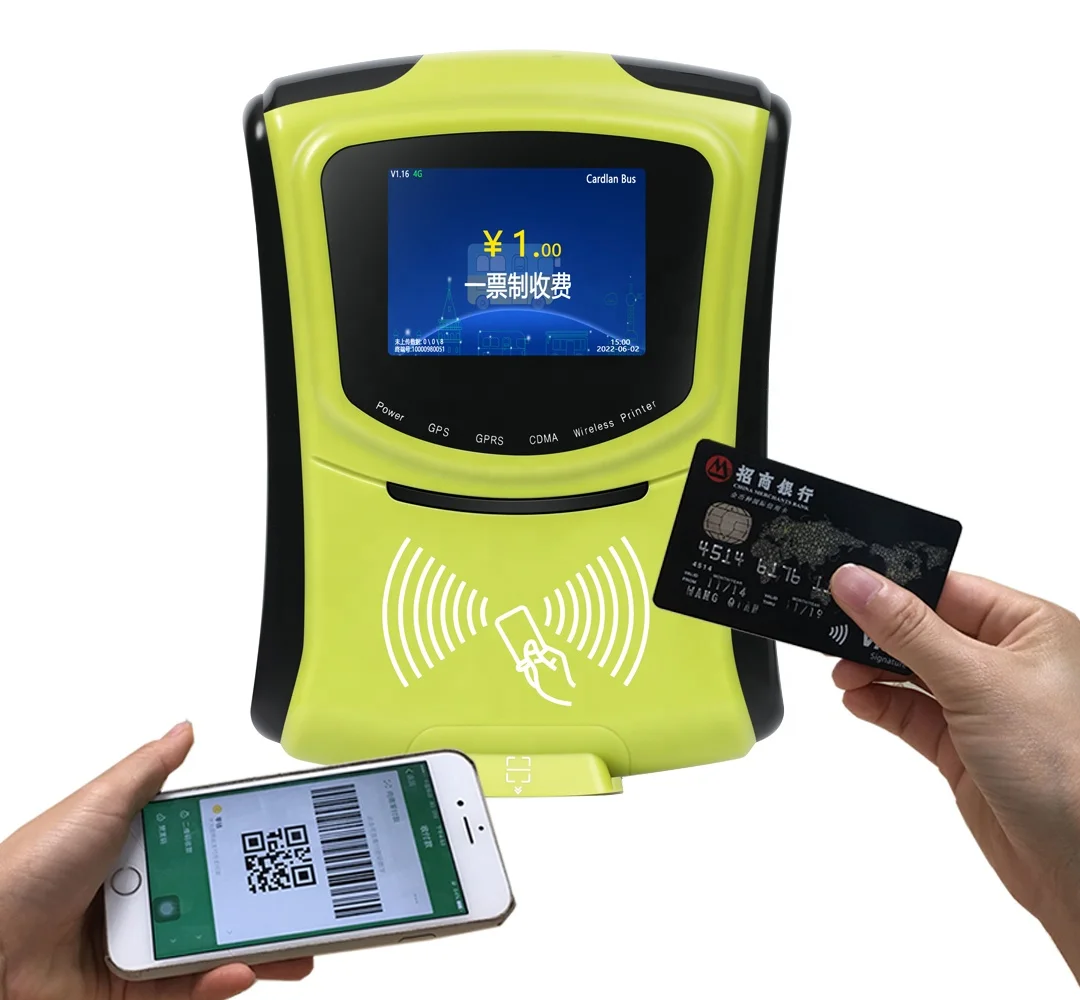

13.56Mhz RFID card reader 4G WIFI POS terminal NFC bus validator GPS bus fare box GPRS POS system with free SDK
Company Information
Factory Card Reader with qr code scaner
Shenzhen Cardlan Technology Co. Ltd was established in 2000 in Shenzhen Longgang District.We specialize in manufacturing high-quality bus POS systems, fare collection POS systems, urban all-in-one card systems, intelligent internet information systems and other RFID systems. Cardlan has done so many kinds of project in foreign countries, such as Myanmar, Cambodia, United Kingdom, Chile, Zimbabwe, Thailand, United States, Tajikistan,Dubai, Russia,Qatar...
CL1306 details
Certifications
Quality control
Strictly hightemperature/low temperature testing, Vibration testing, to make sure products can meet the extreme environment on bus.

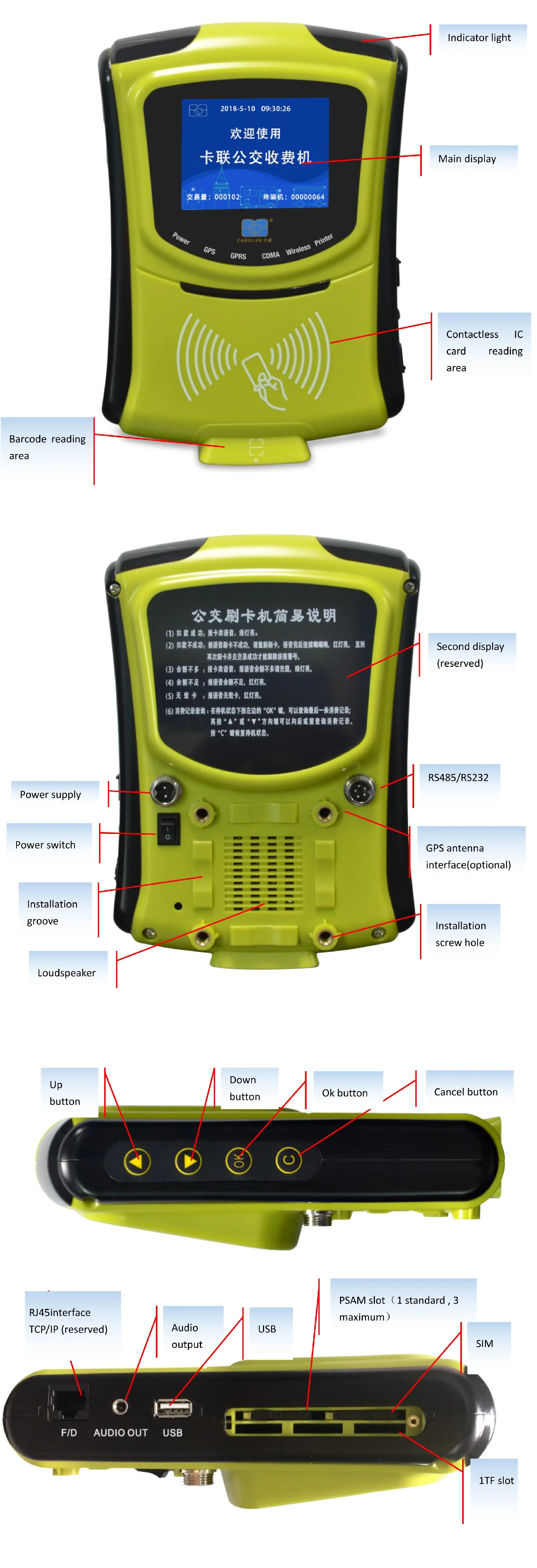

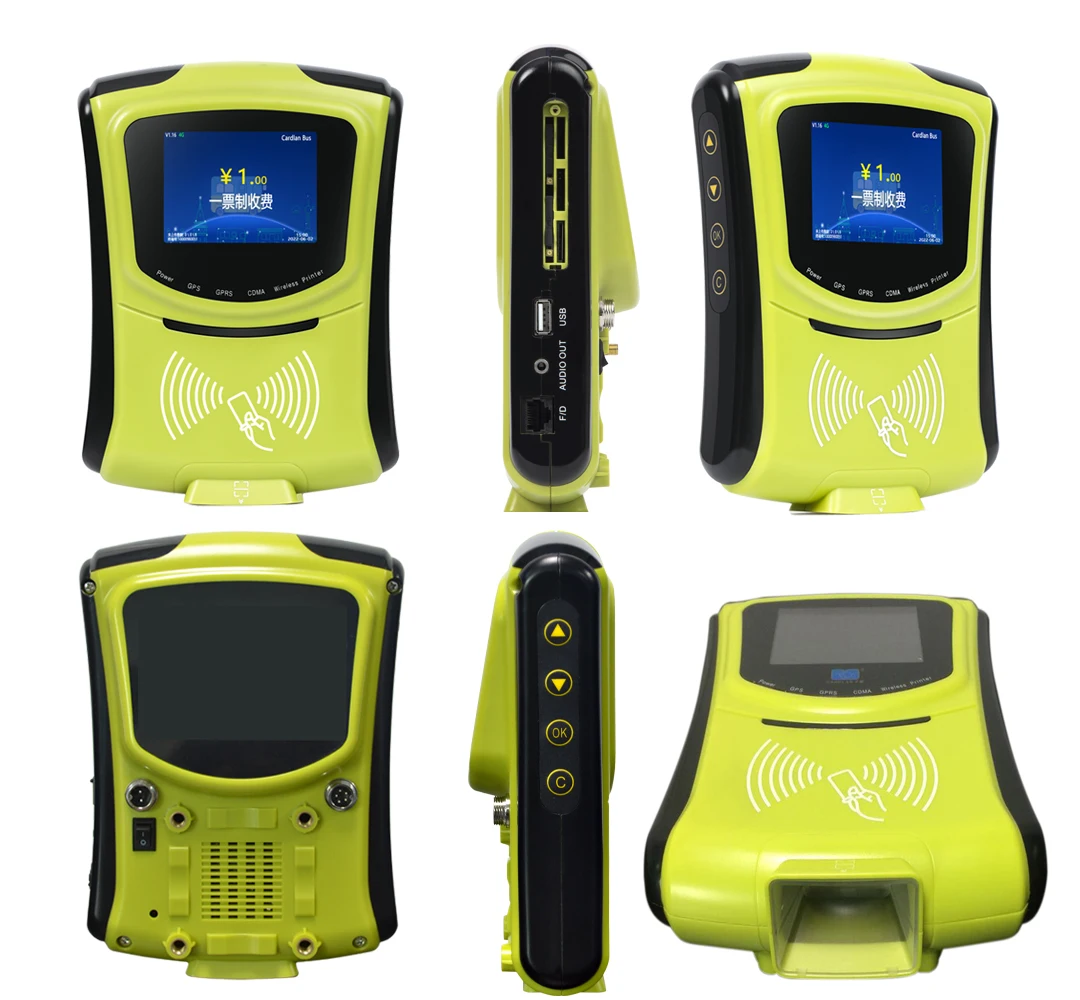

Detailed Images
Product Description
Technical specifications:
| Model: | CL-1306 card reader for public transportation | Data capacity: | 259840 pcs of detailed data for console storage, unlimited data at GPRS storage |
| Dimension: | 151*195*48 mm | Card capacity: | 91,880,000 pcs |
| Material: | Engineering Plastics(Anti static electricity coating design, be protected from high-frequency interference) | Black list: | 91,880,000 pcs (download thru PC with USB) |
| Display: | 3.5 inch LCD display, 320x240 | Working Voltage: | DC 8V-50V |
| Operating system: | Linux2.6.17.14 | Data collection: | WIFI/GPRS wireless collection and USB local collection |
| CPU: | ARM9 core processor,240Mhz | Operating temperature: | -40℃~75℃ |
| Memory: | 32MBytes SDRAM,128MB NAND Flash main memory | Storage temperature: | -40℃~85℃ |
Indicator light: | Red and green | Humidity: | 0-90% RH non condensing |
| Sound prompting: | Buzzer,Single channel loudspeaker | Keypad: | 4 operation button, on the rear side of the machine |
| Flash Memory: | 64 Mbyte, can be extended to 256 Mbyte | RFID: | Can read and write ISO14443 Type A B |
| Read card distance: | 0~50mm | Frequency: | 13.56MHz |
| Supporting card: | Mifare 1 card, Mifare DESfire EV1, CPU card | Interfaces/Connectors: | RS232, USB |
Printing module: | Support external POS58printer (need 5pinaviation plug turn DB9 cable) | Width of receipt: | Thermal paper, 58 mm |
| Power consumption: | ≤10 W | Communication Modules: | GPRS(900Mhz/1800Mhz), or 2GCDMA(800Mhz),4G,3G, WCDMA |
| WIFI: | Supporting 802.11n/b/g standards,150Mbps,2.4Ghz | Voice Prompt: | 16KHz,16bit single channel voice prompt |
| Upgrading: | Connect USB to PC, upgrade with GPRS | Position way: | GPS positioning |
Working Mode: | Stand-alone or connect to server | Warning Function: | Warning when card balance is insufficient or data memory is full |
PROVIDE FREE SDK, SUPPORT SECONDARY DEVELOPMENT TO TOPOLOGY YOUR OWN SPECIFIC FUNCTION !
Packaging & Shipping
Package for Bus card reader:
1. Each device with foam into a box.
2. 1 unit / gift box; 21 boxes / carton, carton size 57*51*30 cm.
3. 60 set of cables / carton, 56 kgs / carton, carton size 58*38*51 cm.
4. Packed as customers' request.
FAQ
A: Are you manufacturer?
-Yes, we are a manufacturer, which is focus on R&D(research and develop) bus pos system with hardware&software since 2000.
A: Would you provide SDK?
-Yes, we will offer free SDK for your own topology after (sample) order setted.
A: What warranty for the products?
-According to our warranty policy, we will provide 12 months warranty time from the shipment date for all products (Excluded the consumable parts).
A: What is the minimum order?
-We can accept one unit for standard products, for sample and manager system test.
A: Can I get the free sample?
-Sorry, generally we would not provide free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation.
A: Do you accept Paypal?
-Yes, PayPal is available. Besides, we accept Western Union, T/T, L/C, Secure payment (Escrow Service from Alibaba) and so on.
A: What's the delivery time?
-Generally, sample can be shipped in 2-3 working days after payment. For quantity, the leading time will be 1-4 weeks, depends on exact quantity and model.
A: Which way to deliver the goods?
-By Express: DHL UPS TNT FEDEX or ARAMEX EMS E-packing.
-By Sea: Inform us the Sea Port to check the ship line.
-By Air: Inform us the Airport to check the flight.
-Or pick up by the customers.
A: What the after sale service?
-a. Our all products will provide 12 months warranty;
-b. Enough stock spare parts for guarantee;
-c. Professional engineers provide 7*24 online service; If required, our engineers can provide local service in field;
-d. As for the returned failure products, we will fix it and return to the customers in one week after we receive it;
-e. We can remoting control to helps you solve problems.
More info & Contact
Похожие товары

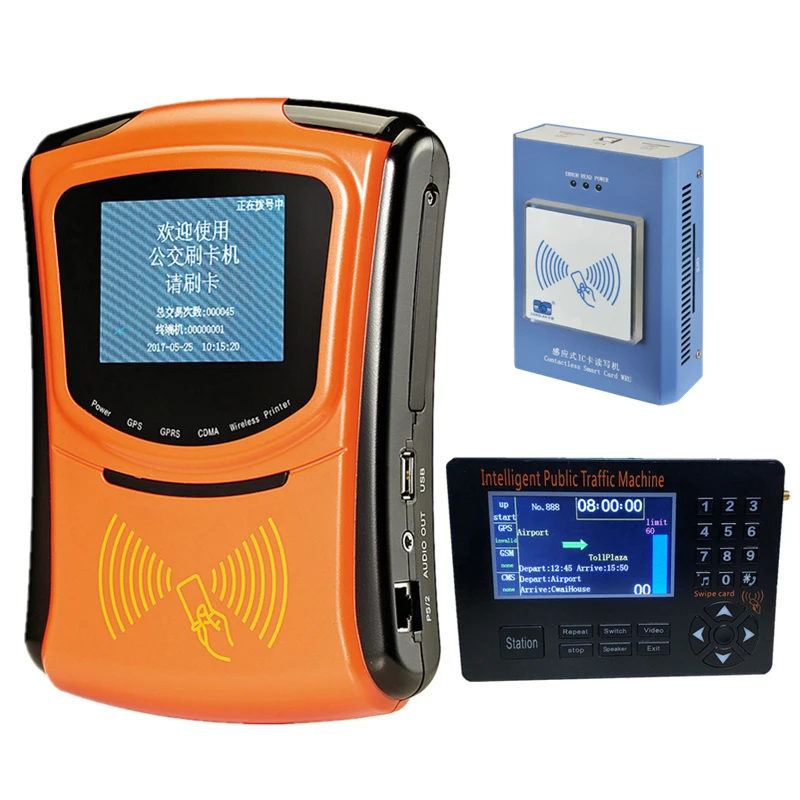

Поставщик CARDLAN USB смарт-автобус валидатор Быстрая система оплаты Индукционная IC NFC QR-сканер для подсчета стоимости проезда в автобусе
28 699,90-40 179,86 ₽
Фастфуд интерактивный Android Windows киоск самообслуживания для заказа оплаты с термопринтером
82 540,92-95 283,67 ₽
OEM 23 8 дюймов POS машина сенсорный терминал системы монитор с USB обучение
13 087,16-13 546,36 ₽

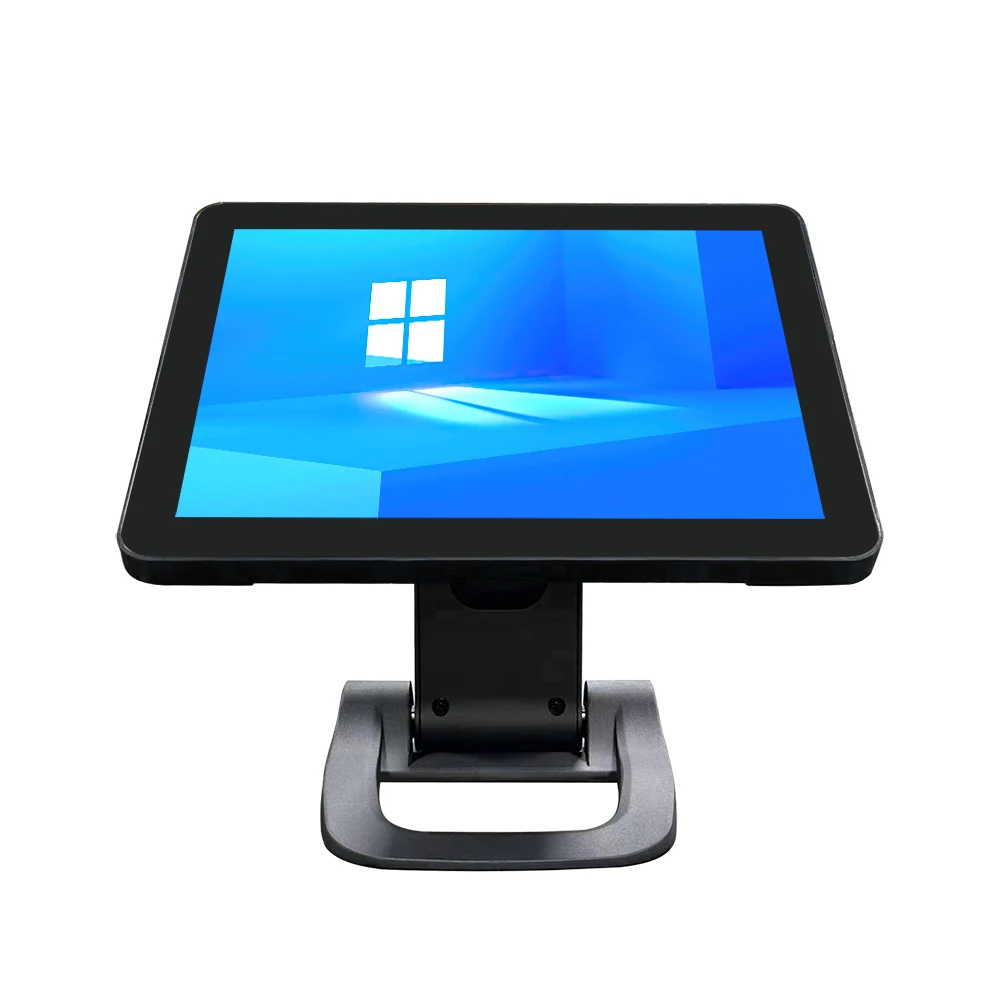

Заводская цена 15 6 дюймов Складная система pos

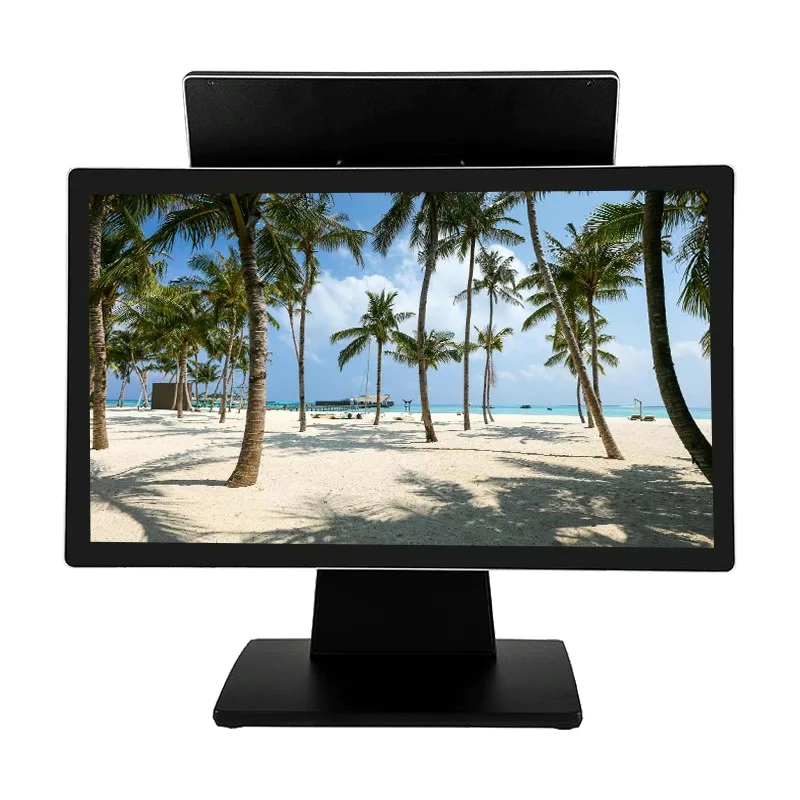

Новый дизайн 18 5 дюймов настольный емкостный сенсорный экран двойной POS терминал машина
21 352,73-25 370,72 ₽
Android restaurant pos software system с программным обеспечением
9 183,97-11 479,96 ₽

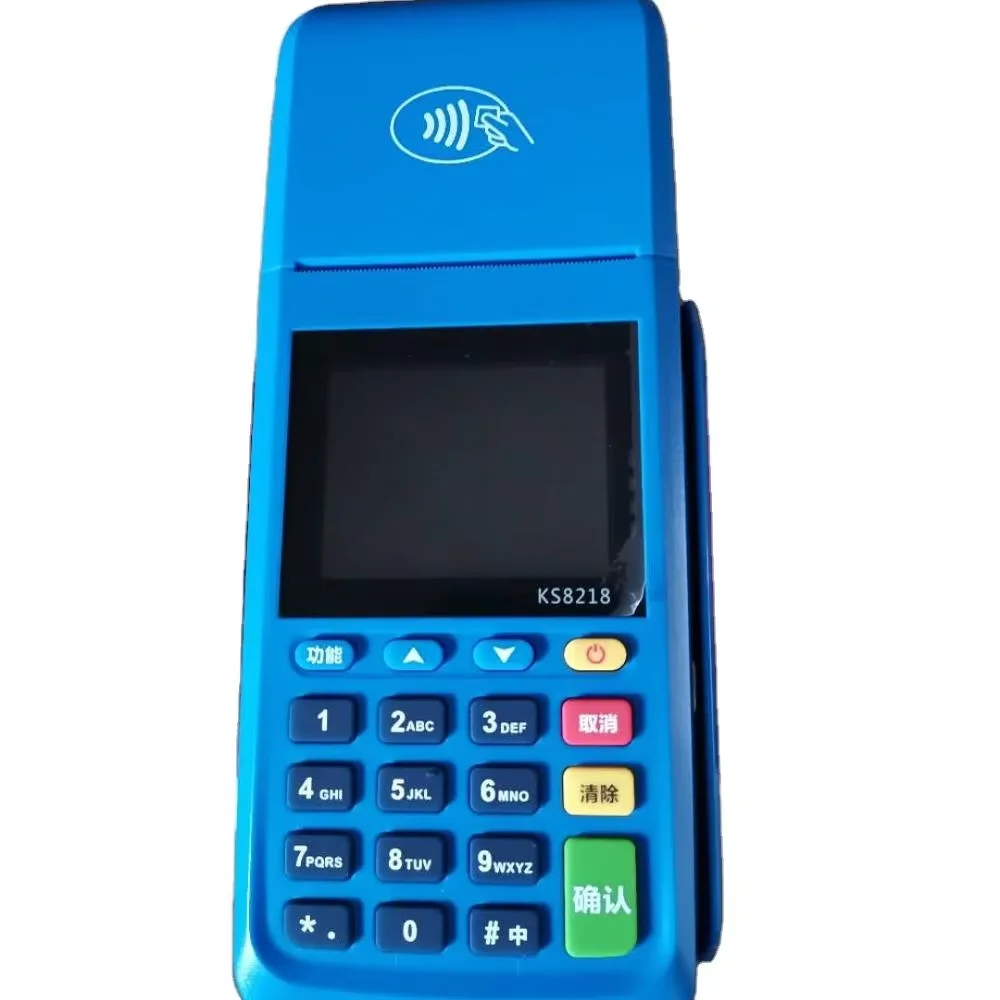

Новый терминал SZZT pos KS8218 полный и запасные части для ремонта
