HONGSEN латунный шаровой клапан и Холодильный

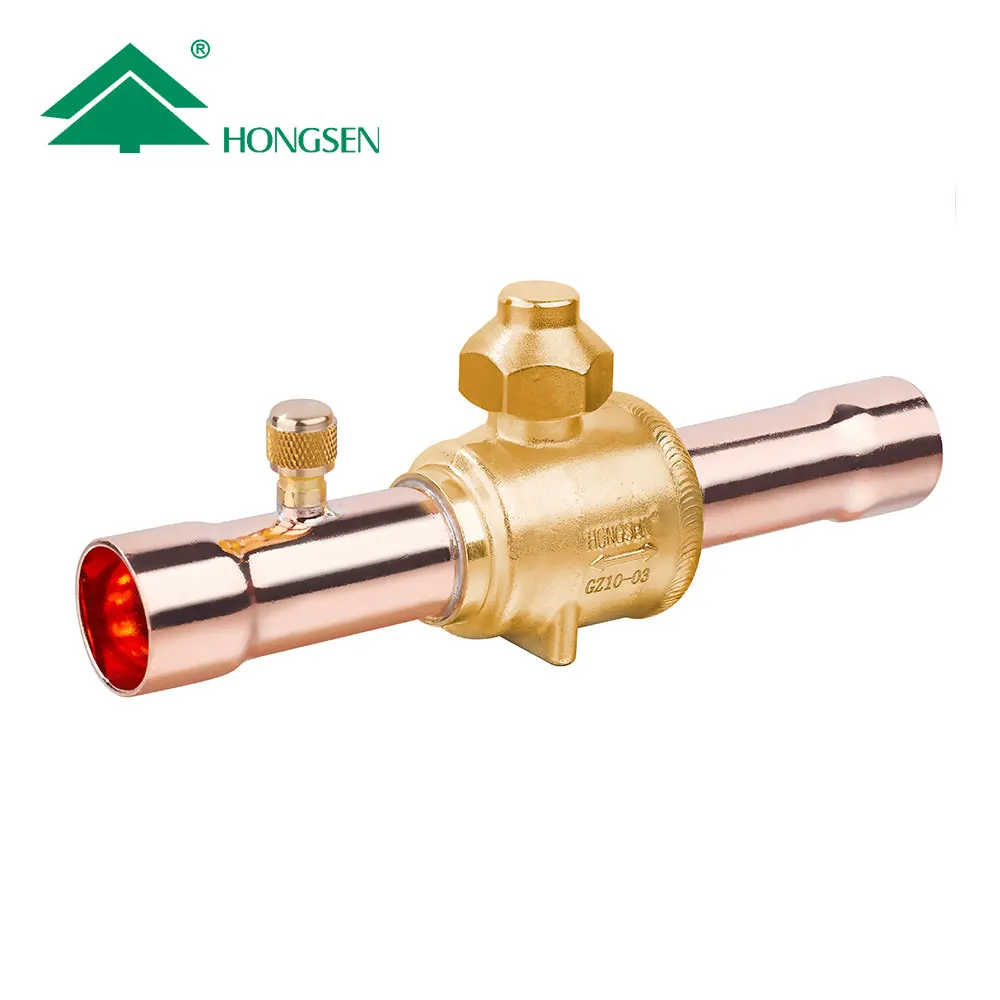

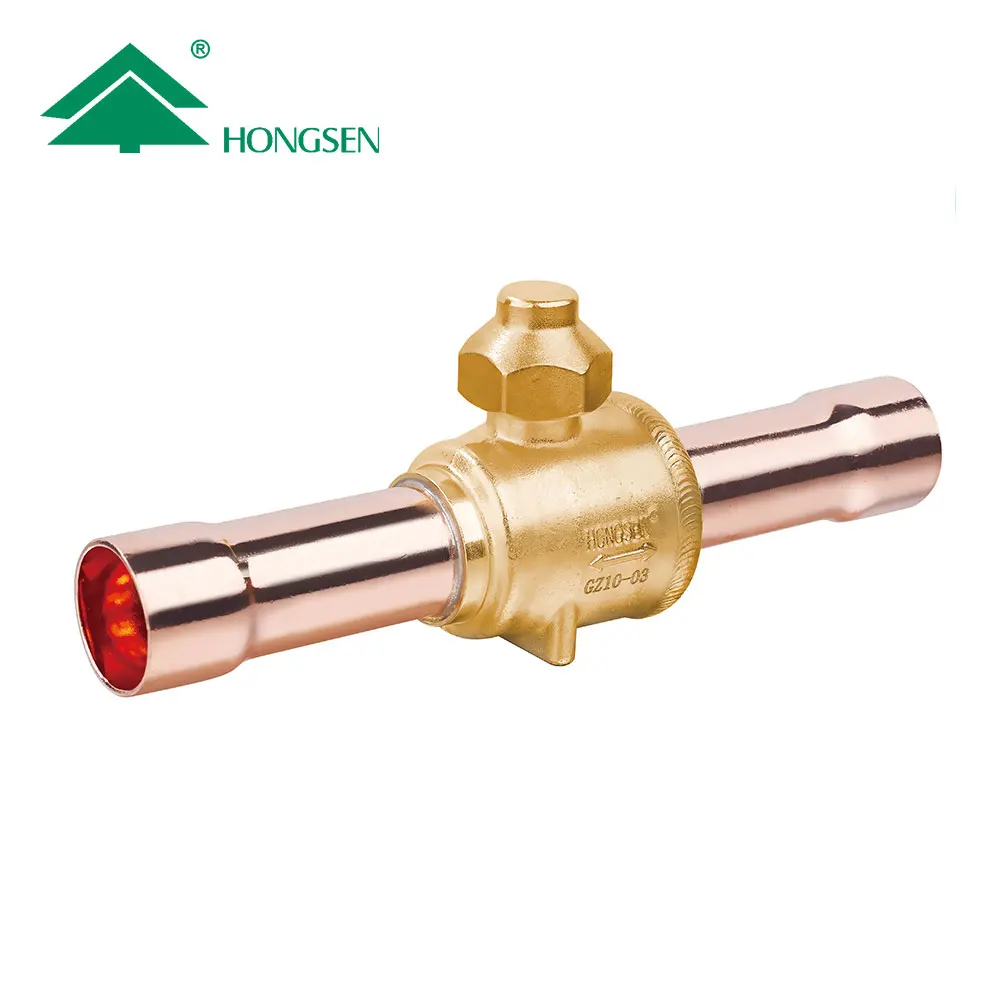

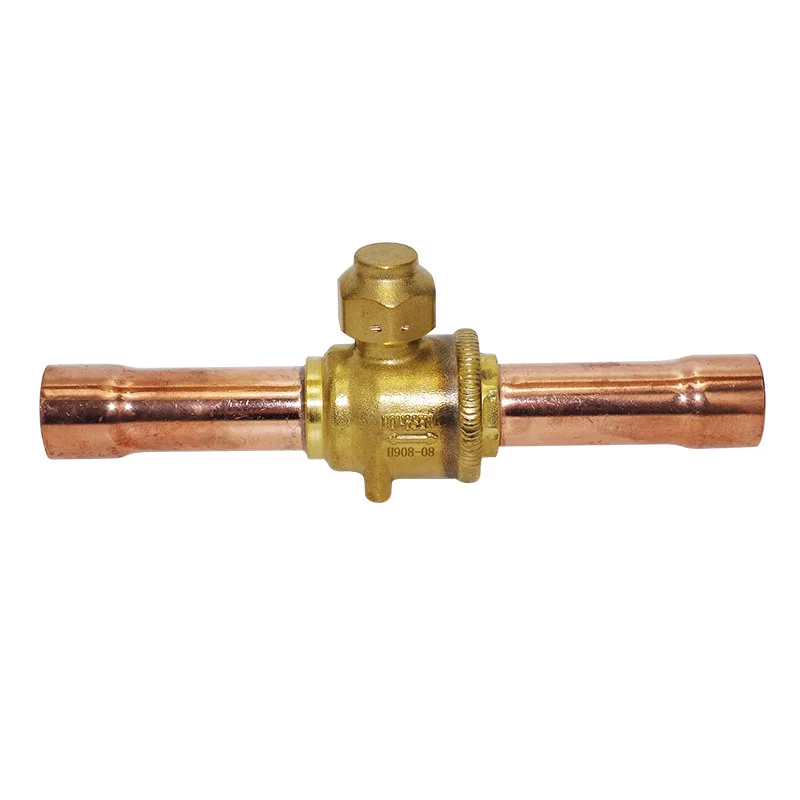

Model GBC ball valve is a manually regulated shut-off valve, which is applicable to two-direction flow.
· Model GBC ball valve is used on the liquid, air suction and hot vapor piping of the freezer, cold store and air conditioning unit.
· The valve seat of Model GBC ball valve is well sealed with perfect sealing performance.
· Model GBC ball valve is a through-type ball valve with maximum flow rate and wide scope of operating temperature.

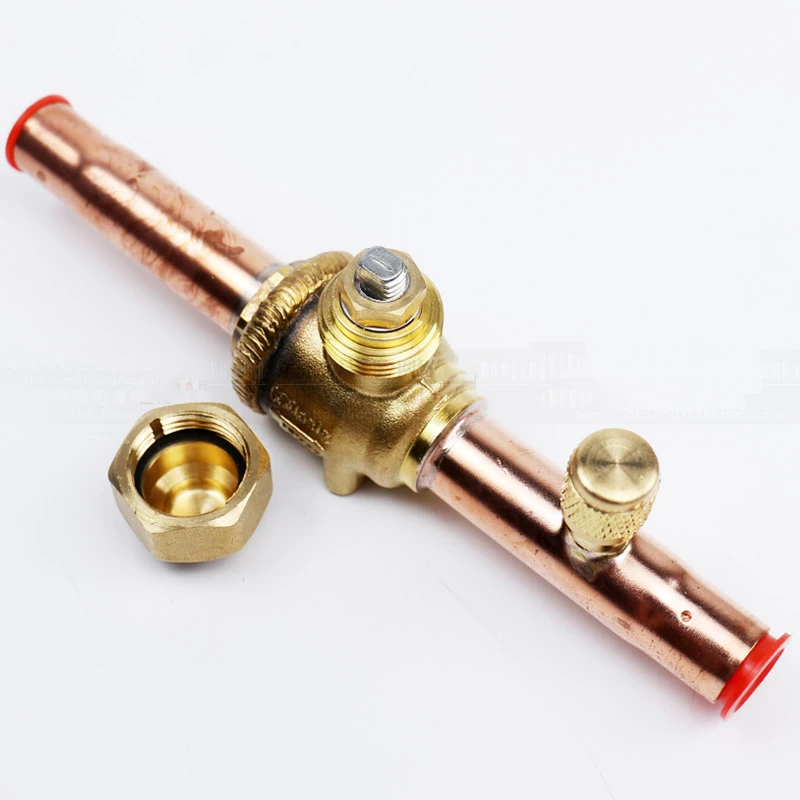

· Model GBC ball valve is equipped with a secondary sealing cap and the metal wire could be used to prevent the sealing cap from missing and avoid any mistake operation in maintenance.

Features:

· No pressure drop in flow.
· Only turn 1/4 circle to make valve full open or full close.
· Turning stop for full open or full close.
· Full Open and Full Close mark on top of valve stem.
· Two-direction flow is available.
· Argon arc welded structure.
· Explosion-proof valve stem design.
· Modified PTFE sealing.
· Inside liquid accumulation is avoided.
· Could be mounted on the control panel.

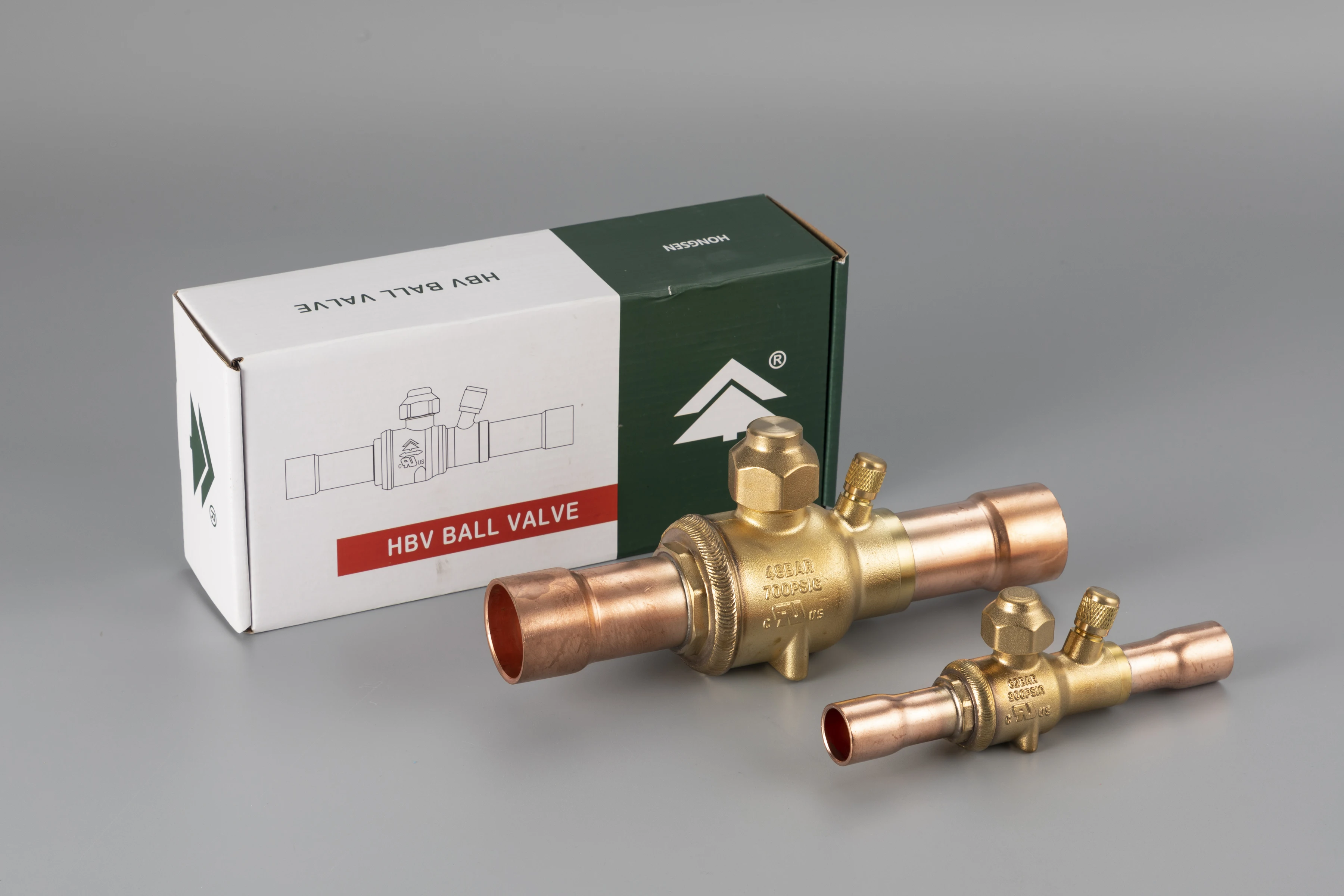

Packaging Details:  Hongsen package or neutral package

Shippment:  By sea or air

Port:  Ningbo, Shanghai

Zhejiang Hongsen Machinery Co.,Ltd was founded in 1992, which devoted itself in the R&D and manufacture of various valves in refrigerantion and air condition system.

-  Hongsen Machinery covers a land area fo 50000 square meters. There are over 400 staffs and workers  including a specialty team of ten techicians.

-  Hongsen Machinery has a close cooperation with the professors and experts in Zhejiang University, Shanghai Jiao Tong univercity and several senior engineers of leading domestic OEMs are invited as the consultants of the company. A number of techinical talents are trained in production, development and quality control and grow up in the company. At present, Hongsen Machinery is capable to manufacture multiple categories of refrigeration and A/C accessory parts such as solenoid valve series, ball valve series, sight glass series, expansion valve series and shut off valve series. Hongsen Machinery becomes one company integrating R&D, production and marketing into one.

Q: How about the quality?

A: Each item will be checked twice before packing to insure 100% qualified. We are on the way of getting better all the time!

Q:  Are you manufacture?

A:  - Yes, we are the direct manufacture and we have decidated in refrigeration for more than 20 years.

Q: How many countries you have exported?

A: We have exported to more than 50 countries, like Greece, Spain, Indonesia, India and so on.

Q: Can i make a trial order?

A:  Yes, trial order is welcomed, we are very confident with our quality.
