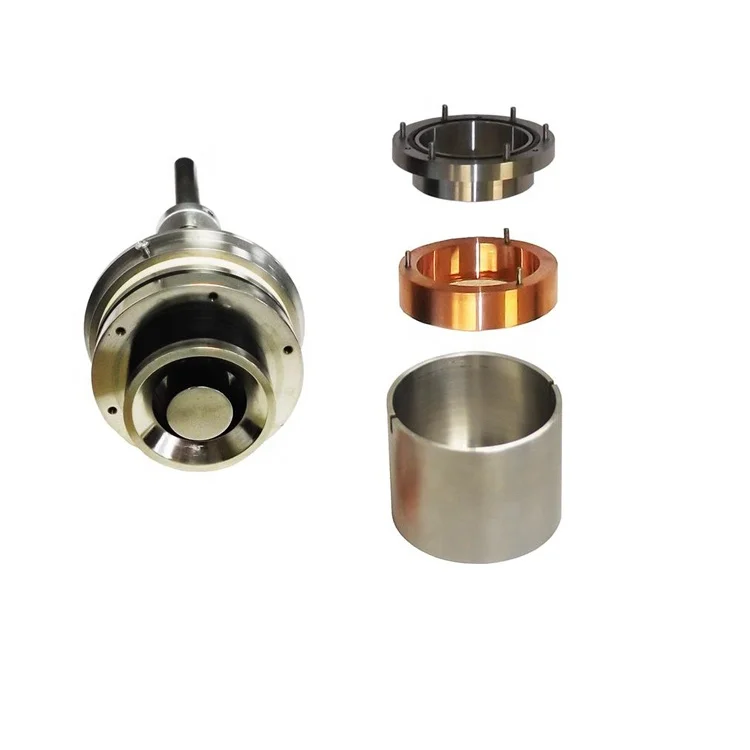

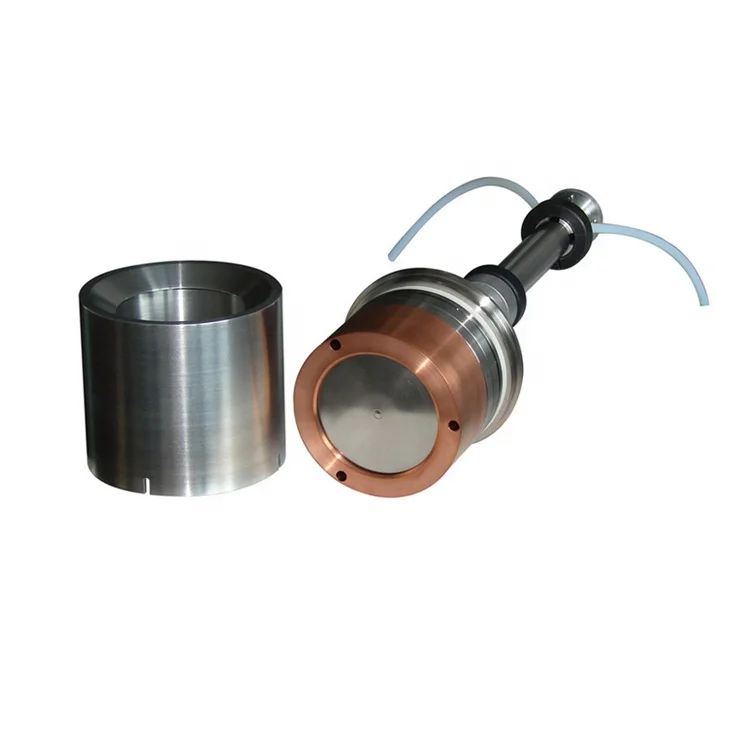

2 дюймов 300 Вт с водяным охлаждением магнетрон RF генератор напыление головы
- Категория: >>>
- Поставщик: Zhengzhou CY Scientific Instrument Co. Ltd.
Сохранить в закладки 62170507734:
Описание и отзывы
Характеристики
2" High Vacuum Magnetron Sputter Source with Flexible Head & Quick Connector - HVMSS-SPC-2F

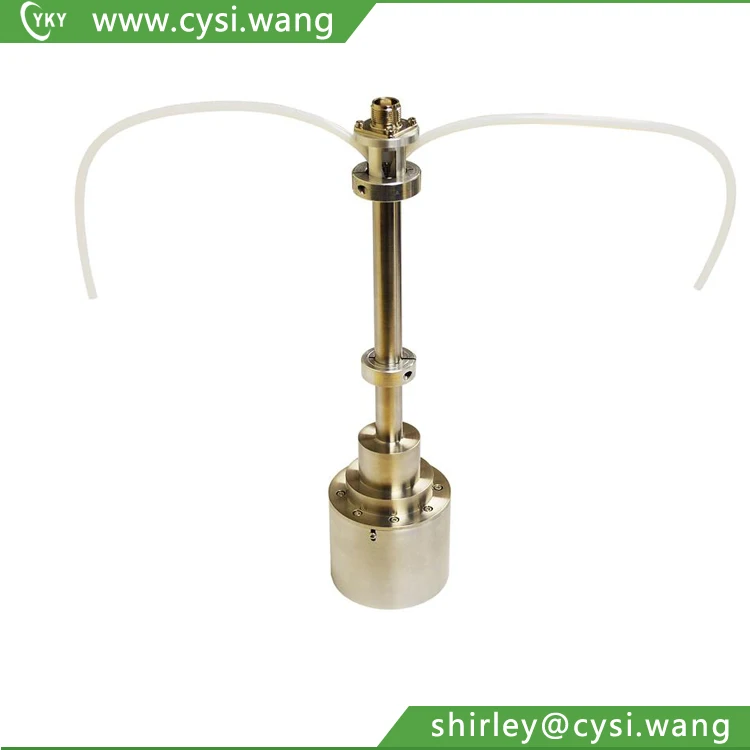

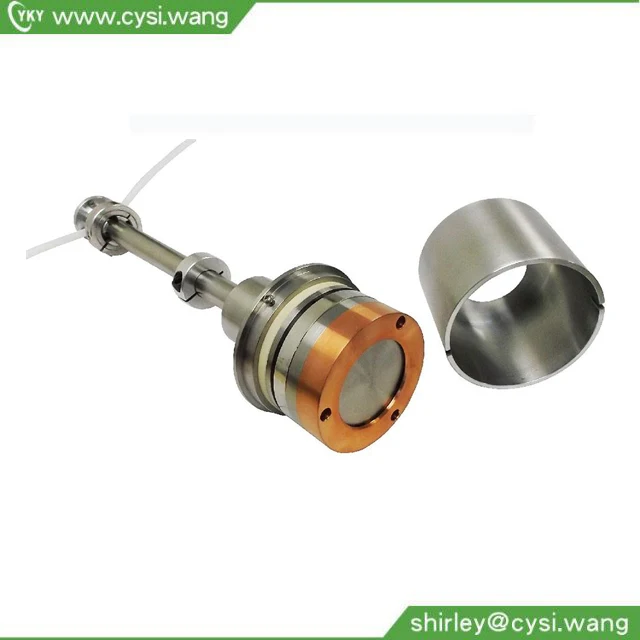

The HVMSS-SPC-2 is a 2" diam. circular magnetron sputtering gun which can accommodate a wide range of sputtering targets, such as metallic/insulating or magnetic/non-magnetic. The circular rare-earth NdFeB permanent magnet is implemented to ensure excellent film uniformity and target utilization. Such a sputtering gun is easy to operate and maintain. Installation is straight forward and it can be operated with either DC or RF power supply.
Features

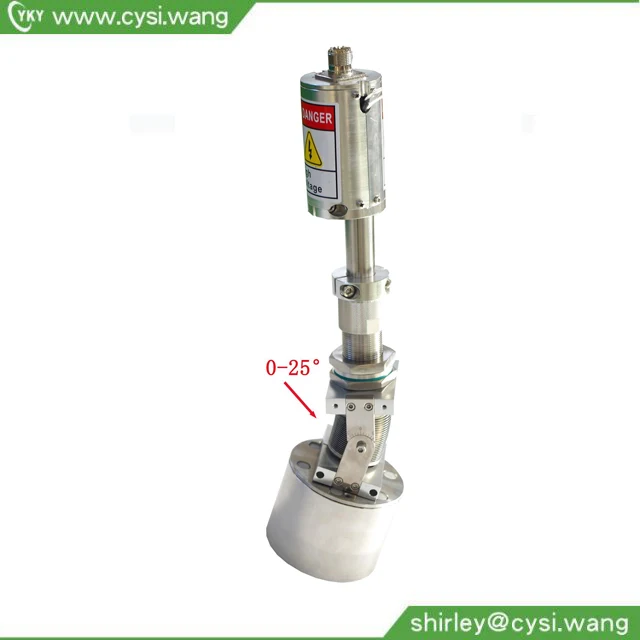

| The sputtering head can be tilted +/- 25 degrees for adjusting the incidence angle of bombardments to improve the sputtering yield. Made of high-quality materials of stainless steel and ceramics. Electromagnetic finite element calculations are used in the design of the permanent magnetic assembly to achieve high field strength and uniform field profile. The magnet is coated with protective material against cooling water corrosion to maximize durability. Standard RF connector, which matches with a wide range of DC and RF sputtering power supplies. The low impedance sputtering heads are easily interfaceable with an external power supply. Easy to install a standard fitting with included quick connector

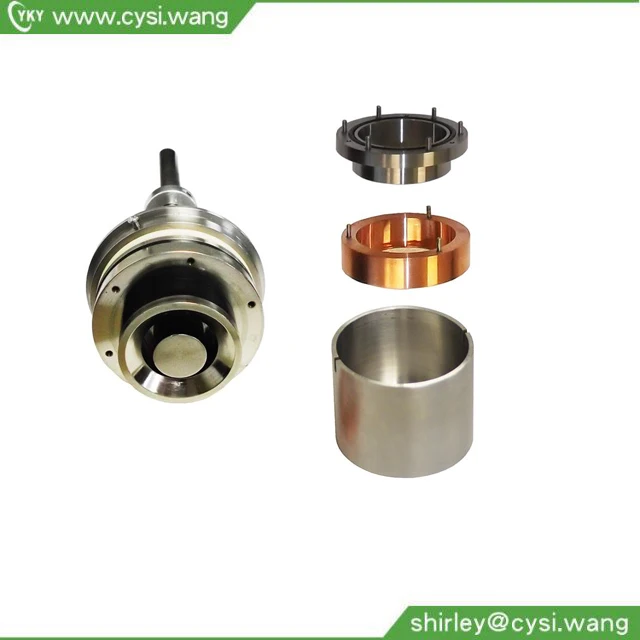

2" Copper Backing Plate (EQ-CBP-2) is included. Target replacement is easy and no need to adjust the gun to fit targets with different height. |
Power Requirement | DC (Max.) 500 W RF (Max.) 300 W |

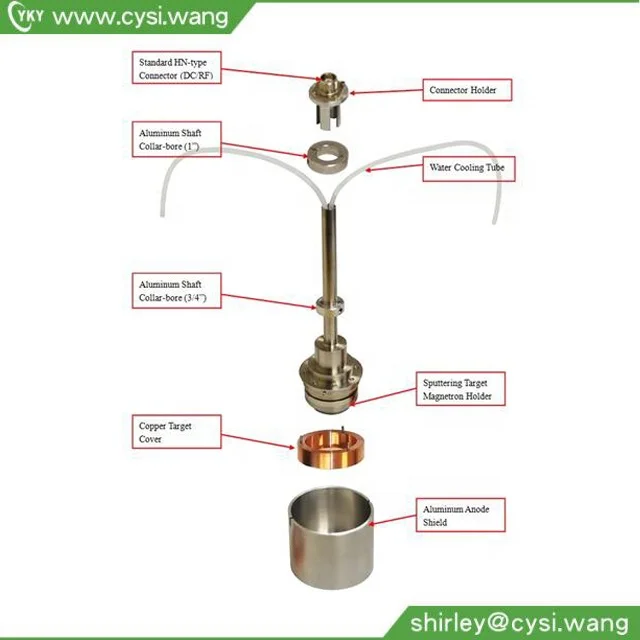

Electrical Connection Type | Standard HN Female Connector is included (DC and RF, Pic.1) Optional SL16 cable Connector Optional 148 cm RF cable with SL6 connector |
Sputtering Current (Max.) | 5 Amp |
Sputtering Voltage | 200-1000 V |
Sputtering Pressure | 1-1000 mTorr |
Dimensions | Anode Shield Diameter: 86mm |
| Diameter: 2.0" (50.8mm), Thickness: up to 1/4" for non-magnetic target; up to 1/16" for magnetic target Utilization: up to 30% Magnet: NdFeB Rare Earth Magnet |
| Flow Rate: 0.8 GPM, filtered Water Inlet Temperature: <20 C Water tubing: 6mm quick disconnect. |
Mounting | Feedthrough: 3/4" O.D.tube |
Our Services
1. Factory prices with the best quality.
2. One year free-of-charge maintenance for all the dental equipment
3. Customized service for special demand
4. Fast and flexible delivery, by sea, by air, by express
5. Quick response within 24 hours
How to order
1. If you are interested in our products, please tell us the model number and quantity.
2. We will make a proforma invoice for your order.
3. We will deliver the product ASAP on receipt of the payment
Guarantee
1. Guarantee for one year after shipment.
Payment
1. Western Union
2. PayPal
3. Secure Payment through Alibaba
4. Telegraphic transfer
5. L/C
Company Information
Zhengzhou CY Scientific Instrument Co., Ltd is mainly engaged in the research and development, design,
manufacturing and sales of equipment used in scientific researches. Independence and innovation is the
company's tenet.Our main products include: tube furnace, muffle furnace, plasma cleaner, vacuum furnace,
atmosphere furnace,CVD system and customized lab equipment.Welcome you come to visit us.
FAQ
1. Are you a manufacturer or trade company ?
Yes,you can assured that we are a professional manufacturer with full experience, and
doing business in domestic and oversea for many years.
2. We are not professional for operation and installation of your machine?
While this is not difficult to solve,our machine is easy to operate,no need to
professional training,and the instruction manual and vedio we make can teach you step by step.
What’s more,we have professional engineers , if needed we can send them to your side to solve the problem.
Also we supply online service at any time.
3. How about packaging ? if machine damaged,what should I do ?
Usually machine is packed with wooden case and standard export carton,
plywood carton or as your requirement. Before delivery we will also send you the packing photos of the goods to confirm with you. After agreed, we will deliver it.
Damage haven’t happened before, if happen,we will arrange replacement.
4. We haven’t do business before,how can I trust your company and machine ?
We have been GOLD supplier with no complaints on Alibaba.and our machine have exported to many countries all over the world
