Автогрейдер XCMG GR215, официальный дорожный, rc
90 000,00 $ - 100 000,00 $
Дорожное оборудование EUROII 210hp автогрейдер SEM921 лидер продаж в
- Категория: Motor Graders >>>
- Поставщик: Evangel Industrial (Shanghai) Co. Ltd.
Сохранить в закладки 62170874973:
Описание и отзывы
Характеристики

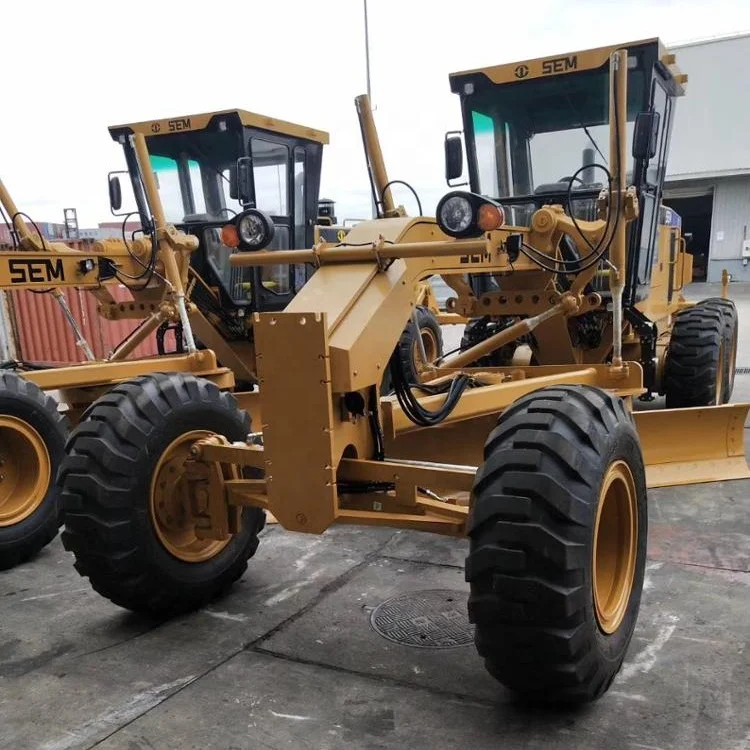

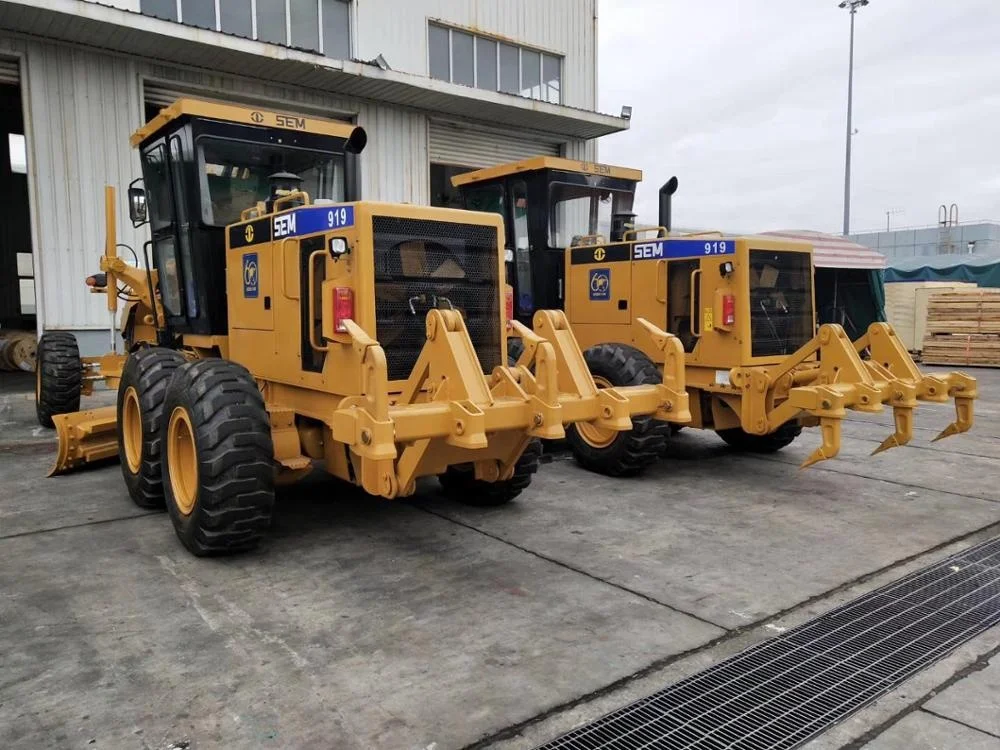

Road machinery 210hp motor grader SEM921 hot sale in Africa
Product Description
S-E-M Tandem Axle
Leveraging Ca-ter-pillar designing and experience on MG tandem axle
Improved bearing Layout and optimized load distribution with 4 planetary gears final drive
Less down time and reduced labor and service cost for maintenance and repairing
Longer service interval for lubrication oil change
Leading in class manufacturing and quality control level, mandatory performance testing before delivering to MG assembly line

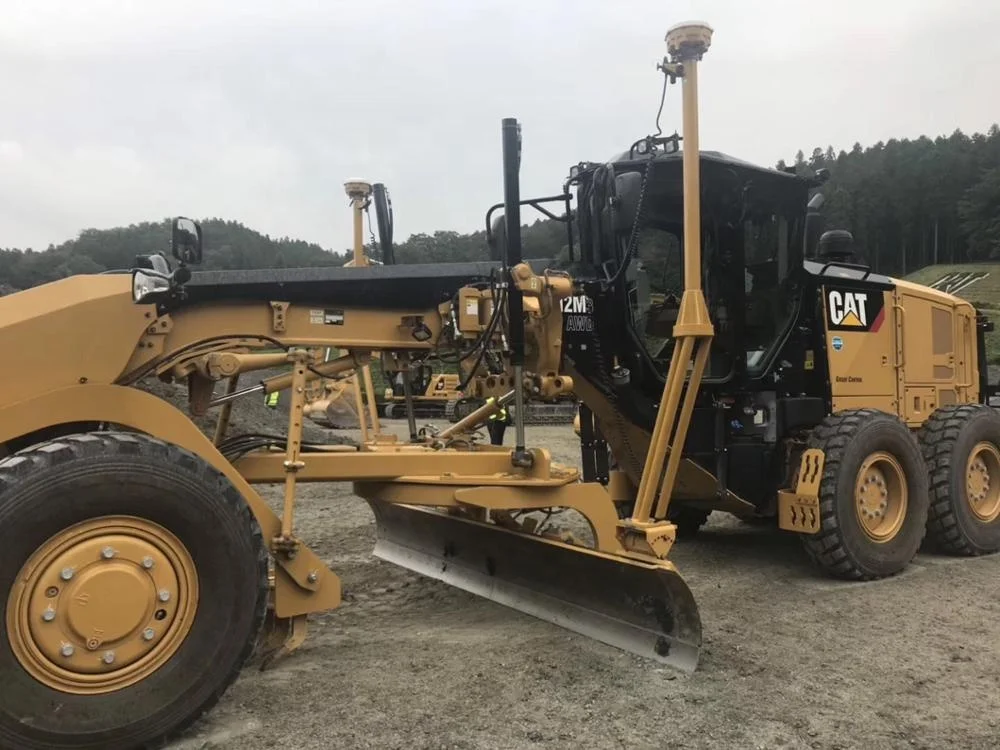

Control System
7 position link bar with electric over hydraulic control allows ease of operation from within the cab
Optimum blade reach capability, quick DCM re-positioning for greater reach for better working on high bank side slope
The link bar is essential for extending reach capability when cutting a bank slope or back slope of a ditch
Replaceable bushings reduce service time and cost
C-at Product
C-at Product will support your business, and accurately convey information of the equipment to relevant personnel in a timely and effective manner for your better equipment management.
Improved bearing Layout and optimized load distribution with 4 planetary gears final drive
Less down time and reduced labor and service cost for maintenance and repairing
Longer service interval for lubrication oil change
Leading in class manufacturing and quality control level, mandatory performance testing before delivering to MG assembly line
Control System
7 position link bar with electric over hydraulic control allows ease of operation from within the cab
Optimum blade reach capability, quick DCM re-positioning for greater reach for better working on high bank side slope
The link bar is essential for extending reach capability when cutting a bank slope or back slope of a ditch
Replaceable bushings reduce service time and cost
C-at Product
C-at Product will support your business, and accurately convey information of the equipment to relevant personnel in a timely and effective manner for your better equipment management.
| Operating Weight | |
|---|---|
| Standard | 15,930kg |
| With Front & Rear Counterweight | 15,930kg |
| With Front Blade | 16,530kg |
| With Ripper+Front Blade | 17,340kg |
| Operating Specifications | |
| Top Speed, Forward | 40kph |
| Top Speed, Reverse | 25kph |
| Min. Turning Radius | 7,800mm |
| Articulation Angle, Left /Right | 20° |
| Gradeability | 30° |
| Wheelbase | 6,140mm |
| Travel Speed, Forward | 5.3/9.1/12/20/25/40kph |
| Travel Speed, Reverse | 5.3/12/25kph |
| Drawbar Pull | 90kN |
| Engine | |
| Engine Manufacturer | SDEC |
| Engine Model | SC9DK220G2 |
| Rated Power | 162 @ 2,200kW @ RPM |
| Max. Torque | 920 @ 1,400kN @ RPM |
| Emission | Tier 2 |
| Displacement | 8.82L |
| Bore | 114L |
| Stroke | 144L |
| Number of Cylinders | 6 |
| Transmission | |
| Brand / Manufacturer | Hang-chi |
| Type | 6WG180 |
| Powershift Pressure | 1,3~1.7MPa |
| Forward / Reverse Gears | 6 Forward / 3 Reverse |
| Tandem Axle | |
| Brand / Manufacturer | S-E-M / Ca-ter-pillar |
| Model | S-E-M ST23 |
| Differential | No-Spin |
| Service Brake | Air to Oil, Disc |
| Secondary | Dual Circuit |
| Oscillation Front Up | 15° |
| Oscillation Front Down | 25° |
| Front Axle | |
| Ground Clearance | 602mm |
| Wheel Lean, Left / Right | 18° |
| Max. Oscillation | ±16° |
| Steering Range, Left / Right | 47.5° |
| Hydraulic System | |
| Circuit Type | Load sensing,PPPC |
| Pump Type | Variable Piston |
| Max. Pump Output | 162.8L/min |
| Max. System Pressure | 22MPa |
| Standby Pressure | 2.4~2.6MPa |
| Moldboard | |
| Blade Width, Standard | 4,279mm |
| Blade Width, Optional | 3,669/3,974mm |
| Moldboard Height | 610mm |
| Moldboard Thickness | 25mm |
| Throat Clearance | 85mm |
| Float Function | STD |
| Moldboard Sideshift, LH | 948.5mm |
| Moldboard Sideshift, RH | 824.5mm |
| Circle Centershift, LH | 926mm |
| Circle Centershift, RH | 758mm |
| Max. Blade Position Angle | 90° |
| Blade Tip, Forward | 40° |
| Blade Tip, Backward | 5° |
| Max. Shoulder Reach outside of Tires, LH | 2,698mm |
| Max. Shoulder Reach outside of Tires, RH | 2,407mm |
| Max. Lift above Ground | 475mm |
| Max. Cutting Depth | 715mm |
| Max. Lifting Height | 475mm |
| Max. Draw-Pull | ≥85kN |
| Service Refill Capacity | |
| Fuel Tank | 320L |
| Engine Oil | 22L |
| Coolant | 65L |
| Transmission | 28L |
| Differential Case | 33L |
| Tandem Case, Each Side | 62L |
| Circle Drive, Non Slip Clutch | 2L |
| Circle Drive, With Slip Clutch | 7L |
| Hydraulic Oil Tank | 55L |
| Rear Axle (Main Reducer & Tandem) | 157L |
Contact Way
Contact Sales Manager: Teresa Xuan
Mobile/Whatsapp/Wechat: +86 17705652725
Email: teresa (at) evangelchina.com
Company Information
Похожие товары
Автогрейдеры XCMG 220HP GR2153 Китай Радиоуправляемый трактор дорожные колеса автогрейдер цена на
60 000,00 $ - 90 000,00 $

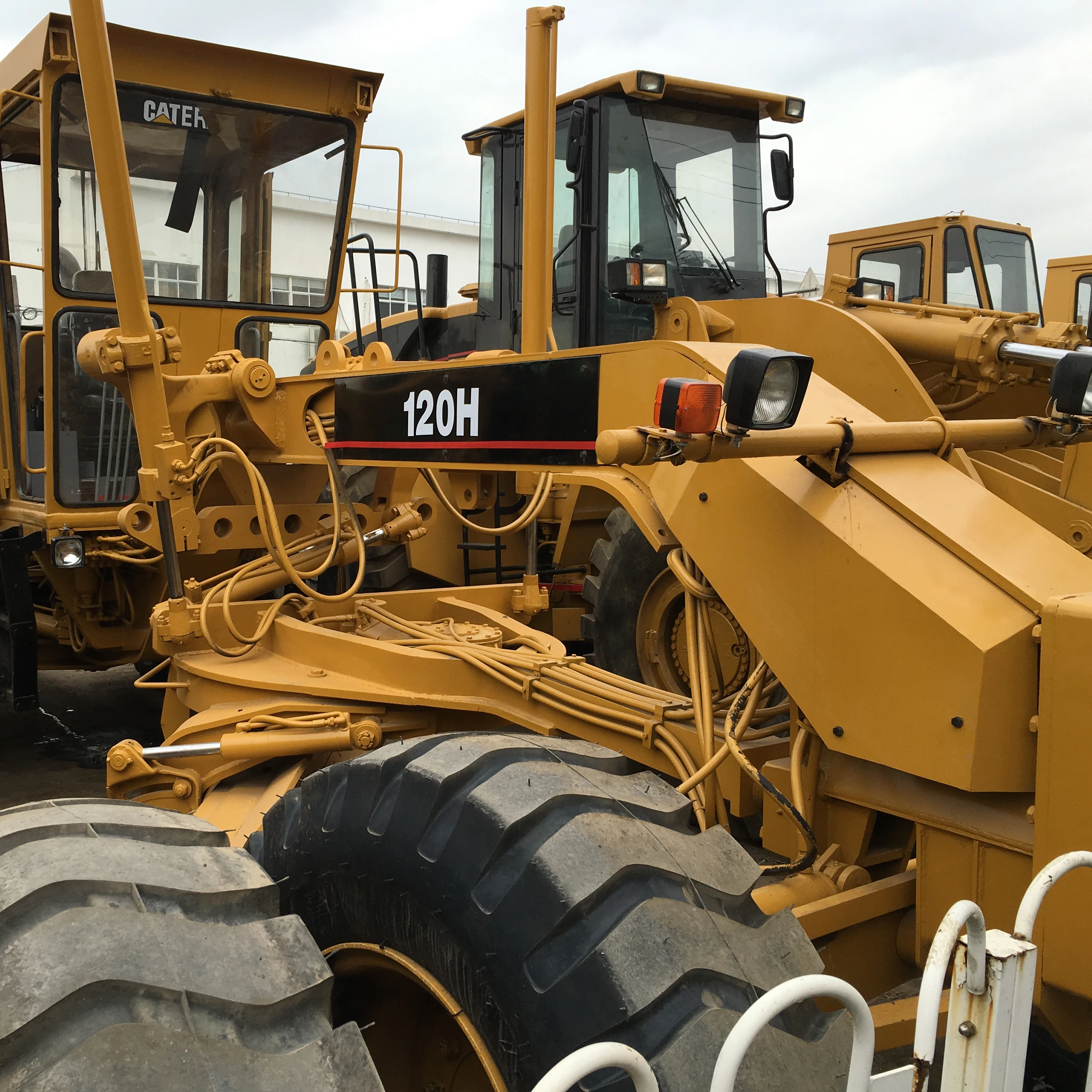

Б/у Подержанный машина диагональные шины от производителя на продажу, высокое качество, для готово к отправке Caterpillar 12G/12 ч/140G/ 140 H для продажи грейдеры в хорошем состоянии
