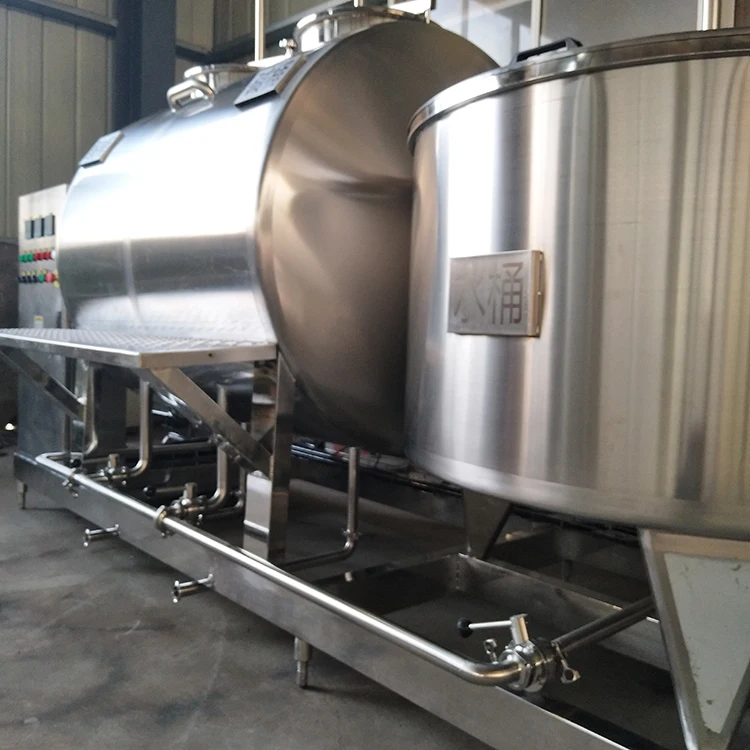

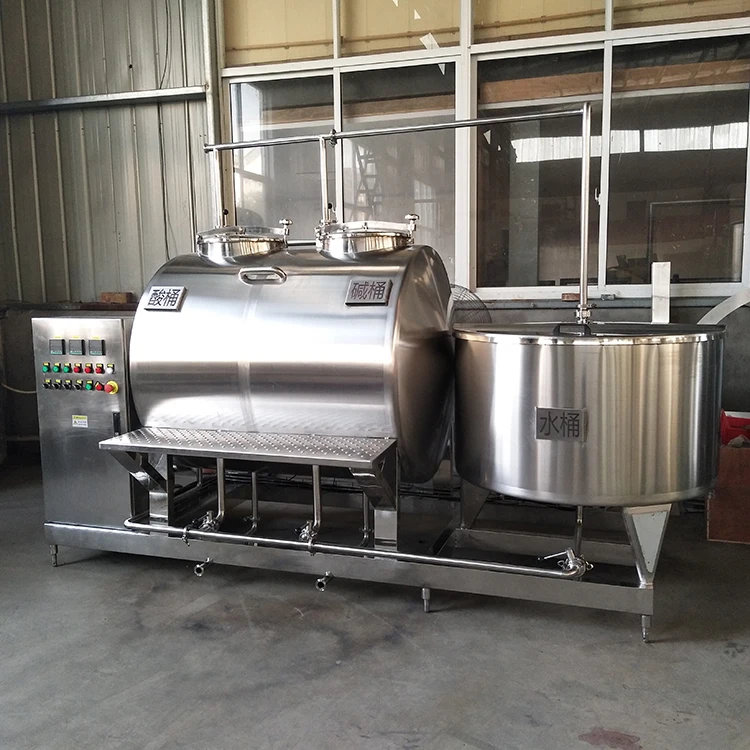

Небольшая полуавтоматическая система мойки напитков/молочных продуктов/пивоварни
- Категория: Washer >>>
- Поставщик: Zhangjiagang Drinks Packaging Technology Co. Ltd.
Сохранить в закладки 62178317176:
Описание и отзывы
Характеристики
Product Description
Product Application

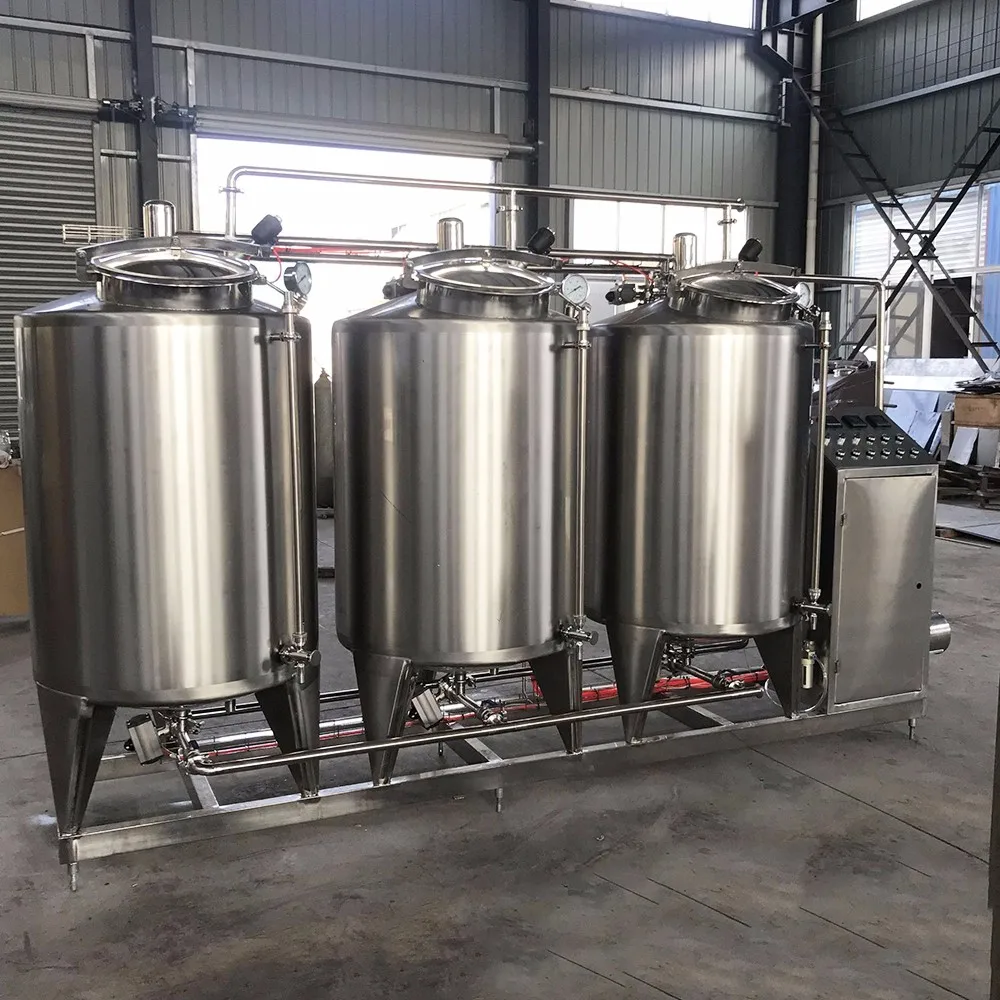

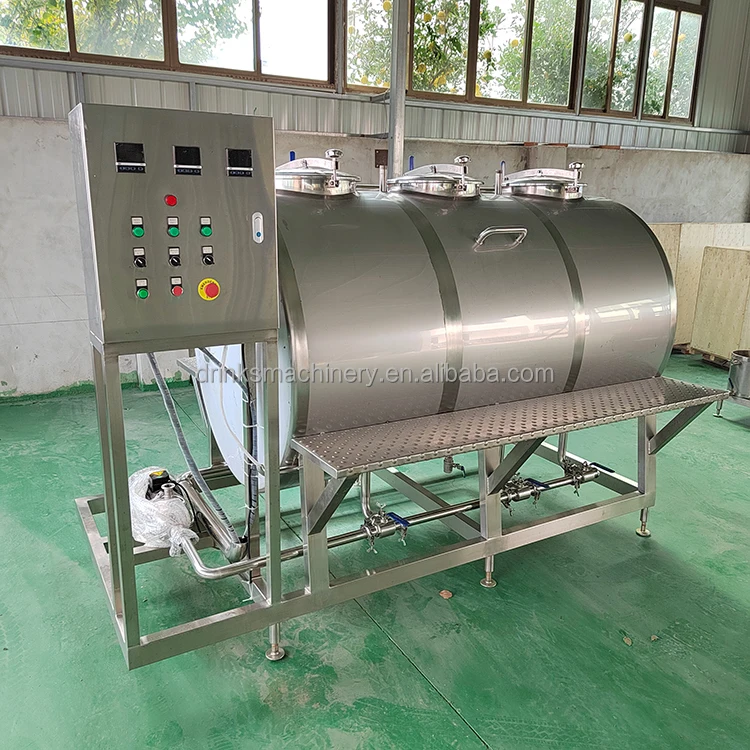

The integrated CIP cleaning system is suitable for small quantity, single production line equipment, multi-purpose machine, heating system, heating cleaning agent to suitable temperature, a set of heating device plus a variety of cleaning agents, easy to operate, configuration mixing system, alkali the concentration of the acid is configured. Finally, the CIP pump is used to reference the major equipment lines for cleaning, the cleaning liquid is recovered, the tank is cleaned with water, and the pH value of the cleaning liquid is detected. The integrated cleaning is convenient and easy to operate, and the floor space is small. It can also be moved, and the cleaning can be cleaned before moving the cleaning equipment to a single production line.

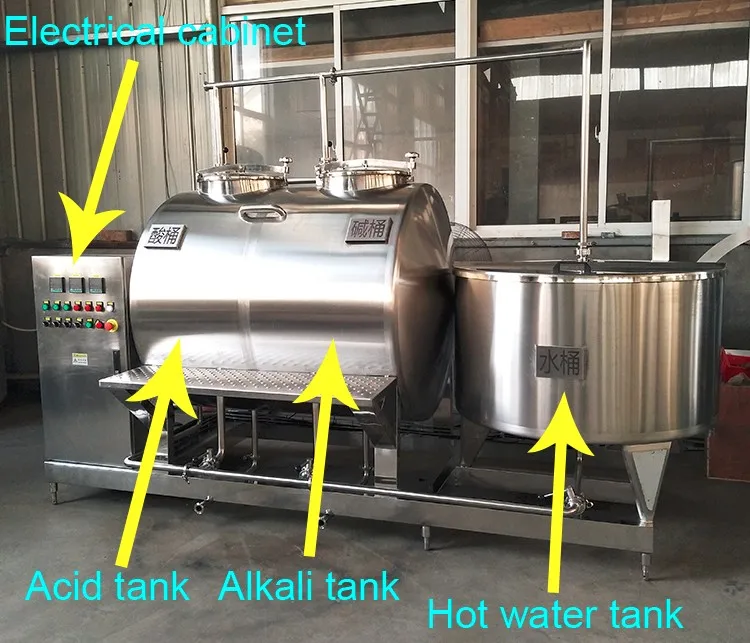

Moodel | CIP-500 | CIP-1000 | CIP-2000 | CIP-3000 | CIP-4000 | ||||
Acid tank | 500L | 1000L | 2000L | 3000L | 4000L | ||||
Alkali tank | 500L | 1000L | 2000L | 3000L | 4000L | ||||
Hot water tank | 500L | 1000L | 2000L | 3000L | 4000L | ||||
Heating method | Coil, plate, tube heating, electric heat pipe heating | ||||||||
CIP pump | 10T/H | 10T/H | 20T/H | 20T/H | 30T/H | ||||
Pump power | 2.2kw | 2.2kw | 4.0kw | 4.0kw | 5.5kw | ||||
Main Features
1. The CIP cleaning system has low economic operation cost, compact structure, small floor space, convenient installation and maintenance. The CIP cleaning system can effectively clean the production equipment such as cylinder tanks and pipes, and the whole cleaning process is in the process. Closed production equipment, tank containers and pipelines operate, effectively reducing secondary pollution opportunities.
2. The CIP system can be divided into one to four roads according to production needs. Especially in the second and second roads, the same or more than one area can be cleaned at the same time. The CIP cleaning system can also be cleaned while producing in the production process. This effectively shortens the CIP cleaning time during production.
3. The CIP system uses a pneumatic diaphragm pump to pump concentrated acid and alkali, which not only improves the integrity of the equipment and reduces the maintenance rate of the equipment, but also reduces the operating cost.
4. Especially the automatic CIP, which can automatically detect, add, discharge, display and adjust the cleaning liquid. It is reliable in operation, high in automation, simple in operation and good in cleaning effect, so it is more in line with modern large-scale fluid medicines and foods. Sanitary requirements for processing technology and production environment requirements.
5, automatically switch the various process parameters, automatically adjust the cleaning time, PH, temperature and other parameters.

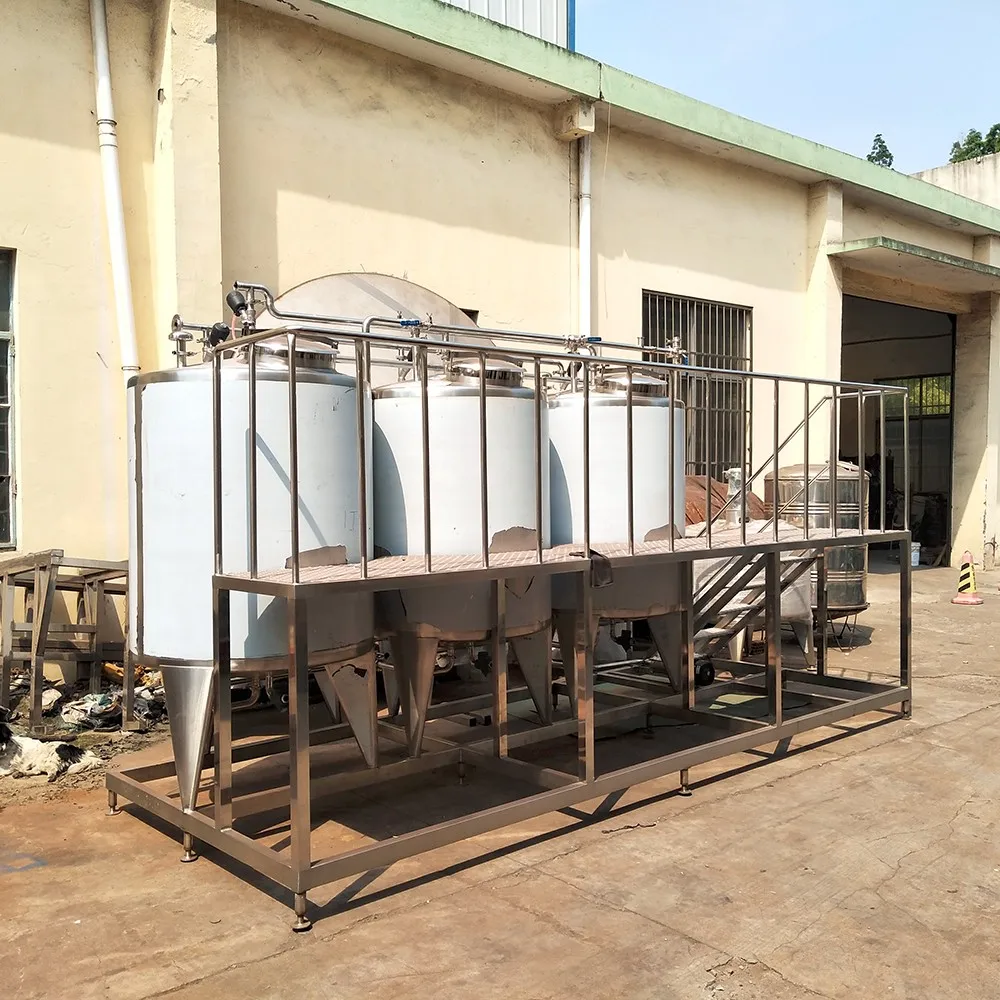

6, CIP cleaning system has a single tank, two tanks and multiple tanks for users to choose, there are mobile and fixed.
2. The CIP system can be divided into one to four roads according to production needs. Especially in the second and second roads, the same or more than one area can be cleaned at the same time. The CIP cleaning system can also be cleaned while producing in the production process. This effectively shortens the CIP cleaning time during production.
3. The CIP system uses a pneumatic diaphragm pump to pump concentrated acid and alkali, which not only improves the integrity of the equipment and reduces the maintenance rate of the equipment, but also reduces the operating cost.
4. Especially the automatic CIP, which can automatically detect, add, discharge, display and adjust the cleaning liquid. It is reliable in operation, high in automation, simple in operation and good in cleaning effect, so it is more in line with modern large-scale fluid medicines and foods. Sanitary requirements for processing technology and production environment requirements.
5, automatically switch the various process parameters, automatically adjust the cleaning time, PH, temperature and other parameters.
6, CIP cleaning system has a single tank, two tanks and multiple tanks for users to choose, there are mobile and fixed.

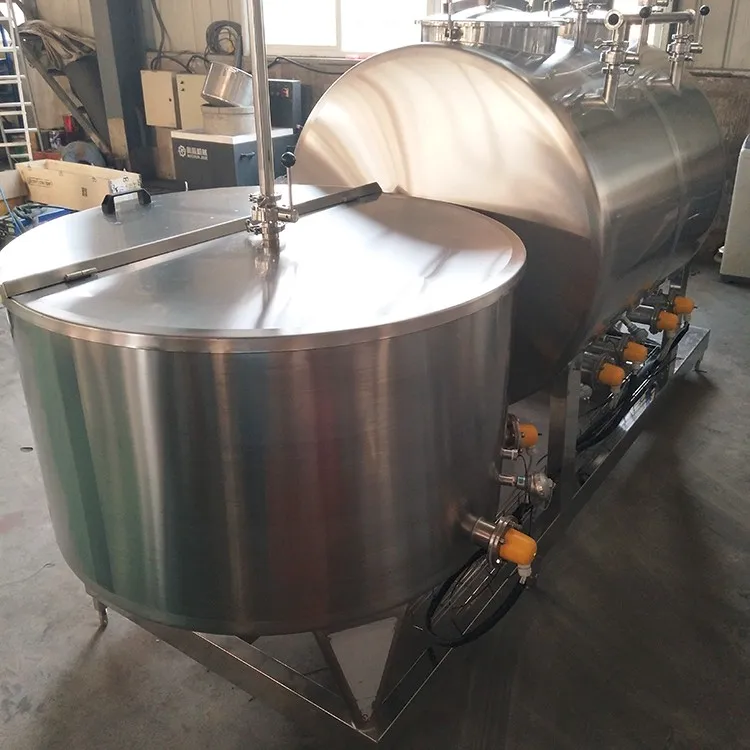

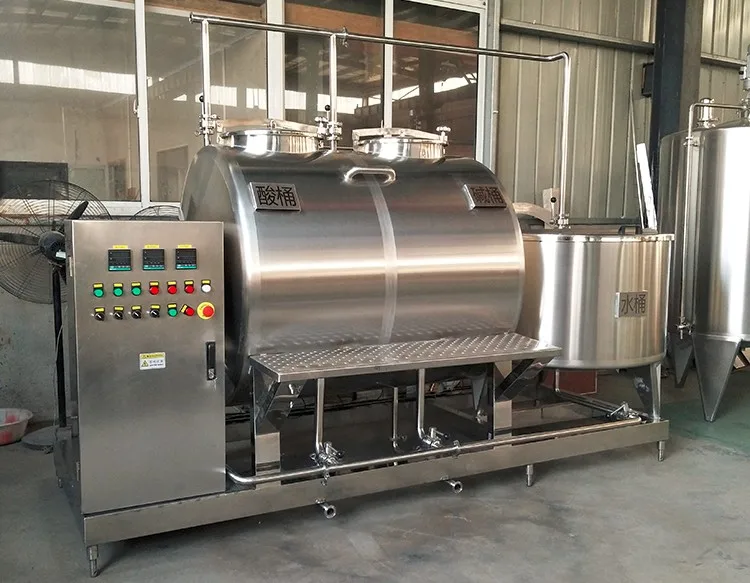

Detailed Images

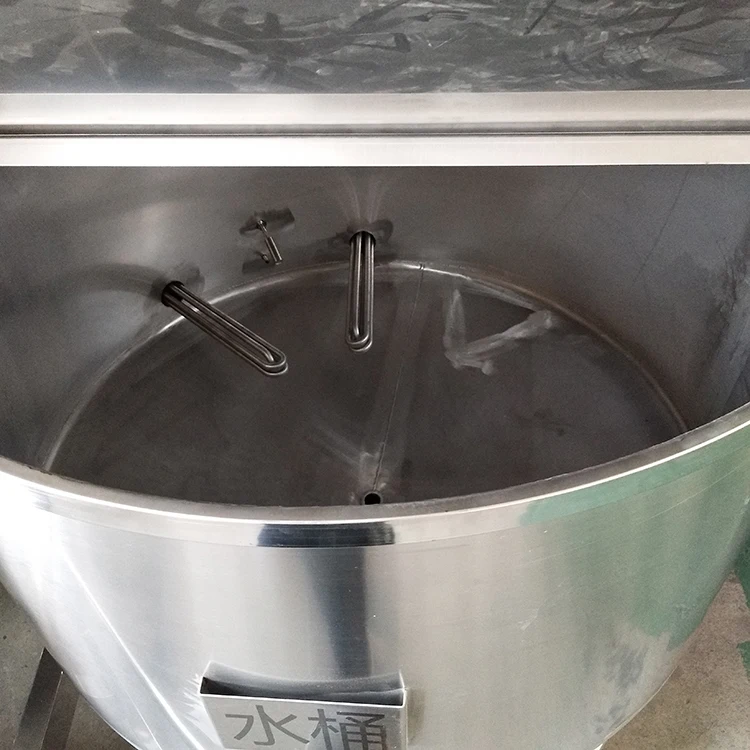

Heating block

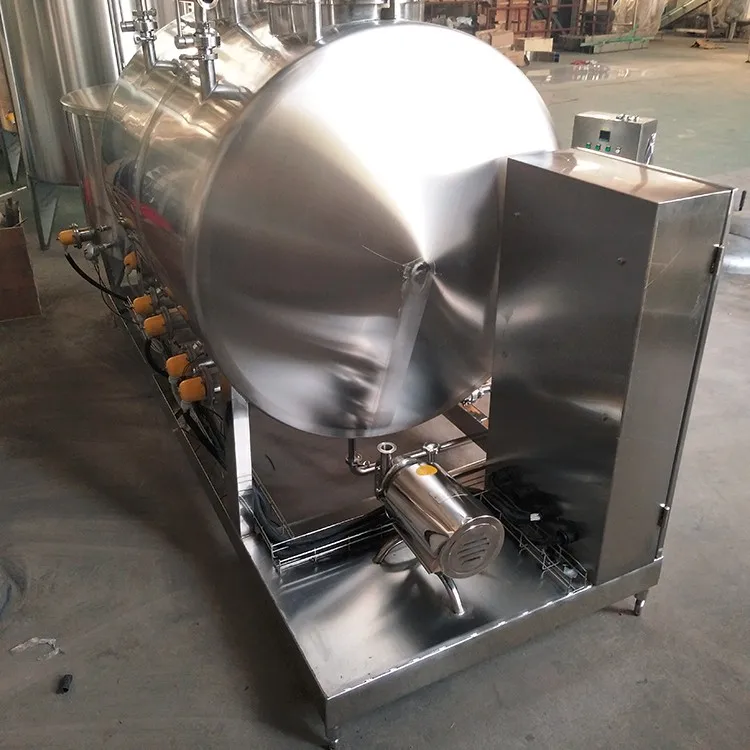

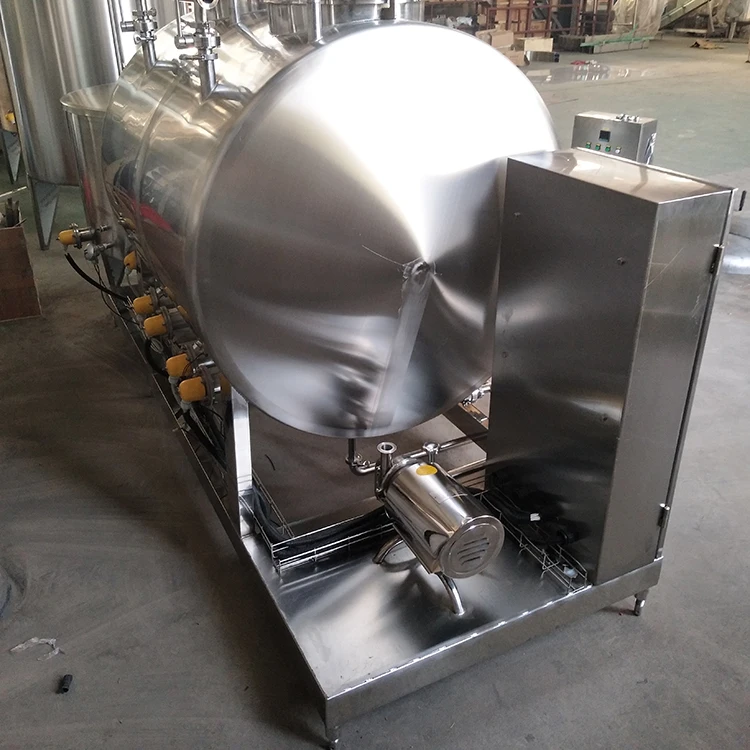

CIP Pump
Manhole
Related Products
For more products, please view our website:https://drinksmachinery.en.alibaba.com/productlist.html
Our company

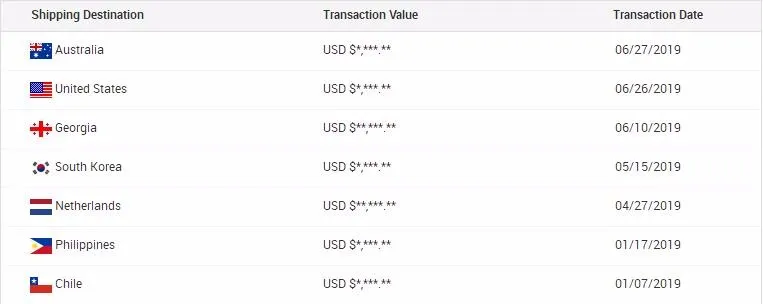

Transaction record
These are the records of our transactions with Alibaba and our customers. Through Alibaba Trade Assurance Order, we can guarantee the rights of buyers and sellers.
Our service
1.Sample service
We can send you a working video of the machine.
You are very welcome to visit our company and inspect the operation of the machine on site. We will send people to the airport to pick you up.
2. Customized service
We can customize the machine according to all the customers(such as material, power, filling type, bottle size, and so on), at the same time, our engineers will also give professional advice to help customers better establish the ideal factory.
3. After-sale service
After receiving the final payment, we will provide the bill of lading on time to ensure that the customer receives the goods as soon as possible.
When you have completed all the preparations, we will send engineers to your factory to install the machines and train your employees until they can operate the machine very well.
We can provide one year warranty with spare parts free, And free lifetime technical service.
We can send you a working video of the machine.
You are very welcome to visit our company and inspect the operation of the machine on site. We will send people to the airport to pick you up.
2. Customized service
We can customize the machine according to all the customers(such as material, power, filling type, bottle size, and so on), at the same time, our engineers will also give professional advice to help customers better establish the ideal factory.
3. After-sale service
After receiving the final payment, we will provide the bill of lading on time to ensure that the customer receives the goods as soon as possible.
When you have completed all the preparations, we will send engineers to your factory to install the machines and train your employees until they can operate the machine very well.
We can provide one year warranty with spare parts free, And free lifetime technical service.
Packing & Delivery
Contact Us
