UFM3500 экструзионная машина для приготовления пирожных и хлеба

UFM3500 экструзионная машина для приготовления пирожных и хлеба

Категория: >>>
Поставщик: Hangzhou Cheersonic Ulltrasonics Equipments Co. LimitedHangzhou Limited

Цена:40 000,00 $*

Количество:

В избранное

Описание и отзывы

Характеристики

Please contact us for more information. Cheersonic Linked with success. We follow this guiding principle by constantly developing our technologies and products so that we can continue to produce optimum plastic connections. Our corporate history is also associated with success: continuous growth ensured that we were able to expand our customer base.

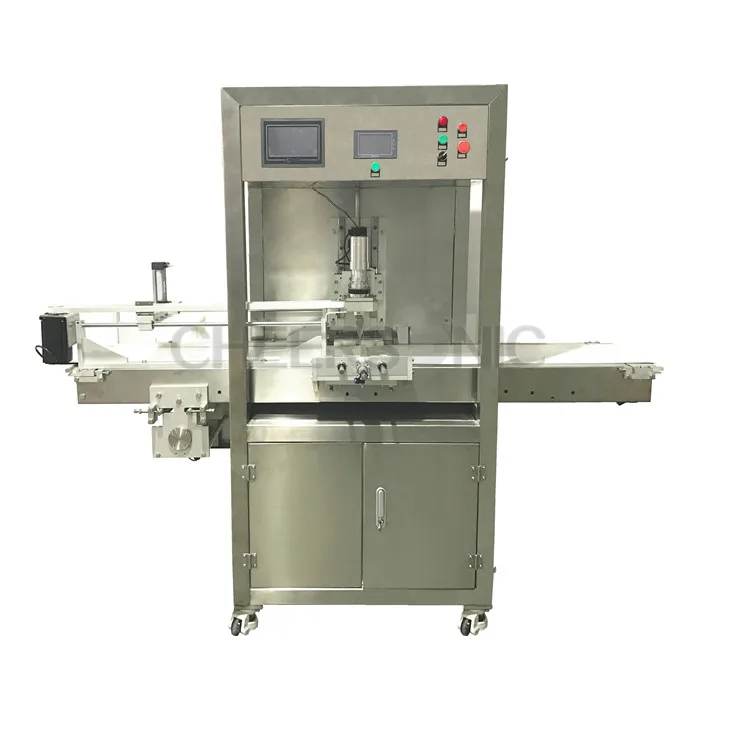

UFM3500 Automation Food Ultrasonic Cutting Machine

Product Description

This highly productive ultrasonic food cutting equipment can cut the type of food sheet, round, not only cut the product size adjustable, and the cutting type can be easily accessed through the touch screen control interface. Food ultrasonic portioning machine for food slicing separation is to ensure that the exact size of the cut to achieve the minimum waste to achieve the maximum benefits, and this equipment will be able to meet the above needs, this device is a combination of high-quality ultrasonic cutting and precision automated mechanical structure , To provide customers with fast, accurate and efficient automation solutions.

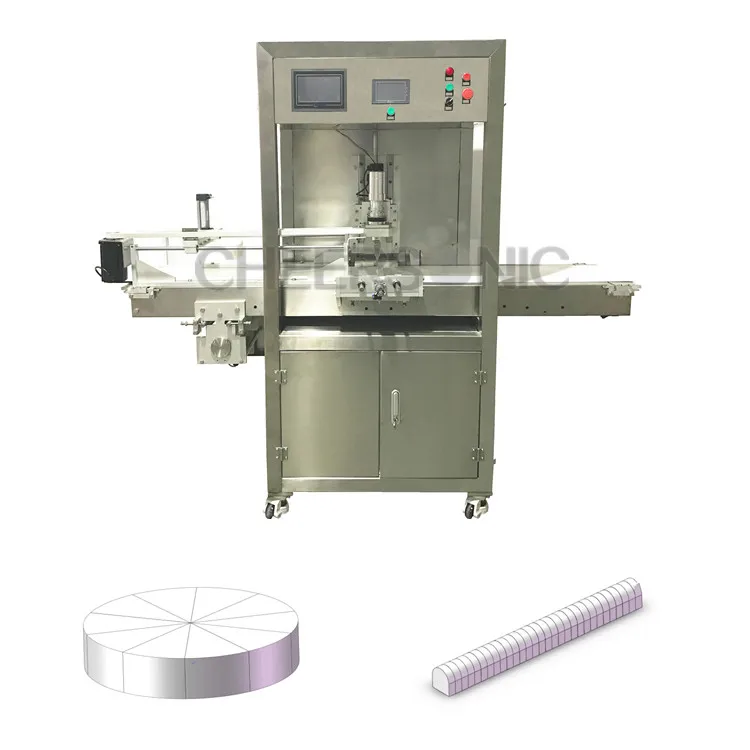

Cutting Mode Schematic

222

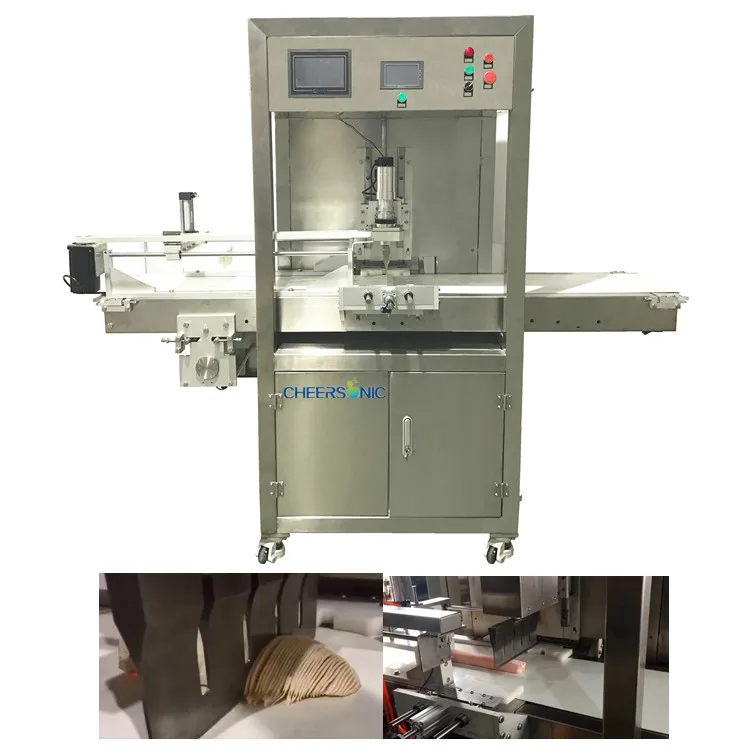

Actual Cutting Effect Image

Key Features

• Use excellent ultrasonic technology to ensure cutting quality
• Precise automated mechanical control of the structure to achieve the least amount of waste and maximum production
• Hygienic, without regular maintenance, easy to clean
• Can be integrated into existing production lines and can be used independently
• The cutting mode is sliced and tangent and can be called arbitrarily

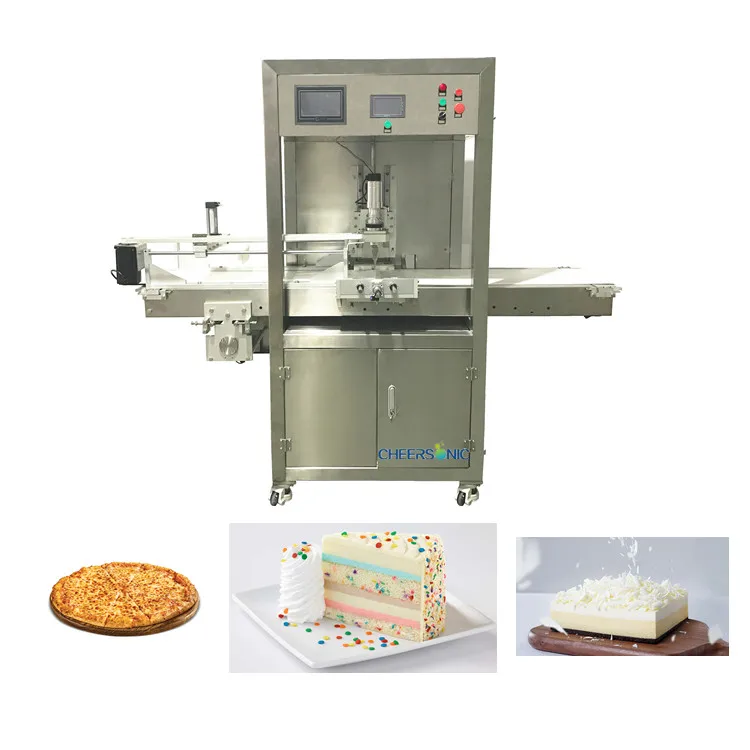

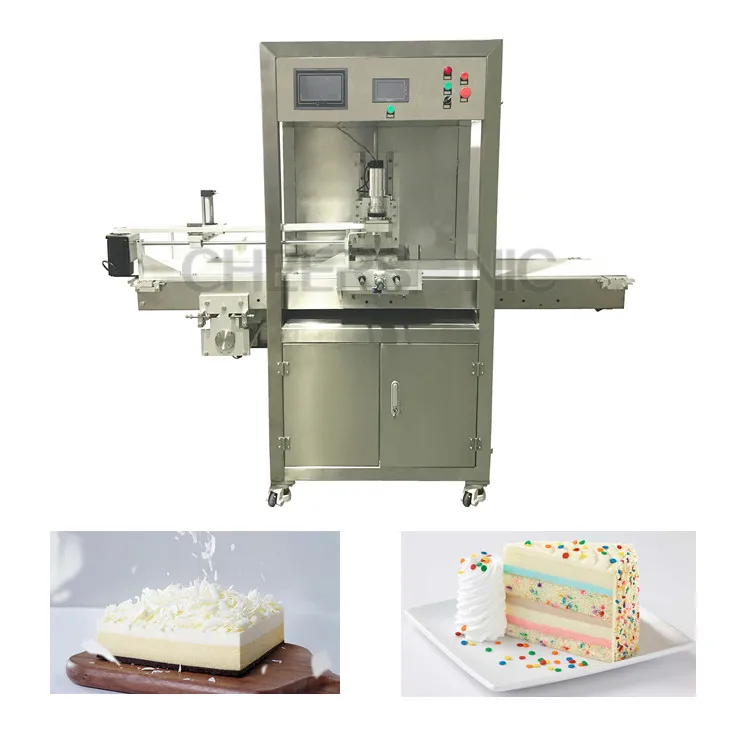

Applications

• Striped food: dough, long cake cake, long candy, chocolate and so on
• Rectangular foods: rectangular cakes, marshmallow, Turkish fudge, nougat and so on
• Round food: round cake, pizza, pie and so on

Parameter

	UFM3500 Automation Food Ultrasonic Portioning Machine
Dimensions (length) x (width) x (high)	21006501800
Weight	350Kg
Rated power	3.5kw
Cutting speed	60 knives / min
Maximum cutting size	Round 12 inches; the maximum width of the product 300mm
Maximum effective cutting height	60mm (80mm optional)
Number of cutting knives	1
Cutting knife size	255mm (305mm optional)
Whether it can be rotated	Can be rotated
Cut type	Round, sliced
Conveyor belt (several)	1; single-chip function, optional differential conveyor belt
Rack structure	304 stainless steel frame, 304 sheet metal
Safety protection system	Security door
Screen	7 inch touch screen
Control cabinet	Built-in
Control System	Six – axis control system
Cutting knife control system	Servo motor
Voltage	220V
Compressed air connection	40 psi; 3 kgf / cm² (for fixtures only)
Product into and out of material	Automatic belt conveyor
Machine mobility	Casters

Related Suggestion

Contact Us

Choose Cheersonic ·

Founded in 1998, Cheersonic is the manufacturer and marketer of industrial ultrasonic products. As an industrial leader of ultrasonic technology, Cheersonic specializes in the design, development, manufacture, and marketing of ultrasonic products in the line of food process, plastics joining, medical coating and ultrasonic processing. Cheersonics principal manufacturing and distribution facility is located in Fuyang, Zhejiang province.

We develop and produce ultrasonic equipments which we sell as complete units or individual assembles such as generators and converters. Our customers and special purpose machine builders benefit from high-quality components and machines with simple, user-friendly operation. We are committed to providing solutions that can meets the needs of our customers, providing the latest in technology, both in products and processes.

For us, quality is not just an empty word but a basic attitude which is the foundation for our thinking and actions. Each product has checked by our QC department before sending to our customers.

Packaging

About Cheersonic

Cheersonic is a leading multinational high-tech company in the field of ultrasound, with a wide range of outstanding development services to provide a wide range of high-quality products and intelligent solutions to help customers succeed. Cheersonic is a promoter of innovation in many industries, including pharmaceuticals, electronics, food, photovoltaic, and medical. We are committed to managing our business in a sustainable manner and providing support to employees, society and the environment.

As of the beginning of 2017, Cheersonic has been able to provide comprehensive support for China's development with innovative technology, superior solutions and high-quality products. Nowadays, it has become an integral part of China's society and economy. Cheersonic is working with the government, Work together to achieve sustainable development.

FAQ

Q: Do you have any certifications about your product?

A: Yes. Cheersonic is professional manufactury of ultrasonic products and approved by CE, TUV, ISO 9000.

Q: Do you have the sample test service?

A: Yes. Just ship your sample to Cheersonic. Our engineer will suggest the proper machine and make experiment and take video for you.It is free.

Q: What’s the warranty of your product?

A: Three year warranty for our product.

Q: How many countries have you exported?

A: Cheersonic has been exported products all around the world, such as Europe, America, India and so on.

Q: Could you do the customized product for special use?

A: Cheersonic is professional ultrasonic equipment manufactory with more than 20 years experience. We could supply not only standard but also customized products for you.
