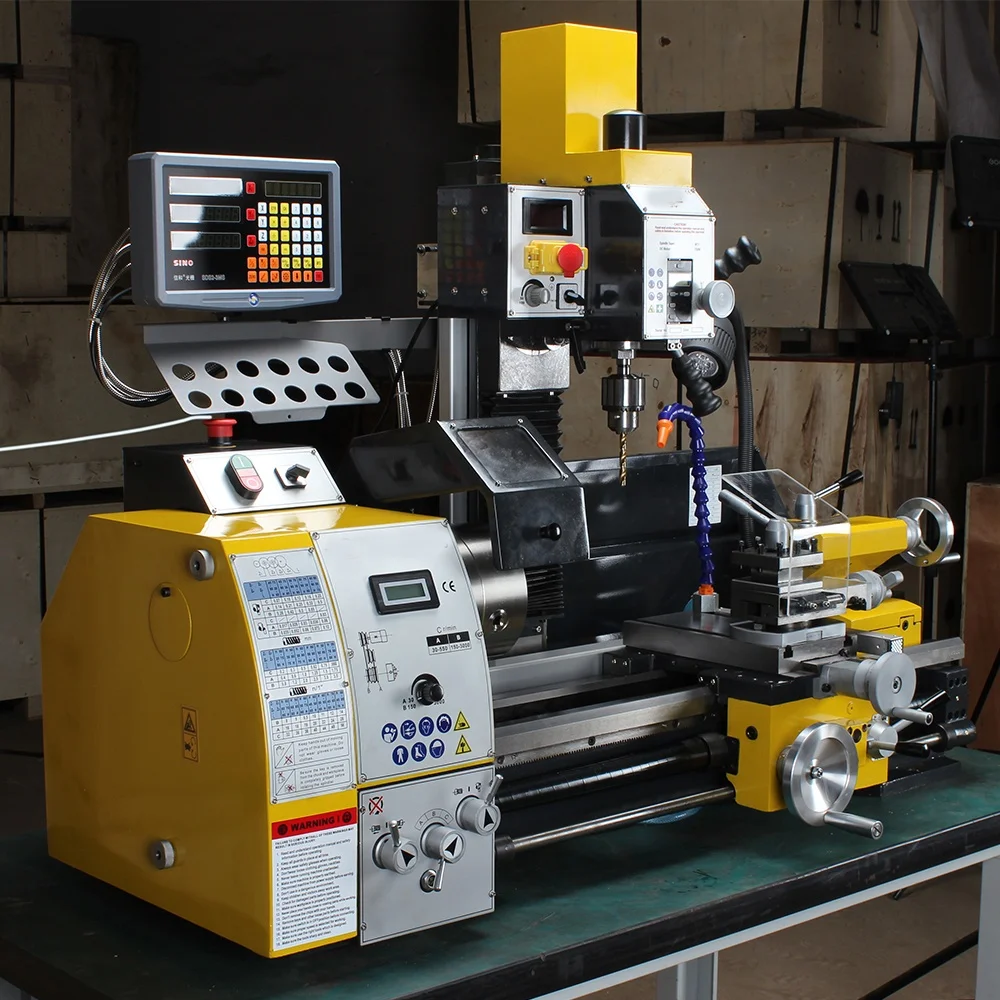

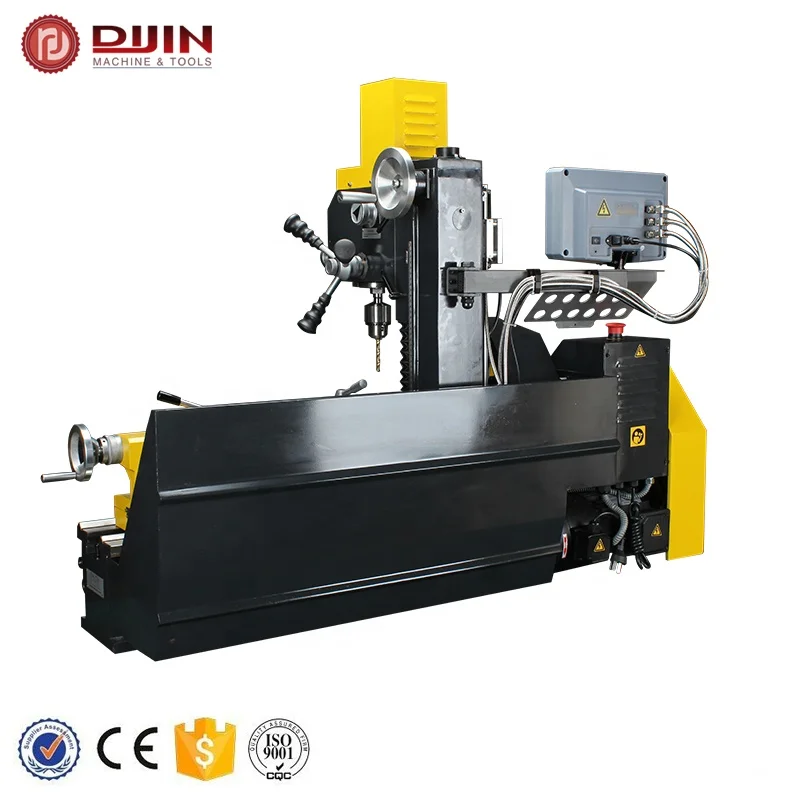

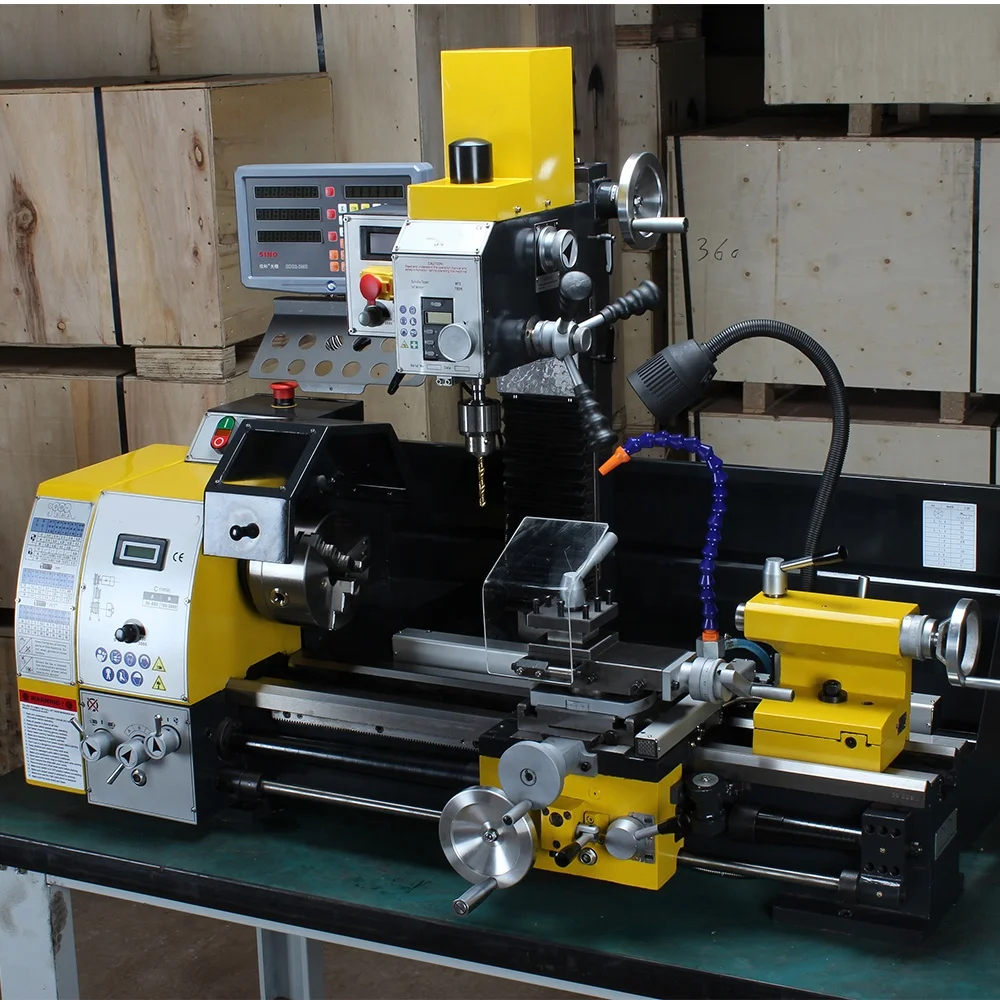

Многофункциональный мини токарный и фрезерный станок ручной токарный сверлильный комбинированный настольный с большой мощностью 1 5 кВт

Сохранить в закладки 62182956147:


Цена:2 780,00 $ - 2 980,00 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики



Product Application



This machine can turning ,milling ,drilling round bar work piece,process out
circle ,inner bore ,cutting ,threading ,groove , drill hole ,mill keyslot ,mill surface ,end face,reaming ,popular with small workshop ,DIY hobby ,school for training .

Feature : 1. The lathe use taper roller bearing ,more precision ,durable use ,low noise

              2. Big power 1.5KW ,use Frequency control brush less motor ,spindle speed 30-3000RPM.

              3. Bed surface frequency hardened ,X/Y axis auto feed ,install chuck guard ,lead screw protection .

              4. Mill head spindle taper MT3, mill motor use brushless motor .

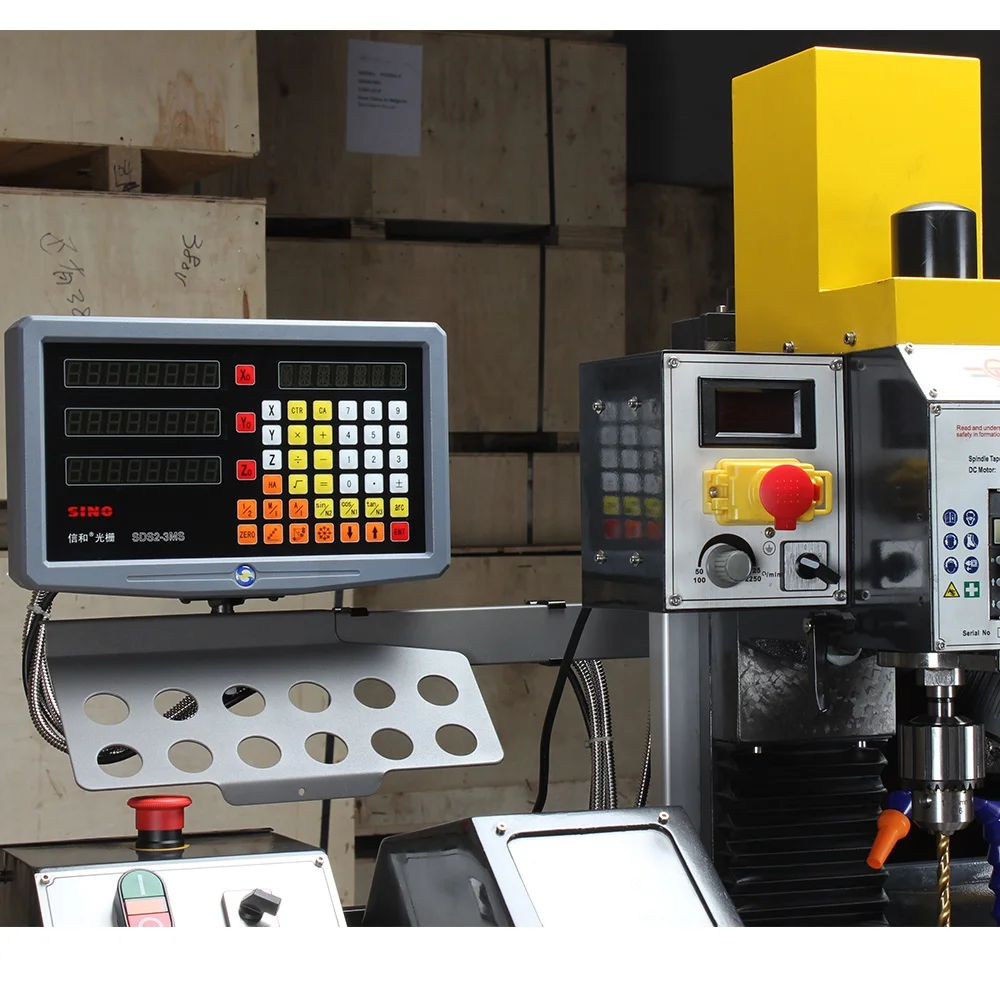

NOTE: Machine stand,Euro quickly change tool post and digital readout are optional accessory ,Not standard part,The website picture just for display purpose .






















































































































Model


JYP300VF


Max distance between center


700mm


Max swing over bed


300mm


Max swing over cross slide


175mm


Bed of width


180mm


spindle bore


38mm


taper of spindle


MT5


Range of spindle speed


30-3000rpm


Slide feed speed


0.07-0.40mm/r


Inch threads


8-56TPI (21kinds)


Metric threads


0.2-3.5mm(18kinds)


Top slide travel


50mm


Cross slide of travel


15mm


Tail stocks quill travel


80mm


Lathe Taper of tail stocks quill


MT3


AC motor


1.5KW


Max drill capacity


25mm


Max end mill capacity


16mm


Max face mill capacity


63mm


Taper of spindle


MT3


Max distance spindle to table


375mm


Max distance spindle to column


185mm


Main motor


Brush less motor 750W


Spindle travel


50mm


Spindle speed


50-2250rpm


T-slot


10mm


Overall Net /gross weight


300/340kgs


Overall packing size


1400*780*1070mm





CE DIJIN


PF01_1.jpgPF03_.jpgPF02_.jpgPF04_.jpgPF07_.jpgPF06_.jpgPF08_.jpgPF15_.jpgPF14_.jpgPF05_.jpgPF10_.jpgPF11_.jpgPF12_.jpgPF13_.jpgPF09_.jpg
