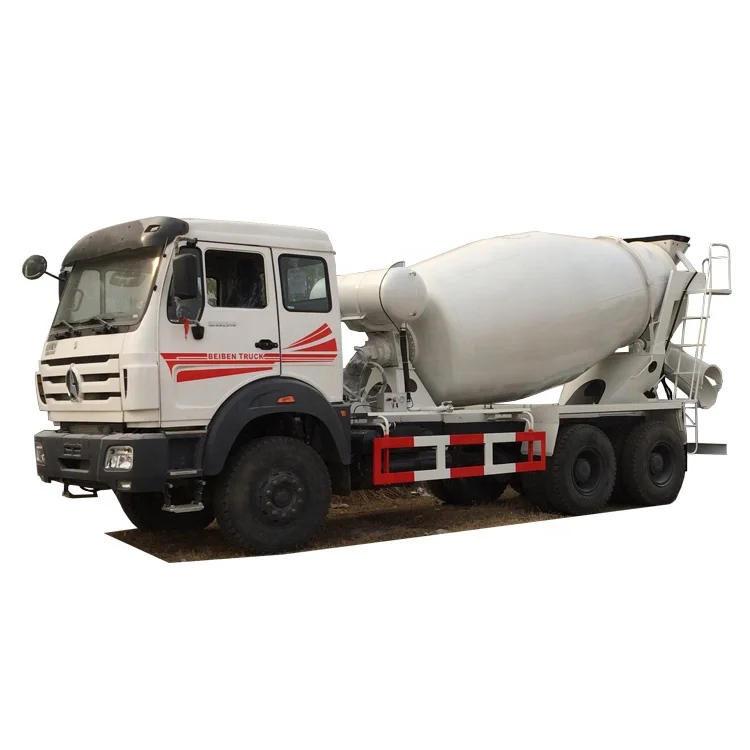

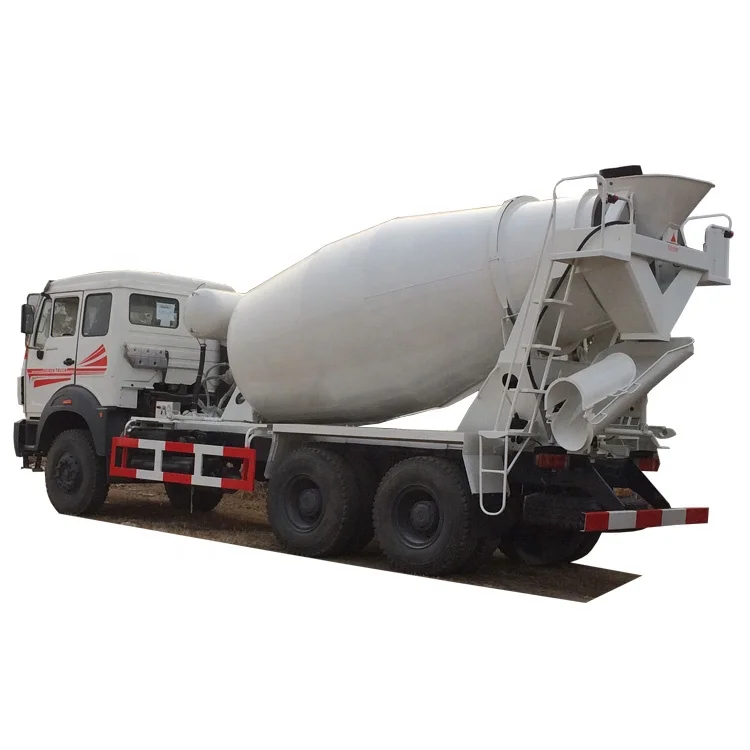

6x4 beiben 10m3 12m3 14m3 Cement Mixing Truck Concrete Mixer transit mixer low price factory supply

Vehicle parameters

Vehicle Model

EHY5250GJBZ23

Vehicle Brand

HUAYI

Overall dimensions

9925×2550×3980mm

Curb weight

9070kg

Loading capacity

14m3

Chassis parameters

Chassis model

ND1250BD5J6Z03

Chassis brand

BEIBEN

Overall dimensions

8040x2550x3055mm

Wheel base

4100+1450 mm

Front/rear wheel track

2004, 1878/1878mm

Front/rear suspension

1435/2940 mm

Approach/departure angle

17/25°

Maximum speed

85km/h

Chassis Manufacturer

BEIBEN TRUCKS GROUP CO.,LTD

Cab

Configuration

NG80B a row and a half(with sleeping berth), allowable 3 passengers,air conditioner

Color

White,other color is optional

Engine

Model

WP10.350E53

Emission

Euro 5

Type

6 cylinders,in-line,water-cooled,4-stroke,turbo inter-cooling, direct injection,exhaust valve brake,diesel engine

Rated power

350hp,rated power speed 1900rpm

Displacement

9726ml

Max.torque

1600N.m

Bore x stroke

126x130mm

Manufacturer

Weichai Power Co.,Ltd

Tire

Size

12.00R20 steel wire tire

Number

10+1 nos

Clutch

φ430 diaphragm clutch

Fuel tank

300L aluminum alloy

Front axle

7.5 tons

Rear axle

13.0 tons

Drive form

6X4

Suspension

Multi leaf springs

Rated voltage

24V,DC

Transmissions

FAST, 12 speed forward 2 reverse

Steering device

Power assisted steering

Steering wheel

Left hand drive

Selective configuration

If there is a slight change in the chassis parameters above,please take the actual product as the standard

Concrete mixer truck structure parameters

Loading capacity

14m3

Tank material

6mm alloy steel

Tank front head

8mm alloy steel

Reducer

Germany ZF7300

Hydraulic pump

Germany REXROTH

Hydraulic motor

Germany REXROTH

Radiator

KAIPENG

Color and Logo

Optional

Standard configuration

chassis,sub frame,mixer tank,reducer, hydraulic pump,hydraulic motor, radiator,water tank,cleaning hose,feed port, discharge port,climbing ladder,air pressure water supply device.

11-14m3

Germany ZF7300 reducer,Germany REXROTH hydraulic pump,Germany REXROTH hydraulic motor,KAIPENG radiator,mixer tank(main tank 6mm alloy steel wear resistant material,front tank head 8mm alloy steel wear resistant material)

Selective configuration

Emergency high pressure oil hose(4 pieces),12m emergency oil hose(Italy),water cannon,large tool box,electric water supplying system.

Italy Bonfiglioli/Italy PMP reducer,Italy PMP/Italy MESSOR/America EATON/America SAUER hydraulic pump,Italy PMP/America EATON/America SAUER hydraulic motor.
