Product Description

Product Application

The machine takes advantage of high accuracy, convenient operation, and easy repair, and it also bears abroad functions, such as fueling as preset data, checking data and accumulative amount of fuel and sum of sales. The machine is widely used in a gas station for vehicles, suitable for gasoline, diesel oil, kerosene, and various light fuel.(Equipped with communication ports, monitor and control fuel dispenser condition )

\t
Main Technical  parameter
\t


Model Range
\t
ZC-11111
\t
1 product, 1 pump, 1 flow meter, 1 nozzle
\t
\t
\t
\t
\t


Motor
\t
Voltage
\t
110V/220V/380V (50/60Hz)
\t
Noise
\t
≤80dB(A class)
\t
Ex-proof Signal
\t
ExdmbIIAT3
\t


Pump
\t
Bennett type
\t
Aluminum,15kgs,5~50L/min
\t
Tatsuno type
\t
Aluminum,17.5kgs,5~45L/min Pump
\t
Tokheim type
\t
Castiron,37kgs,5~40L/min
\t
Subm. type
\t
Extermal oil pump, parameters according to customer
\t
Ambient temperature
\t
-25℃~+55℃
\t
Suction Distance
\t
6m ( Vertical ),50 m ( horizontal )
\t
Accuracy
\t
±0.30%
\t
Repeating tolerance
\t
≤0.15%
\t
Unit price range
\t
0.01~999.99
\t
Single volume range
\t
0.01~999999.99
\t
Accumulative volume
\t
0.01~9999999999.99
\t
Nozzle
\t
Automatic shut-off type
\t
Machine shape
\t
Customized are acceptable(Include Logo)
\t
Warranty period
\t
One-year warranty on the machine and provide uninterrupted technical support

Main Features

Modular high hose design for easy upgrade | highly accurate meter | pump | filtering system to ensure clean fuel and dispenser longevity | totalizer | 3 in 1 LCD display board | Metal keyboard |White backlight display | Breakaway | Swivel || Emergency Stop button | Integrated receipt printer | Electronic calibration | LED rolling display |

Configuration

Bennett type

Tatsuno typre

Tokheim type

LPG1


LPG2


Submersible type

Pump selection

ZCP-50

Name:  Bennett  pump type(Vane pump)

Material: Aluminum

Flow rate: 5~50 L/min

Bennett type pump belongs to Vane pump. Gear pump can work longer compares with Vane pump, but vane pump with less cost and more higher flow rate.

ZCP-90

Name: Tatsuno pump type (Gear pump)
Material: Aluminum
Flow rate: 5~45 L/min
Tatsuno type is more light in weight, the dispenser with these type can made in small size, perfect for 6 and 8 nozzles.

ZCP-TK2

Name: Tokheim pump type (Gear pump)
Material:  cast iron
Flow rate: 5-40 L/min
Tokheim type material is cast iron, heavier and the size big, usually not suggest for more than 4 nozzles.

Hot products

G series

Panda II series

Panda II series

TS series


Knight plus series


Knight III series

Packing & Delivery
\t
Packaging
\t
Size
\t
(Size: L*W*H)
According to the configuration
\t
Weight
\t
*kgs
According to the configuration
\t



Packaging Details
\t

Normally, we use a carton to wrap the machine and use a sealing tape to secure it. If the customer has special needs, we can provide the customer with wooden box packaging, the price will be slightly more expensive.
Please further communicate with the salesman...
Our service

Pre-Sales One-stop Service.

*Inquiry and consulting the support

*Lastest industry trends

*Free station  solution

*Training how to install and run the machine

*English Manual, Electric Diagram


                                                                                                24

We are very willing to answer your question within

Many to One After-Sales Service.

*Independent Service Department
*One year warranty
*Machine test video before delivery
*Suggest layout support



hours, welcome to contact us learn more details.

Our Company
ZHEJIANG GENUINE MACHINE CO., LTD. is located at modernized Puqi Special Industrial Park. It's close to the East Sea of China in the south. It covers only 50km from our company to Longwan international airport in Wenzhou with the exit of the expressway and No.104 national highway nearby. All of them make us enjoy convenient transportation and beautiful scenery.
(LPG dispenser, petrol station fuel dispenser, station fuel dispenser, tokheim fuel dispenser)
Our tenet is "sincerity, reliability and mutual benefits" and we firmly believe that maintaining an outstanding reputation attracts more and more customer. We are looking forward to cooperation, guide, and supervise from any customers at home and abroad in the near future.
(fuel dispenser pump, electric transfer pump, oil transfer pump, dispenser pump,Tokheim twin pump )
Meanwhile, we will whole-heartedly supply our high-quality product and the best service for you.(fuel dispenser nozzle, LPG dispenser, tatsuno pumps,  gas station fuel pump, truck-carrying dispenser,Bennett pump,gas station pump ,mini fuel dispenser,mechanical metering dispenser,mini dispense,small dispenser ,small fuel dispenser ,2 nozzles fuel dispenser,gas station fuel dispenser,filling station fuel pump ,filling station fuel dispenser,Tatsuno dispenser,bennet dispenser,fuel dispenser,Tokheim single pump )

We have obtained a series of domestic and foreign certificates, and we are confident in our products and services!

Factory part display

Our factory strictly abides by the 5S rules to ensure the quality of our products.

Controller test room

In order to give customers a satisfactory answer, we must constantly test the product 24 hours a day.

Fashion dispensers shape

We have our products development team who always think outside the style and develop new products.

Further information

Похожие товары
top list Factory Price Frozen Meat Block Slicer Frozen Mutton Beef Roll Slicing Machine Sausage Bacon Cutting Machine
40,00 $ - 45,00 $

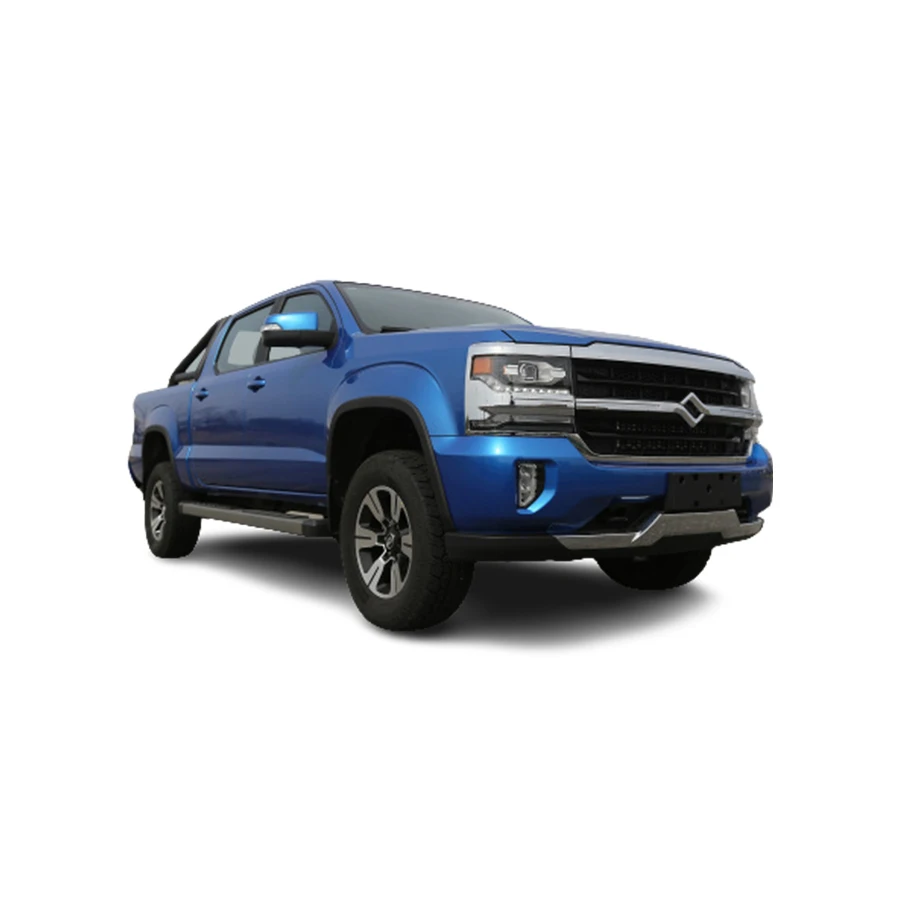

Акция дизельный пикап RHD
17 300,00 $ - 17 600,00 $
100-9000 кг стеллаж для хранения на складе деревянные тяжелые системы поддонов
76,00 $ - 78,00 $
Альфа трис (4-гидроксифенил)-1-этил-4-изопропилбензол CAS No
2,33 $ - 6,20 $
Горячие кубики эритрита/монах, фруктовый Эритрит/эритритол, подсластитель, растворимый в масле

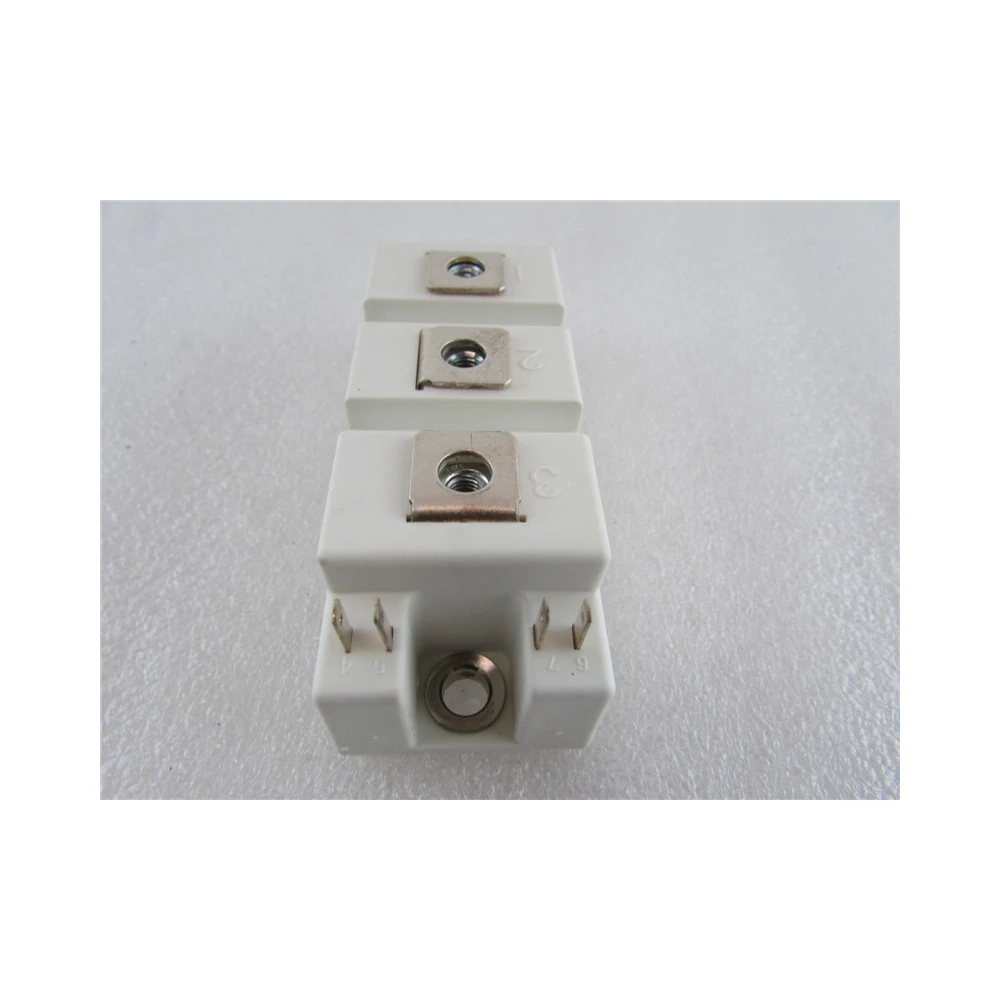

Оригинальный модуль igbt ipm igbt модуль FF75R06KE3

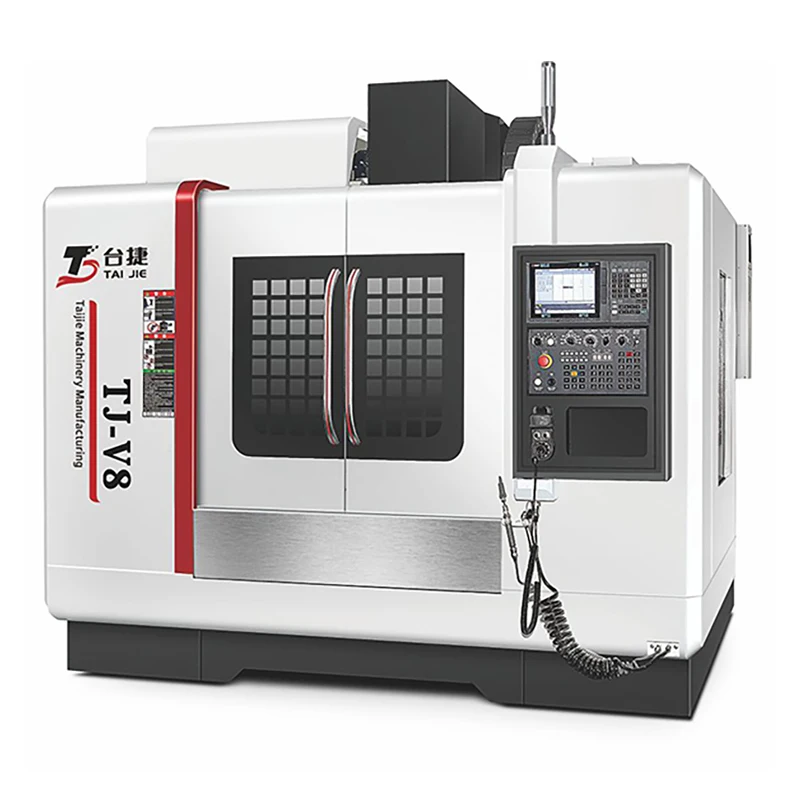

V8 средняя грузоподъемность 3 оси линейные направляющие рельсы высокоскоростные высокоточные детали машины с ЧПУ вертикальный обрабатывающий
