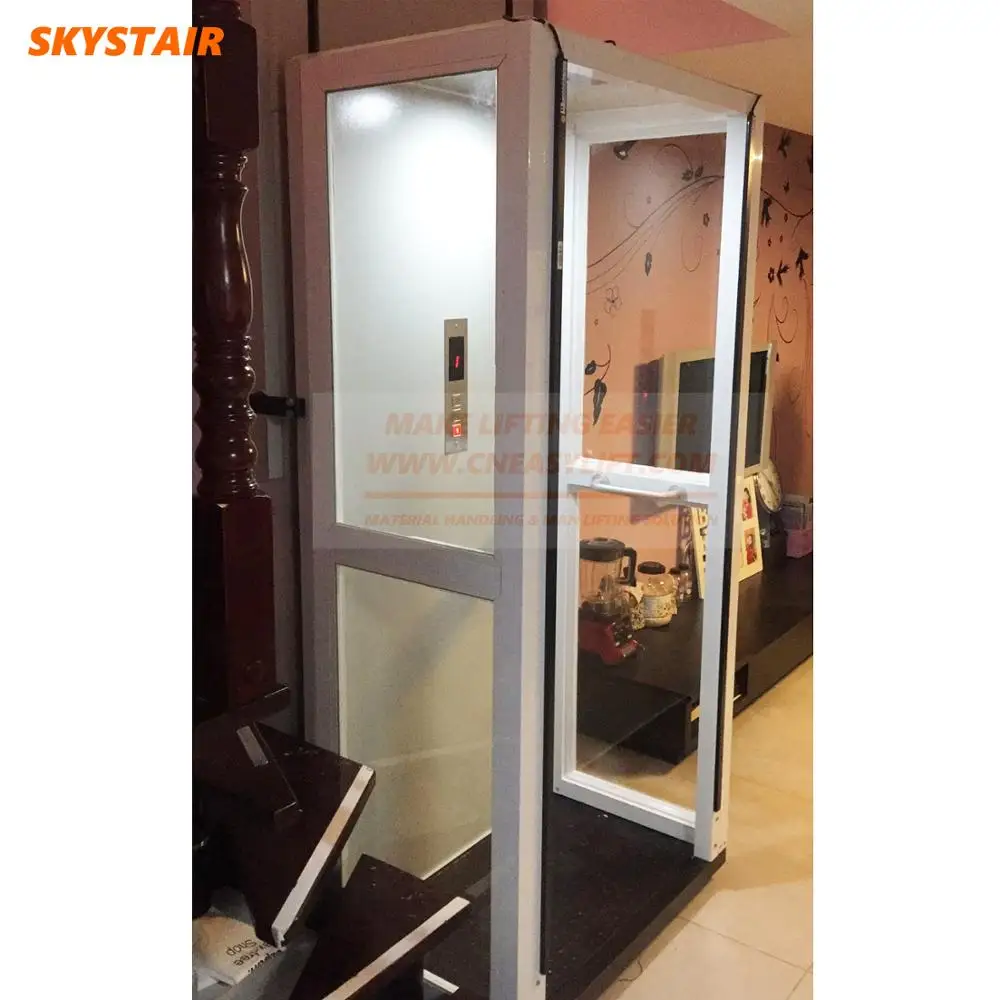

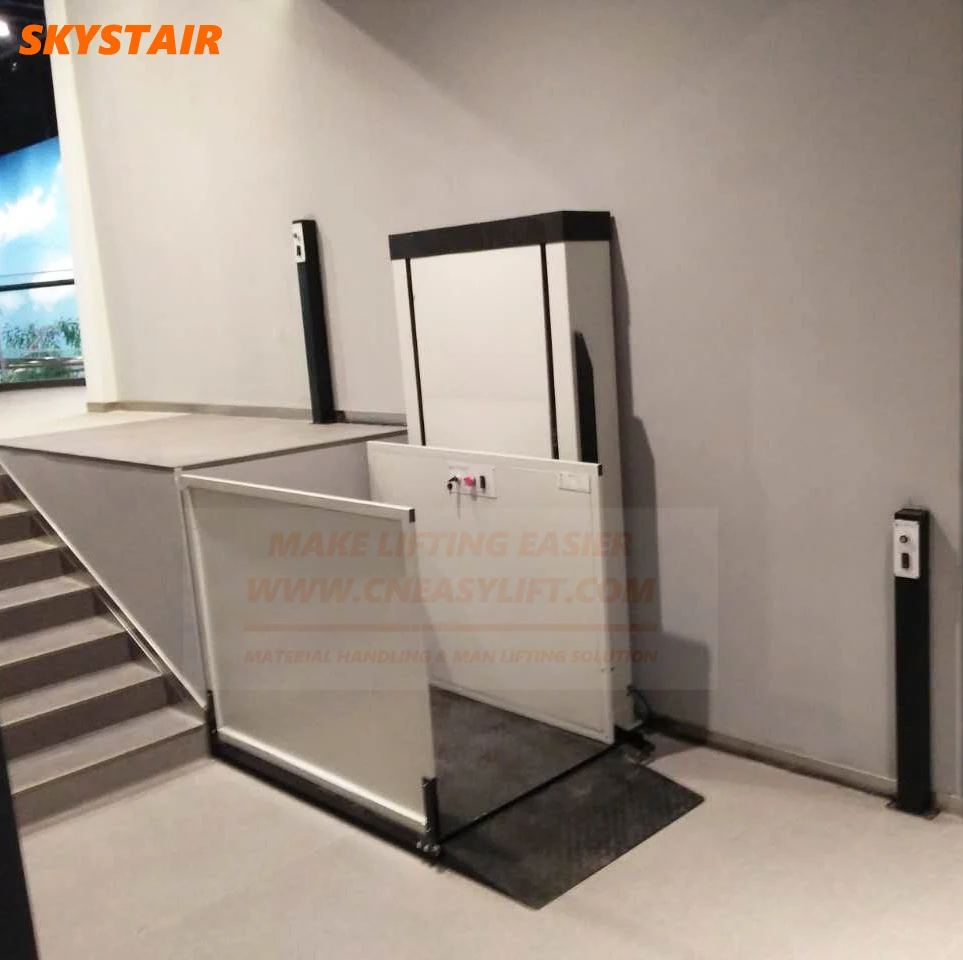

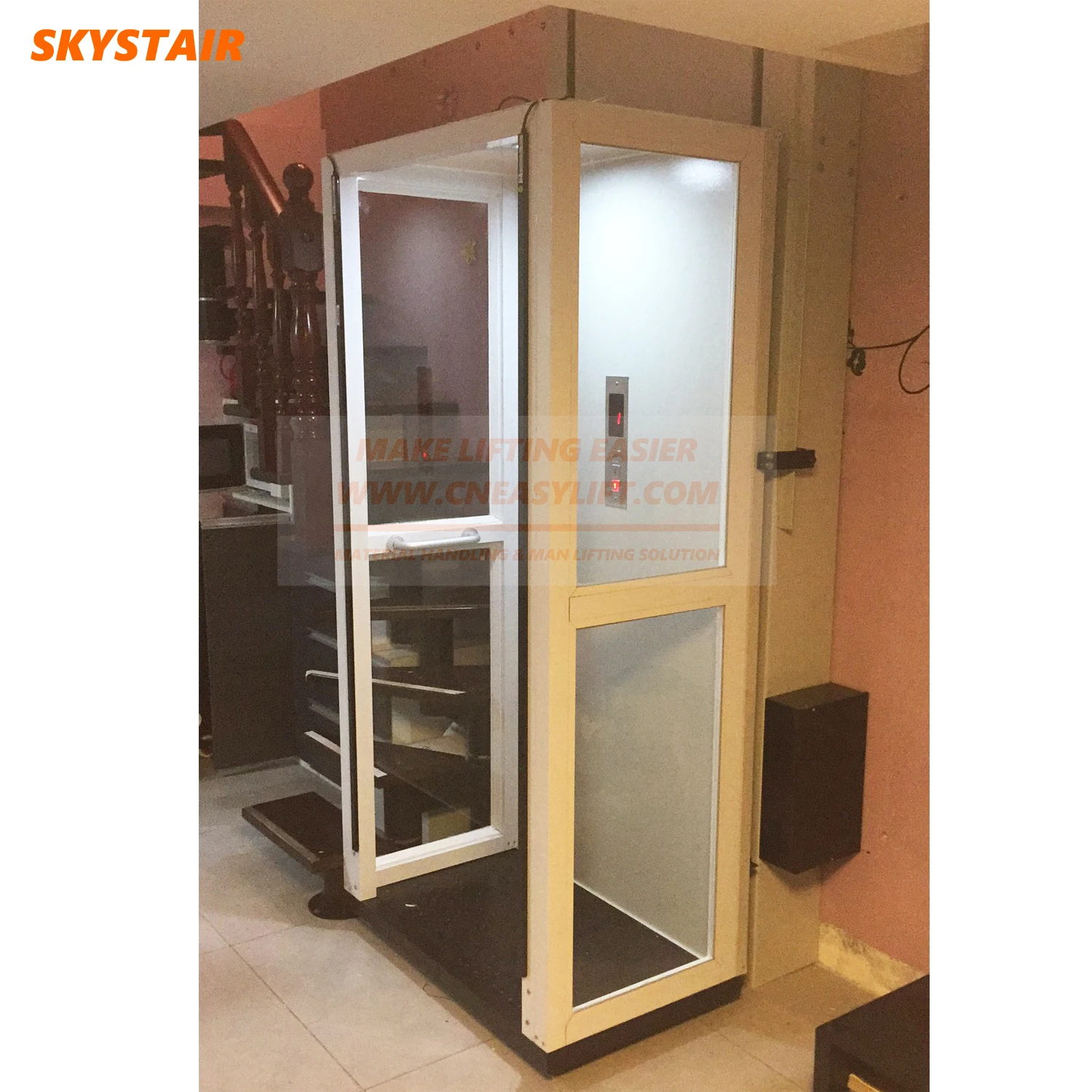

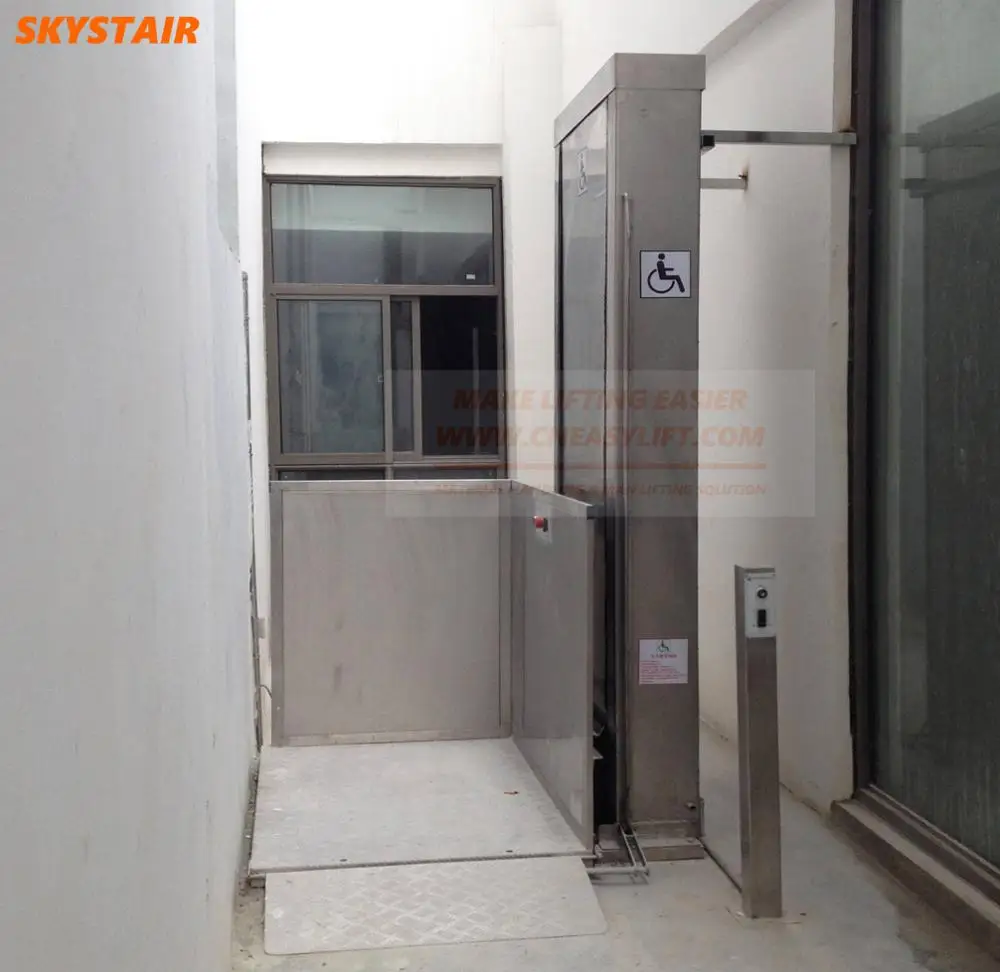

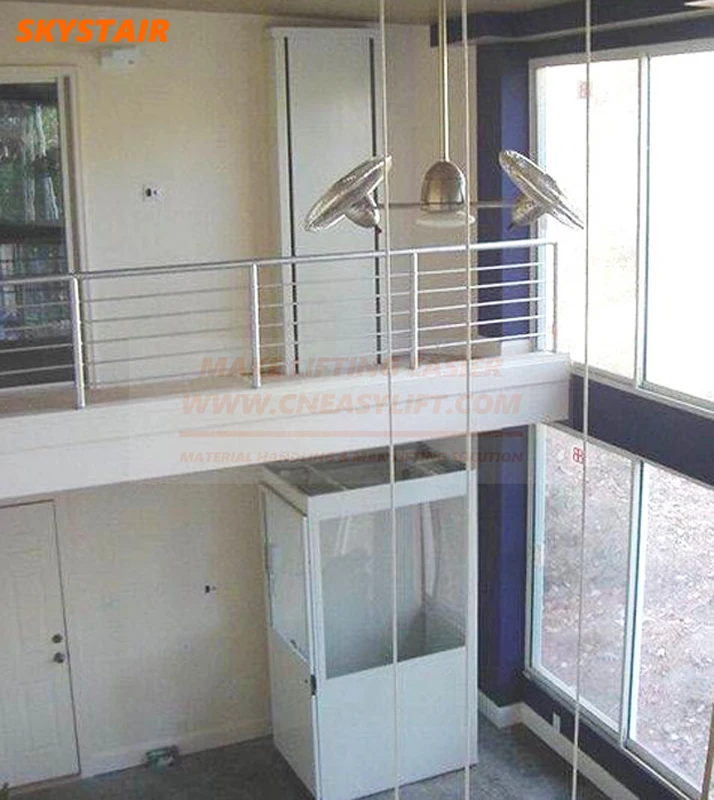

Электрический домашний Лифт skystairдля людей с ограниченными возможностями

Platform size

1370mm(L) x 900mm(W)

Max Platform Height

6500mm

Speed

60mm/s

Load capacity

300KG

Operate voltage

24V

Power Output

2.2KW

Power Input

220V/50HZ (or customized for local power supply)

Drive System

Hydraulic / Screw

Control Mode

Inching Switch or Automatic

Drive Control

Self-resetting system

Overload

Protection Over current relay

Material of Platform

Steel or stainless steel

Painting

Plastic electrostatic spraying

Working Condition

Both indoors and outdoors

Working temperature

From -10°~60°C

Installation

Non-pit installation, directly fixed to concrete floor (the concrete

floor below the platform shall not be lower than the ground)

Control Device

Calling column (installed beside lift) and remote

controller(optional configuration)

Emergency Stop

The lifting and lowering process can be stopped immediately

by pressing the emergency stop button.

Safety device

Safety Interlock

Lock the platform when it is out of control

Emergency down

Can be lowered to ground if power failure.
