Складские буксируемые внутренние мобильные резиновые колеса тележка для транспортировки автомобиля

Сохранить в закладки 62190866720:


Цена:376 689,50 ₽ - 452 027,40 ₽*

Количество:

  • В избранное

Описание и отзывы

Характеристики

Product Description

Warehouse towable indoor mobile rubber wheels steerable transfer car

These battery heavy duty industrial 20ton transfer car for moving heavy items have been conceived and built to realize their utmost working flexibility.Because they have no predefined path and can steer in any direction and move on any kind of floor. And these transfer car are very useful to bring the heavy loads where overhead cranes cannot arrive.

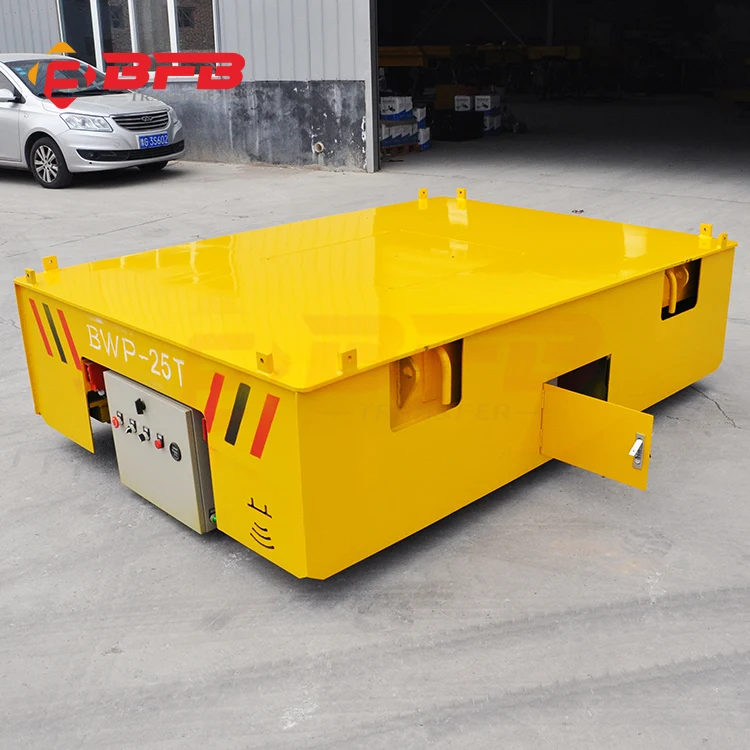

Warehouse towable indoor mobile rubber wheels steerable transfer car

The features as following:
1. The transfer car is battery powered, they represent the best solution for all those appliances with delicate handling problems in limited places.(360 degree turning flexibly)
2. The trackless transfer car is very flexible since it can move freely around the plant as indoor as outdoor.
3. It is equipped with non-marking wheels to avoid any mark on floor.(Imported PU wheel or customized)
4. Easy operation make transfer car perfect to meet the most important requirements: where space is very limited and paths are strictly constrained.
5. Dimensions,capacity, loading platform superstructure, speed and many others features can be customized as per client request.Bay to bay steel floor DC motor driven trackless youtube transfer car

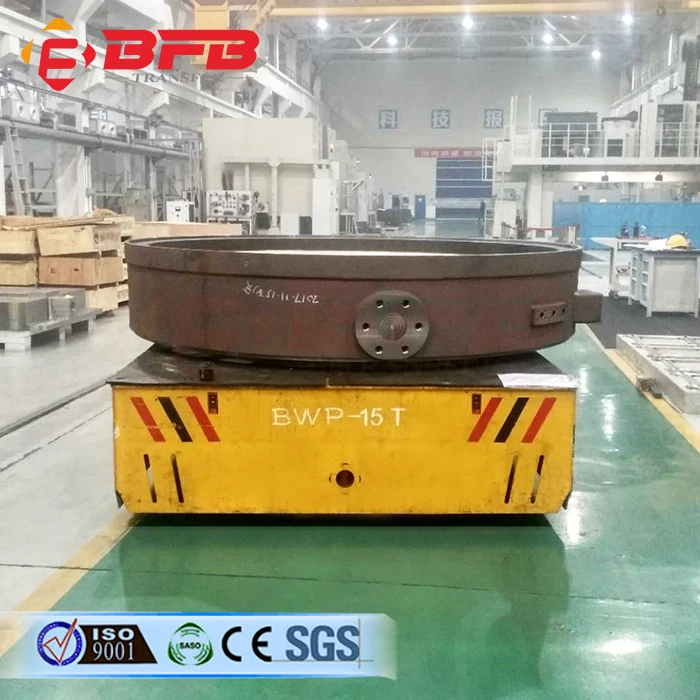

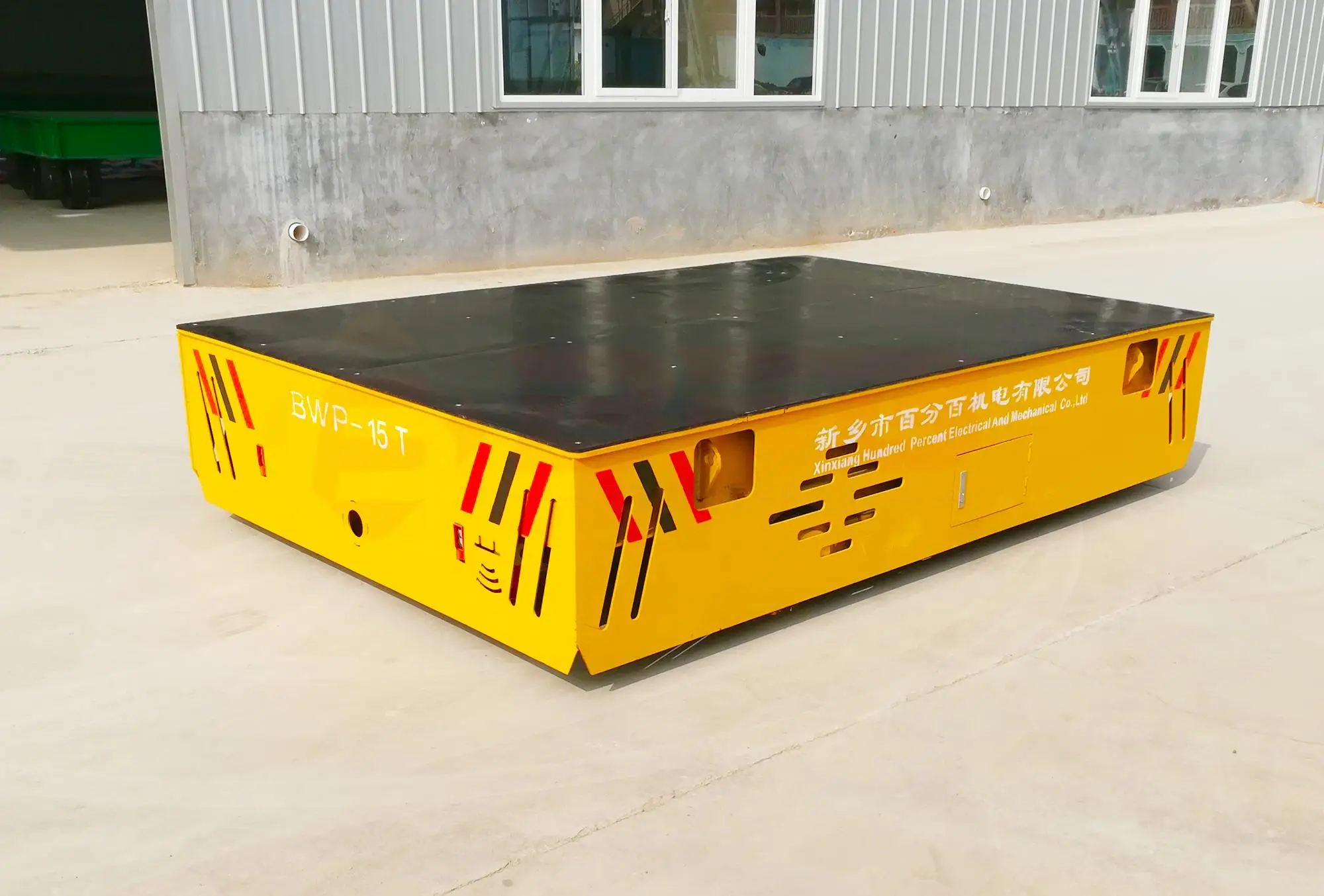

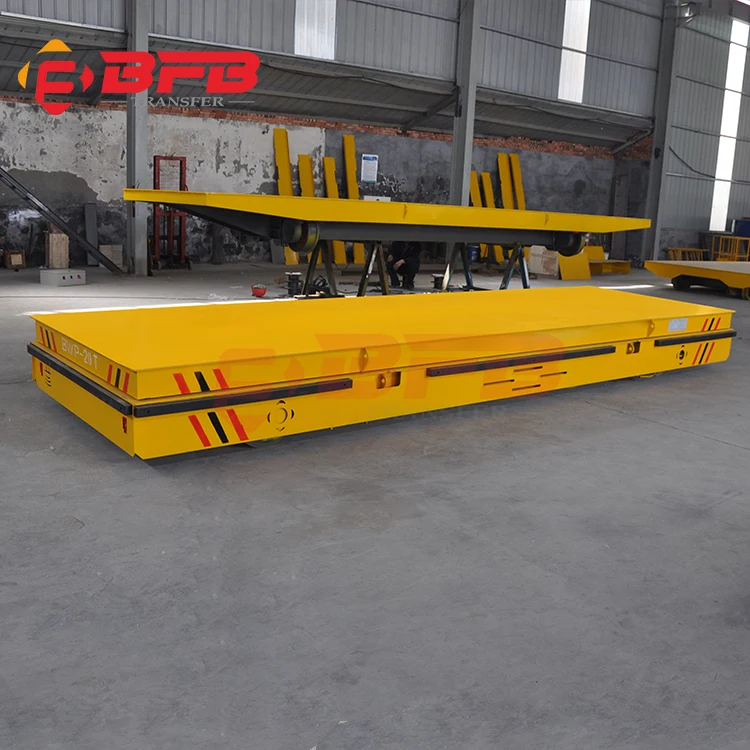

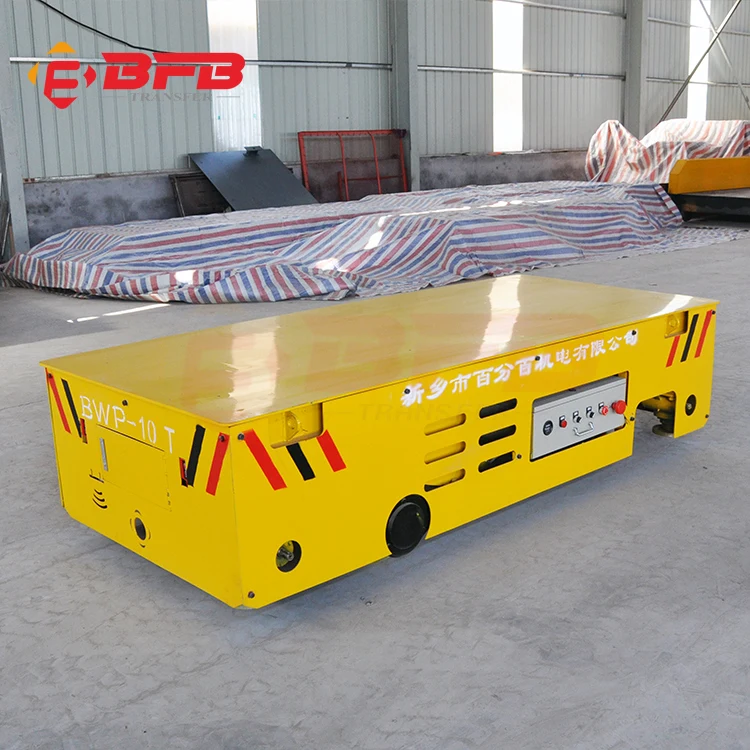

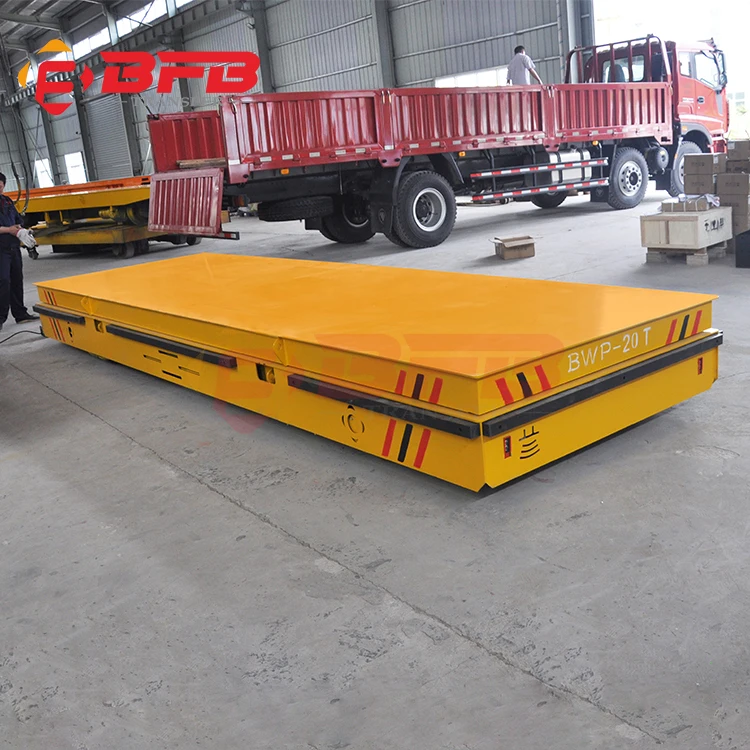

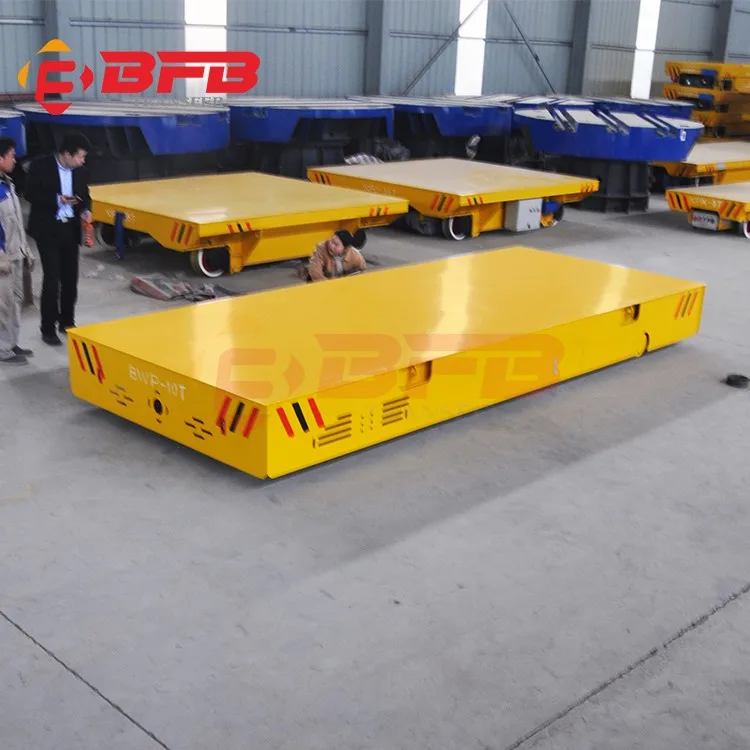

Detailed Image

Get competitive price from Warehouse towable indoor mobile rubber wheels steerable transfer car

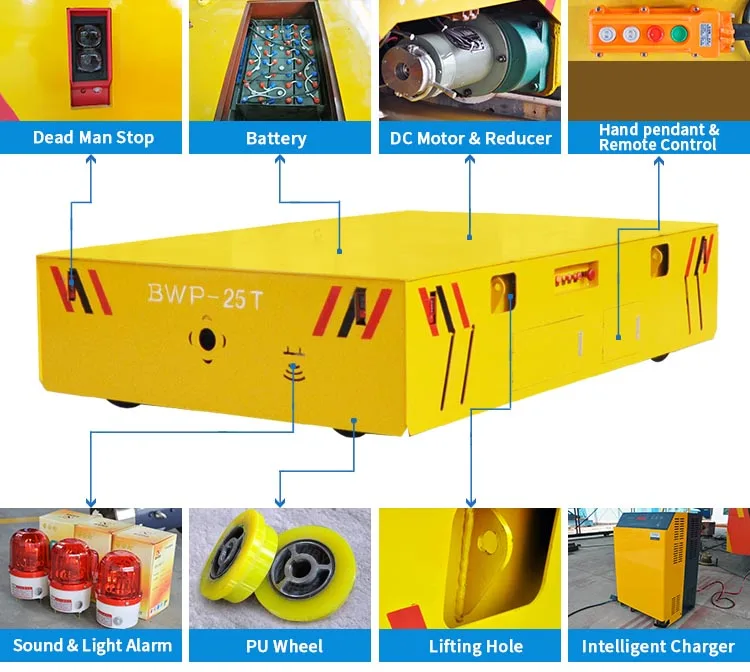

Advantage
1.   High level automation(self propelled/steerable)
2.   The largest capacity can reach to 500t
3.   Safe parts are installed in the transfer car(warning light, e-stop, buffer...)
4.   Robust sturdy car frame
5.   AC/DC electric engine , diesel engine or pneumatic engine
6.   Excellent gear reducer and motor with high quality, assemblied together perfectly
7.   Remote control&hand pendant control make the opration more convenient.
8.   The speed can be adjusted
9.   Easy operation and maintenance
10. Famous brand parts, guarantee the quality and prolong the using lifetime
11. Low noise and do not pollute the environment
Product Parameter
Modle

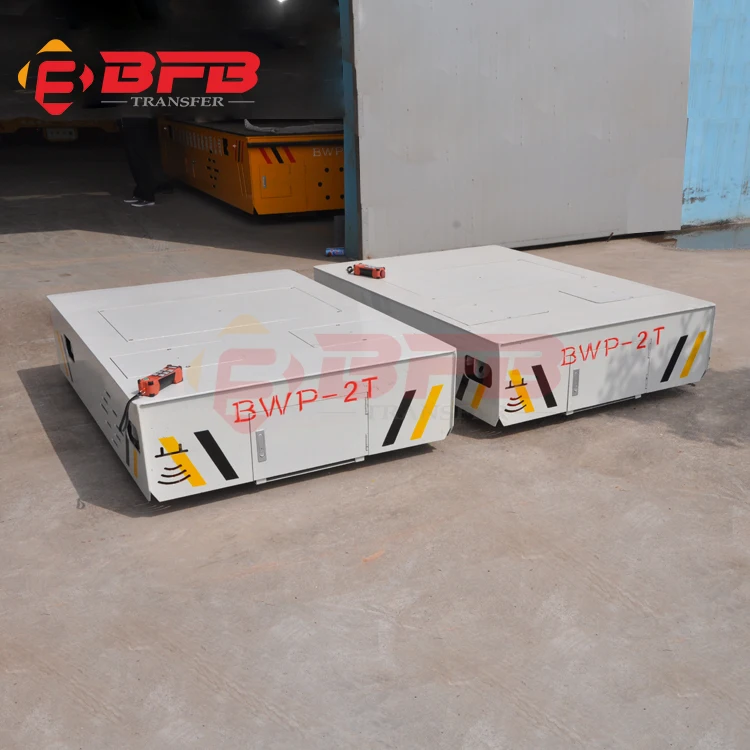

BWP-2T
BWP-10T
BWP-30T
BWP-50T
BWP-80T
BWP-100T
Table Size (m)
2.0*1.5*0.45
2.3*2.0*0.55
3.5*2.2*0.7
5.5*2.6*0.8
6.5*2.8*0.95
6.6*3.0*1.2
Power
Maintenance Free Battery
Wheel Base
1080mm
1650mm
1650mm
2000mm
1950mm
2000mm
Wheel Dia.
250mm
350mm
450mm
600mm
600mm
600mm
Running Speed
0-20m/min
0-20m/min
0-20m/min
0-20m/min
0-20m/min
0-20m/min
Motor Power
2*1.2kw
2*2.2kw
2*5.5kw
2*7.5kw
30kw
40kw
Battery Capacity
250Ah
250Ah
450Ah
500Ah
800Ah
1000Ah
Battery Volatge
24v
48v
48v
48v
72v
72v
Max Wheel Load
14.4Kn
42.6Kn
110.4Kn
174Kn
185Kn
190Kn
Reference weight
2.3t
4.2t
6.8t
8t
14.6t
26.8t

Remark: The technical parameter of the trackless transfer car only can be make reference above.All can be customized manufacturing as per your true demand. Please contact us if any doubt. Our professional engineer will help you solve the transfer problems in any time.Warehouse towable indoor mobile rubber wheels steerable transfer car

Packing & Delivery
Packing
Size
Actual measurement shall prevail
weight
The actual weight shall prevail



Details
The transfer car normal package is plastic cloth(Size: L*W*H). If export to european countries or container is too tigher,we will packed it according to customers special request
Delivery
Size
Actual measurement shall prevail
weight
The actual weight shall prevail



Details
The transfer car are shipped to proper container as per the cargo size, LCL, 20', 40', FR container and so on.
And we have the long term cooperative forwarder, and the proper transportation solution and economic price will be provide and make you at ease with rich experience.

Get competitive price from Warehouse towable indoor mobile rubber wheels steerable transfer car

Our Company

Xinxiang Hundred Percent Electrical and Mechanical Co., Ltd is a collection of research, design, manufacture, installation and after-sales service of electric handling car ,metal sheet rail cars as one of the professional manufacturing company, which has a modernized management team and excellent staff.And our prodcuts gets CE, SASO,SGS,ISO certificate and other 8 national patent, our products have been exported to more than 60 countries and regions,such as Germany, Mexico, USA, Turkey, South Africa, Singapore etc.Warehouse towable indoor mobile rubber wheels steerable transfer car
