Factory promotional continuous potato frying machine industrial potato french fries fryer machine
1. New design idea, automatic cleaning residue, prolong the service life of frying oil.
2. Stainless steel material, durable, CE certified motor, low failure rate, variable frequency speed regulation.
3. The frying temperature and time can be adjusted according to the frying demand.
4. Equipped with oil replenishment, it can automatically replenish the needed frying oil.
5. The continuous potato frying machine industrial potato french fries fryer machine is packed in standard export wooden cases.
6. The continuous potato frying machine industrial potato french fries fryer machine can be customized according to need.
The industrial potato frying machine includes:
Number | part | function |
1 | Feeding inlet | The product enters the frying area through the feeding inlet |
2 | frying zone | The products are fried in this area. |
3 | mesh belt | double mesh belt,The lower mesh belt is used to transport the fried products, and the upper mesh belt is used to control the fried products in the frying oil. |
4 | burn | The burner makes the fuel and air fully burnt, provides heat energy, and heats the frying oil. |
5 | control cabinet | It adopts button operation, which is easy for workers to manipulate the fryer flexibly. |
6 | hoisting system | Used for lifting the body and cover of fryer to facilitate cleaning and maintenance of fryer. |
7 | Scraping Slag System | Remove residue and sludge from frying process in time |
8 | Fume exhaust system | It can discharge the oil fume in time and effectively to ensure the clean and hygienic frying environment. |
9 | heat-insulation system | Reducing Heat Loss and Improving Energy Utilization |
10 | discharging outlet | When the product is fried, the product is transported out from the discharging outlet. |
Technical parameters of the industrial potato frying machine:
Model | JTRL-3500 |
Material | SUS304 |
Outline size | 3500x1000x2000mm |
Mesh belt width | 600mm |
Size of frying zone | 3000x600x300mm |
Temperature range | 0-300℃(adjustable) |
Oil capacity | 480L |
output | 100-300kg/h |
Heating energy | Gas,lpg and so on |
Burner power | 200 |
The Characteristics of frying machine:
1.The continuous potato frying machine industrial potato french fries fryer machine adopts double mesh belt design, which is divided into upper mesh belt and lower mesh belt. The lower mesh belt is conveyor mesh belt. During frying, the upper mesh belt can effectively press the product into the frying oil to ensure the uniformity and consistency of the frying products and improve the quality of the products.
2.The upper part of the frying body has a cover and a smoke outlet , which can ensure a clean and sanitary frying environment.
3.The continuous potato frying machine industrial potato french fries fryer machine has a special hoisting system.which is used to hoist the frying body and mesh belt.It can hoist the mesh belt and cover separately.
4.Frying machine body is the main parts to hold the whole frying production line,which is made of SUS304,the thickness is 3.5mm.

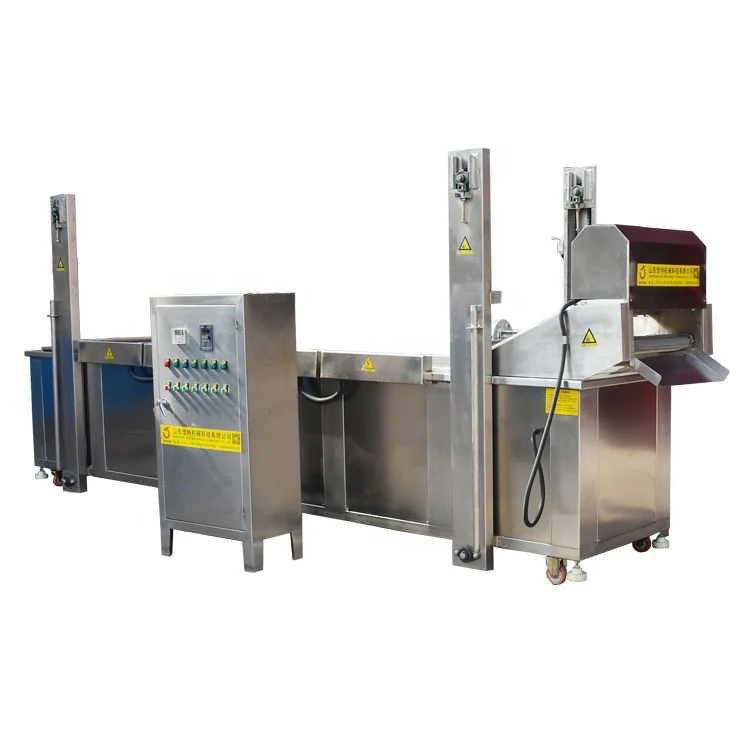

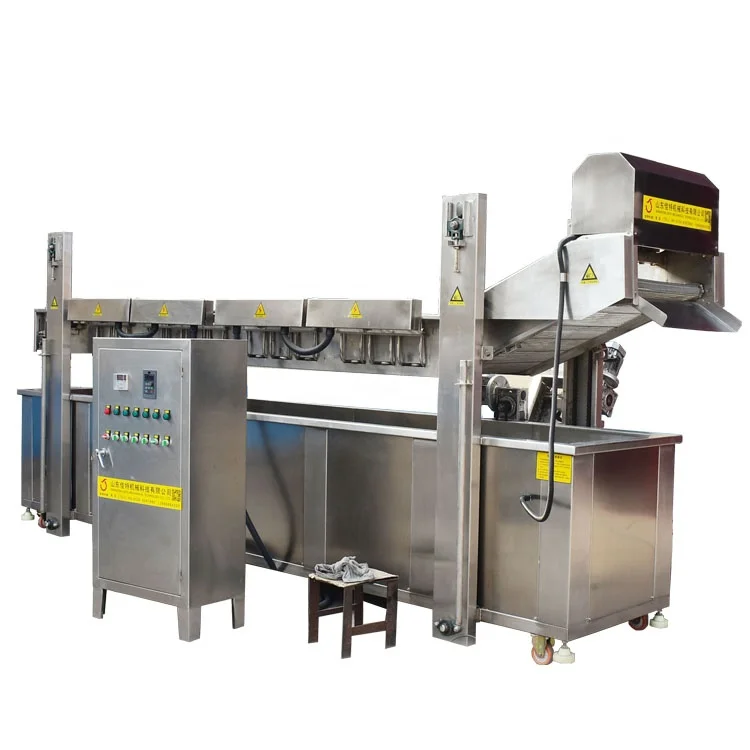

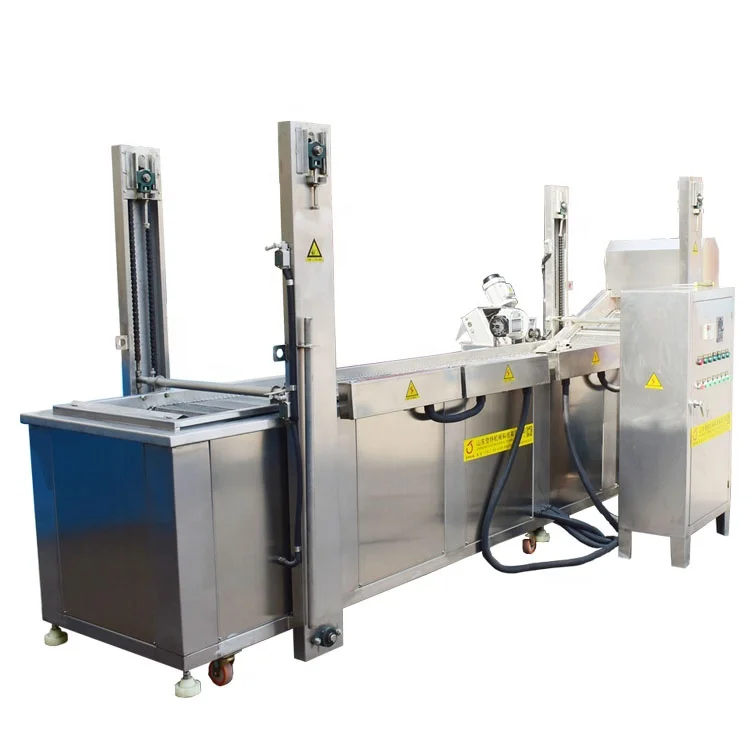

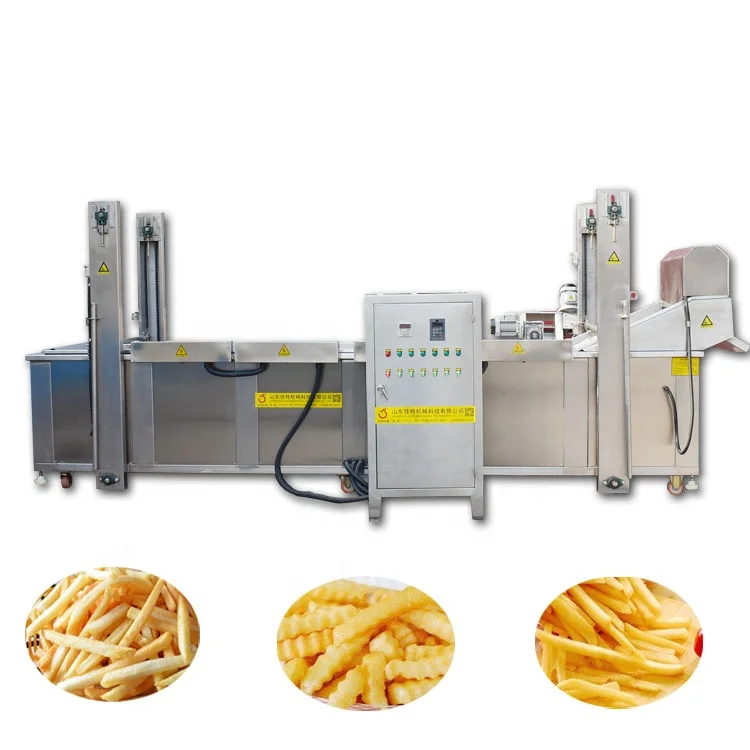

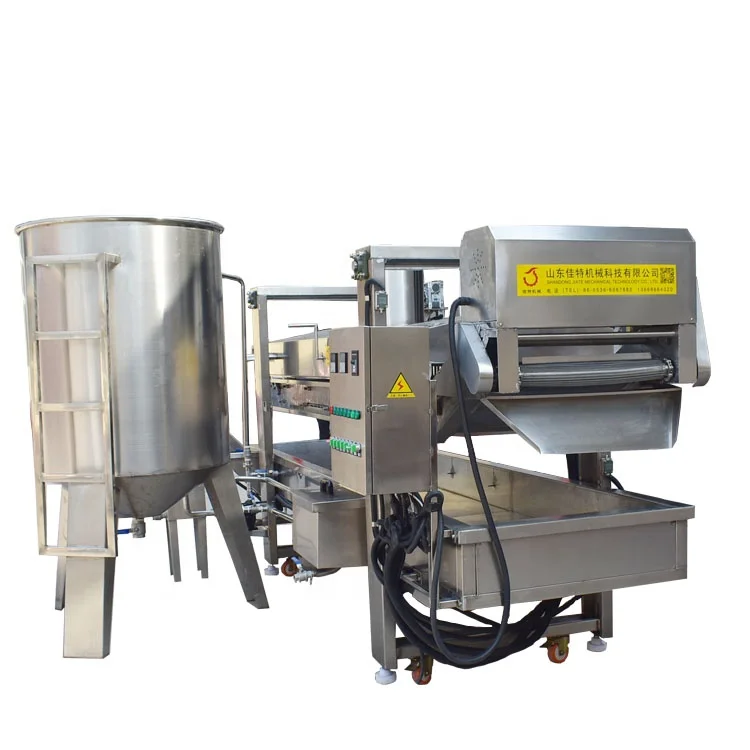

Pictures of the potato frying mahcine:
Packing:
All the machines which need packaged will be covered by film then put into the export standard wooden case ,use thecystosepiment to prevent breaking on ship.
The wooden case will be fixed inside the container tightly by the rope.
Export standard wooden case will be palleted for easy unloading for customers.
Shipping:
We select derect ship for sending the machines to customers within shortest time as we can.
We will update the shipping information to customers in time.
Pre-sales Service:
Inquiry and consulting support
Sample testing support
View our factory
After-sales Service:
Training how to install the machine,training how to ues the machine
Engineers available to service machinery overseas
Shannon Jiate Machinery Technology Co., Ltd. Is located in Wangjiatiegou industrial districts of Zhengcheng city in Shandong province.Our company is specialized in Frying Machine,Frying Production Line,Meat Processing Machine,Fruit And Vegetable Processing Machine,Pasteurization Machine,Industrial Cooking Machine and so on.
With the experienced and processional team,we exported our products to many countries and regions all over the world.Our products enjoy a good reputation among our customers.
We welcome customers ,business associations and friends from all parts of the world to contact us and seek cooperation for mutual benefits.
Some customers coming:
1.Are you a factory or a trading company?
Shandong Jiate Machinery is a frying machine manufacturer. We mainly produce various frying equipment, frying production line, fruit and vegetable processing equipment, low temperature pasteurization equipment and various meat products equipment.
2.How does your factory do regarding quality control?
"Quality is priority?
Company always attach great importance to quality controlling from the very beginning to the very end:
1).All raw material we used are environmental-friendly;
2).Skillful workers care every details in handling the producing and packing processes;
3).Quality Control Department specially responsible for quality checking in each proces
3.Why Choose Stainless Steel 304 Fryer?
Stainless steel SUS304 is a food-grade stainless steel material with international certification standards. It has strong corrosion resistance and high temperature resistance, and will not cause any pollution to food.
