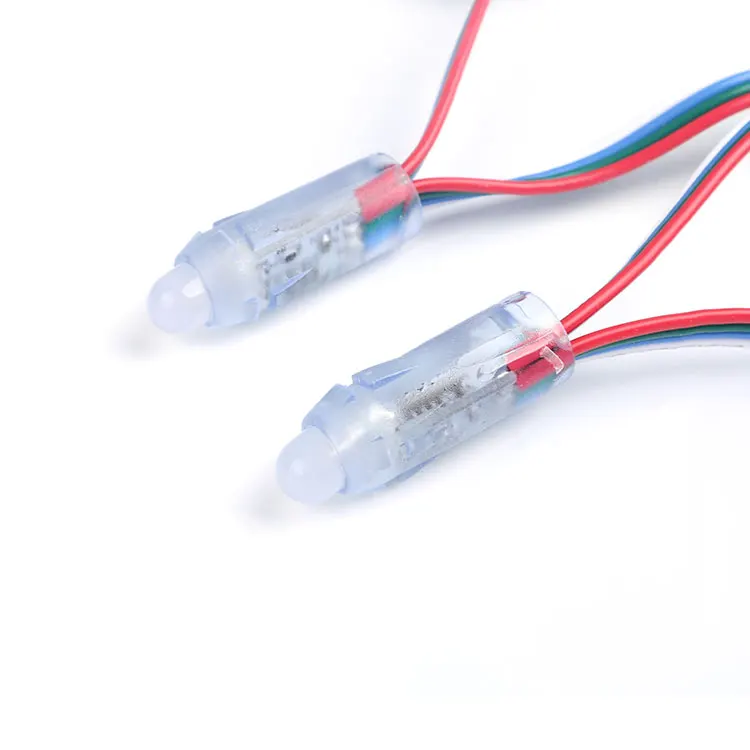

1,These Addressable Rgb Led Pixel Light are made by F8 RGB high brightness LED, with big view angle.
2,12mm Led Pixel Light String Using TaiWan Epistar chip, with high brightness, lighting color consistency, good color saturation, strong stability etc.
3,12mm rgb smart pixel light With special shape, suitable for all kinds of board.
4,RGB Smart Led Pixel Light String With PU glue sealing, not easy to crack, high waterproof grade.
5,Cables and case are using anti-cold, anti-UV, anti-flamere sistant material, can be used in outdoor for long time.
6,Applicatoin: led pixel letters, huge outdoor led advertisement signs, led pixel display for KTV amusement clubs and hotels etc.
Datesheet
Model NO. | SJ-12-ws2801 |
IC chip | ws2801 |
Power Consumption | 0.3W |
Work Voltage | DC 5V |
Beam Angle | ≥120 |
LED Quantity | 1 pcs |
Color | Full color (ICRGB) |
shape | round |
Waterproof Grade | IP66 |
Work Temperature | -40-+60°C |
Life-span | 50,000H |
Certificate | CE&RoHS |
Warranty | 2 years |






LEDs Advantage:
1. Green lighting,with CE&RoHS,DC5V input,50pcs per strand or as customer requirement
2. Energy saving, saving 50% ,0.3W,8cm distance between each LEDs
3. WS2801 IC,256 gray leval with more pixel flash and animations.
LEDs Attention:

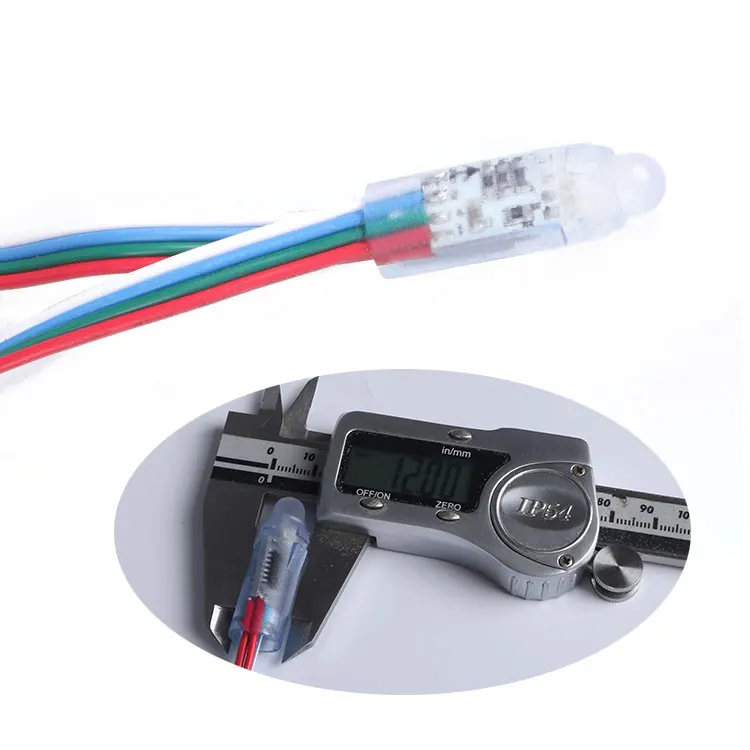

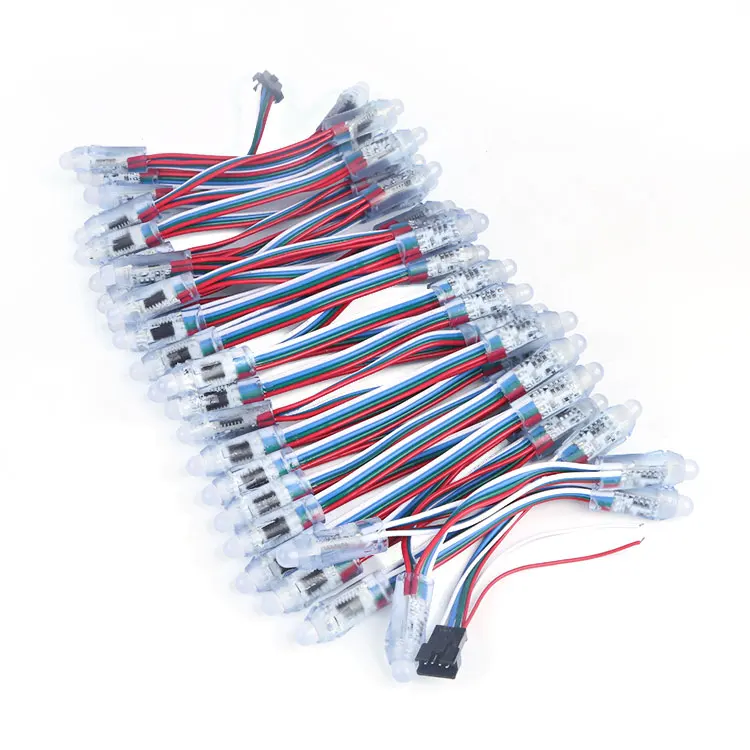

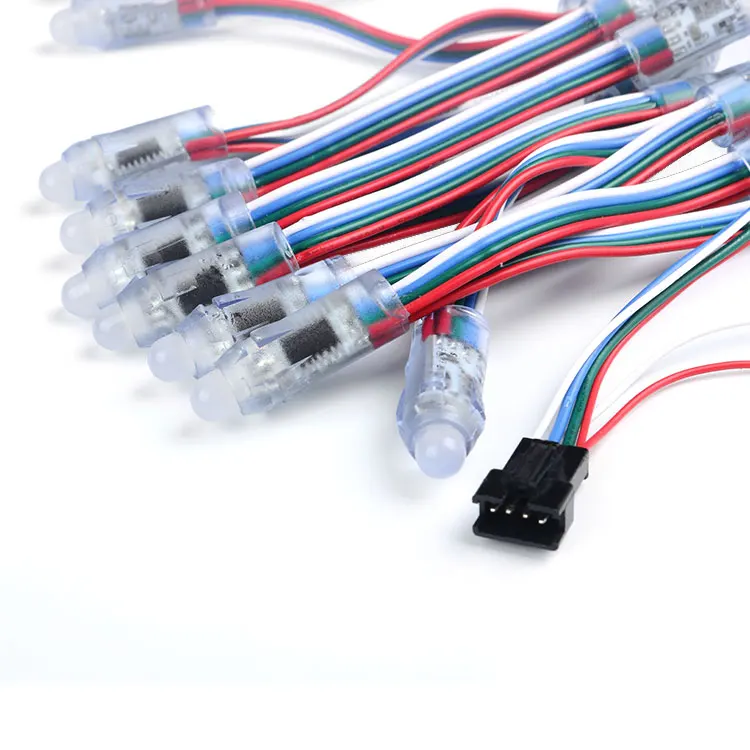

Part 1 LED is 50pcs per string.8cm wire between each LED,punching diameter is 12mm
Part 2 Installation to avoid the risk of electric shock.
Part 3 LED lamp,if any, when deformed or damaged,replace.

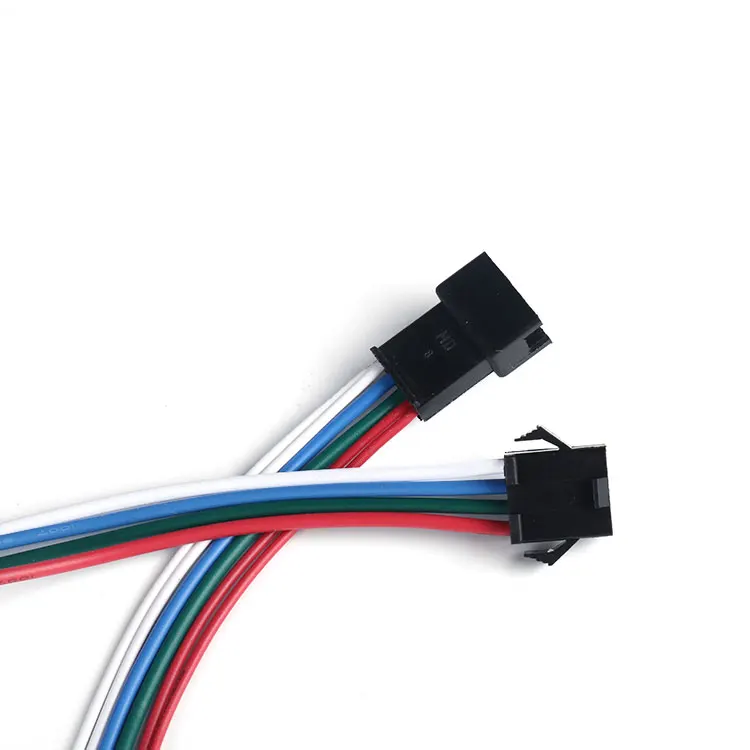

Part 4 This LED has different IC model,please notice different IC different wire define
Part 5 LED input voltage is DC5V,used the sd-card controller normally,DMX compatiable.
Part 6 It is not suitable for use in the climax of the environment in the high humidity

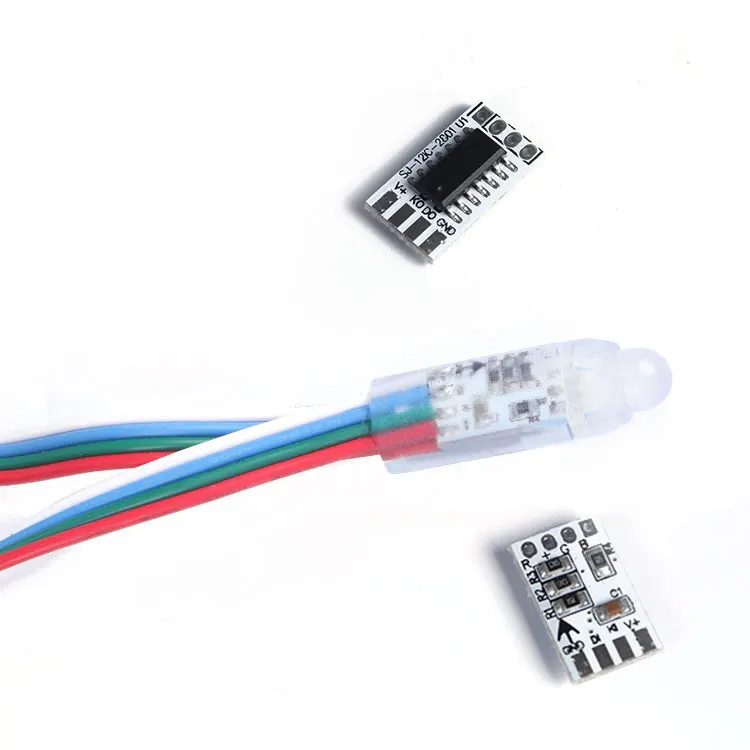

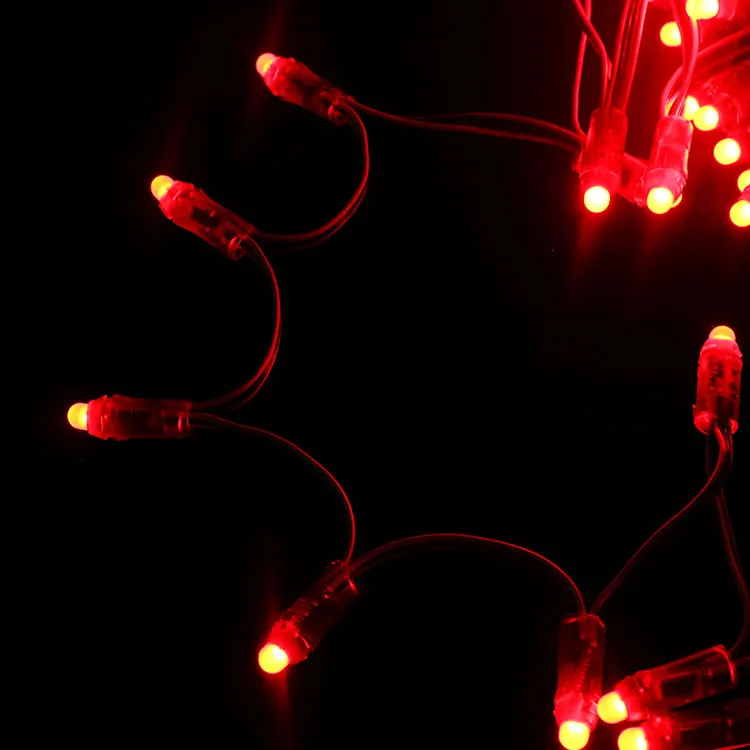

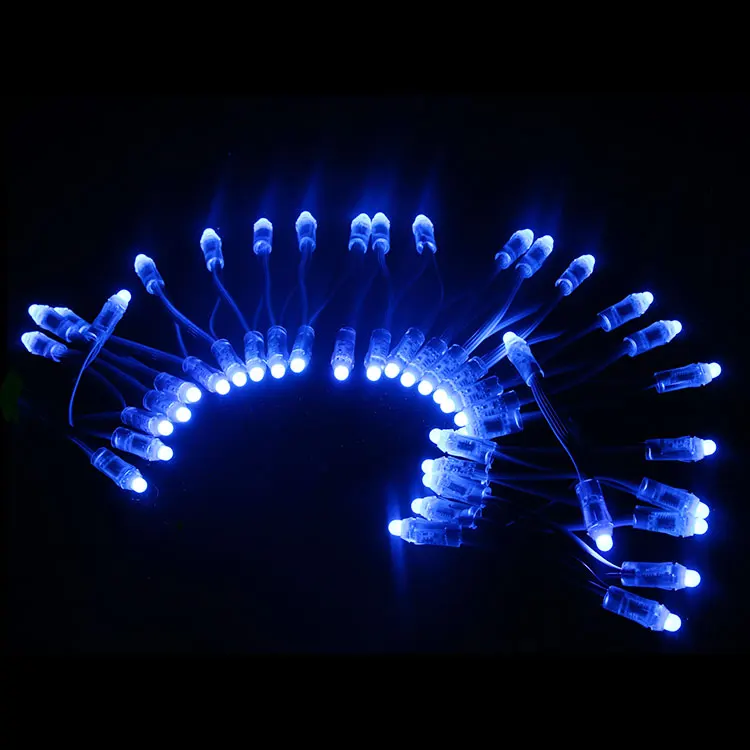

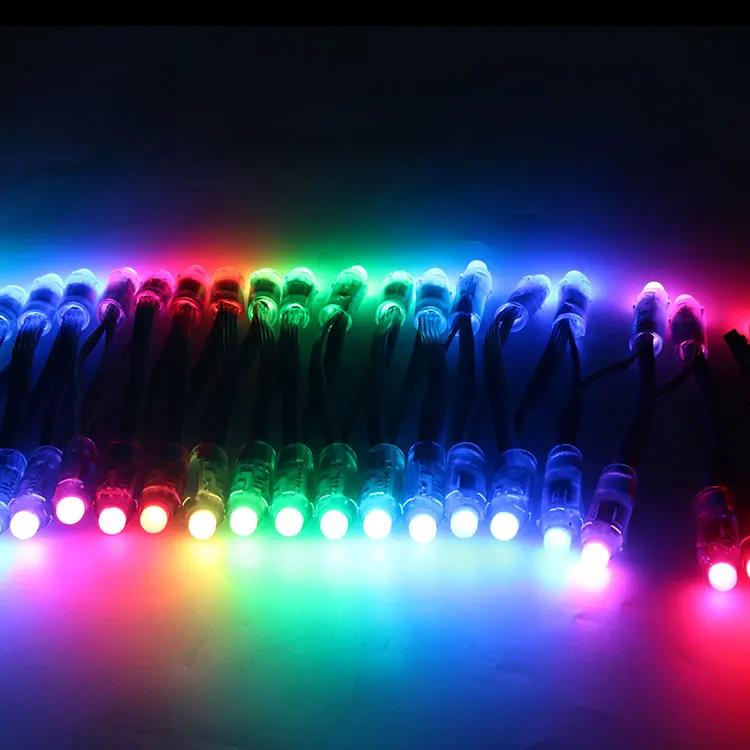

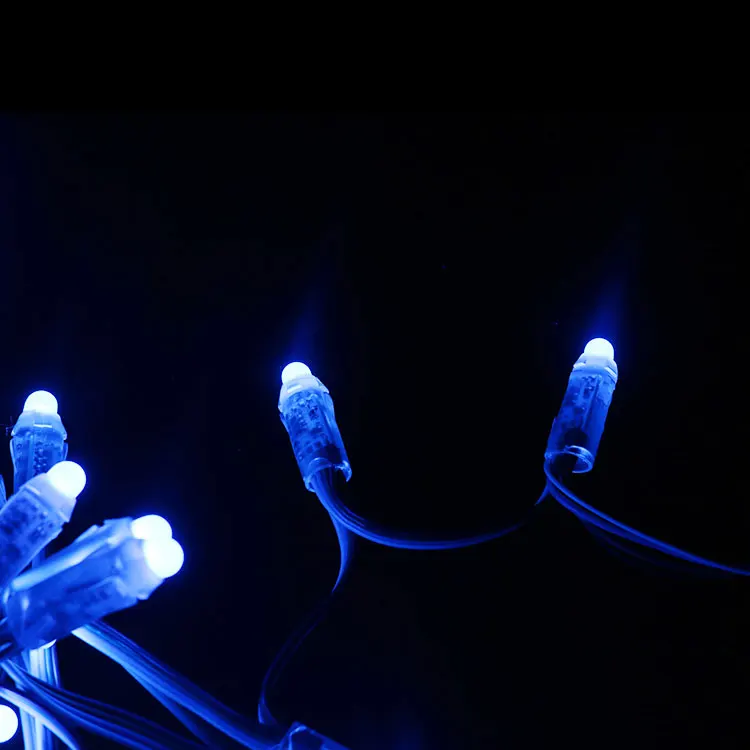

Details Show:
DMX connection way guide



Packaging: Standard exporting carton. carton, wooden case, flight case . 0.5m,1m with 50pcs one carton. DHL,Fedex,UPS,TNT and your own logistics is available.
Shipping: 3-7days


a. Shijilighting LED is one of professional amusement led and Pixel LED light manufacturers.
b. We already had world wide customer and most of them located in Euro and North America and Mexico
c. We had 12 years experience with the pixel LED and a sales team.
Q2. How is your company?
We had 6 years experience on pixels LED production, company size : 1200 square meters 2 electronic engineers, 3 QC workers. 12 sales for now ,we located in Baoan Shenzhen City.
Q3.How long is the delivery time?
usually we had meterial in stock , regular order delivery time 3--7 days after the order (PI) paid.
Custom products 8--15 days (Custom PCB)
Q4. How do i know your company realible ?
a. this company verified by Alibaba group
b. We had famous customer who distributing our products world wide (can be introduce)
c. contact a with our salesman for provide a cooperated customer's contact information who close to your city or country
d. use Skype ID video chat with our salesman to show you our factory,office etc...
Q5. How much tax should i pay for custom when we buy goods from you ?
Different country had different import policy, you need to figure out with Custom
we dont have a exact answer about this, but most of country 25% on the invoice value.
Q6. Can you design a animation before we do business ?
We have a animation and program designer in company , even if we don‘t had business before we will be happy to do a animation design or program file for you and it will be free.it's a part of business to help someone built something.
