Промышленное использование и 4 независимых PID канала поддерживают контроль температуры

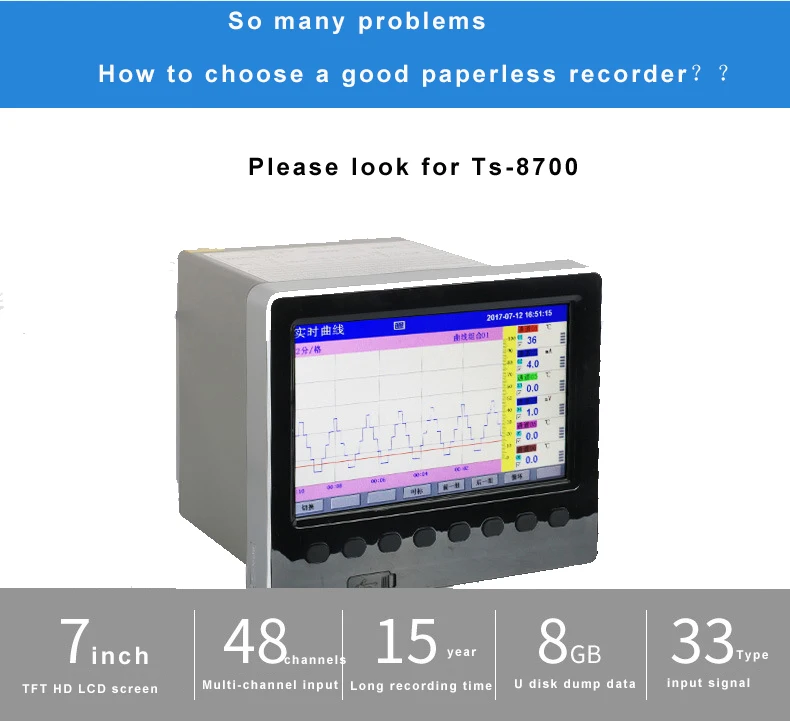

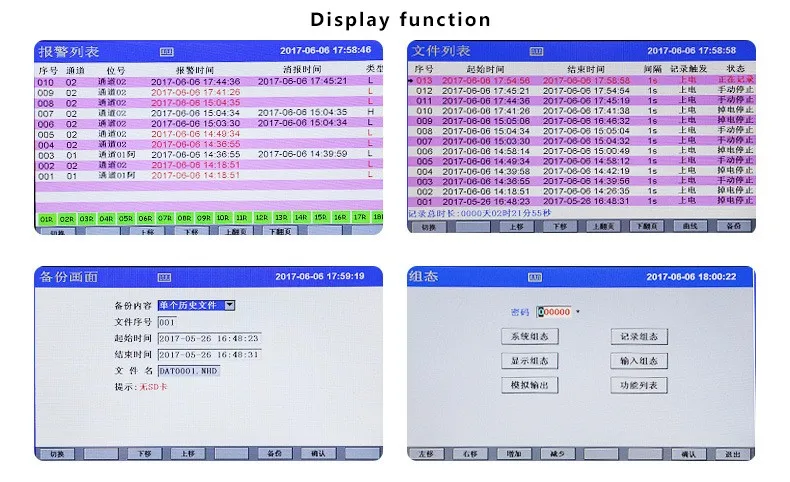

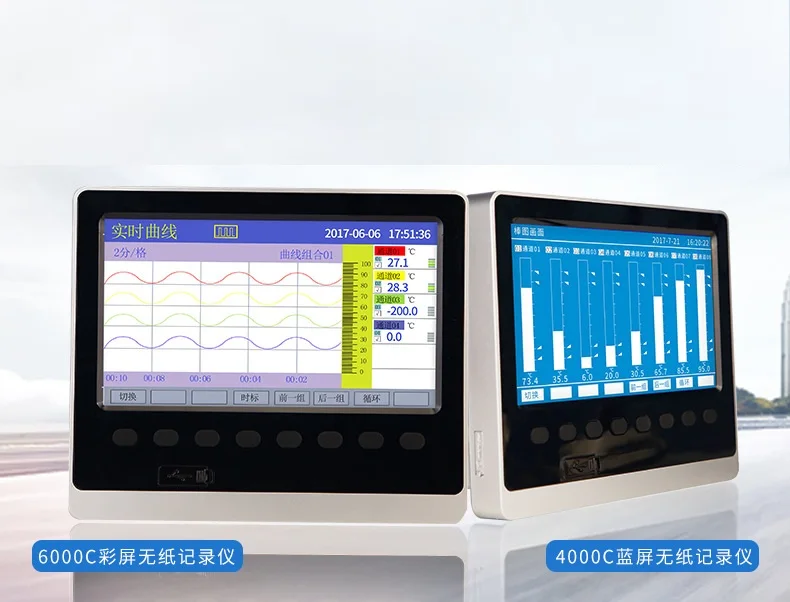

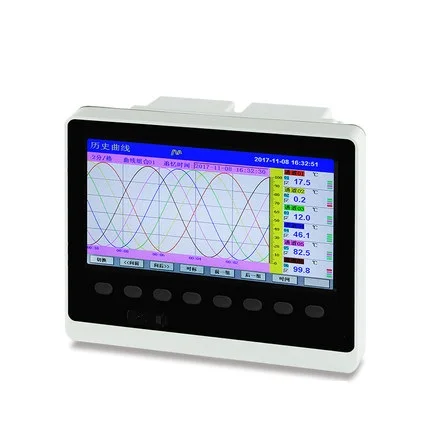

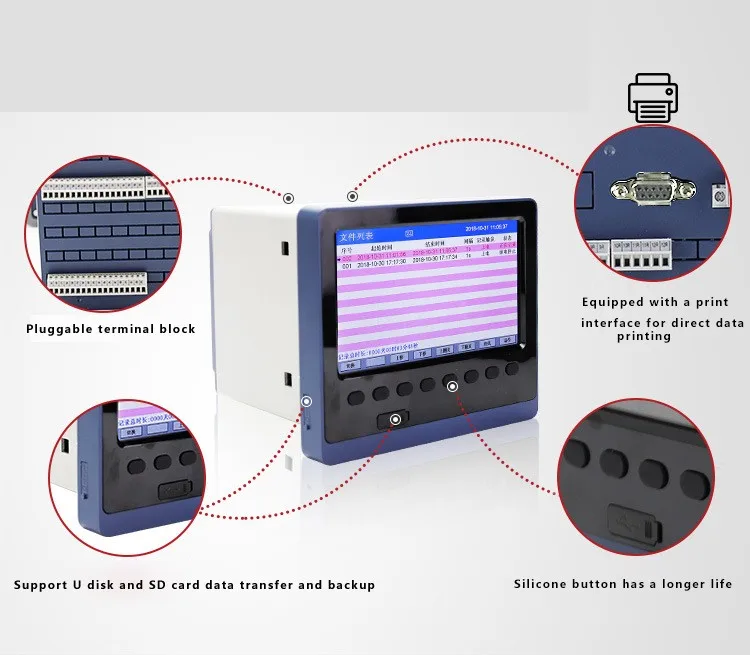

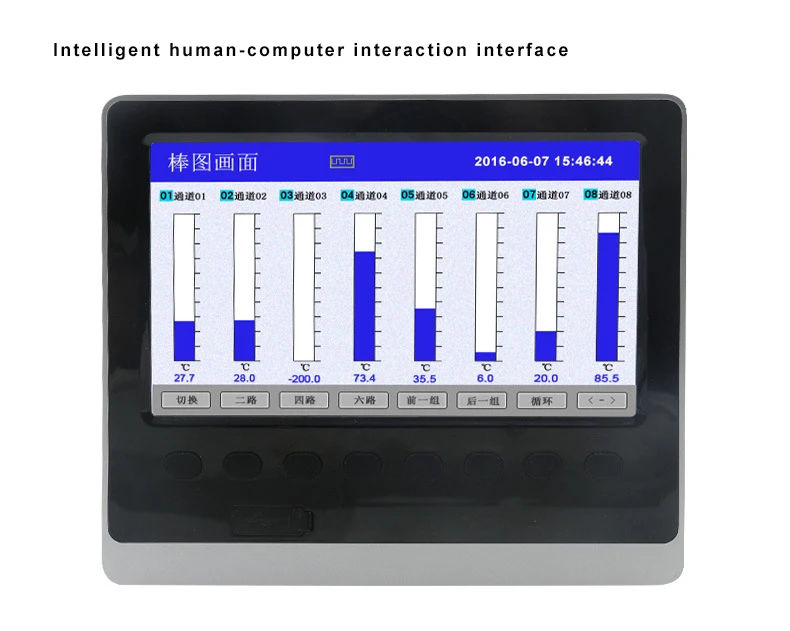

Universal input of color paperless recorder (capable of inputting by means of configuration: standard voltage, standard current, thermocouple, thermal resistance, millivolt, etc.). It can be equipped with 18-channel alarm output or 12-channel analog transmitting output, RS232/485 communication interface, Ethernet interface, mini-printer interface, USB interface and SD card socket; can provide sensor distribution; is equipped with powerful display function, real-time curve display, historical curve retrospection, bar graph display, alarm list display, etc. The meter is of high cost effectiveness due to its humanized design, perfect function, reliable hardware quality and exquisite craft.

Input signal:

Current: 0~20mA, 0~10mA, 4~20mA, 0~10mA square root, 4~20mA square root

Voltage: 0~5V, 1~5V, 0~10V, ±5V, 0~5V square root, 1~5V square root, 0~20 mV, 0~100mV, ±20mV, ±100mV

Thermal resistance: Pt100, Cu50, Cu53, Cu100, BA1, BA2

Linear resistance: 0~400Ω

Thermocouple: B, S, K, E, T, J, R, N, F2, Wre3-25, Wre5-26

Output signal:

Analog output: 4~20mA (load resistance ≤380Ω), 0~20mA (load resistance ≤380Ω), 0~10mA (load resistance ≤760Ω), 1~5V (load resistance ≥250KΩ), 0~5V (load resistance ≥250KΩ), 0~10V (load resistance ≥500KΩ)

Alarm output: normally open relay contact output, where the contact capacity is 1 A/250 VAC (resistive load)
(! Note: Please do not carry load directly in case the load exceeds the contact capacity of relay.)

Feed output: DC24 V ± 1, load current ≤ 250 mA

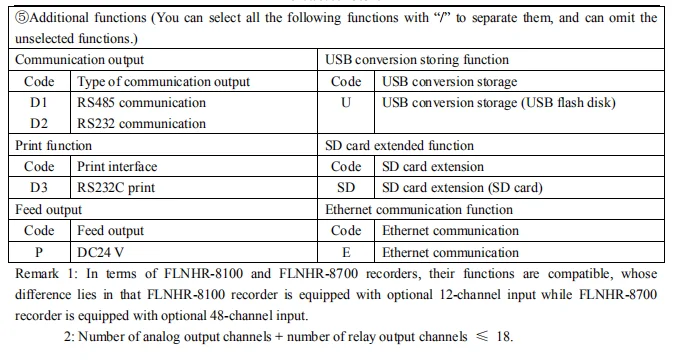

Communication output: RS485/RS232 communication interface, 1,200 ~ 57,600 bps baud rate (able to be set); standard MODBUS RTU communication protocol is adopted; the communication distance of RS-485 can be as long as 1 kilometer; the communication distance of RS-232 can be as long as 15 m; EtherNet communication interface is adopted, where the communication speed is 10 M.

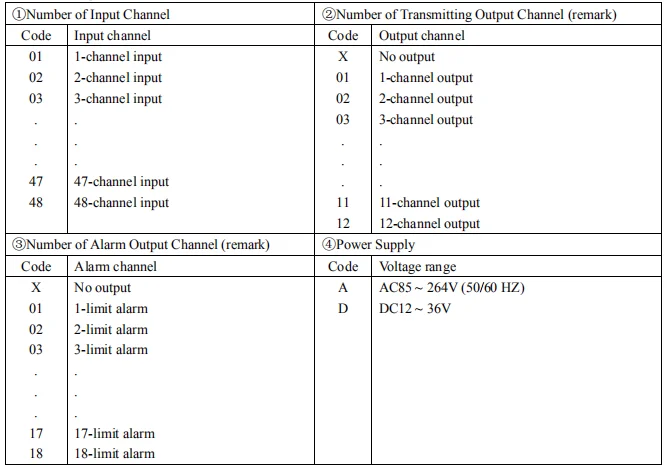

Input: 12 channels (universal input)

RS485 communication

Power range: AC85-265V (50/60Hz)

Ethernet communication

The above price is the price of this specification, please contact customer service if you need more changes.

A: We are factory.

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
