QDF70B Air Pressure Transmitter Differential 4-20mA 0-5V Wind Pressure sensor

Introduction

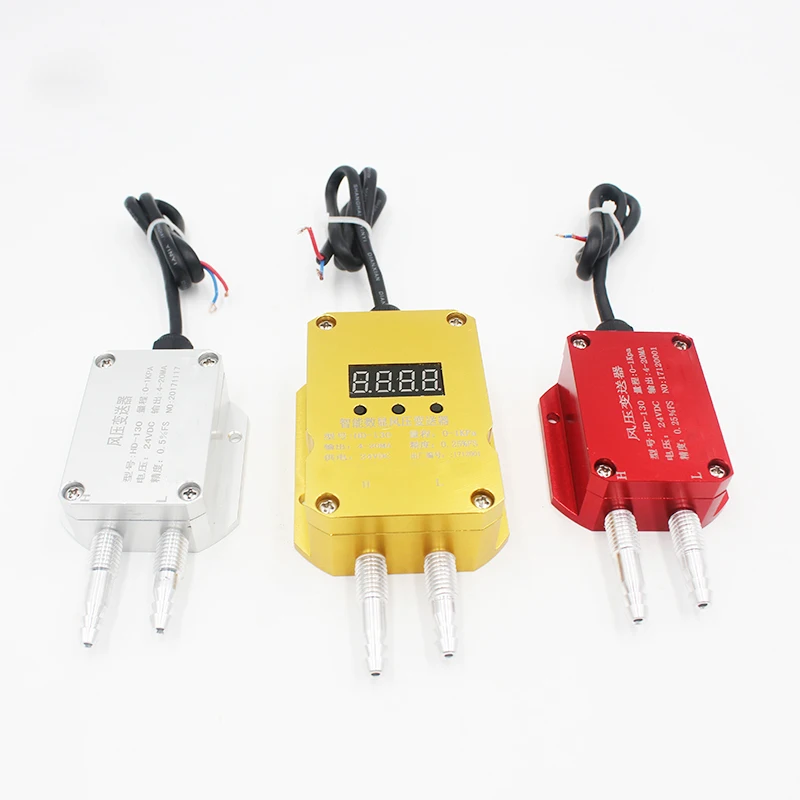

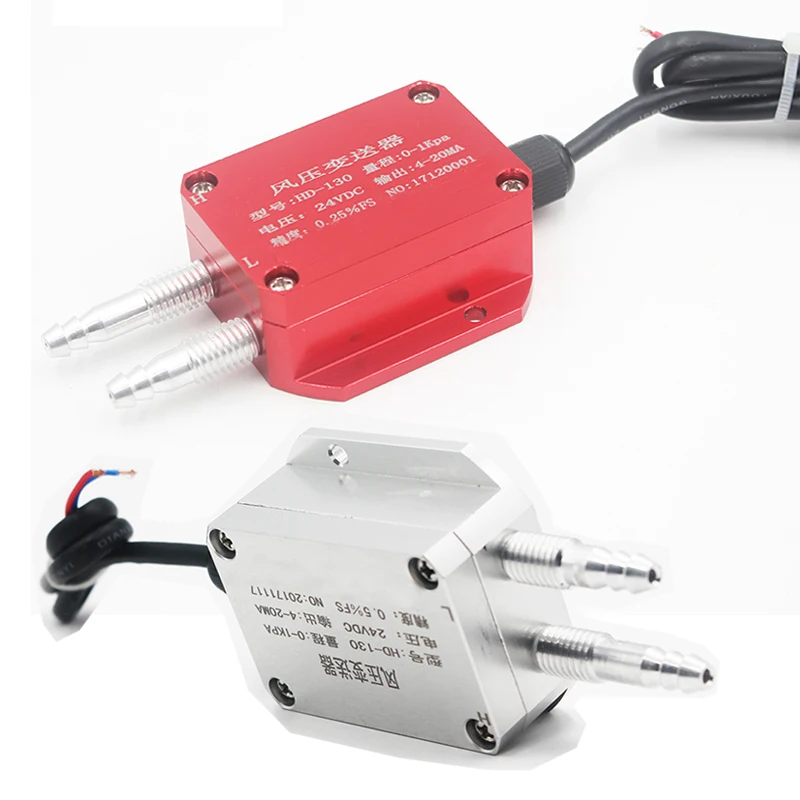

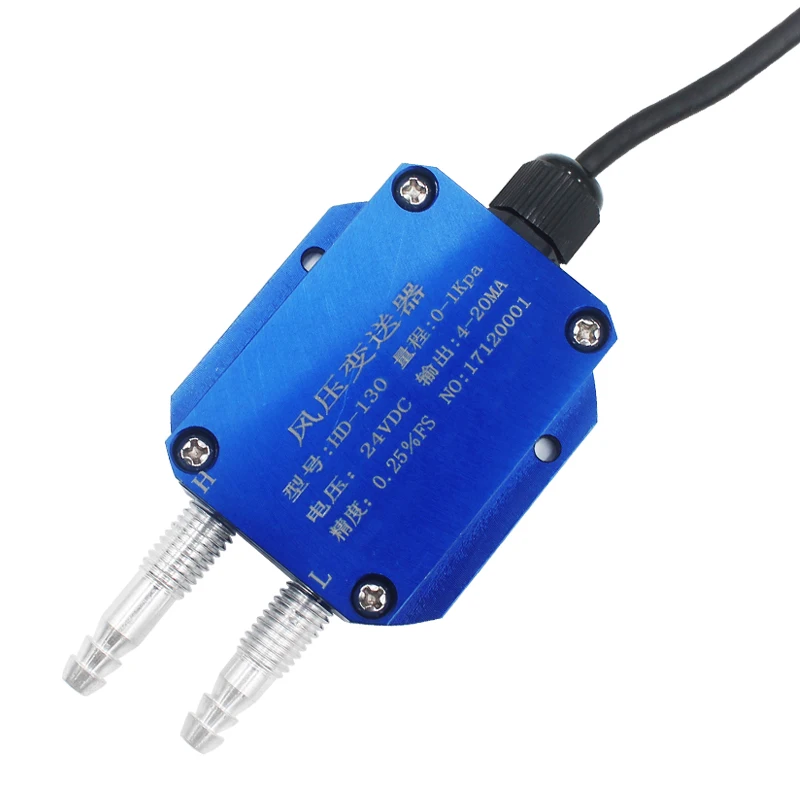

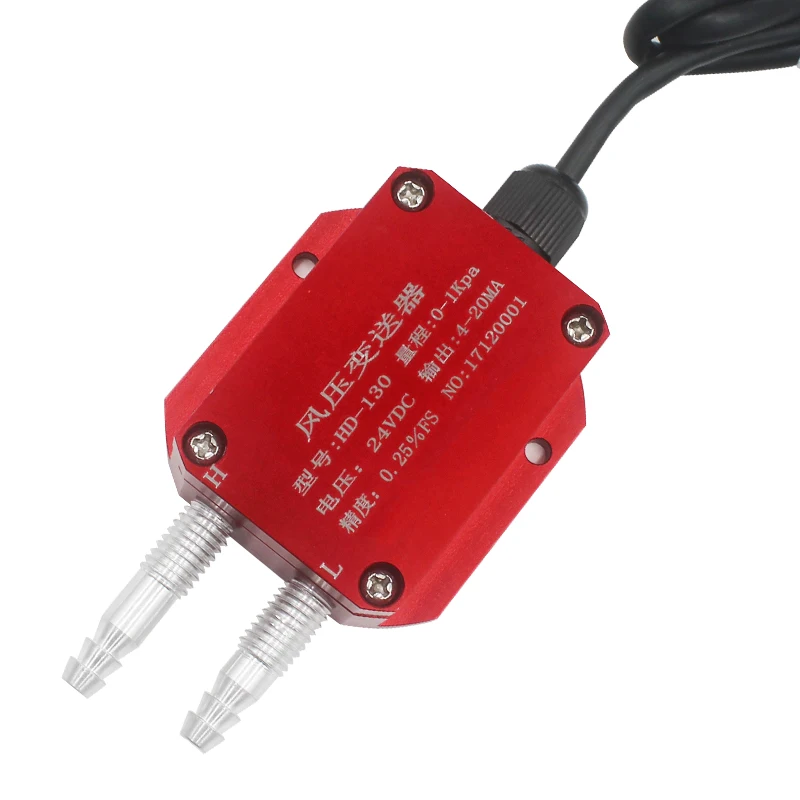

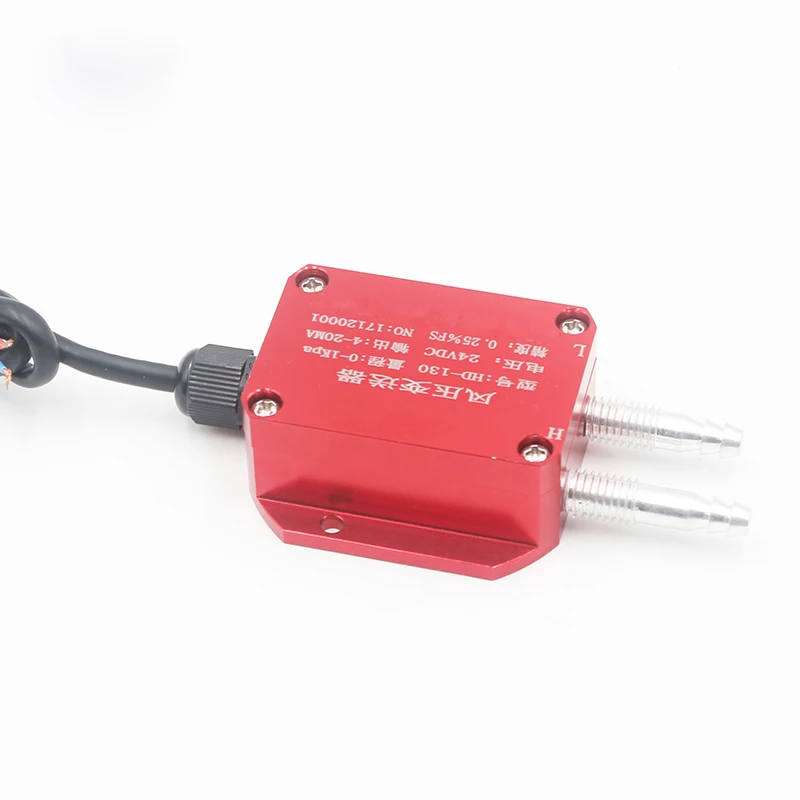

<1>. QDF70B Air Wind Differential Pressure Transmitter, adopts imported high-precision, high stability micro-pressure chip, and aluminum alloy shell. The two pressure interfaces are M10 screw thread and plug structure. (Customer can choose the size of pressure interfaces.)

<2>. It can be directly installed on the measuring pipe or connected by the pressure pipe, easy to install and use. Milli voltage, standard voltage, current, frequency signal output are available to choose.
<3>. This pressure transmitter is widely used in petroleum, chemical industry, metallurgy, electric power and other fields. It effectively control in power and coal industries, such as boiler ventilation and underground ventilation.

Technical Parameters

Measure Medium	Dry gas (low corrosion)
Pressure Type	Differential Pressure
Measuring Range	0~1KPa~600KPa
Power Supply	12VDC~36VDC(Standard24VDC)
Output Signal	4~20mA, 1~5V, 0~5V, 0~10V, RS485
Accuracy	0.2%FS;0.5%FS
Medium Temperature	-40℃~85℃
Compensation Temperature	0~50℃
Ambient Temperature	-20℃~85℃
Temperature Effect on Zero	±0.03%FS/℃
Sensitivity Temperature Drift	±0.03%FS/℃
Overload Pressure	300%FS
Response Time	≤10ms
Waterproof	IP65
Material	Aluminium Alloy
Process Connection	M20X1.5/1/8''NPT(Customized)
Explosion-proof Grade	Exia II CT5(safe explosion proof type)
