Оборудование для извлечения росы эфирного масла/дистиллятор в форме тыквы

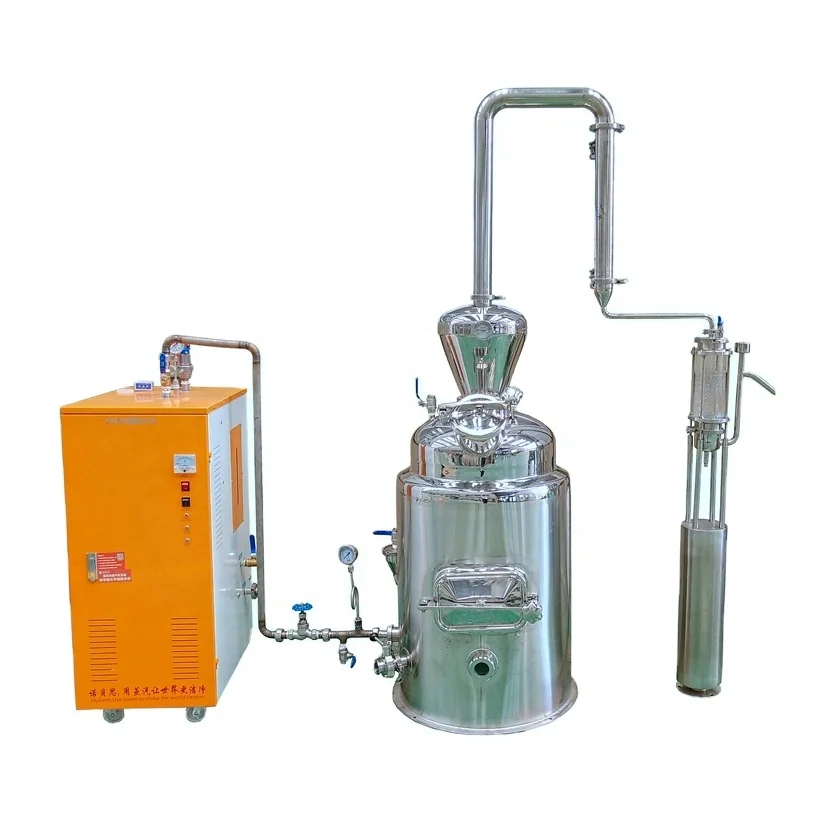

Introduction of Essential oil dew extraction equipment/Gourd shaped distiller

1.machine frame:the machine is made of distillation tank .defoamer,condenser,cooler,oil water separator,compound slide device,condensation device,and 220V 2.2KW pottery furnace and pipe composition.

2.Distillation tank is made of stainless steel 304 which is food grade.

3.The machine is polished Ra≤0.6μm.,machine exterior Ra≤0.8μm,make sure no hygienic dead angle and meet GMP requirements

4.distillation tank effectivevolume:10L,direct heating at tank bottom

Feathers of Essential oil dew extraction equipment/Gourd shaped distiller

Tank Inside: Design pressure:0.09Mpa, Working Pressure:Normail pressure;
Design temperature:120℃ working temperature:≤100℃,
Working medium:water, cylinderδ=1.5mm/SUS304
Upper round headδ=1.5mm/SUS304.

Remark data

Pipeline: Design pressure: atmospheric pressure.Working pressure: atmospheric pressure; Design temperature: 100 C; Working temperature < 100 C; Working medium: secondary steam; Pipeline: 19 *1.5, SUS304.

If you want to get more further questions and to confirm if this machine can reach your requirements please contact with us freely

My whatsapp :+8615138957292

Our feedback from our customers and our machine certificate
