Ультраширокая лента для ЖК дисплея 23 1 дюйма на базе Android

Сохранить в закладки 62206215059:


Цена:380,00 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики

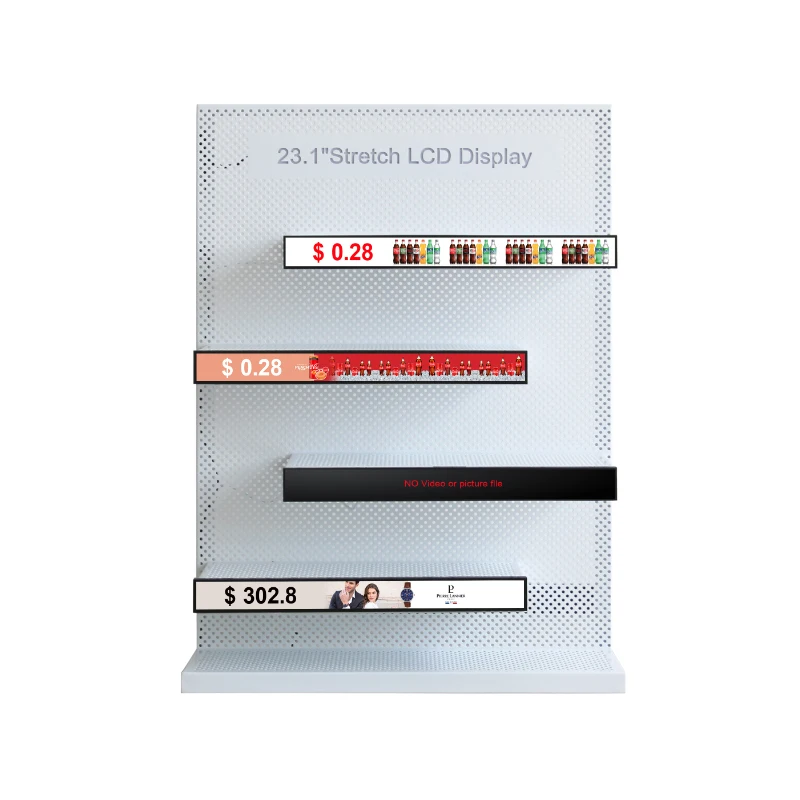

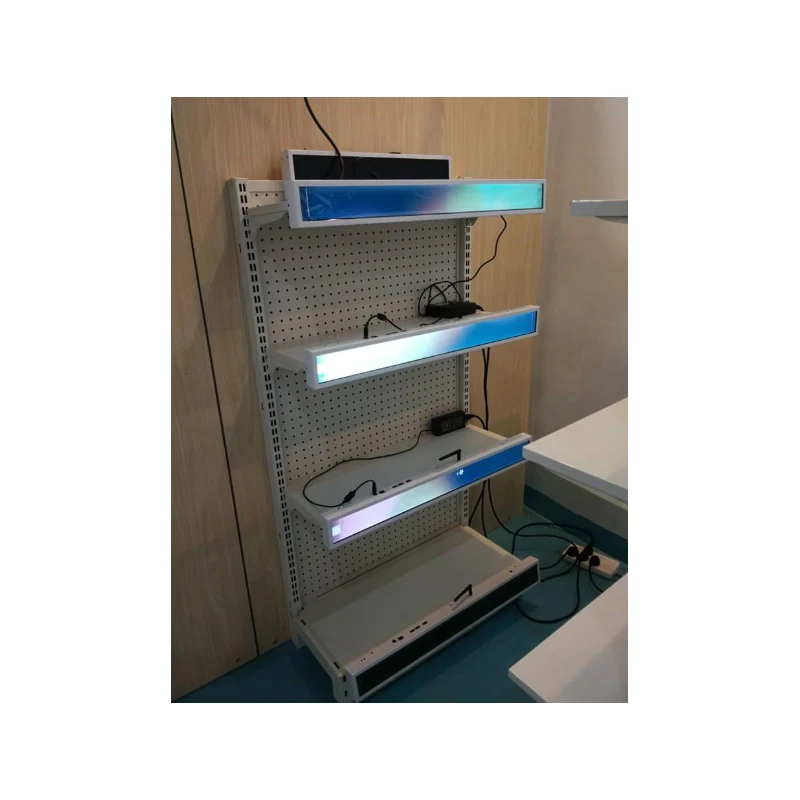

23.1 inch shelf edge ultra wide LCD panel strip Android display





Product Description

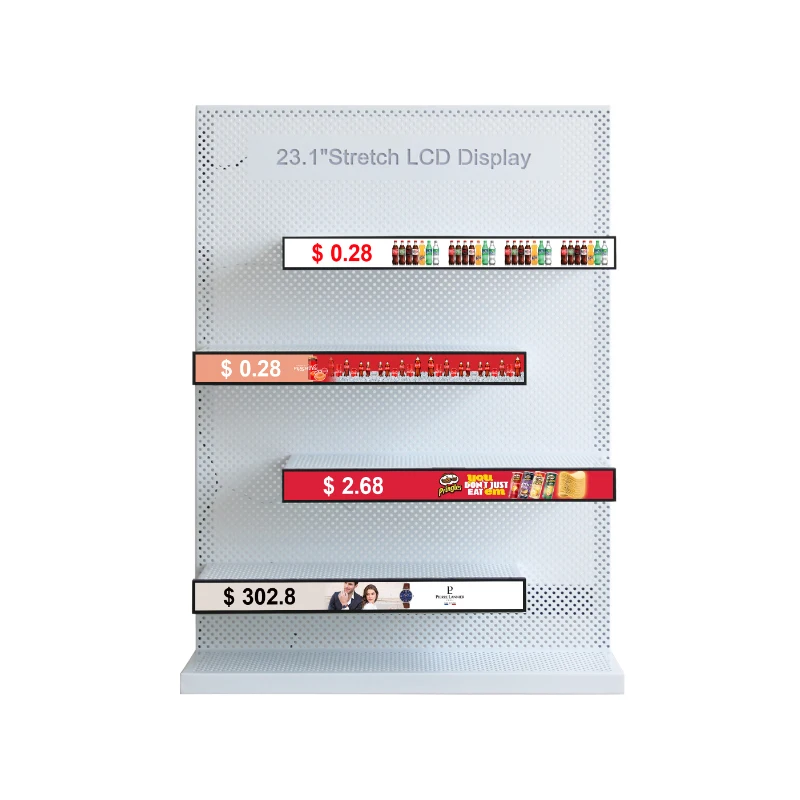

ITD’s line of ultra wide helf-level digital media LCD displays provides a significant opportunity for point of purchase conversion by engaging with the consumer via animated content. ITD has a range of shelf edge screens specifically developed for the retail shelf to help customer to create different brand.



Features


•Highcontrast color TFT LCD displays•SupportsDDC 1/2B for Plug & Play compatibility
•Robuststeel chassis housing for harsh environment•Providesimproved power efficiency and reduced consumption
•Ultra-wide ViewingAngle
•LED backlightlifetime: 50000hours
•CE, FCC, RoHSCompliance








Optional


 •ARM based PC built-in
•Single media player built-in
•Custom resized cut panel
•Flexible structure design like open frame,custom design
•AG/AR tempered glass
•Black or White








Specification






































































LCD Panel



Cell Type/Glass Surface



TFT



Size



23.1”



Active Area



585.6(H)*848.19(V)



Pixel Pitch



0.10167*0.305mm



Native Resolution



1920*158



Colors



1.07G (8-bit+FRC)



Brightness



500nits



Contrast



3000:1



Response Time



9.5ms



Field Frequency



60Hz



Viewing Angle(Typical)



89/89/89/89



Light Source



LED backlight with 50000hours’lifetime



Configuration Options








































Stretched LCD Monitor



Stretched LCD Single Media Player



Stretched LCD Android Media Player



1 x VGA input



1 x SD Card Slot



1 x WIFI IEEE802.11B/g/n



1 x DVI input



1 x HDM input



2 x USB Ports



1 x HDM input



1 x USB Port



1 x SD Card Slot (Optional)



Video Formats Supported: RMVB,FLV, MPEG1/2/4, AVI, DIVX, XDIV, WMV9, H.264, VC-1, MOV


 MKV, MP4, TS, M2T, VOB



Video Formats Supported: RMVB,FLV, MPEG1/2/4, AVI, DIVX, XDIV, WMV9, H.264, VC-1, MOV, MKV, MP4, TS, M2T, VOB



Photos Format Supported: BMP/PNG/GIF/JPEG



Photos Format Supported: BMP/PNG/GIF/JPEG



Audio Formats Supported: MP3, WMA


 WAV, EAAC+, MP2 dec, Vorbis (Ogg), AC3, FLAC, APE, BSAC



Audio Formats Supported: MP3, WMA, WAV, EAAC+, MP2 dec, Vorbis (Ogg), AC3, FLAC, APE, BSAC








Basic Parameters



























































Convenient Features



Plug & Play



Power Source



External Power Supply with Universal/Auto-Sensing, DC 12V



Power Consumption



Operation/Power Saving



20W



Operating Temperature



0-50



Storage Temperature



-10-60



Relatively Operating Humidity



10% - 90% (non condensing)



Relatively Storage Humidity



10% - 90%



Order Information



23.1” Stretched LCD Monitor/ITD23SDN101



23.1” Stretched LCD Single Media Player/ITD23SDN1A1



23.1” Stretched LCD Android Player/ITD23SDN1E1



23.1” Stretched LCD Monitor with Tempered Glass/ITD23SDG101



23.1” Stretched LCD Single Media Player with Tempered Glass /ITD23SDG1A1



23.1” Stretched LCD Android Player with Tempered Glass /ITD23SDG1E1

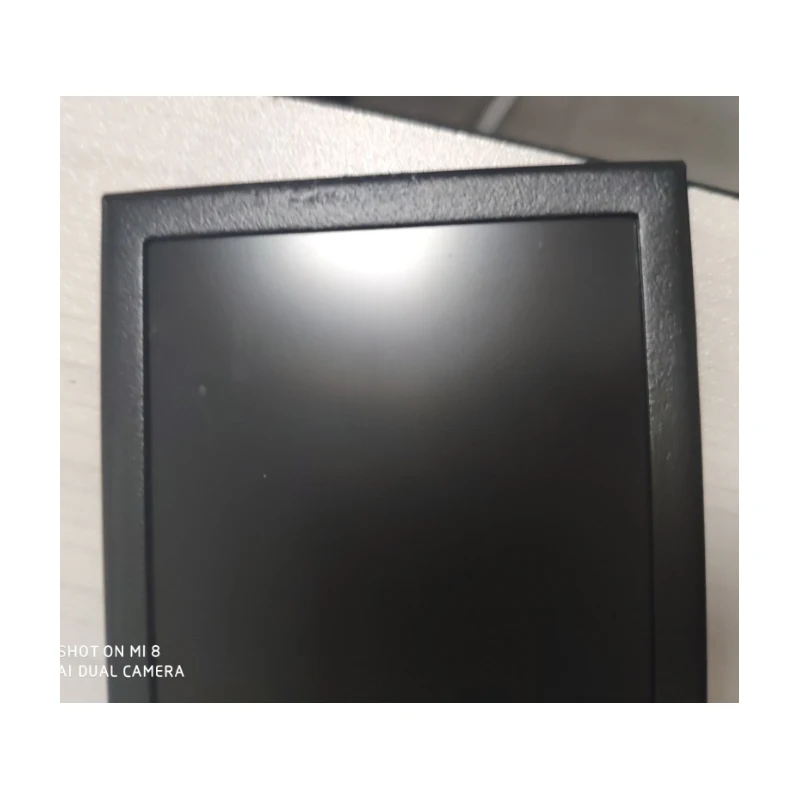

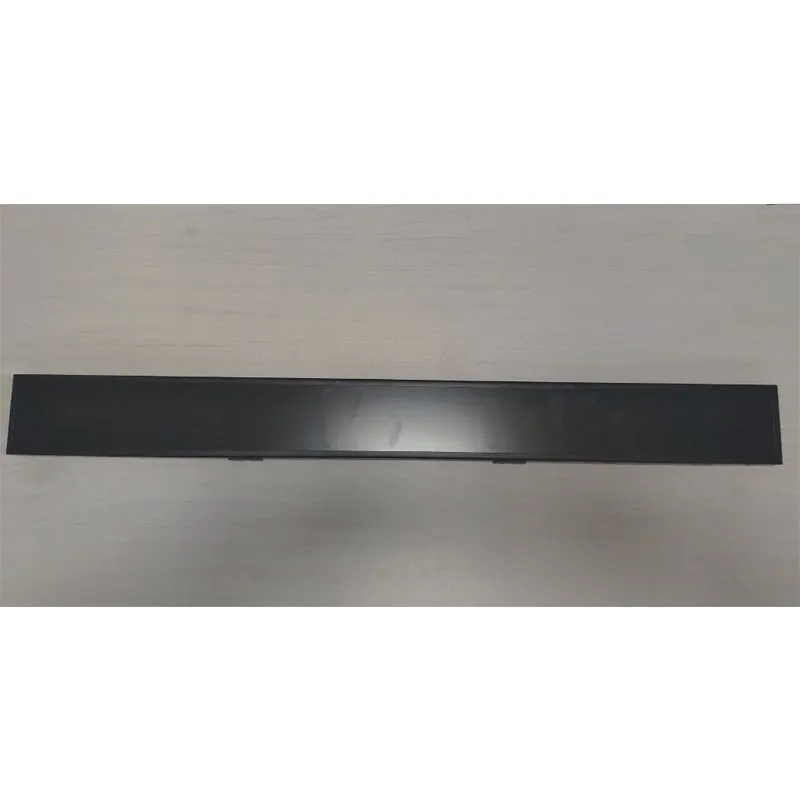

Product Display


 23.1inch.jpg23.1inch 1.jpg23.1inch2.jpg
