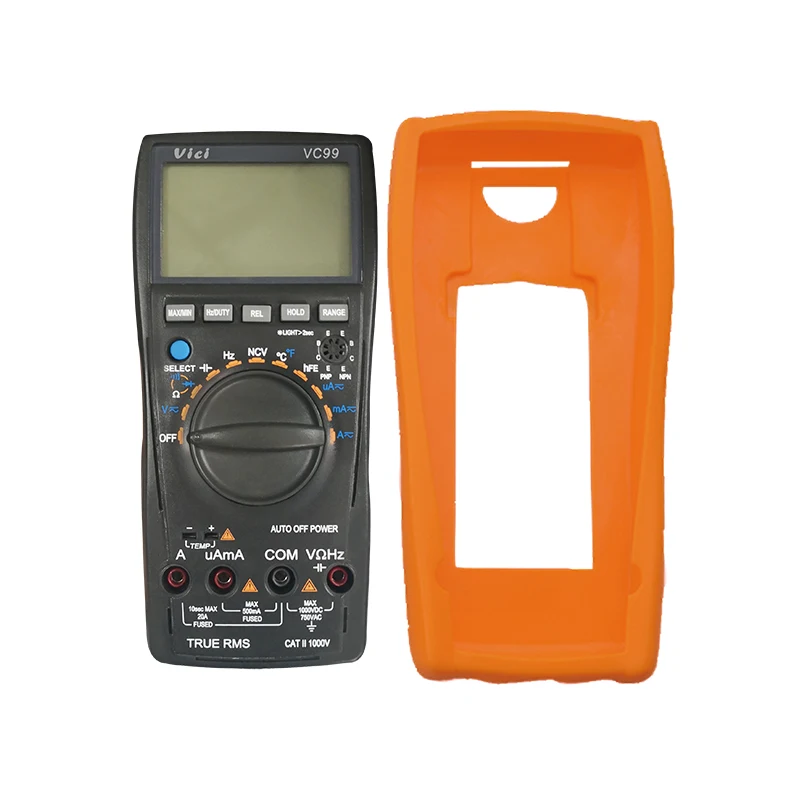

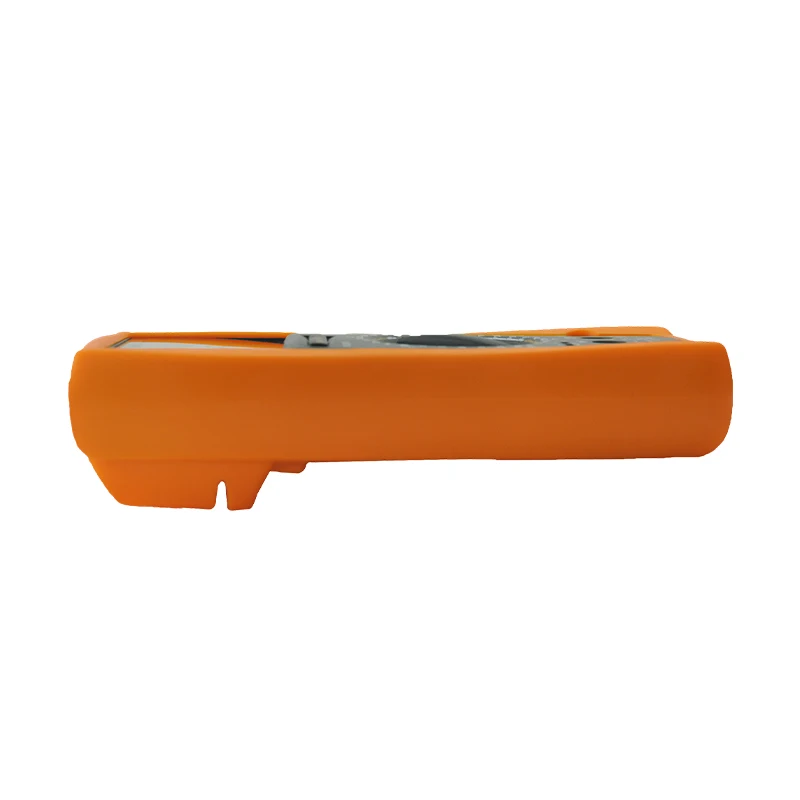

VC99 AC DC Voltage Tester Digital Multimeter Analog Multimeter






Product Description





Features:


1. Large LCD display makes reading clear.


2. Can keep working when there is operation,and auto power off.


3. Full functiong protection,anti high voltage circuit design.


4. Relative value and frequency/duty cycle measuring.data hold.


5. Analog bar display.


6. NCV, TRUE RMS, BACKLIGHT function






 VC99 MULTIMETER NEW 1





VC99 DMM new  spec.

























































































































































FunctionOriginalUpgraded
DCV600mV/6V/60V/600V/1000V600mV/6V/60V/600V/1000V
ACV6V/60V/600V/750V6V/60V/600V/750V
DCA600uA/6000uA/60mA/600mA/6A/20A600uA/6000uA/60mA/600mA/6A/20A
ACA600uA/6000uA/60mA/600mA/6A/20A600uA/6000uA/60mA/600mA/6A/20A
Resistance600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
Capacitance40nF/ 400nF/4uF/40uF/400uF/2000uF60nF/ 600nF/6uF/60uF/600uF/6mF/60mF
Frequency10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/60MHz10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz
Temperature -40℃~1000℃/ -40℉~1832℉ -40℃~1000℃/ -40℉~1832℉
TRUE RMS
NCV
Backlight display
Duty cycle measuring
Diode and hFE test
hFE test
Analog bar
Continuity alarmLower than 30Ω ± 10ΩLower than 50Ω ± 10Ω
Low battery indicatorApprox. less than 2.4 VApprox. less than 2.4 V
Data holdMax, Min, Data holdMax, Min, Data hold
Auto power offAbout 15 minutesAbout 15 minutes
Function protection
Input impedance10MΩ10MΩ
Sampling rate3 times/s3 times/s
AC frequency response40Hz-400Hz40Hz-400Hz
Operation methodAuto or manual rangeAuto or manual range
Max display60006000
LCD size65x41mm65x41mm
Battery3V  AAA×23V  AAA×2
Power consumption Quiescent current about 2mAQuiescent current about 2mA

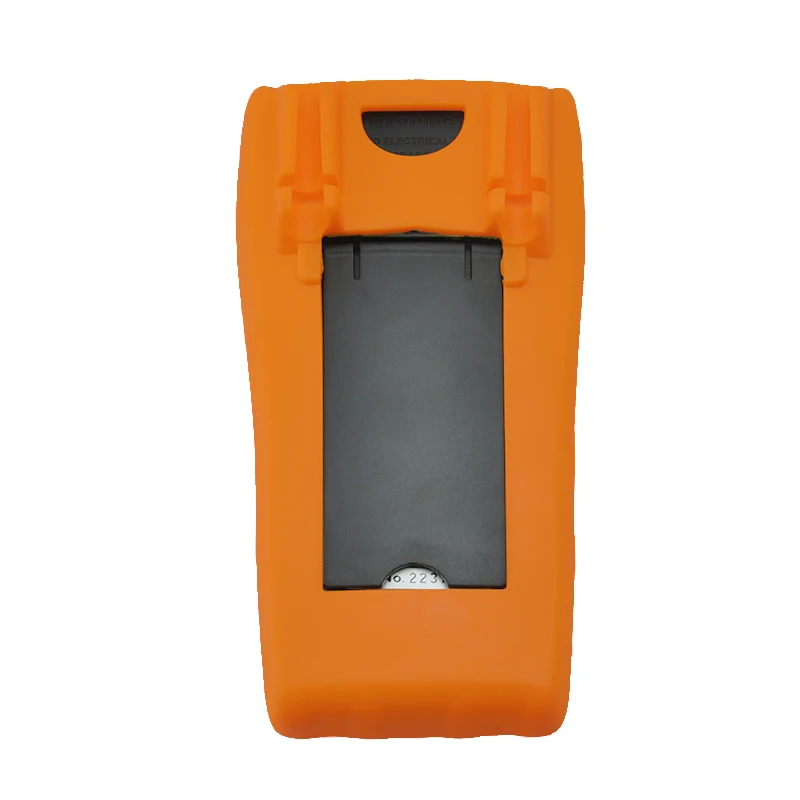

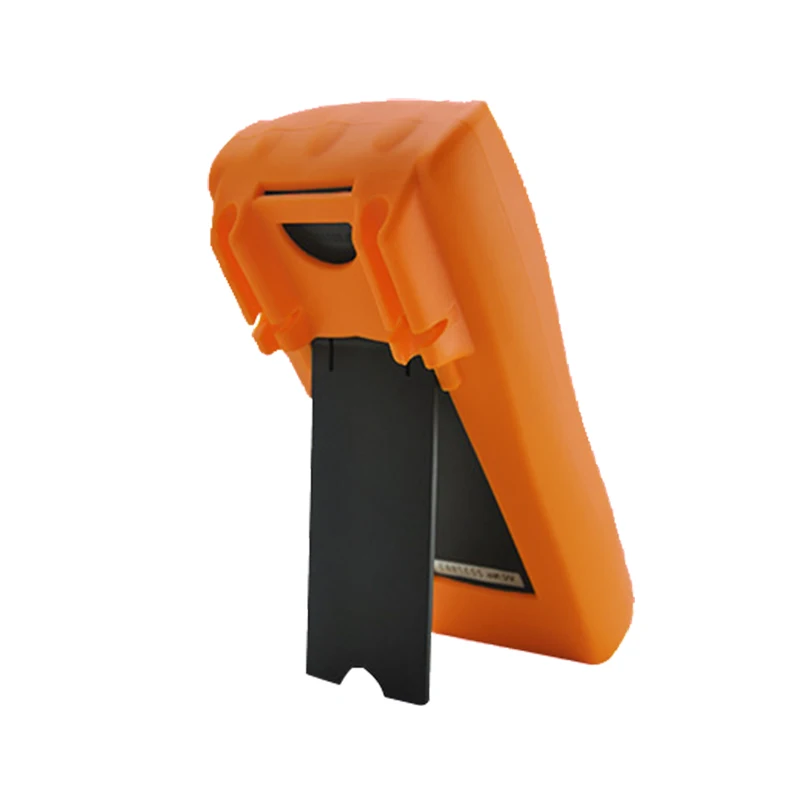

VC99 MULTIMETER NEW 2.jpgVC99 MULTIMETER NEW 3.jpgVC99 MULTIMETER NEW 4.jpgVC99 MULTIMETER NEW 5.jpgVC99 MULTIMETER NEW 6.jpgVC99 MULTIMETER NEW 7.jpgVC99 MULTIMETER NEW 8.jpgVC99 MULTIMETER NEW 9.jpg





General characteristic:






































Color



Orange and Grey



Weight



290g(including battery)



Meter size



185×93×35mm



Standard accessory



Test leads, battery, manual, TP01 temperature probe



Packing



Gift box



Standard packing per carton



30pcs



Carton size



45.5×32.5×43.5cm



Standard G.W per carton



17kg












VC99 MULTIMETER NEW 10
