Машина для резки мрамора water jet с водяным насосом высокого давления

Машина для резки мрамора water jet с водяным насосом высокого давления

Категория: Камень машины >>>
Поставщик: Shandong WAMI CNC Technology Co. Ltd.

Цена:45 199,00 $ - 49 199,00 $*

Количество:

В избранное

Описание и отзывы

Характеристики

Products Description

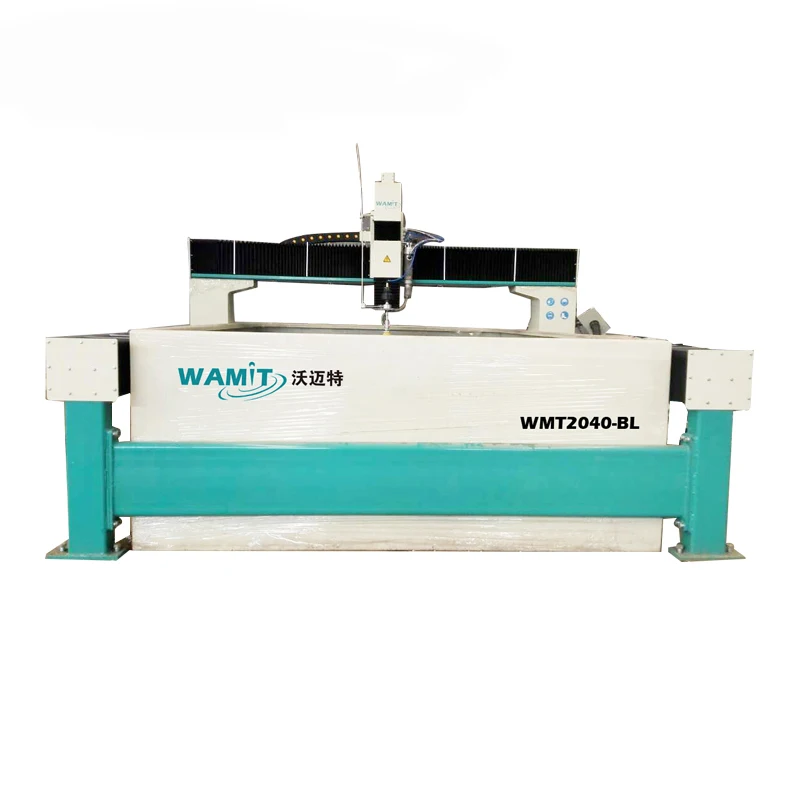

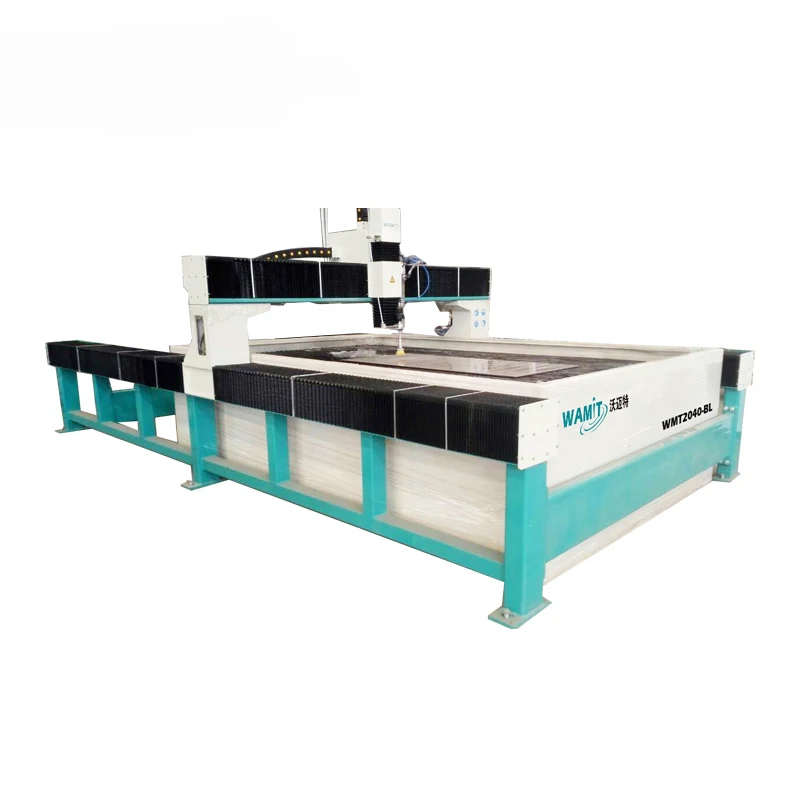

Water jet cutting machine

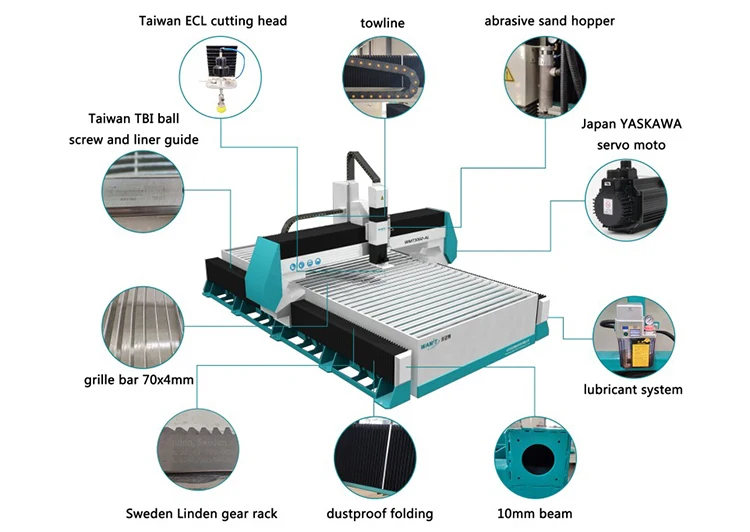

ADVANTAGES:

1. we promise 2 years( 2000 hours) warranty always. and have got CE certificate
2. we use flow type ECL cutting head, the cutting efficiency is at least 10% higher.
3. the abrasive sand hopper beside the cutting head is also FLOW design.
4. we have new technology that can make the machine moving speed is to 30m/min. normal speed is 6m/min as you see. if this
technology used in pure water cutting, the cutting cost will reduce 50%. if using other materials cutting like glass , marble,
steel, the cutting cost will also 20-30% reduced. but of course , the machine with this function price will be a little higher.
5. we use soft cover of the linear guider, can prevent dust away from the linear guider, so keep the linear guider keep precision
longer.
6. we assemble an auto oil feeding to linear guider, so customer needn't maintenance the linear guider always.
7. seperated body.
8. we will send a remote control pendent.
9. we have the world most convenient abrasive sand removing system. it can be used for any brand water jet cutting machine, maybe
you can promote this system in your country and other countries. please check the attachment.
11. we supply 420mpa pump with 37KW motor, but the price of the whole machine is very competitive now
12. we use variable pump, so can reduce electricity cost for customers.
13. we can do 220V and 415v also.
14. like height tracking system, positioning system , we can also provide.
15. all our components are SCHNEIDER brand
16. the motor and PLC are SIEMENS brand.
17. we can provide AB 5 axis with 10 degree and AC 3D 5 axis with 60 degree.
18. use 10mm steel for water tank supporter and use 8mm steel for beam, keep the machine working more stable.
19. use JAPAN YASKAWA servo motor.
20. imported TAIWAN HIWIN ball screw and linear guider
21. imported America intensifier and TAIWAN accumulator and high pressure assembly and low pressure assembly. if you have special
requests, we can also do.

22. we can provide 80Kpsi and 90KPSI intensifier pump and 60KPSI direct drive pump.
23. can make Touch screen
24. automatic calibration gantry perpendicularity

Can nearly cut all material:

Alloy Steel
Aluminum
Armor Plate
Brass
Boron
Bronze
Cast Iron
Cobalt
Copper
Exotic Alloys
Hastalloy
Hardened Steel
Hot Rolled Steel
Inconel
Kevlar
Magnesium
Mild Steel
Nickel AlloysStainless Steel
Steel Alloy
Steel Hardened
Steel Hard Rolled
Steel Mild
Steel Tool
Tantalum
Tin
Titanium
Tungsten
Wrought Iron
Zinc
Acrylics
Ceramics
Composites
Foam
Fiberglass
Kevlar
Mylar Laminates
Nylon
Plastics
Plexiglass
Porcelain
PVC
Rubber
Thermoplastics
Teflon
Urethane
Vinyl
Armor Plate
Bullet Proof Glass
Glass,Mirror Glass
Ceramic Tile
Granite
Limestone
Marble
Porcelain
Terrazzo
Hardwood

SPECIFICATIONS FOR WATER JET CUTTING MACHINE
Model			WMT1010	WMT1515	WMT2515	WMT3020	WMT5030
Cutting Table	X Axis(mm)	1100	1700	2700	3200	5500
Cutting Table		Y Axis(mm)	1100	1700	1700	2200	3300
Max.cutting range(mm)	X Axis(mm)	1000	1500	2500	3000	5000
		Y Axis(mm)	1000	1500	1500	2000	3000
		Z Axis(mm)	150	150	150	150	150
Control accuracy			±0.01mm
Cutting accuracy			±0.1mm
Re-positioning accuracy			±0.02mm
Drive system			AC servo ( YASKAWA, Japan )
Max. moving speed			6000mm/min

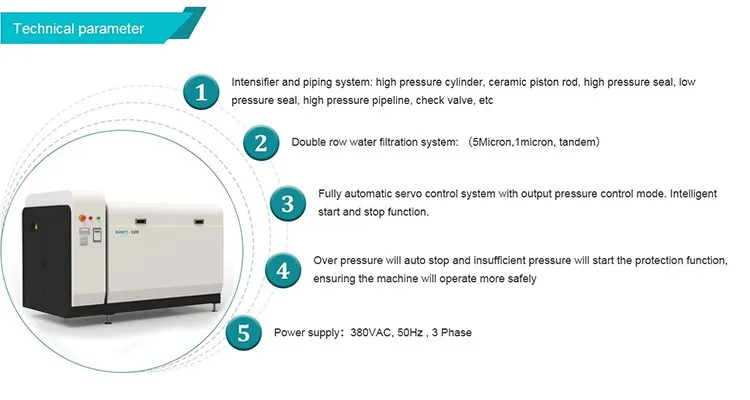

Direct drive pump

Control Theory of Servo Direct Drive Pump:

Direct drive pump is a device that directly converts electric energy into hydraulic energy by a crankshaft connecting rod mechanism, and the energy conversion ratio is as high as 97% or more. The power conversion ratio of the conventional asynchronous motor is 80% and that of permanent-magnet servo motor is 97%; therefore, replacing asynchronous motor by permanent-magnet servo motor greatly improves the power consumption of the intensifier, keeping the conversion rate above 90%; while the energy conversion rate of the conventional hydraulic intensifier is only 56% (This conversion rate is only in the state of full work.). In the traditional hydraulic system, the asynchronous motor still keeps turning when the waterjet is not cut (such as the movement of the cutting head, changing the cutting material, etc.), and the oil pump is still in working state. Although the pressure of the oil pump is not high at this time, still there is 30% power loss. Even servo power oil pump is used, the asynchronous motor still has 30% loss if it maintains its own rotation and power magnetic field.

Servo Direct Drive Pump

1. Selection of motors: 15kw, can save power consumption above 60%

2. Pressure conversion methods: can save energy about 35%.

3. Cutting efficiency: greatly improved by 10%-20%

SPECIFICATIONS FOR DIRECT DRIVE PUMP
Model			WMT SDD 20
Max Pressure			420MPa(60000Psi)
Continuous Operating Pressure			350MPa-380MPa(46000 Psi -55000 Psi)
Max Diameter Of Orifice			0.3mm(0.012)
MAX.Water Flow Rate			3.5L/min
Influent Pressure			0.4MPa
Power			15KW(20HP)
Power Supply			380VAC, 50Hz , 3 Phase
Size			1600x800x900mm

\t\t\t\t\t\t\t\t\tAccessory equipment \t\t\t\t\t\t\t

CNC control system

CNC control, apply 21 inch LCD
Adopt specialized NCStudio water jet cutting software, have autosave function for next operation.
Apply SIEMENS PLC instead of relay, buttons are Schneider

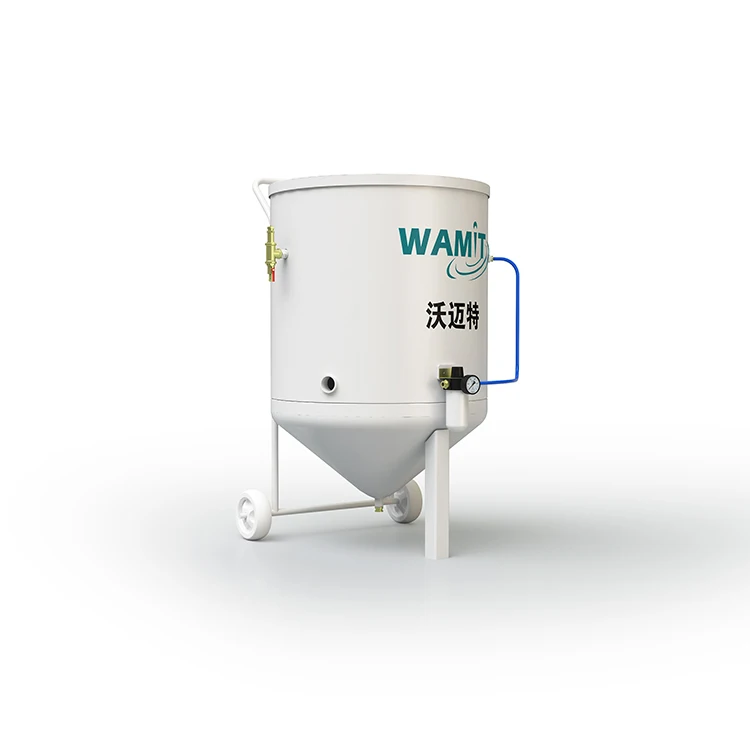

Abrasive feeding system

No need electronic control, simple operation, reliable, maintenance-free
Can supply the cutting sand quantity
Need less than 0.2Mpa compressed gas pressure

Desanding system

Optional equipment.The desanding system provides a solution for the problem of removing waste sand of water jet cutters for users all over the world.

\t\t\t\t\t\t\t\t\tCutting Speed \t\t\t\t\t\t\t

Material	Specification	Speed(mm/min)
Material	Specification			Servo direct drive pump	Hydraulic intensifier pump
Carbon steel plate	10mm	330	270
		12mm	280	220
		14mm	240	180
		16mm	200	140
		20mm	170	110
		22mm	140	85
Aluminum plate	12mm	800	600
Aluminum plate		30mm	200	160
Glass	5mm	2000	1600
		8mm	1800	1400
		10mm	1500	1100
		12mm	1200	900
		14mm	1000	700
Ceramic tile	12mm	2000	1500
Ceramic tile		14mm	1400	900
Microcrystal stone	16mm	1200	900
Marble	25mm	1000	800
Marble		30mm	800	600

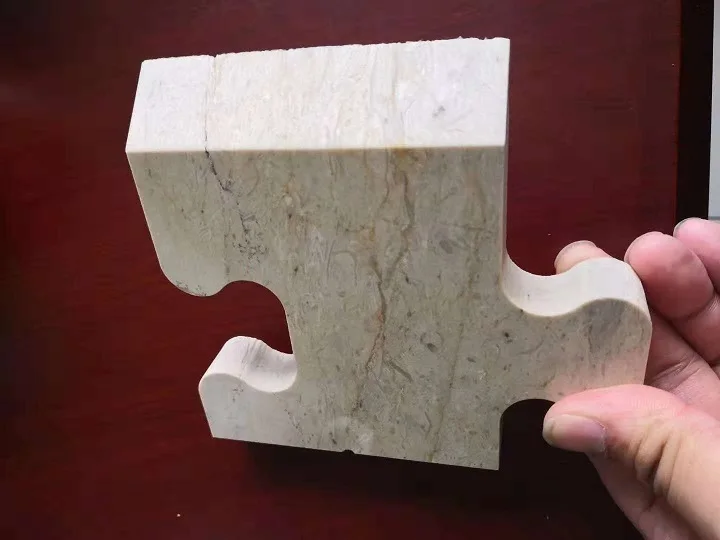

Cutting sample

Our Customer

\t\t\t\t\t\t\t\t\tPackaging & Shipping \t\t\t\t\t\t\t

FAQ

1. Are you manufacturer or trading company?
We are manufacturer of water jet cutting machine in JINAN city, Shandong, China.
2. What kind of material does your water jet cutting machine can cut?
There are plenty materials our water jet cutting machine can cut, such as stone, ceramic, quartz, glass, foam, plastic, rubber, copper, brass, aluminum, mild steel, pre-hardened steel, titanium, inconel and cast alloy.
3. What's your CNC water jet cutting machine's max. cutting thickness?
Generally speaking, if cut steel the max thickness of our water jet cutting machine can be up to 240mm, but we suggest cut no more than 150mm for smooth cutting. Now our Z axis distance is 170mm, we can customize for customers. Regular thickness please refer to: Marble is 0-120mm; granite is 0-110mm; tiles are 0-40mm; glass and mosaic is 0-80mm; steel, stainless steel, copper is 0-60mm; aluminum is 0-80mm; plastic, acrylic, foam is 0-200mm.

4. How we supply after-service?
Some countries we have after-service department, we will provide local service, if have no local service, we will arrange engineer for overseas installation and training. The installation and training time is generally 7-10 days. And we also can provide installation videos.
5. What's your delivery time?
Generally spea king is 30 days. If have stock, 7-15 days.
