Meanwell 320 Вт 6.7A HVG 320 48A IP65 Постоянное напряжение водонепроницаемый 48В Светодиодная трубка с пультом дистанционного управления
- Категория: >>>
- Поставщик: Hangzhou Jiang Technology Co. Ltd.
Сохранить в закладки 62210736565:
Описание и отзывы
Характеристики
Product Overviews
Meanwell 320W 6.7A HVG-320-48A IP65 Constant Voltage Waterproof 48V LED Tube Light Driver Remote Control
Features:
- Meanwell HVG-320-48A
- Wide input range 180~528VAC
- Constant Voltage + Constant Current mode output
- Metal housing with Class I design
- Built-in active PFC function
- IP67/IP65 rating for indoor or outdoor installations
- Function options:output adjustable via potentiometer;3 in 1 dimming (dim-to-off)
- Typical lifetime>50000 hours
- 5 years warranty
Applications
- LED street lighting
- LED high-bay lighting
- Parking space lighting
- LED fishing lamp
- LED greenhouse lighting
- Type"HL" for use in Class I,Division 2 hazardous (Classified) location.

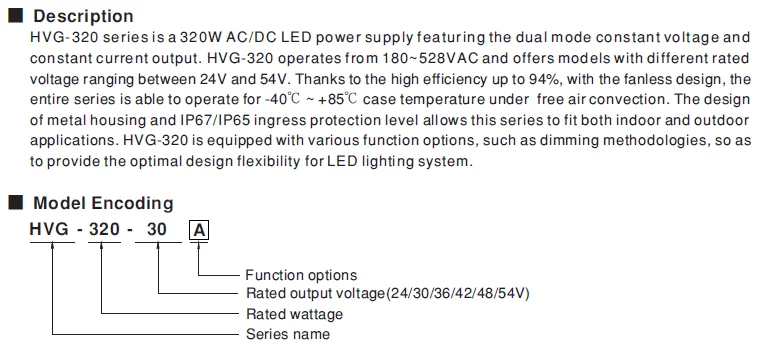

Model Series:
A : IP65 rated. lo and Vo adjustable through built-in potentiometer.
B : IP67 rated. 3 in 1 dimming function ( 0~10Vdc, 10V PWM signal and resistance)
Detailes:
| MODEL | HVG-320-42() | HVG-320-48() | HVG-320-54() | |
| OUTPUT | DC VOLTAGE | 42V | 48V | 54V |
| CONSTANT CURRENT REGION Note.4 | 21 ~ 42V | 24 ~ 48V | 27 ~ 54V | |
| RATED CURRENT | 7.6A | 6.7A | 6A | |
| RATED POWER | 319.2W | 321.6W | 324W | |
| RIPPLE & NOISE (max.) Note.2 | 250mVp-p | 250mVp-p | 350mVp-p | |
| VOLTAGE ADJ. RANGE | Adjustable for A-Type only (via the built-in potentiometer) | |||
| 38 ~ 45V | 43 ~ 52V | 49 ~ 58V | ||
| CURRENT ADJ. RANGE | Adjustable for A-Type only (via the built-in potentiometer) | |||
| 3.8 ~ 7.6A | 3.35 ~ 6.7A | 3 ~ 6A | ||
| VOLTAGE TOLERANCE Note.3 | ±1.0% | ±1.0% | ±1.0% | |
| LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | |
| LOAD REGULATION | ±0.5% | ±0.5% | ±0.5% | |
| SETUP, RISE TIME Note.8 | 500ms, 150ms /230Vac 500ms,80ms/347VAC, or 480VAC | |||
| HOLD UP TIME (Typ.) | 15ms / 347VAC or 480VAC | |||
| INPUT | VOLTAGE RANGE Note.5 | 180 ~ 528VAC 254VDC ~ 747VDC (Please refer to "STATIC CHARACTERISTIC" section) | ||
| FREQUENCY RANGE | 47 ~ 63Hz | |||
| POWER FACTOR (Typ.) | PF≥0.98/230VAC, PF ≥0.97/277VAC, PF≥0.95/480VAC, (Please refer to "Power Factor (PF) Characteristic" section) | |||
| TOTAL HARMONIC DISTORTION | THD<20% when output loading is 50% or higher at 230VAC / 277VAC / 347VAC /480VAC (Please refer to “TOTAL HARMONIC DISTORTION” section) | |||
| EFFICIENCY (Typ.) | 93.5% | 94% | 94% | |
| AC CURRENT (Typ.) | 1.1A / 347VAC 0.8A / 480VAC | |||
| INRUSH CURRENT(Typ.) | COLD START 50A(twidth=850us measured at 50% lpeak ) at 480VAC ;Per NEMA 410 | |||
| LEAKAGE CURRENT | <0.75mA / 480VAC | |||
| MAX. NO. of PSUs on 16A CIRCUIT BREAKER | 2unit(circuit breaker of type B) / 4units(circuit breaker of type C) at 480VAC | |||
| PROTECTION | OVER CURRENT Note.4 | 95 ~ 108% | ||
| Protection type: Constant current limiting, recovers automatically after fault condition is removed | ||||
| SHORT CIRCUIT | Constant current limiting, recovers automatically after fault condition is removed | |||
| OVER VOLTAGE | 46.5 ~ 53V | 53.5 ~ 60V | 59 ~ 65V | |
| Protection type :Shut down and latch off o/p voltage, re-power on to recover | ||||
| OVER TEMPERATURE | Shut down and latch off o/p voltage, re-power on to recover | |||
| ENVIRONMENT | WORKING TEMP. | Tcase='-40~ +85℃ (Refer to "Derating Curve") | ||
| MAX. CASE TEMP. | Tcase=+85℃ | |||
| WORKING TEMP. | -40 ~ +70℃(Refer to "Derating Curve") | |||
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |||
| STORAGE TEMP., HUMIDITY | -40 ~+85℃ , 10 ~ 95% RH | |||
| TEMP. COEFFICIENT | ±0.03%/℃ (0~60℃) | |||
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |||
| SAFETY & EMC | SAFETY STANDARDS Note.7 | U8750 (type”HL”), CSA C22.2 No. 250.0-08, IP65 or IP67 approved | ||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | |||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |||
| EMC EMISSION | Compliance to FCC Part 15 Subpart B | |||
| EMC IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV) | |||
| OTHERS | MTBF | 124.3K hrs min. MIL-HDBK-217F (25℃ ) | ||

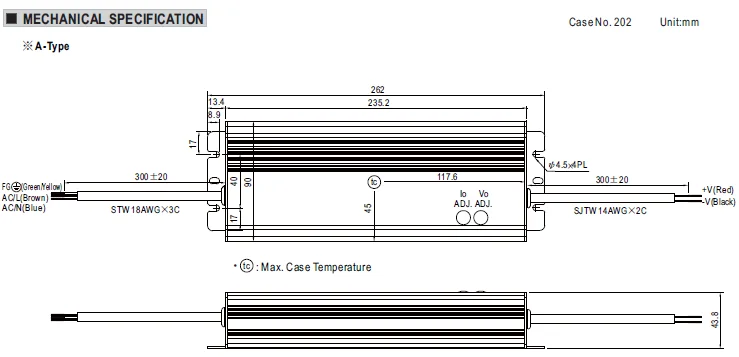

| DIMENSION | 262*90*43.8mm (L*W*H) | |||
| PACKING | 2Kg; 8pcs/17Kg/0.92CUFT | |||
| NOTE | 1. All parameters NOT specially mentioned are measured at 347VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance: includes set up tolerance, line regulation and load regulation. 4. Please refer to “DRIVING METHODS OF LED MODULE”. 5. Derating may be needed under low input voltages. Please check the static characteristics for more details. 6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time. 7. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. 8. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains. 9. This series meets the typical life expectancy of >50,000 hours of operation when Tcase,particularly tc point (or TMP,per DLC),is about 80℃ or less. 10.Please refer to the warranty statement on MEAN WELL's website at //www.meanwell.com | |||
Packing&shipping
Meanwell 320W 6.7A HVG-320-48A IP65 Constant Voltage Waterproof 48V LED Driver
Packing:
Shipping:
Certifications
What Certification do we have?
Why Choose us?
SUCCESS IS A RESULT OF OUR COMMITMENT TO A QUALITY SERVICE IN PARTNERSHIP WITH OUR CLIENTS
1. What we sell is 100% Genuine Mean Well Power Supply;
2. Small quantity orders acceptable;
3. We will choose the most suitable shipping way for you and inform you the cost advance, decision will be made by you;
4. We have larger stocks and this support us can make a very prompt shipping;
5. To assure you the maximum comfort and satisfaction, we accept pay via T/T, Paypal, Western Union;
6. Price could be negotiated for more and large quantity;
7. Your enquiry will be quickly responsed, we will choose the most suitable products and quote the most competitive price for you.
More Products
If you are interested in other models, please hit below links for details....
******Waiting for your Inquiry and Contact******
Похожие товары

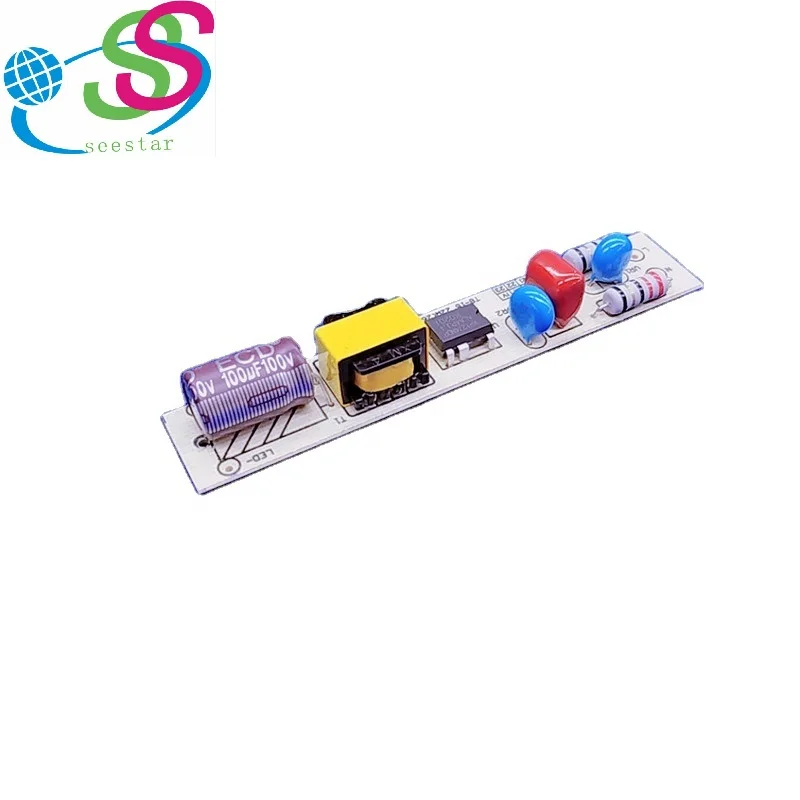

Светодиодная труба направленного света 220 В постоянного тока панель освещения комплект аварийного аварийный балласт драйвера
1 250,00 ₽ - 1 304,82 ₽
Бренд Mean Well представляет LED Драйвер LPV-100-12 100W 12V 8.5A питания с одним выходом водонепроницаемый 12 в источник светодиода
Водонепроницаемый Светодиодный источник питания 12 В/24 В 600 Вт 500 400 300 200w150W 60 36 ip67 драйвер для наружного светодиодного освещения
Водонепроницаемый СВЕТОДИОДНЫЙ Переключатель 12 В/24 В постоянного напряжения 60 Вт до 400 IP65 непромокаемый Светодиодный источник питания
Водонепроницаемый светодиодный драйвер 12 В 24 36 48 60 Вт 100 150 200 300 400

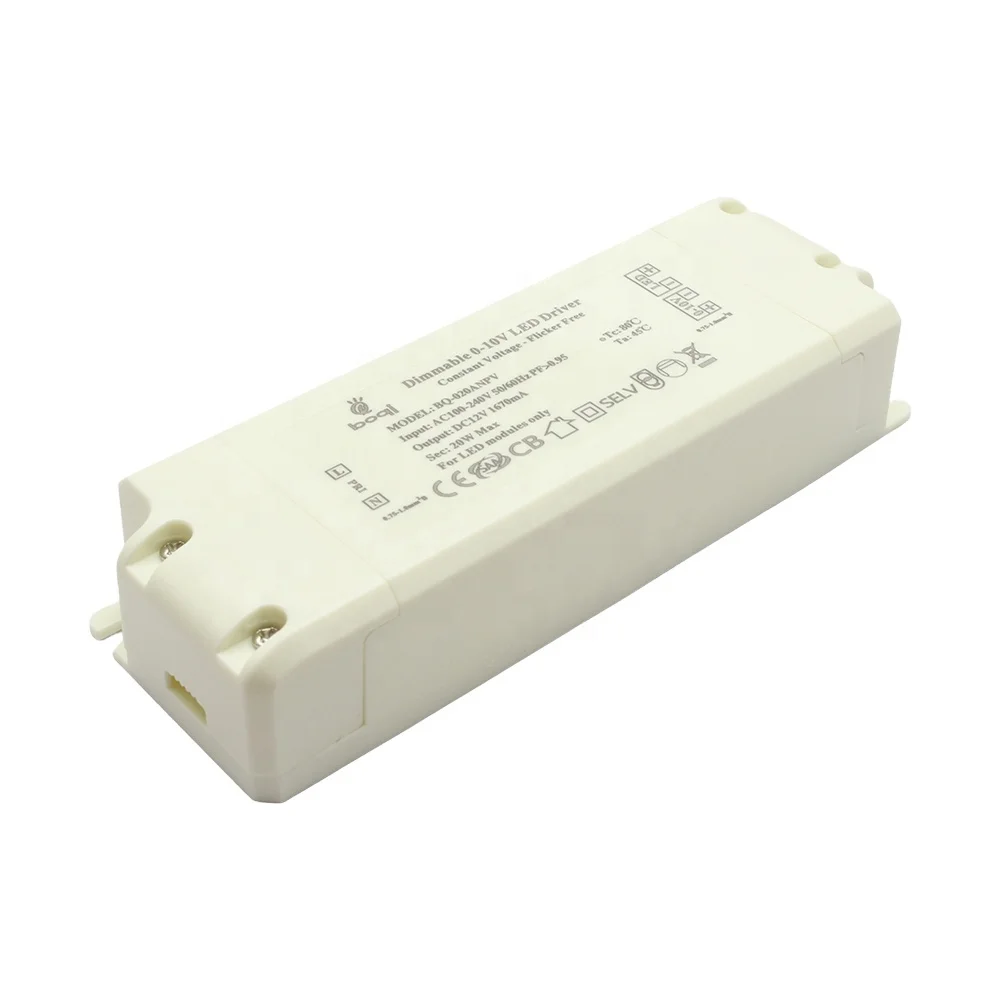

Диммируемый светодиодный драйвер 0-10 в 12 В 24 20 Вт PF 0 95 бесмерцающее постоянное напряжение с пластиковым корпусом
