Низкая цена Высокое качество SMD LED 2835 Чип 0 5 Вт 18В @ 30mA ультратонкое естественное освещение Cri>80 70 75lm VF17.4 18.0/18 0 18 6

Низкая цена Высокое качество SMD LED 2835 Чип 0 5 Вт 18В @ 30mA ультратонкое естественное освещение Cri>80 70 75lm VF17.4 18.0/18 0 18 6

Категория: >>>
Поставщик: Shenzhen Yuyang New Material Co. Ltd.

Цена:81,94 $ - 88,81 $*

Количество:

В избранное

Описание и отзывы

Характеристики

Product Description

Factory P/N : FS2835LCAKR8S1V03W05

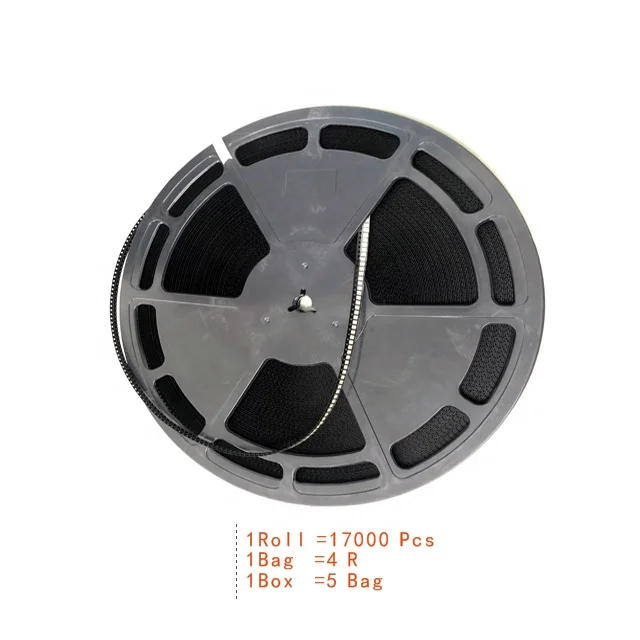

1roll =17000 Pcs

1Bag =4 Roll * 17000 Pcs= 68000 Pcs
1Box =5 Bag * 68000 Pcs=340000 Pcs

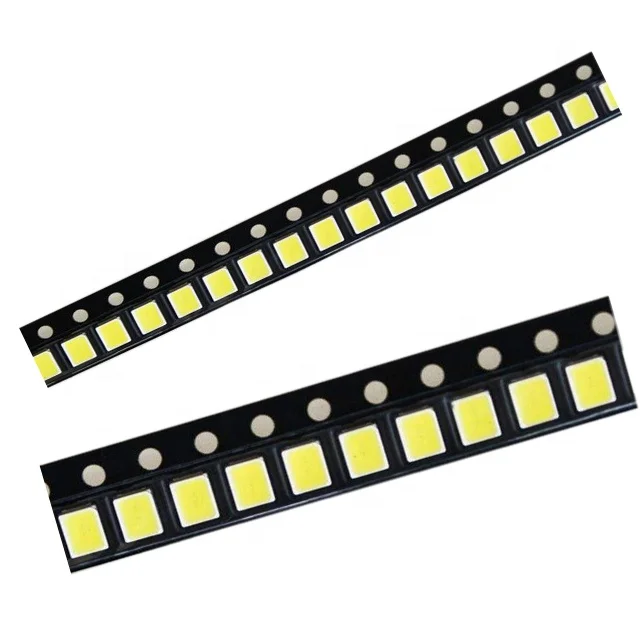

☆SMD :Small and medium-sized Power LED

◇Features:

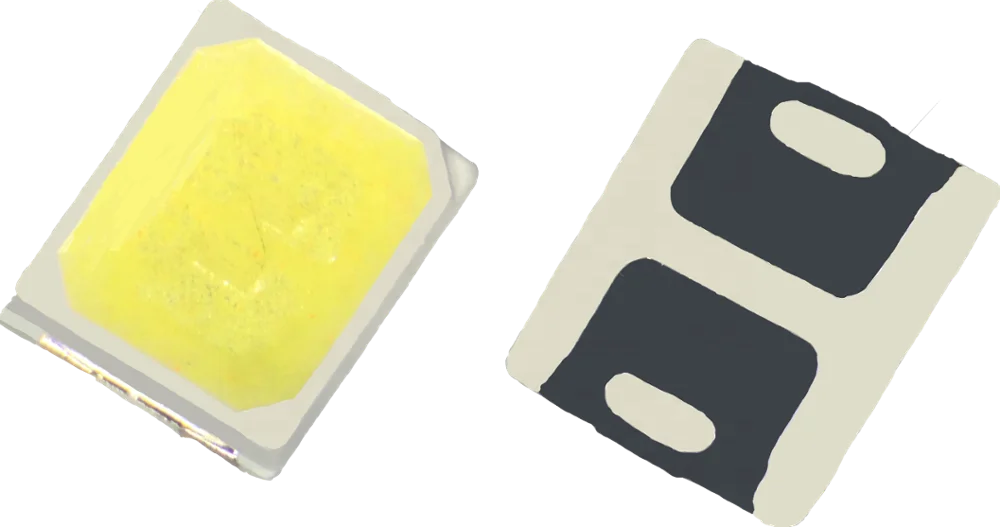

1. PLCC-2 package
2. Top view white LED
3. Wide viewing angle
4. RoHS compliant

5. Package:17000pcs/reel..

◇Application

1. General lighting

2. Optical indicator

3. Switch Lights

4. Decorative and Entertainment Lighting

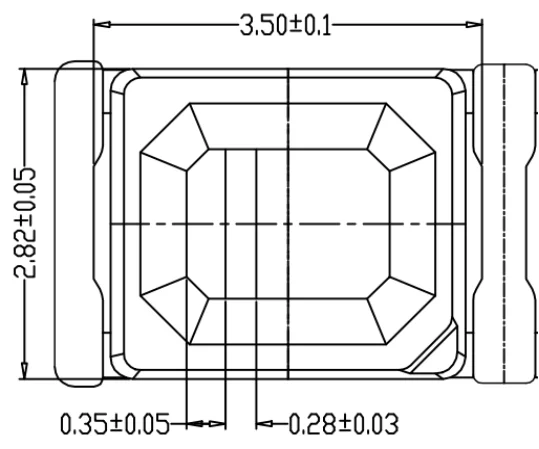

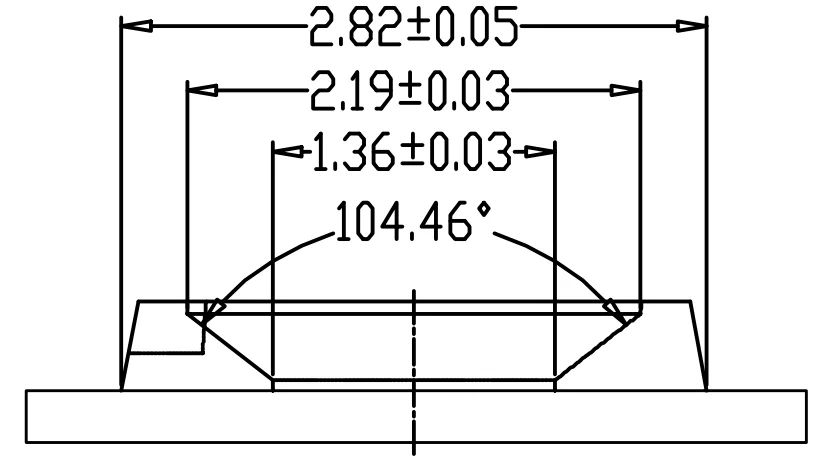

Notes.

1. All dimensions are in millimeters

2. Tolerances are ±0.15mm unless otherwise noted

◇ Absolute maximum ratings at Ta=25℃.

\t Item	\t Symbol	\t Absolute Maximum Rating	\t Unit
\t Forward Current	\t IF	\t 30	\t mA
\t Pulse Forward Current	\t IFP	\t 50	\t mA
\t Power Dissipation	\t PD	\t 540	\t mW
\t Operating Temperature	\t Topr	\t -30~+85	\t ℃
\t StorageTemperature	\t Tstg	\t -30~+100	\t ℃
\t Junction Temperature	\t Rthj-s	\t 60	\t ℃/W
\t Thermal Resistance(Junction / Soldering point)	\t T_S	\t 105	\t ℃
\t Electrostatic Discharge	\t ESD	\t 2000(HBM)	\t V

◇ Electrical-Optical characteristics @Ta=25℃

Notes: 1. Forward voltage(VF) ± 0.1V

2. Luminous Flux(φv) ±10%

3. The above color coordinates measurement allowance tolerance is ±0.01

4. Color Rending Index (Ra) ±3

5. View Angle (2θ1/2) ±5

◇ CIE Chromaticity Diagram @IF=150mA ,Ta=25℃

◇ Luminous Intensity Rank( 27K/30K/35K)φv @IF=30mA ,Ta=25℃(Unit:lm)

\t BIN	\t Min	\t Max
\t G12	\t 60	\t 65
\t G14	\t 65	\t 70

◇Luminous Intensity Rank( 40K/50K/60K/63K/65K)φv @IF=150mA ,Ta=25℃(Unit:lm)

\t BIN	\t Min	\t Max
\t G14	\t 65	\t 70
\t G16	\t 70	\t 75

◇ Forward Voltage Rank : VF @IF=150mA, Ta=25℃ (Unit:V)

\t BIN	\t Min	\t Max
\t N1	\t 17.4	\t 18.0
\t N2	\t 18	\t 18.6
\t N3	\t 18.6	\t 19.2
\t N4	\t 19.2	\t 19.8

◇ Typical optical characteristics curves @Ta=25℃

Specification

Installation Process

SMD2835-Applications

Certificate

Our company

Our company that produces SMD LED products was established in 2005 with a registered capital of 790 million yuan.

With the excellent quality and sales network all over the world, we adhere to the business philosophy of "Reputation, Quality First, Pursuit of Perfection, Sustainable Management". At the same time, the company continues to increase investment in research and development to ensure that the technology industry leads and always adheres to In accordance with international standards, we will create a first-class quality management system, introduce internationally advanced production equipment, build a first-class production environment, and provide customers with quality products that can stand the test of time, thus winning wide acclaim from the market and customers.

As the leading lighting system, it has strong R&D technology and complete system solutions, as well as excellent quality management and advanced manufacturing equipment. It has been specialized in LED light source and application integrating R&D, design, production and sales. The first-class manufacturer of lighting is constantly striving and striving as "the chief provider of off-grid lighting solutions in China".

THANK YOU
