Высокотемпературный насос для циркуляции масла 12 В

Сохранить в закладки 62214641087:


Цена:5 501,71 ₽ - 9 170,24 ₽*

Количество:

  • В избранное

Описание и отзывы

Характеристики



SEAFLO Profile


SEAFLO Profile









Product Description








Features & Benefits











1.Flow rate up to 7.6 GPM [32.0 LPM]
3.Life Expectancy up to 15,000 hours
5.Bear up to 248 ℉ [120 ℃]
7.Quiet operation

2.Stainless Steel food grade materials


4.Transfer hot and cole liquid


6.1/2" MPT inlet and 1/2" MPT outlet


8.High efficiency





































































Product NameSEAFLO 12V High Temperature Oil Circulation Pump For Coolant
Pump TypeMagnetic Drive Centrifugal High Temperature Circulation Pump
Max Flow Rate7.6 GPM [32.0 LPM]
Max Head18' [4 m or 8 PSI]
Voltage230 AC, and 115v AC is available
Frequency50 / 60 HZ
Max Amp0.75A
Fuse2.5 A
Max Power116 W
Duty CycleContinuous
Housing MaterialStainless Steel
Max Fluid Temp250 ℉ [120 ℃]
Inlet Port1/2" MPT, and contact us for more ports
Outlet Port1/2" MPT, and contact us for more ports
Lead13" [33 cm] 16 AWG lead




SEAFLO beer pump is made of food grade materials, very safe and reliable. Good heat dissipation, high temperature resistance, flame retardant materials. It can draw cold water and hot water. The life span is 15000 hours. High efficiency, the maximum flow rate is up to 29.5 LPM / 7.5GPM. The lift can reach 4M / 18FT. Do not run pump dry.











Product Show

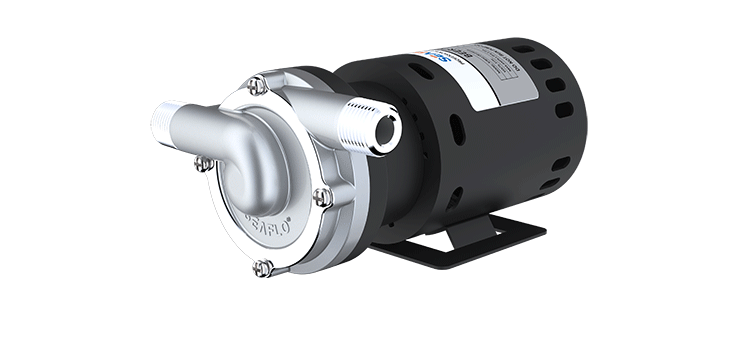

LM

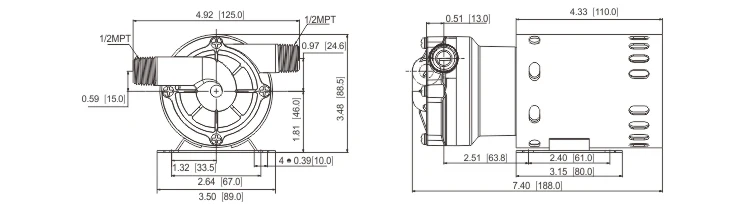

Dimensions

 beer-bian











Performance













Motor Heat Rise




Lacking











Product Details

lacking


STANDARD PUMP CONFIGURATIONS














































ModelVoltage

Frequency



Open Flow


GPM [LPM]


HeadPowerMax Draw
SFBPA1-LM-G400-01115 V50 Hz7.6 [32.0]18 ft / 8 psi109 W1.45 A
60 Hz7.6 [32.0]4 m108 W1.54 A
SFBPA2-LM-G400-01230 V50 Hz7.6 [32.0]18 ft / 8 psi116 W0.75 A
60 Hz7.6 [32.0]

4 m


119 w0.85 A




OEM/ODM service: Pls contact us for more open flow, head, material and etc.








Application






Packaging & Shipping


Package Infomation






























Unit Pump Weight5.95 lbs [2.70 kg]
Selling Unit Size (L x W x H)

9.45" x 5.51" x 4.72" [24.0 x 14.0 x 12.0 cm]


Selling Unit Weight6.24 lbs [2.83 kg]
Master Carton Qty6 pcs / carton
Master Carton Size (L x W x H)

15.16" x 12.20" x 10.04" [38.5 x 31.0 x 25.5 cm]


Master Carton Weight37.45 lbs [17 kg]




Shipping








Company Information


_03(1)_04(1)_07





More Products




FAQ


Q: What is your MOQ?
A: 100 pieces in general, but no MOQ requirement for sample testing.





Q: Do you accept OEM/ODM service?
A: Yes. We are also the OEM/ODM supplier for many famous companies, such as LILIE, Lippert, Bunnings etc.





Q: How can I pay for my order?
A: Please send order details to us. We will issue an order on Alibaba Trade Assurance, and send you the payment link.





Q: What is your terms of payment?
A: Payment≤3000USD, 100% in advance. Payment≥3000USD, 30% T/T in advance, balance against the copy of B/L. If you have another questions, pls feel free to contact us.





Q: What is the delivery time?
A: It depends on the order quantity. It usually takes 15-25 days upon receipt of your 30% deposit by T/T. Sample can be delivered within 7 days.





Q: Can I buy different products in one container?
A: Yes, you can mix different models of pumps in one container.





Q: What is your warranty?
A: 1 year, and within 24 hours reply will be provided to solve customers' problems.





Q: What is your port of loading?
A: Xiamen port.





Q: Do you have oversea agents?
A: We dont have oversea agents for Agriculture and Industrial. But for SEAFLO pumps applied in Marine & RV, we have agents in USA, UK, Denmark, Spain, Australia, Turkey, Yemen, Lebanon etc.





Q: Can I get more info?
A: Please visit www.seaflo.com or www.seafloin.en.alibaba.com for more information.
