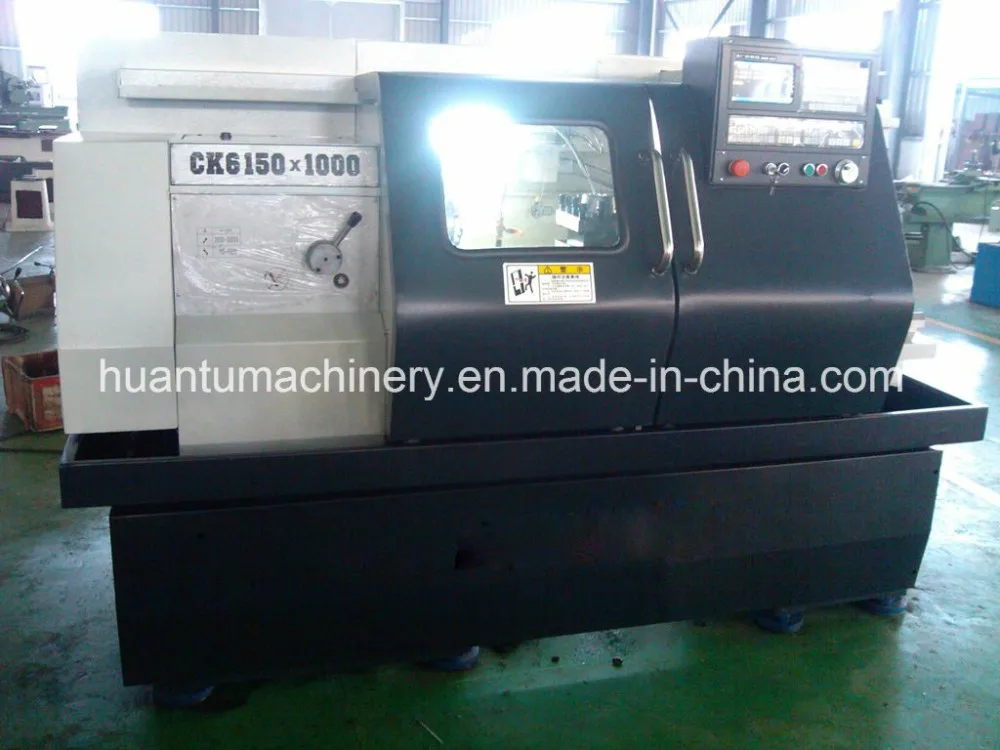

Токарный станок токарный с ЧПУ универсальный

Сохранить в закладки 62217235344:


Цена:*

Количество:

  • В избранное

Описание и отзывы

Характеристики

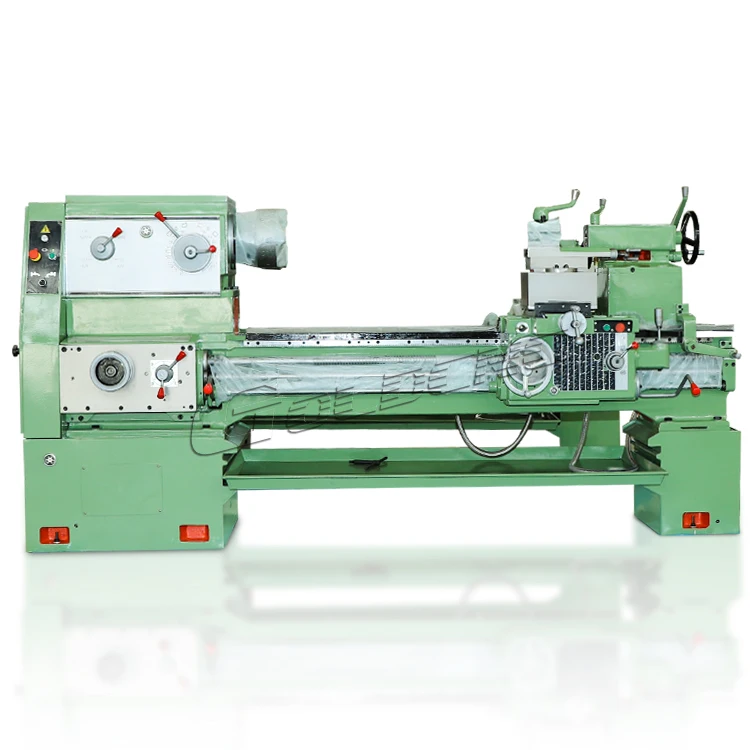

lathe machine cnc lathe machine universal, cnc lathe tools, cnc machine lathe






1.Precision ground and hardened bedways.





2.The spindle is supported with precision roller bearings.





3.Head stock gears are made of high quality steel ground and hardened.



4.Easy operating speed change levers.





5.Removable gap is provided for larger diameter work.





6.Easy operating gear box has various feeds and thread cutting function.





7.Whole or segregate foot stand for optional.








lathe machine cnc lathe machine universal, cnc lathe tools, cnc machine lathe.












































































































































































































Model



CY6266



CY6280



Capacity











Swing over bed



660mm



800mm



Swing over cross slide



440mm



570mm



Swing in gap diameter



900mm



1035mm



Length of gap



250mm



250mm



Center height



330mm



400mm



Distance between centers



1500/2000/3000mm



1500/2000/3000mm



Width of bed



400mm



400mm



Max.section of tool



25x25mm



25x25mm



Max.travel of cross slide



368mm



420mm



Max.travel of compound rest



230mm



230mm



Headstock











Spindle bore



Φ105mm



Φ105mm



Spindle nose



D1-8



D1-8



Taper of spindle bore



Φ113mm(1:20)/MT5



Φ113mm(1:20)/MT5



Spindle speed number



16



16



Range of spindle speed



25-1600r/min



25-1600r/min



Feeds and threads











Leads crew pitch



Φ40mmX2T.P.I.orΦ40mmX12mm



Φ40mmX2T.P.I.orΦ40mmX12mm



Inch threads range



7/16-80T.P.I.(54kinds)



7/16-80T.P.I.(54kinds)



Metric threads range



0.45-120mm(54kinds)



0.45-120mm(54kinds)



Diametrical pitches range



7/8-160DP(42kinds)



7/8-160DP(42kinds)



Module pitches range



0.25-60MP(46kinds)



0.25-60MP(46kinds)



Longitudinal feeds range in metric lead screw



0.044-1.48mm/rev(25kinds)



0.044-1.48mm/rev(25kinds)



Longitudinal feeds range in inch lead screw



0.00165″-0.05497″/rev(25kinds)



0.00165″-0.05497″/rev(25kinds)



Cross feeds range in metric lead screw



0.022-0.74mm/rev(25kinds)



0.022-0.74mm/rev(25kinds)



Cross feeds range in inch lead screw



0.00083″-0.02774″/rev(25kinds)



0.00083″-0.02774″/rev(25kinds)



Tailstock











Quill travel



235mm



235mm



Quill diameter



Φ90mm



Φ90mm



Quill taper



MT5



MT5



Motor











Power of main motor



7.5KW(10HP)



7.5KW(10HP)



Power of coolant pump



0.09KW(1/8HP)



0.09KW(1/8HP)



Dimension and weight











Packing size(LXWXH)cm



324/374/474X114X184mm






324/374/474X114X191mm






Net weight



3060/3345/3710KG



3220/3505/3870KG



Gross weight



3535/3835/4310KG



3705/4005/4480KG






lathe machine cnc lathe machine universal, cnc lathe tools, cnc machine lathe








Three jaw chuck


Sleeve and center


Toolbox&tools 1 set


Four jaw chuck


Face plate


Driving plate


Steady rest


Follow rest


Thread dial


Quick change tool post


Taper turning attachment.








lathe machine cnc lathe machine universal, cnc lathe tools, cnc machine lathe
