Product Description

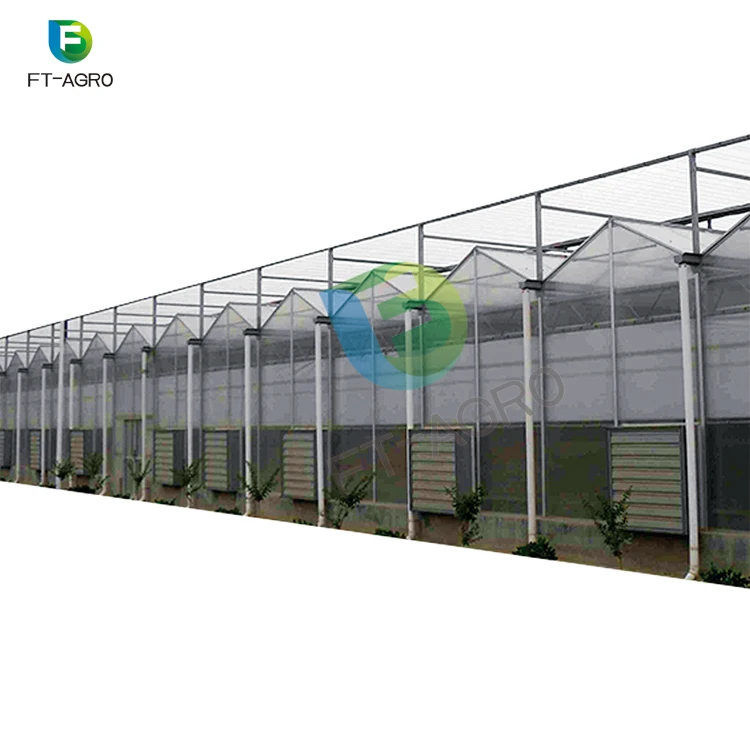

PC sheet greenhouses are fairly the recent advancement in greenhouses. Polycarbonate panels are very light and strong. It can be manufactured to be completely transparent. Greenhouse's PC sheets are treated to be resistant to the degrading effects of ultraviolet sunlight, which gives it an impressive service life. It holds the perfect balance between glass and plastic film.
Details:
---Frame:The greenhouse frame is made by the materials of hot dip galvanized steel pipes, connected by screws, bolts or suitable connectors. The roof can be pitched roof (supported by rectangular tubes) or arched roof (supported by circular tubes). The uprights of greenhouse is made by the rectangular tubes.The frame structure is anti-corrosion and high-temperature resistant.
Special design is available according to requirement.
---Covering Materials:PC(Poly-carbonate) sheet, hard and durable, anti-ultraviolet, can be available on the roof and the
side of greenhouse, thickness of which are, for example, 8mm or 10m,or be made according to requirement.
Parameters:
Single-Span PC Greenhouse | ||||
Main Frame | Hot Galvanized Steel Pipe | |||
Covering Material | Polycarbonate Sheet | |||
Covering MaterialLifetime | 5-10 years | |||
Column shape | rectangular | |||
Columns | Size | Thickness | ||
50*100mm/60*120mm/70*140mm | 2.5-3.0mm | |||
Span | 8-10M | |||
Height | 2.5-3M | |||
Wind Load | 0.5KN/㎡ | |||
Snow Load | 0.3KN/㎡ | |||
Optional system:
Cooling system (cooling pad and fan)
Heating system (water, oil, coal heating)
Supplementary Lighting system (Philips sodium lamp)
Shading system (inside and outside shading)
Irrigation system (drip irrigation, mist system etc)
Seedbed ( movable, fixed )
Ventilation system ( roof and side windows)
Circulation System
Control system ( control all system running situation)
Pictures show
Optional system

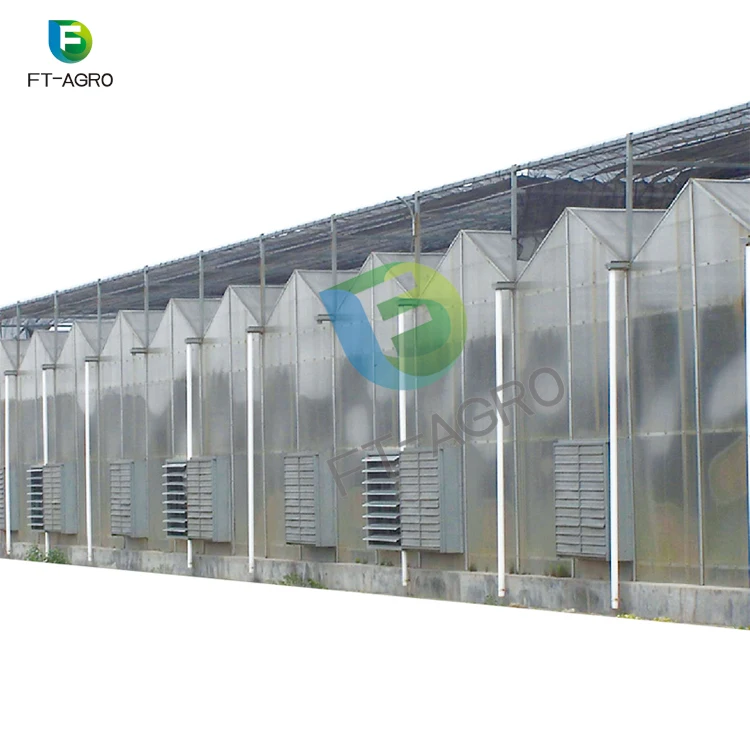

Ventilation
This system can effectively improve the greenhouse ventilation area, reduce costs ,applicable to all types of greenhouse. Ventilation rate is up to 27%.

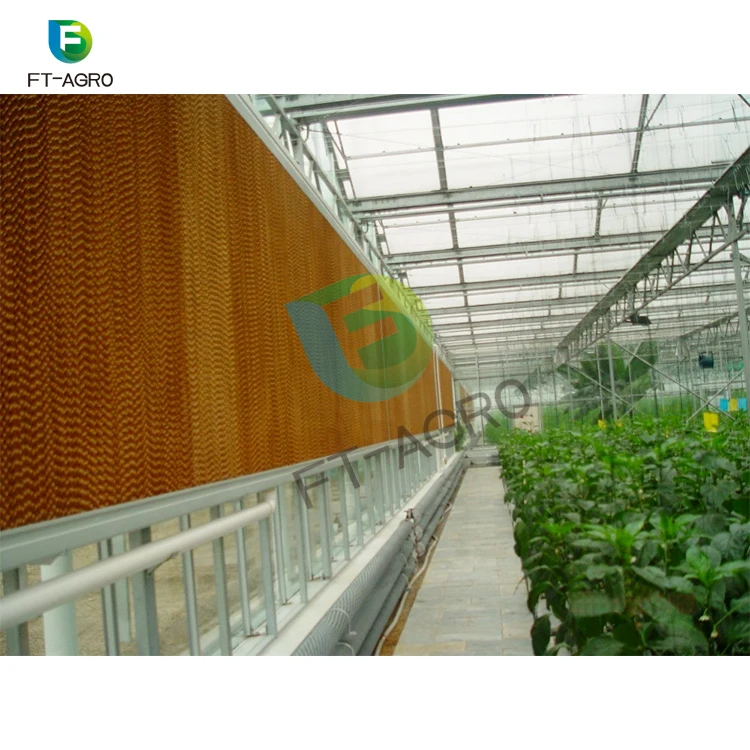

Cooling system
The system consist of Cooling pad,pump,water supply device,watering device,Water return device,circulating pool,exhausters.The system is the most cost-effective cooling system for large-scale production facilities.
Light Compensating System
Illumination is the critical factor in plant growth, so the greenhouse light compensating system has become an indispensable equipment. The use of artificial light source can compensate for intimate sunlight to crops, which can improve the yield and product efficient.
Distribution system
Greenhouse system configuration control box, according to the control object, press manual start and stop control respectively. Controlled by direct manipulation of the contactor via the panel switch.
Outside shading system
In summer,the solar radiant heat load entering the greenhouse is very high.the shading system can block most of the solar radiation, the greenhouse can have the ideal temperature and humidity environment using with cooling system, and it can save the operation cost and energy consumption.
Inside shading system
With excellent shading effect of high-purity aluminum foil , the system can effectively reduce the temperature inside the greenhouse during the hot summer, and the reflection function of the surface of high-purity aluminum foil can block the cold air outside the greenhouse in winter, and also has internal insulation performance.
Heating system
Fin tube radiator
Based on boiler as heat source, it's together with fin tube radiator to heat the indoor area of the greenhouse.It has no side-effect on the crop growth and also has anti-corrosion, long lifetime and other advantages.
Air heater
The system equipped with a flame detection device,
operated fully automaticly, which make the combustion
safe and reliable.
Related products
click the picture, divert to the related products details.
PO Film greenhouse
Venlo Glass greenhouse
Venlo PC sheet greenhouse
Tropical greenhouse
Blackout greenhouse
Sunlight greenhouse
Accessories
\t\t\t\t\t\t\t\t\tCompany Information \t\t\t\t\t\t\t
Shandong Fortune Agro-Tek Co., Ltd. is an export enterprise combining professional production and trade. The factory is located in Weifang City, Shandong Province. The company’s main products are intelligent greenhouse and supporting facilities such as cooling/ heating system, shading system, ventilation system, seedling system, hydroponic system, CBD & THC etc. Our research and development team to continuously develop new kinds of science and technology products, to meet the needs of modern greenhouse development. Fortune Agro-Tek integrates modern agricultural technology to create productive and high yield growing approach. We combining the advantages of traditional farming techniques with the security and privacy, it has been adapted to meet the demand of nowadays growers.
We take "customer-friendly, quality-oriented, integrative, innovative" as objectives. "Truth and honesty" is our management concept. The customer satisfaction is our primary goal. We uphold a consistent level of professionalism, quality, credibility and service, therefore we are always ready for cooperation and gladly welcome new clients and business partners.
Why us
1. Strong design & installation team - 15 R & D engineers, 2 senior engineers
We can advice reliable design and supply the engineer for the crroect installation.
2. Complete quality monitoring system
We have strict construction organization, advanced production and installation technology, excellent construction team, strictly in accordance with international standards and technical norms to organize design, production, installation.
3. Personal Custom
All the design will be done according to customers' local climate condition.
4. Credit protection
