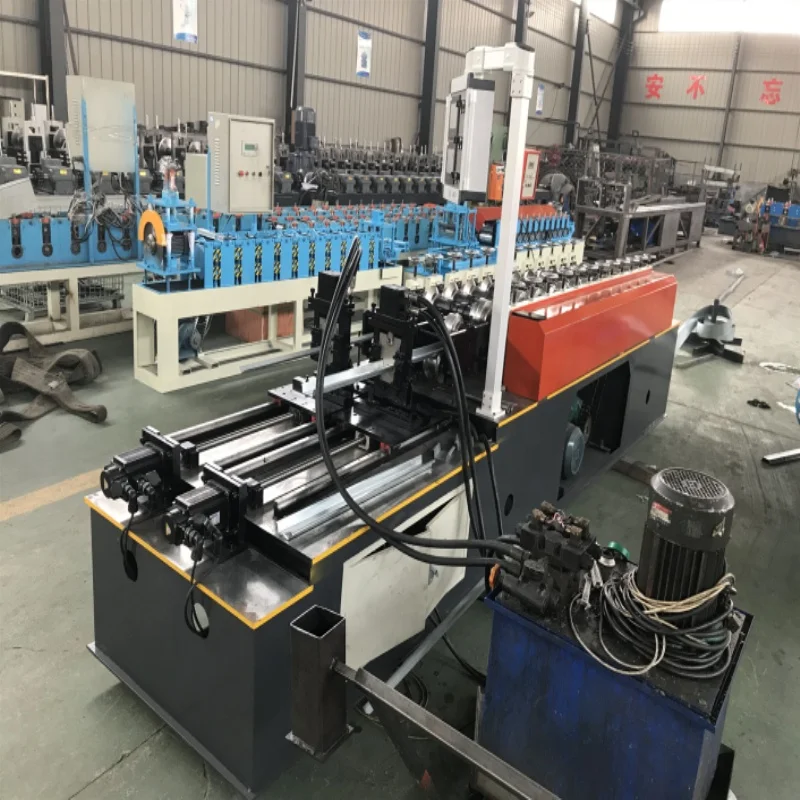

Легкая просторная шпренгельная конструкция стальной каркас гипсокартон трек металлический стержень делая машину

Легкая просторная шпренгельная конструкция стальной каркас гипсокартон трек металлический стержень делая машину

Категория: >>>
Поставщик: Cangzhou Zhongheng Machine Manufacture Co. ltd.

Цена:13 500,00 $ - 14 000,00 $*

Количество:

В избранное

Описание и отзывы

Характеристики

Product Description

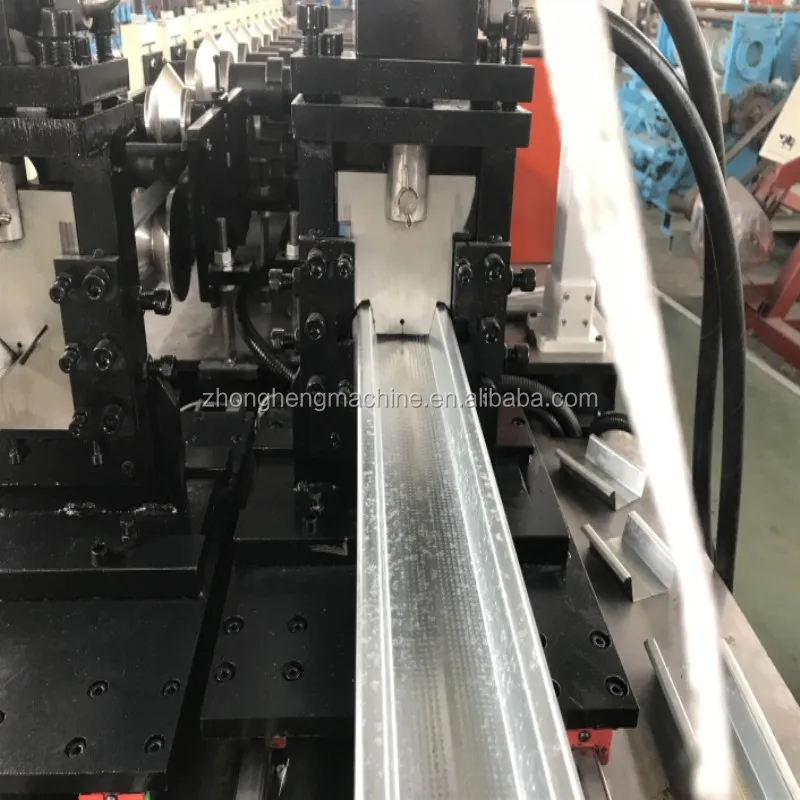

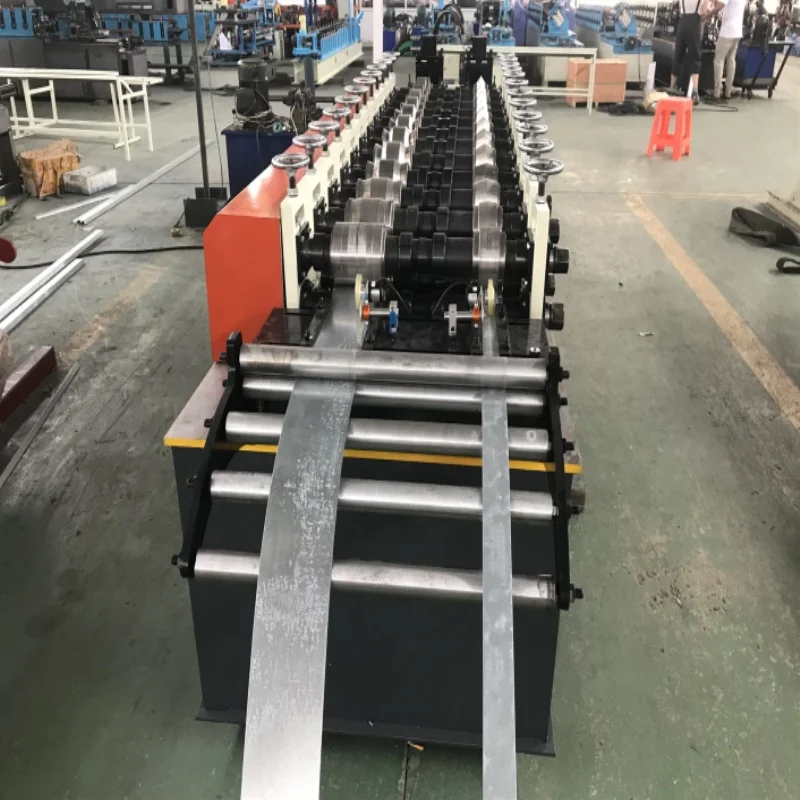

Light Gauge Steel Frame Drywall Track Metal Stud Making Machine

\t 1	\t Power requirement	\t Type	\t 380v/3ph/50hz	\t
\t	\t	\t Main Motor power	\t 5.5kw	\t
\t	\t	\t Cutter power	\t 5.5kw+ 2.3kw	\t
\t 2	\t Forming speed(m/min)		\t 0-25m/min max	\t Not include the time of cutting
\t 3	\t Forming stations		\t 12stations	\t
\t 4	\t Material of rollers		\t CR12	\t
\t 5	\t Thickness of structure		\t 30mm	\t
\t 6	\t Forming shaft diameter(mm)		\t 70	\t
\t 7	\t GDrive		\t Gear box	\t
\t 8	\t Type of cutting		\t Hydraulic cutting	\t
\t 9	\t Control system		\t PLC xinjie	\t
\t 10	\t Install dimension(depend on the final design)		\t 4.8m×0.6m×1.2m	\t Without panel length
\t 11	\t Total weight (Approx)		\t 2.3T	\t Depend on final design
\t 12	\t Screen		\t Text screen /touch screen	\t

\t No	\t Name	\t Unit	\t Qty	\t
\t 1	\t Man-made decoiler	\t set	\t 2	\t Max width 300mm Inner diameter -460-510mm Max loading capacity 1000kg Manual operating type manual expansion to tighten the coil *Break down drive whole line stop while decoiler idle

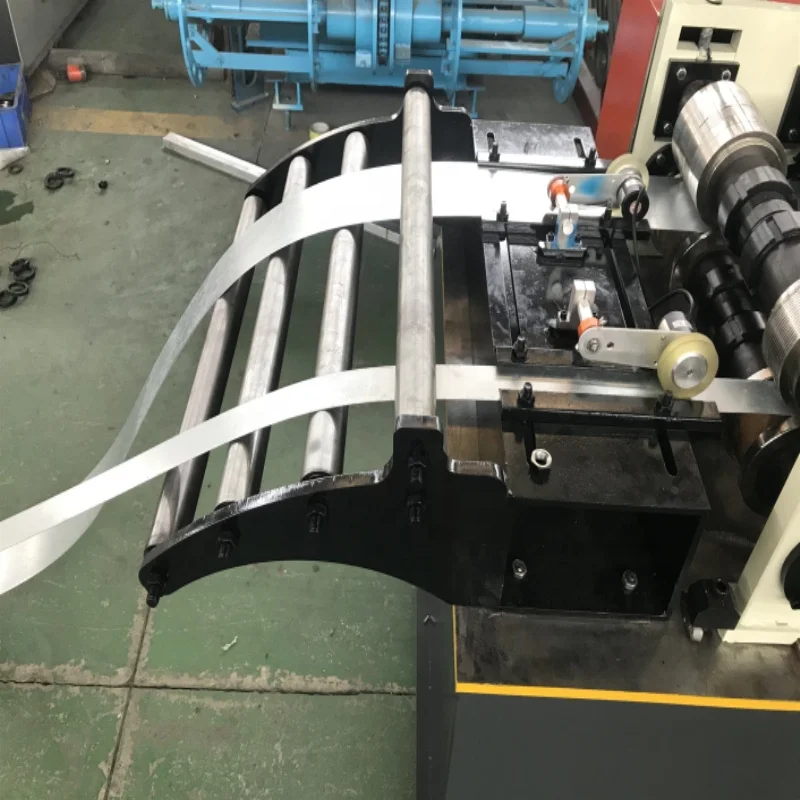

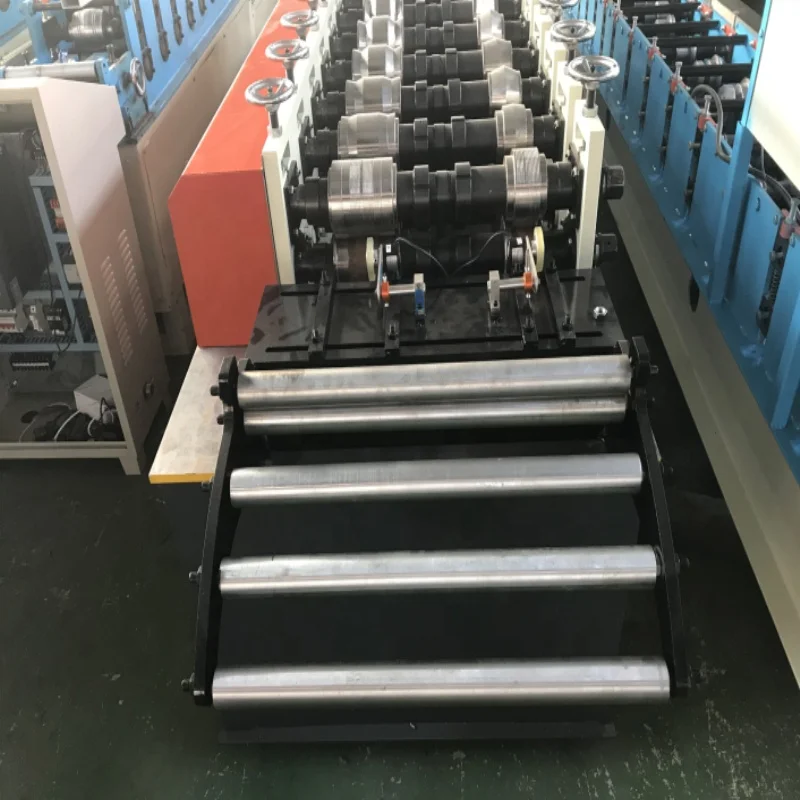

\t 2	\t Feeding Table	\t set	\t 1	\t

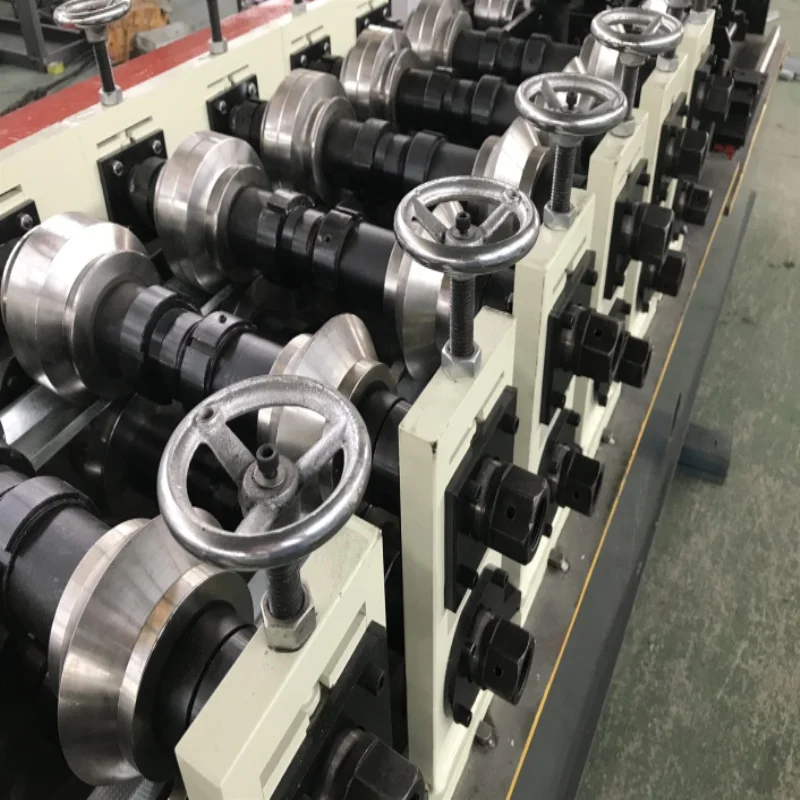

\t 3	\t Forming Rollers	\t set	\t 1	\t Forming Station 16 nos Forming Rollers material Cr12 Forming Rollers hard treatment HRC 58-60 Shaft of roller Diameter 40mm Shaft material 40Cr,heat treatment, refine grinded Machine frame: steel welding Main sidewall thickness 25mm Machine driven by universal joints via gearbox Roll forming motor 5.5kw with frequency inverter controller Gearbox RV worm gearbox
\t 4	\t Hydraulic cutting with hole punching	\t set	\t 1	\t Hydraulic pump stand 1 set Hydraulic Components taiwanese Hydraulic System discharging protection with wind cooler Edge cutting 2 sets both ends Middle joint hole punching 23sets/152.4mm Fire testing hole 2 sets both ends Mould standard SKD-11 Steel Japanese Mould frame&plate S45C Mould pin SKH-9 steel Japanese All mould treatment By slow-feeding Nc wire cutting
\t 5	\t Profile Discharger	\t set	\t 1	\t Driven machinical Auto Head Operation Full automatic along with forming machine
\t 6	\t Electric Control system	\t set	\t 1	\t Frequency converter Silin ,Taiwanese PLC Fatek ,Taiwanese Touch screen weinview Taiwanese Profile length cutting forming machine stops then cut *Operational controller: touch screen knob switch emg Brake down and so on (6)Power supplier 380V 50Hz 3phase

Packing & Delivery

It will be loaded in one 20' container

Terms and aftersales

1.Payment Term: 30% paid by T/T as down payment, the rest 70% after inspection by buyer in seller's factory while before delivery. After finished production, we will inspect the machine and inform the buyer, the buyer send person to inspect goods, then payoff the whole payment before shipping.
2.Delivery Time: We guarantees the equipment will be ready for shipment within 30 working days after receipt of deposit .

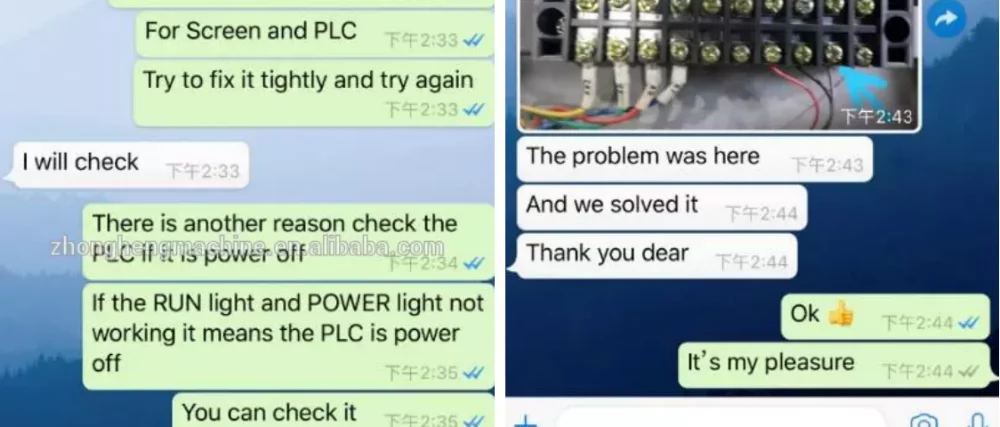

3.After sale Service: We could send technician to your country to install machine if you need. The buyer need to pay for all the cost, including: visa, round trip tickets, accommodation, salary of USD 100~120 per day.
4.Warranty: 12 months
During the warranty, the replaceable parts are free, but the buyers need to pay for the shipping . We will also provide you instruction manual to show you how to operate the machines.
