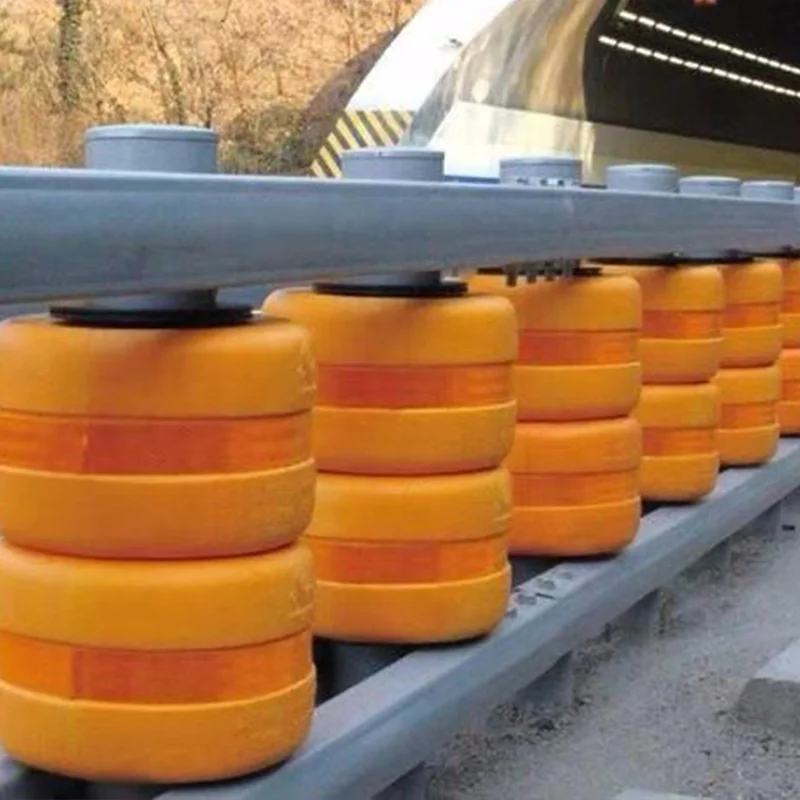

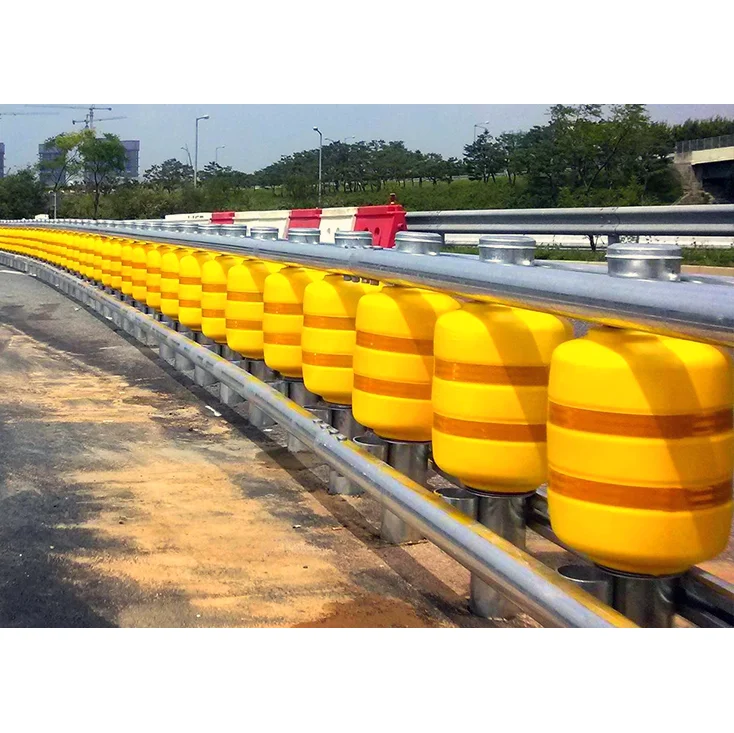

Дорожный дорожный ролик для защиты от столкновений

Дорожный дорожный ролик для защиты от столкновений

Категория: >>>
Поставщик: Wuhan Dachu Traffic Facilities Co. Ltd.

Цена:19 690,82 ₽ - 21 878,68 ₽*

Количество:

В избранное

Описание и отзывы

Характеристики

SPECIFICATION

Roller	H250xφ350mm,H500xφ350,request
Post	φ140 x 2150 x 4.5mm ,φ140 x 2100 x 4.5mm, request
Cross Beam	100x80x4.0x5000/5600/6000/7000
Turning Circle	φ182xφ145x2.0mm
Connecting rack	84 x 70 x 4.0mm*L430mm
U connecting frame	380 x 70 x 6.0mm
Casing	φ167x480x8.0
Terminal	5603104.0 13002302.0
Square buckle	46x64x4.0mm
Bolts&Nuts	M20x60/120/140mm
Post spacing	700 mm or 1000 mm or custom
Material	EVA/Polyurethane for barrel,and Q235/Q345 for guardrail
Operating temperature	-60ºC-70ºC(-76ºF~158ºF)

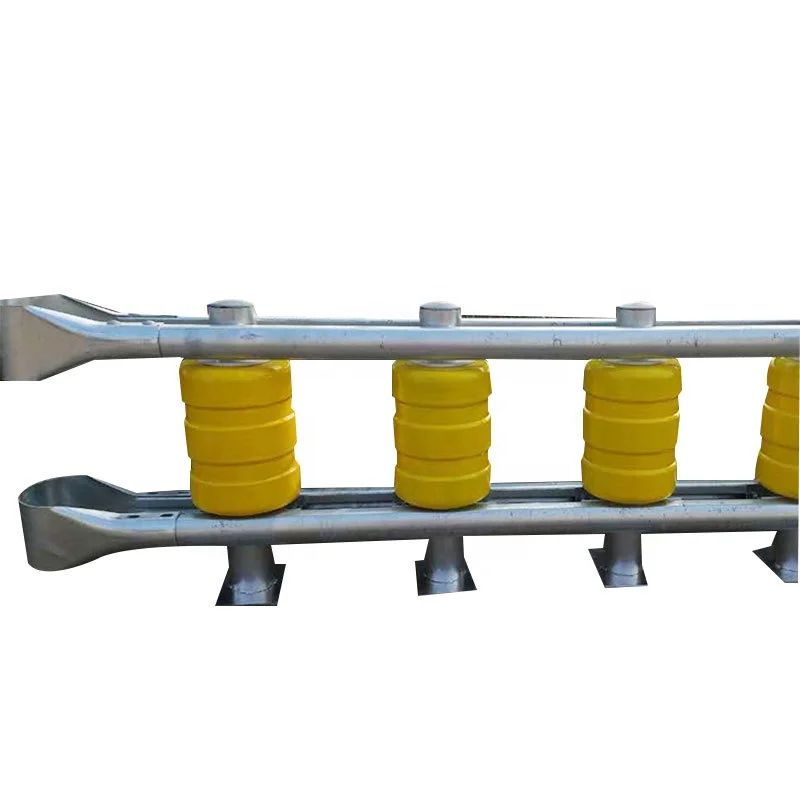

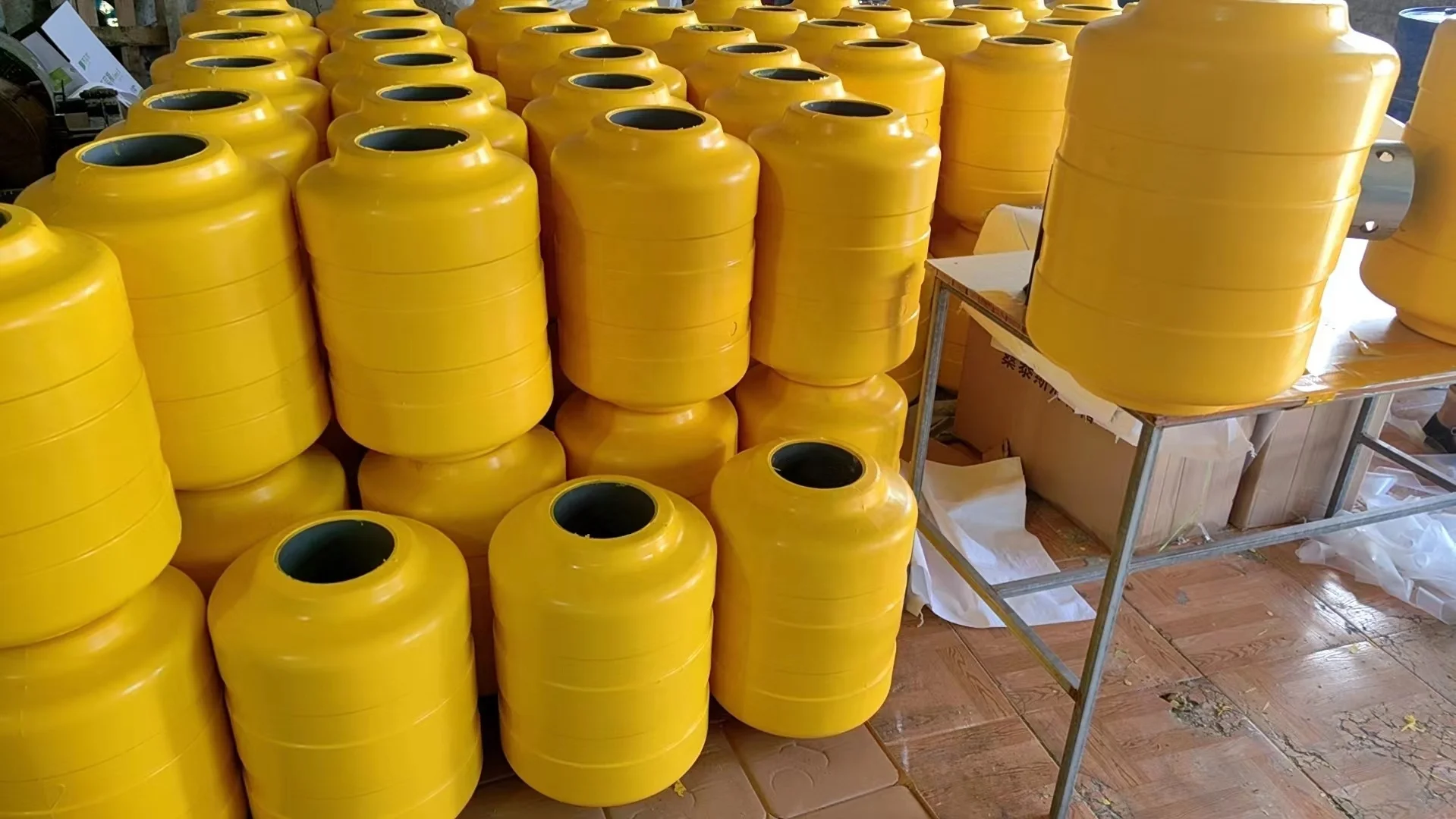

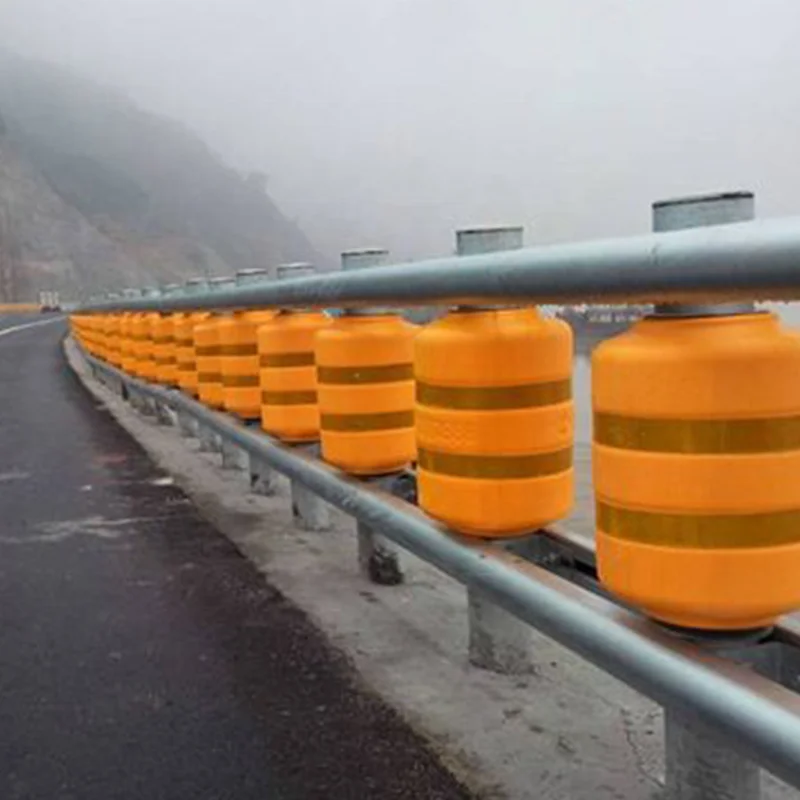

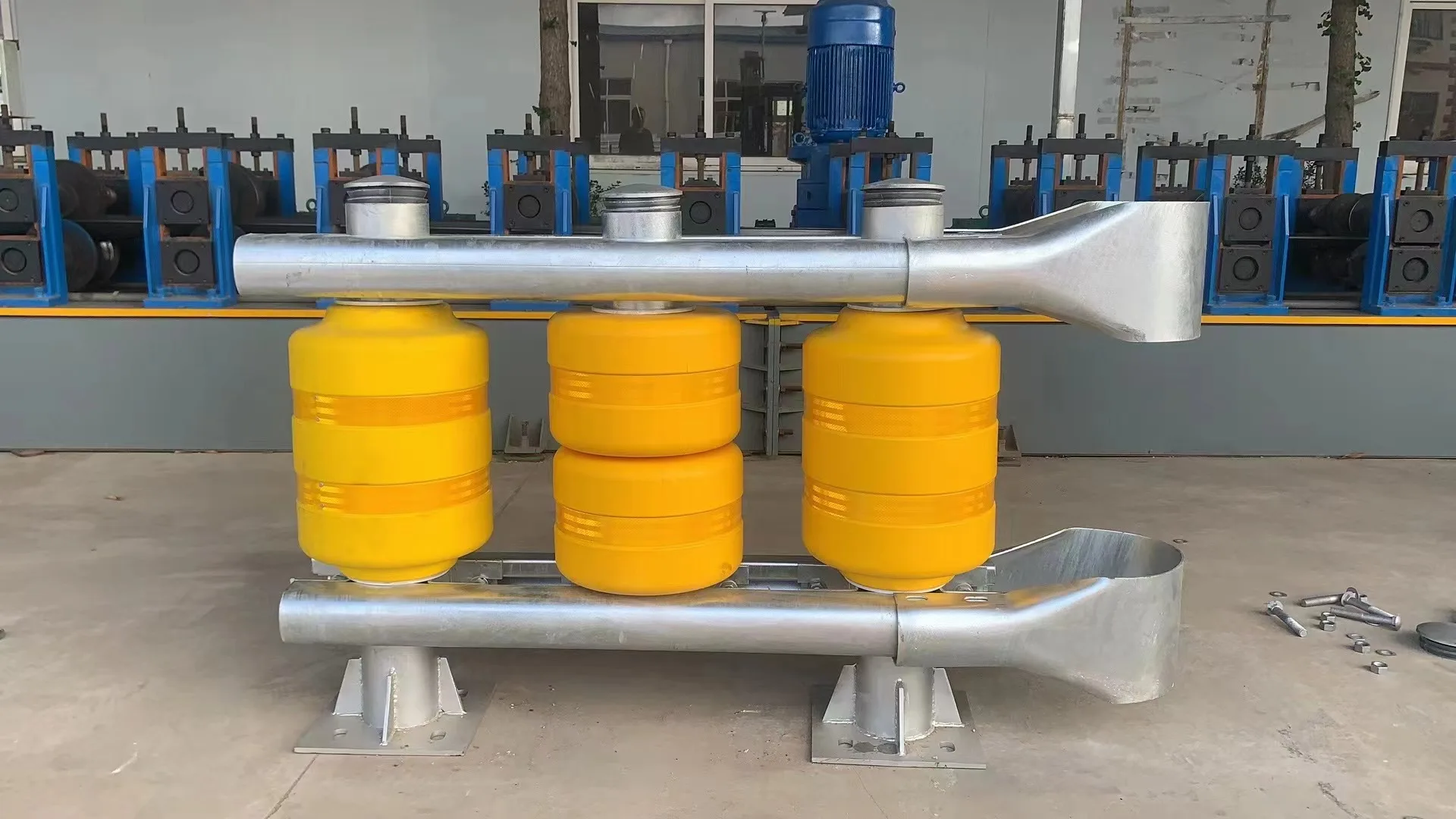

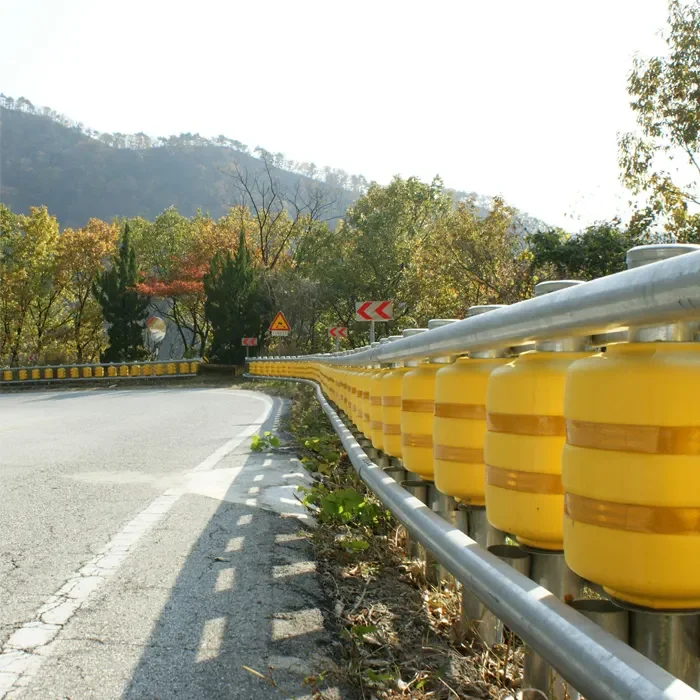

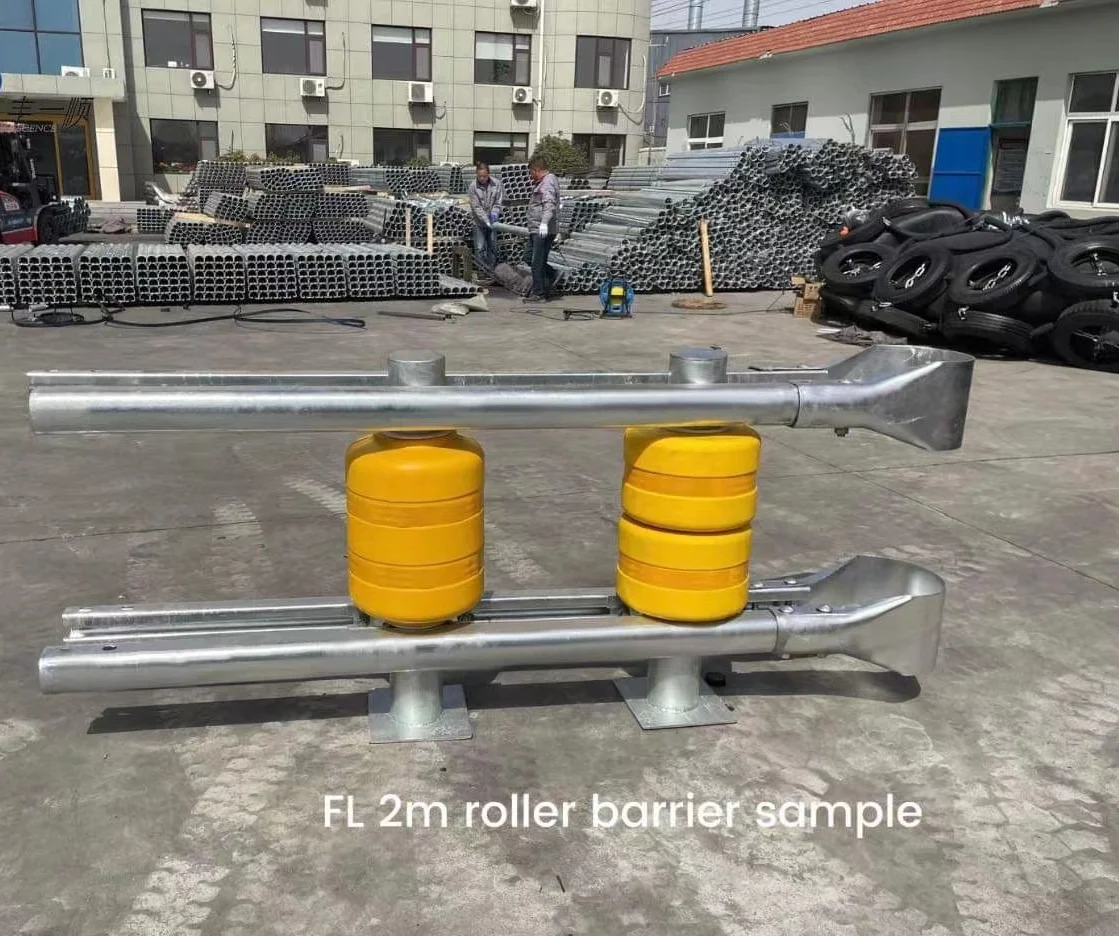

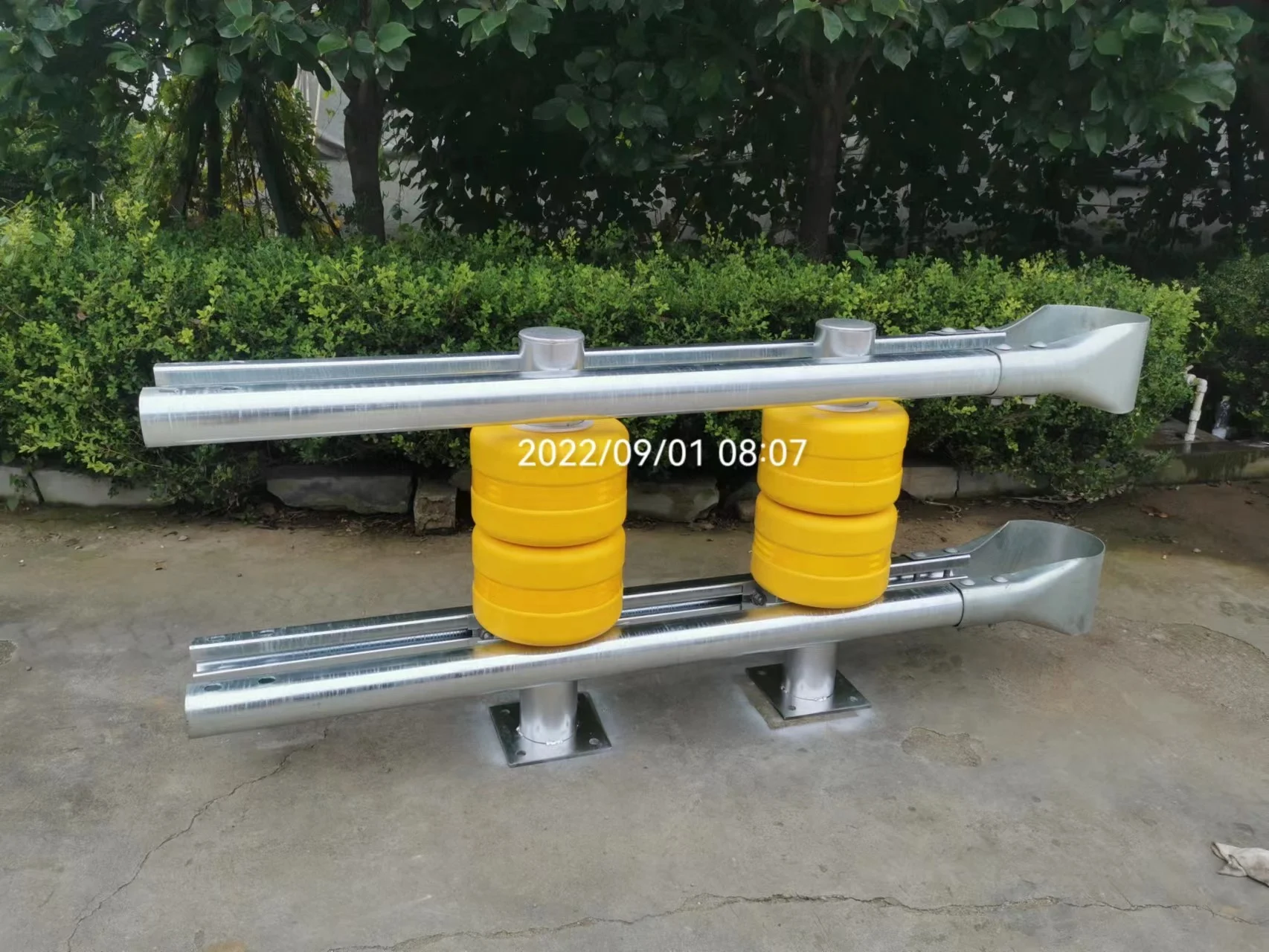

Product Picture

Features of Safety Roller Barrier:
1. Reduce speed by stopper board
2. Guide reflective leads a driver to drive safely
3. Recyclable material (eco-friendly)
4. Help a vehicle turn back to the road by its spinning when the car crashed the rollers laterally
5. Minimize fatal damage of people and vehicles by absorbing collision shock
6. Reduce costs in repairing and maintenance due to Roller’s resilience.
7. Stopper boards help prevent larger accidents by slowing down Roller’s spin
8. Can be used for many years, less cost.

How safety roller barrier works?

1. The rotating barrel converts great shock from vehicle collision to rotational energy to absorb shock.
2. Upper and lower frames adjust tires of large and small vehicles to prevent the steering system function loss.
3. The three-dimensional structure of D-shaped frame and buffering bracket distribute and absorb the 2nd shock.
4. Props at an interval of 0.7 m increase bearing power to prevent accident vehicles from going over the guardrail and turning
over into a dangerous area.
5. The product has a rotating barrel made of EVA with excellent shock absorption power, three-dimensional buffering frames and
dense props supporting the frames.

Packing & Delivery

\t\t\t\t\t\t\t\t\tRelated Products \t\t\t\t\t\t\t

Products Name:
Plastic spray guardrail

Products Name:
Export Guardrail to Indian

Products Name:
Export Guardrail to Sri Lanka

Products Name:
Reflector

Products Name:
Sigma post

Products Name:
Grade 8.8 screws

Products Name:
Washer

Products Name:
Spacer

Products Name:
Fish tail end

Certifications

Company profile

About Us.

Wuhan DACHU Traffic Facilities Co., Ltd is a professional manufacturing enterprise for traffic safety facilities production. The company is located in the intersection of Beijing-Hong Kong-Macao Highway, Shanghai-Chengdu Highway and State Road 318, Caidian District, Wuhan City, Hubei province, China. The location is sitting on the only "cross of gold" economic geography center, which has a unique and convenient transportation condition.

Our company has advanced production equipments, strong technical force, scientific craft process, perfect quality inspection system. The company is mainly engaged in traffic engineering products including roadway W-Beam Guardrail, post, deter block, post caps, bracket, gasket, bolt, top end and so on. We are the first manufacturer and large production base who specialized in manufacturing road traffic safety facilities W-Beam Guardrail and other related products in central China.

Our company adheres to the business approach 'Forge Ahead in Unity, Integrity and Win-Win positioning', and always adheres to the service concept 'Basing on Sincerity, Quality at First'. Our company vision is: 'W-Beam Guardrail' as a carrier to build a safe, smooth and harmonious traffic environment for society.

FAQ

1. Are you a trader or factory?

A: We are Manufacturer, not a trading company.

2. Can i get a sample if i want to test the quality?

A: Yes,of course.We can supply a sample for free,but you have to pay for the freight fee.

3.What can i buy from you?

A:We sell standard guardrails,scaffolding or customized.

4. What services can you provide?

A:We can do delivery terms like FOB, CFR, CIF, EXW etc, and payment type such as T/T,L/C,D/P D/A,,PayPal,Western Union,so if any needed,please feel free to contact with us.
