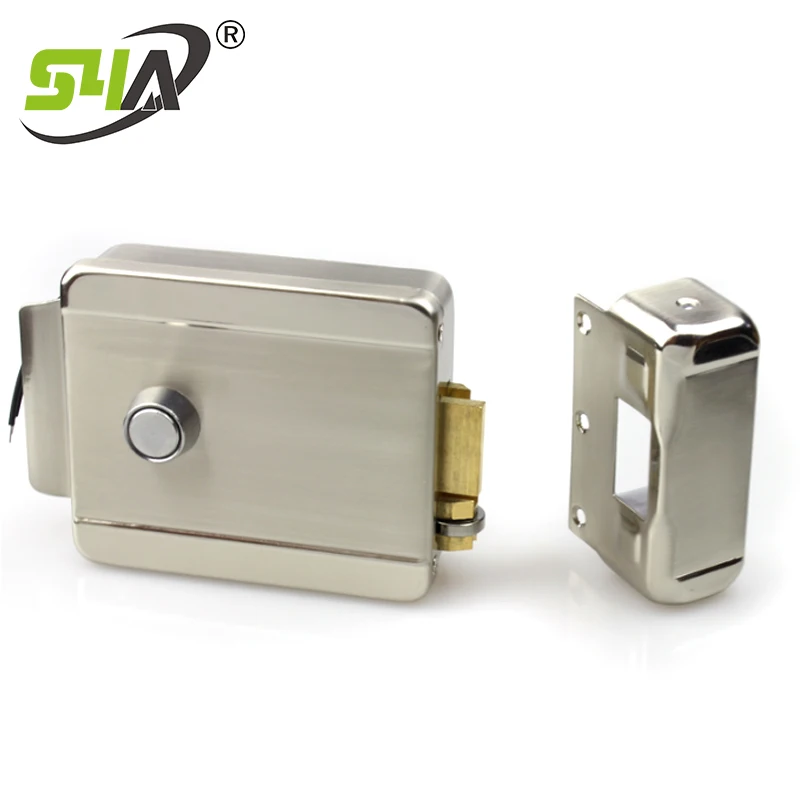

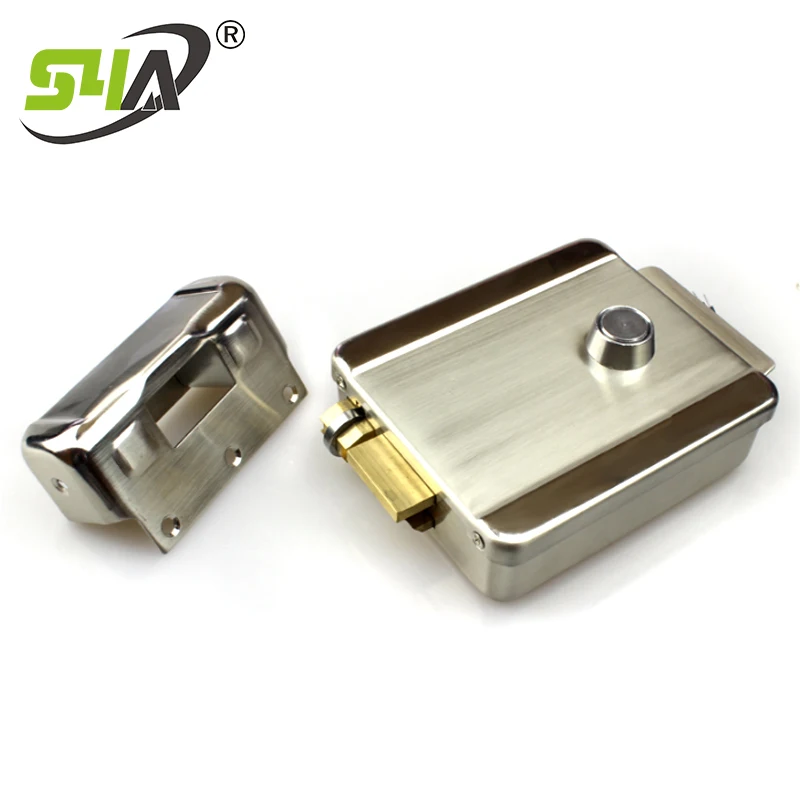

Single Cylinder Electric Door Lock ER-M1
Electric RIM lock-Iron Nickle-Plated
Electric RIM lock with Single cylinder or Double Cylinder
Factory default with Yale Key (KC key is optional)
Item No. | Feature |
1 | High strength stainless steel lock housing |
2 | Elegant surface finish: stainless steel brushed |
3 | Single Cylinder or Double Cylinder are available |
4 | Solid brass ball latch |
5 | Solid brass cylinder and deadbolt |
6 | Reversible deadbolt |
7 | Fail secure, pulse to open |
8 | Reliable locking mechanism (Up to 1000000 operations) |
9 | High security, low noise |
Parameter | Description |
Model | ER-M1 |
Cylinder | single cylinder |
Finish | Nickle-Plated |

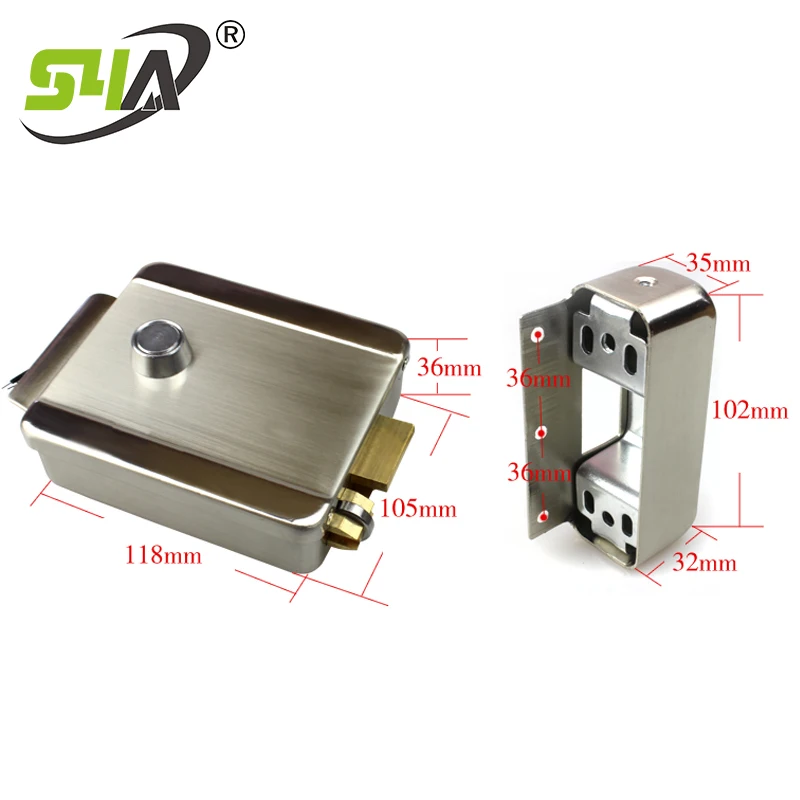

Lock Size | 148 x 107 x 60mm |
Backset | 60mm |
Keys | 3pcs |
Thickness of lock body and strike | 2.0mm |
Voltage | 12VDC(Pluse) |
Working current | 3A |
Consumption power | 10W |
Unlock time | Pulse to unlock, within 1s |
Service life | 1,000,000 times |
Operating Temp | under 40+50 |
