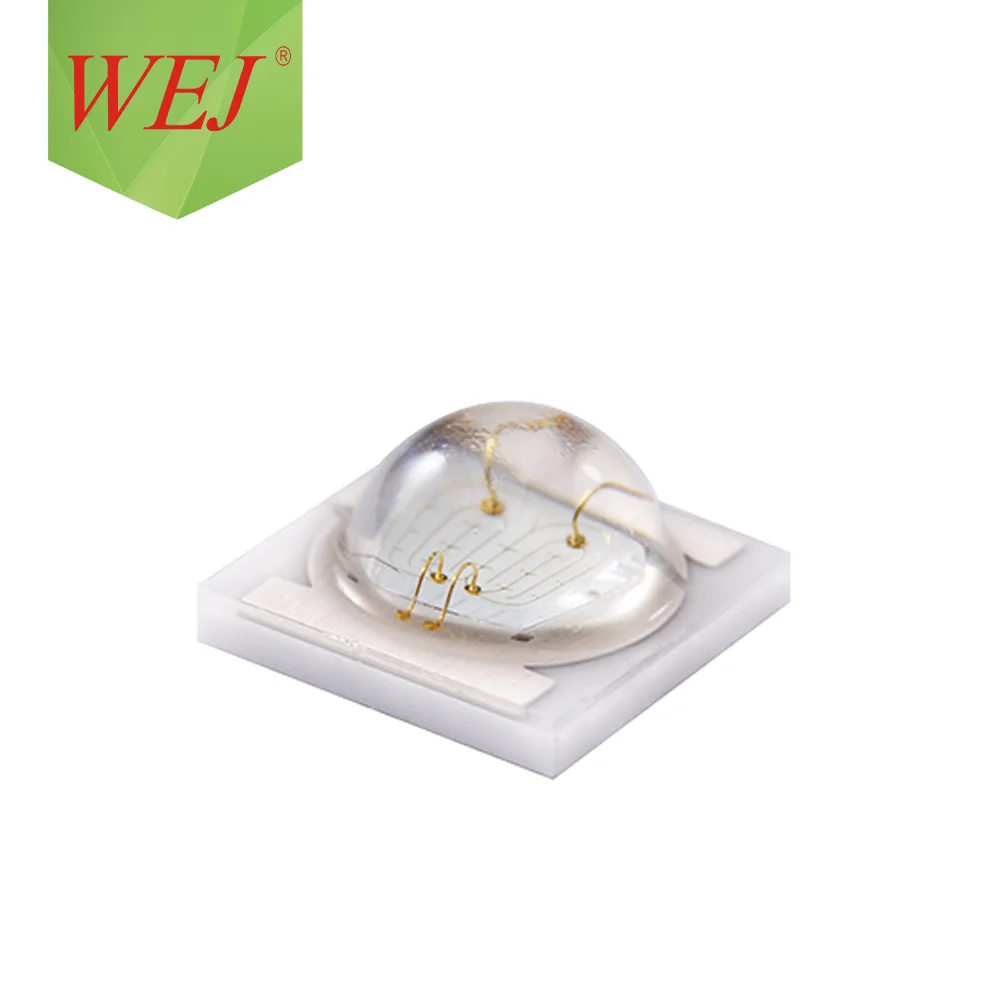

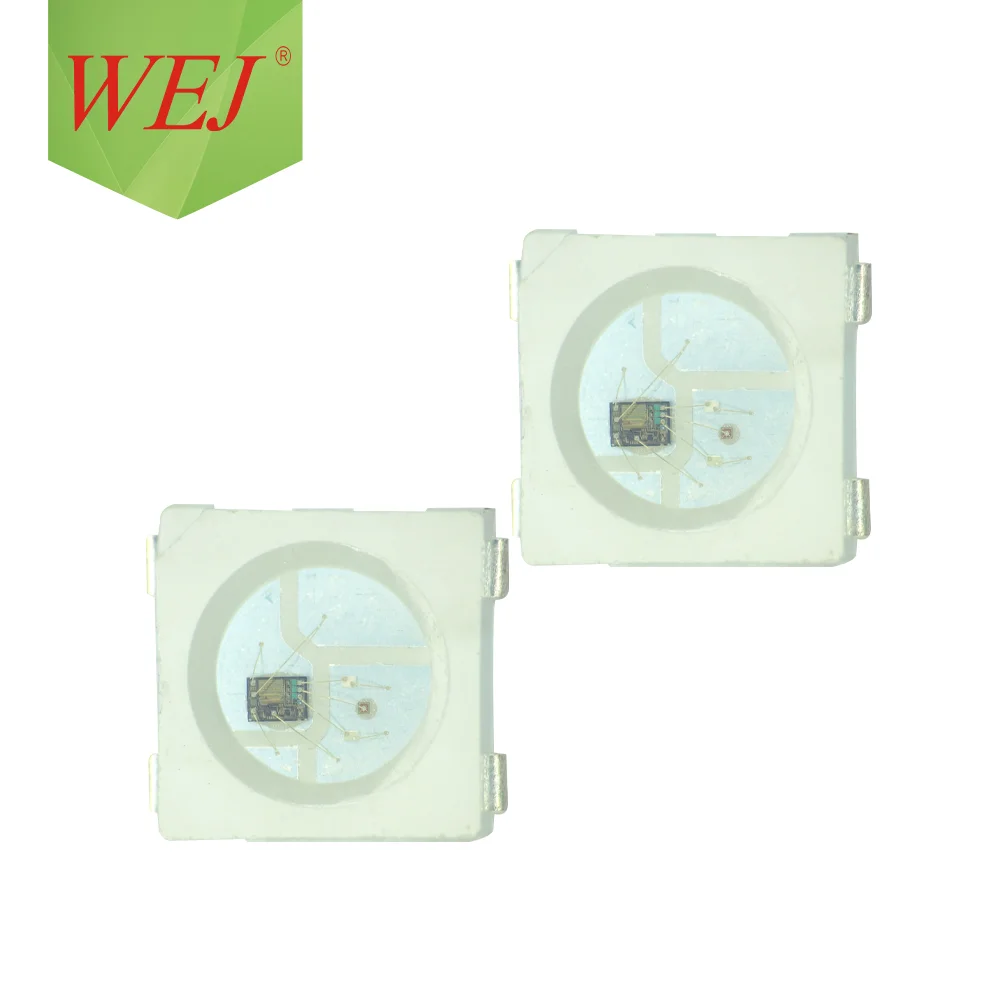

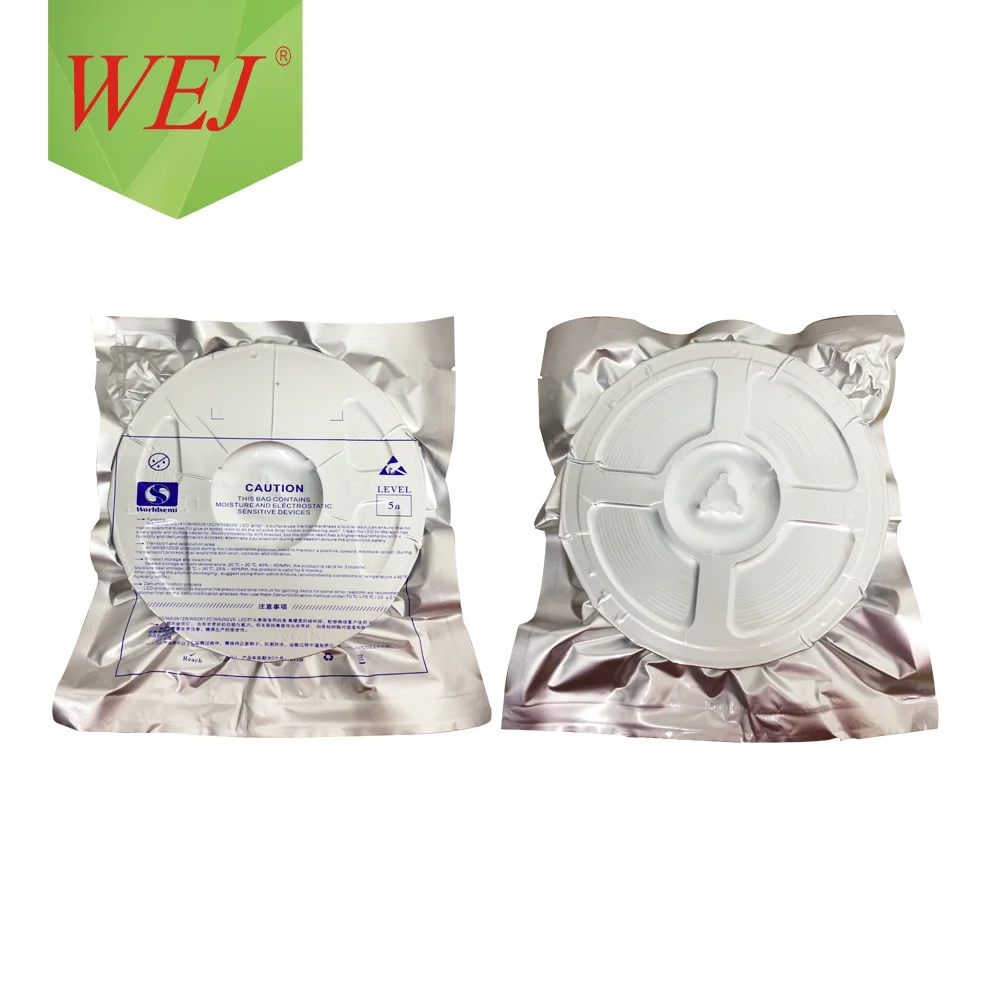

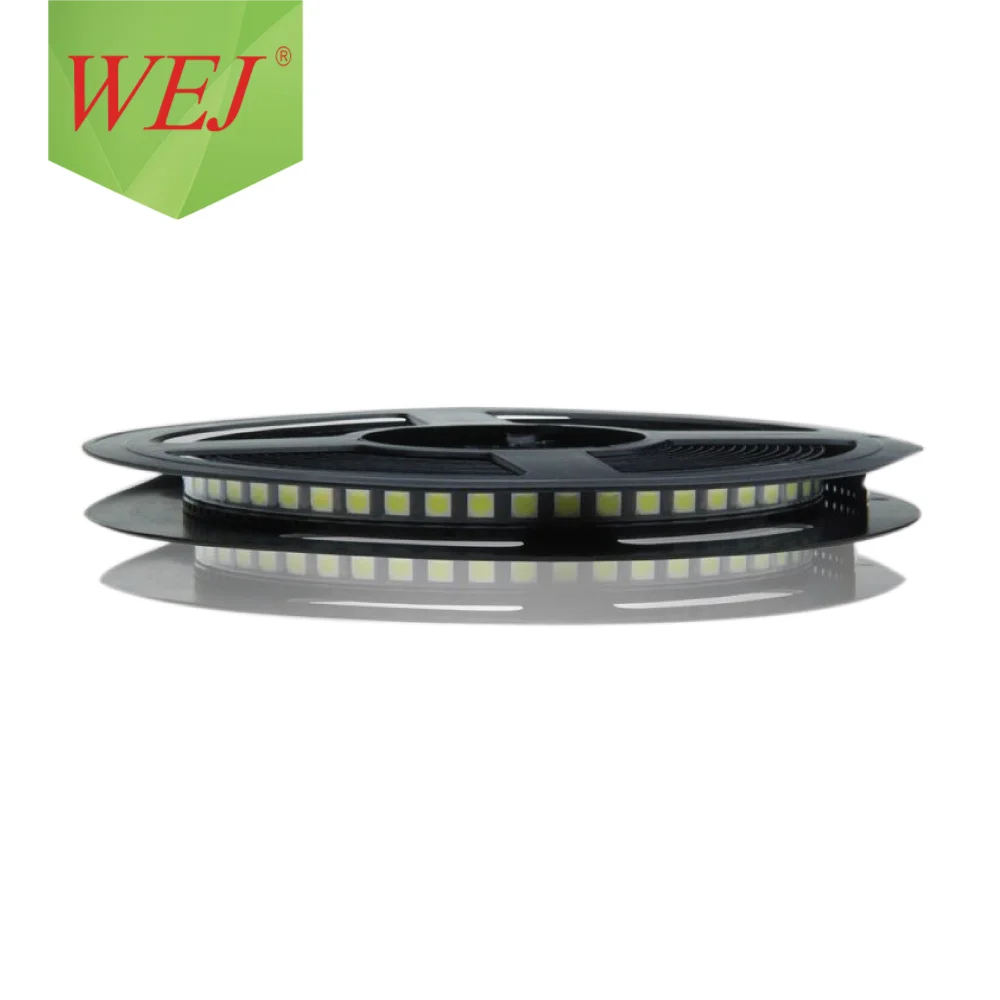

WEJ RoHS Factory IC buit in 3535 RGB smd led 3.5mm 3 3.4v diode

Сохранить в закладки 62231460559:


Цена:*

Количество:

  • В избранное

Описание и отзывы

Характеристики



Product Description








































































Lamp TypeWS2812B LED Chip MaterialInGaN
Model NumberWEJT35ARGB0-BE8BCKZ02-023-IC2Emitted ColorRGB

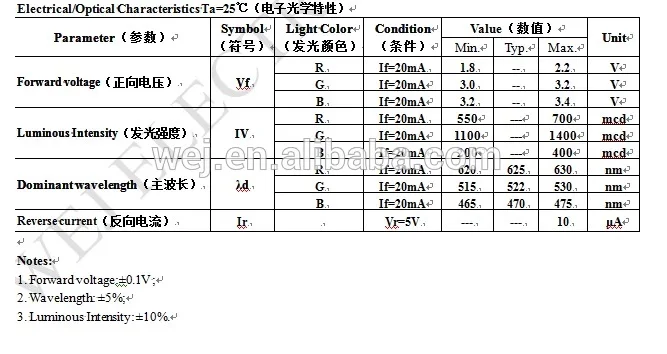

Dominant Wave LengthR:620-630nm G:515-530nm B:465-475nmResin ColorClear
Forward VoltageR:1.8-2.2V G:3-3.4V B:3-3.4VForward Current20mA

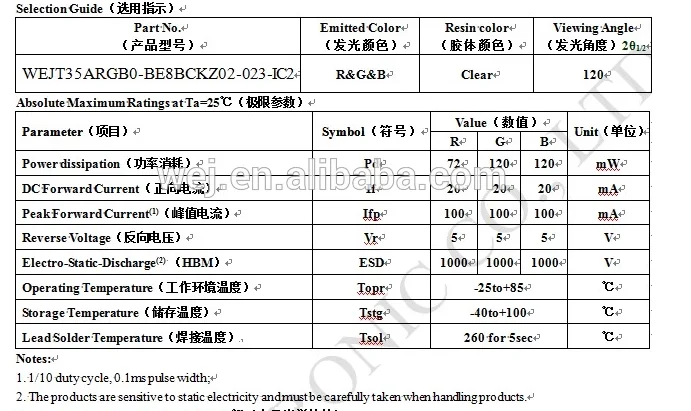

Reverse Voltage5VPower Dissipation120mW
Peak Forward Current100mAViewing Angle120º
Reverse Current10μAWorking Temperature-25℃~+85℃
Diameter3.5mm *3.5mmStorage temperature-40℃~+100℃
FeaturesHigh brightness;Low power consumption;High reliability and stability.
Flexibility in optical design and mechanical design.
Applicationsled strip

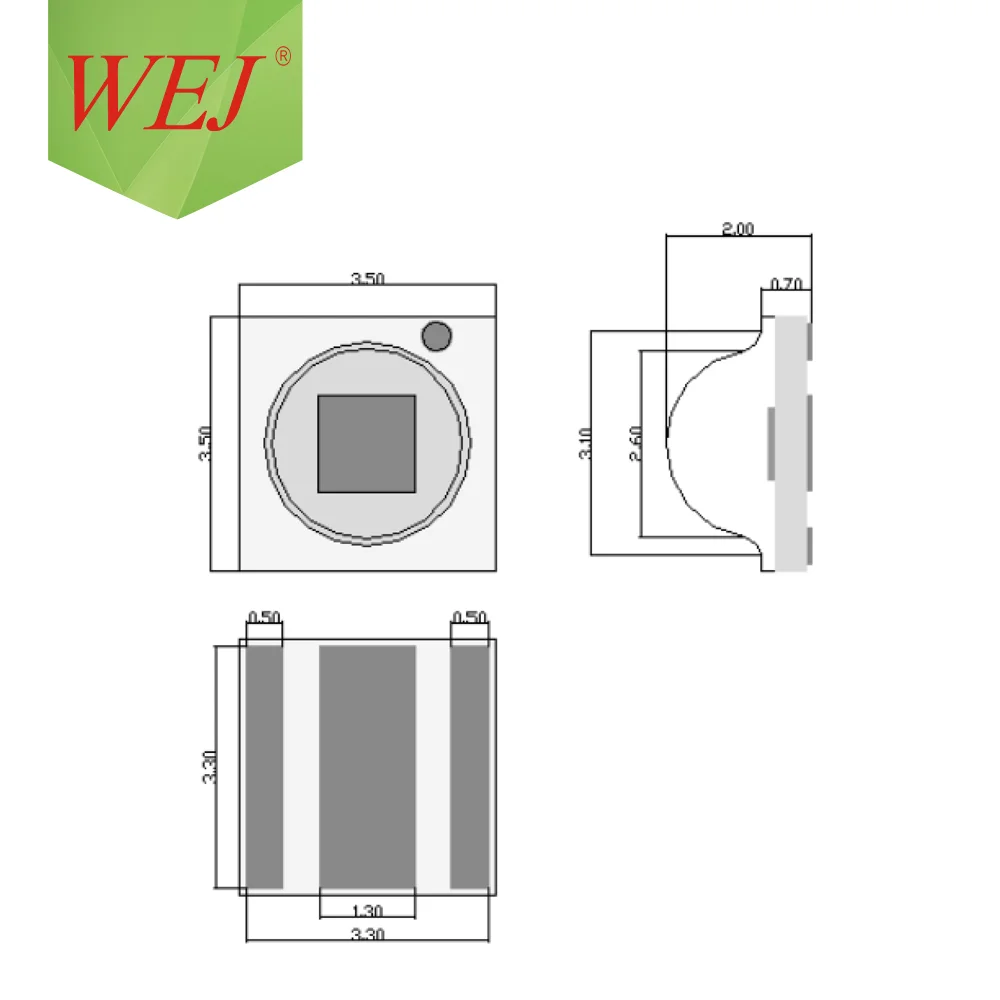

Package Outline


package outline.jpg 3535.2.png










Related products




                            IR & PD & PT                                                            DIP LED                                                              Lamp LED Holder




                                 SMD LED                                                              Chip LED                                                              Bridge Rectifiers




                    Diodes & Transistors                                                    LED Spotlight                                                   LED Night Light





Fair & Certification


Exhibition & Certification.jpg





Why choose us?







FAQ




1. What will be the best price terms?


We can accept FOB, EXW, CIF normally and other terms according to customers special requirement.





2.How long does it take to customize a sample?


We have large quantities in Stock for normal color,Normal size ,for special color and products sizes it need to 3-5 days to customize





3. Could you please send me the sample for the same . So that i could see and analyze its quality?


Yes. We can send samples first, samples need to be charged if the value is higher





4.How soon will my order shipped?


Generally, upon the receipt of payment, goods will be shipped out within 2 working days for samples. (Note: Exact delivery time mainly depends on the carrier services.





5.How much will the express delivery cost?


The shipping discount are different because of different weight, volume and destination, we will choose the cheapest and safest way according to your detailed requirement. For the exact cost, please contact us freely.





6.How to choose LED light source ?


Lumens(LM), light efficency(LM/W), life span((hrs) are very important factors when choosing LED light source. The higher, the better. Besides, brand of LED chip, LED base and other materials will influence the product reliability.





7.What’s your Delivery Time?


In generally , the delivery time :3-5days.





8.How do I track my shipment?


We ship your purchase before the end of the next business day after you have checked-out. We would send email with tracking number, so you can check the progress of your delivery at the carrier’s website.
