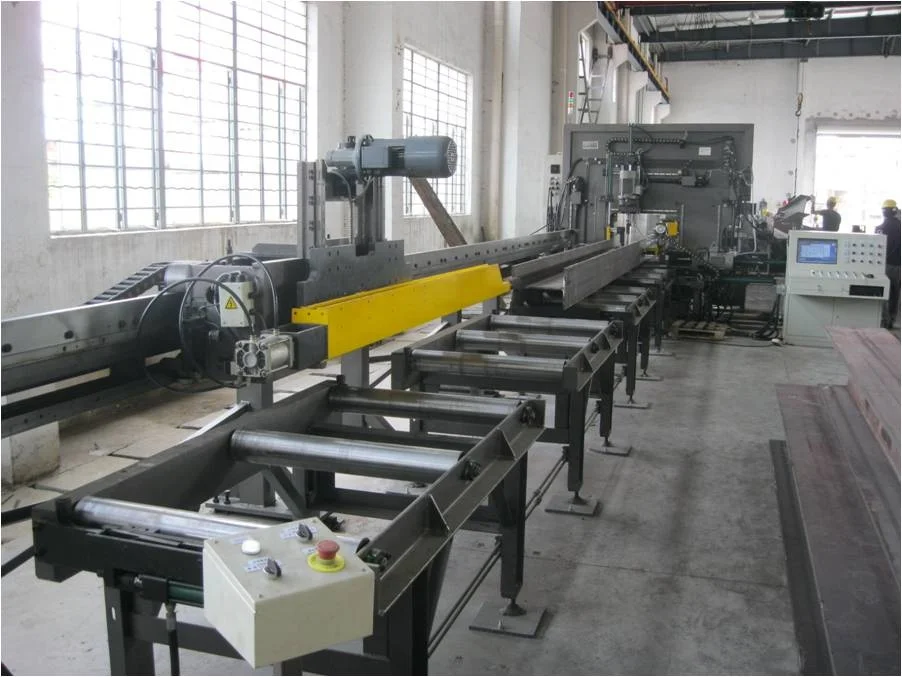

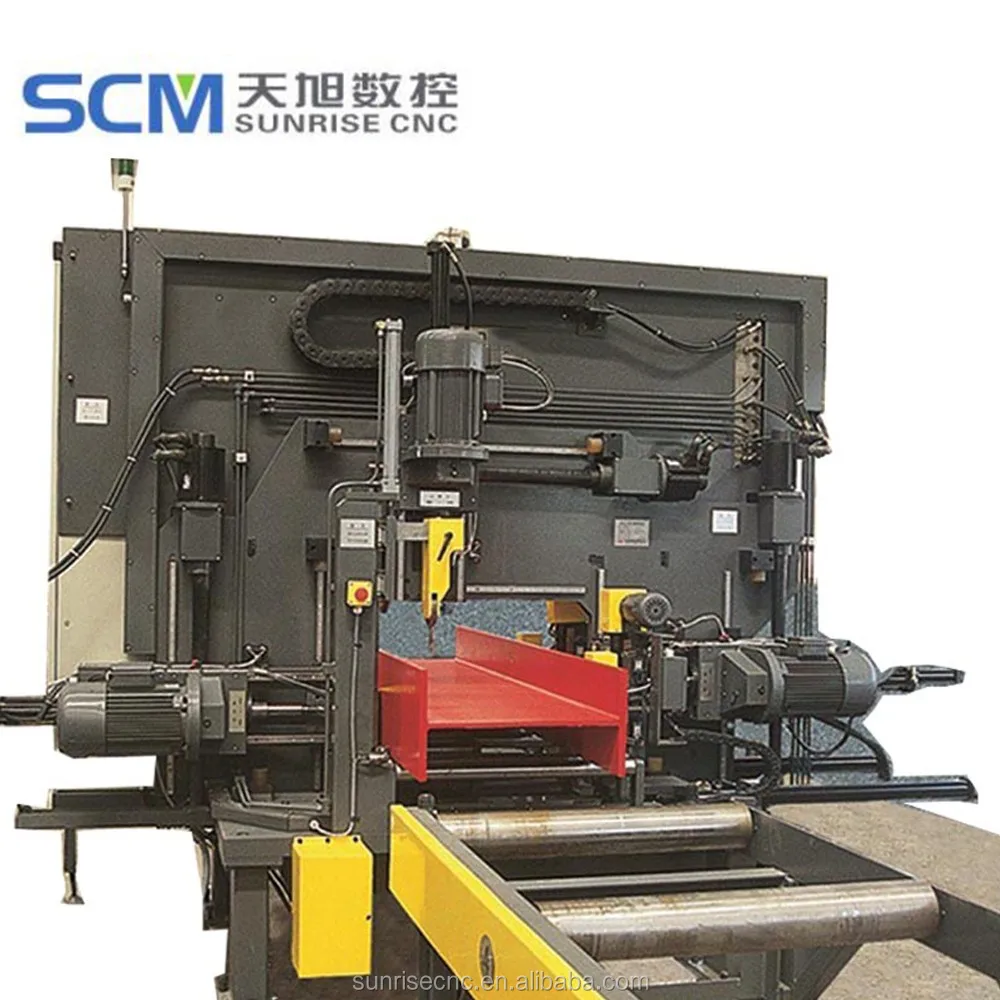

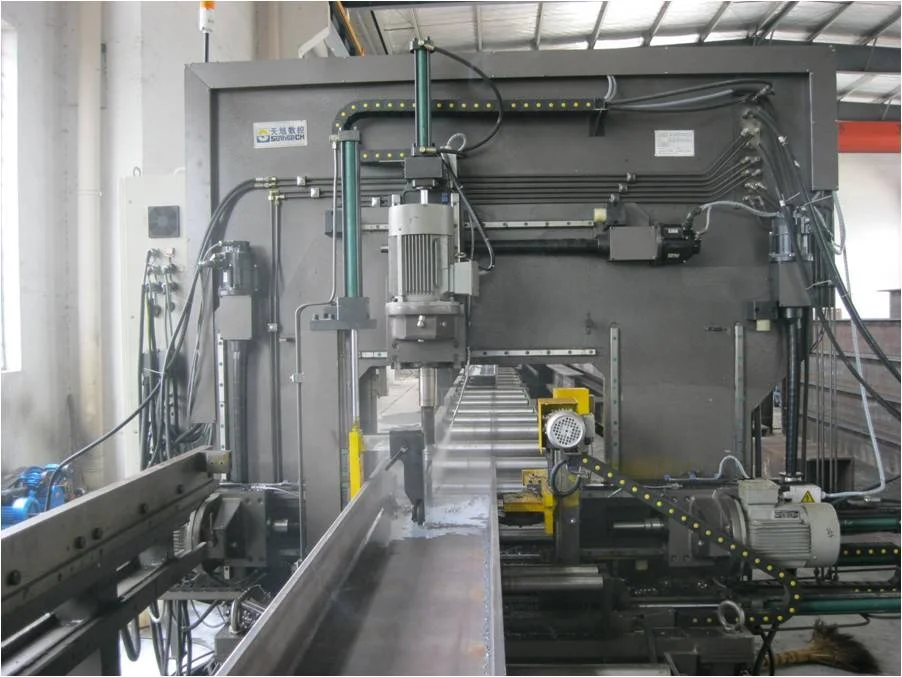

Станок с ЧПУ для сверления лучей 3 буровыми установками

Станок с ЧПУ для сверления лучей 3 буровыми установками

Категория: >>>
Поставщик: Shandong Sunrise Cnc Machine Co. Ltd.

Цена:*

Количество:

В избранное

Описание и отзывы

Характеристики

Product Description

Product Application

Used for the drilling processing of H-shape steel, box beam and channel steel of steel structure, bridge, three dimensional garage and petrol platform. It is designed for medium size steel fabricators desiring to increase profitability and throughput (tons-per-month) in today's extremely competitive market.

Main Features

1.\tEquipped with three drilling units, three drilling units can drill holes simultaneously and adopt self-controlled stroke drilling head.
2.\tNo need to set thickness of work piece and length of drill bits, it will do fact-feeding or feeding automatically by sensor signal, and with high efficiency.
3.\tFrame made of sturdy electro-welded and normalized Plates and Square Beams. The structure with roller guides on which the sliders supporting the three spindles guarantees the total moving stability, and ensures the working precision;
4.\tThis machine can read AUTOCAD drawings and lofting software files automatically, such as DXF, NC1.
5.\tEquipped with automatic lubrication system and air conditioner for electric cabinet.
6.\tEquipped with automatic feeding systems, which will clamp and feed material into machine automatically.
7.\tPLC systems, programming based on WINDOWS, fast and convenient programming, and visual previewing.
8.\tDrilling units equip with famous brand spindle motor.
9.\tThe key mechanical, hydraulic and electric parts are all famous brands.

Specifications:

\t Model	\t TSWZ700
\t H-beams Max. (web height × flange width) (mm)	\t 700x400
\t Min. length of workpiece (mm)	\t 1800
\t Max. weight of workpiece (kg)	\t 5000
\t Drilling dia. (mm)	\t Φ12.5~Φ30
\t Drilling head feeding speed(mm/min)	\t 20~300
\t No. of spindle	\t One spindle on each of three sides (top,left,right) Total: 3 spindles
\t Rotation speed (stepless speed adjustment)(rpm)	\t 180~560
\t Feeding movement speed (mm/min)	\t 20~300
\t Max. feeding stroke (mm)	\t 300
\t Power of each spindle (kW)	\t 4
\t No. of CNC axis	\t 4
\t Stroke of left/right spindles (Above vertical base-level) (mm)	\t 20~420
\t Stroke of top spindle (Beyond horizontal base-level) (mm)	\t 30~630
\t Morse taper	\t 2#, 3#
\t Total power (kW)	\t 27
\t Feeding type	\t NC carriage feeding, 20-300mm/min
\t Overall dimensions (L×W×H) (mm)	\t 3600x1500x2500
\t Total weight (kg)	\t ≈7000

Certifications

Detailed Images

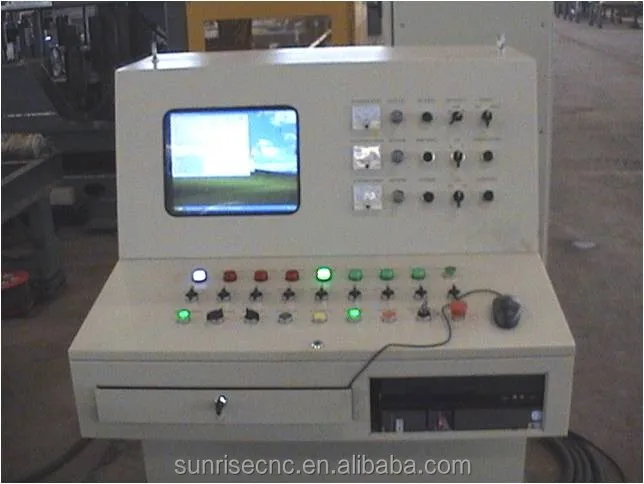

Electrical cabinet

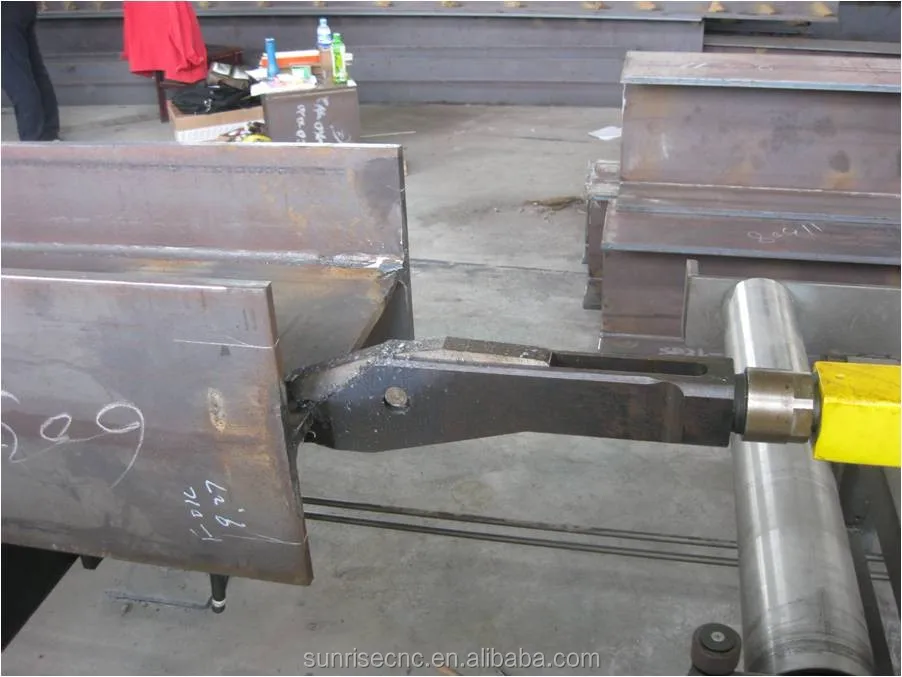

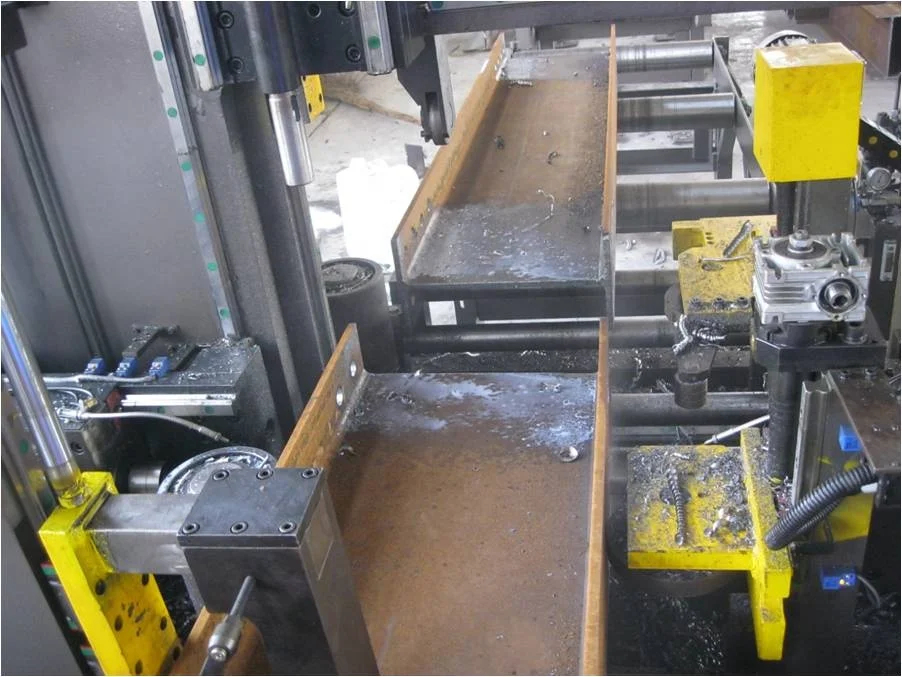

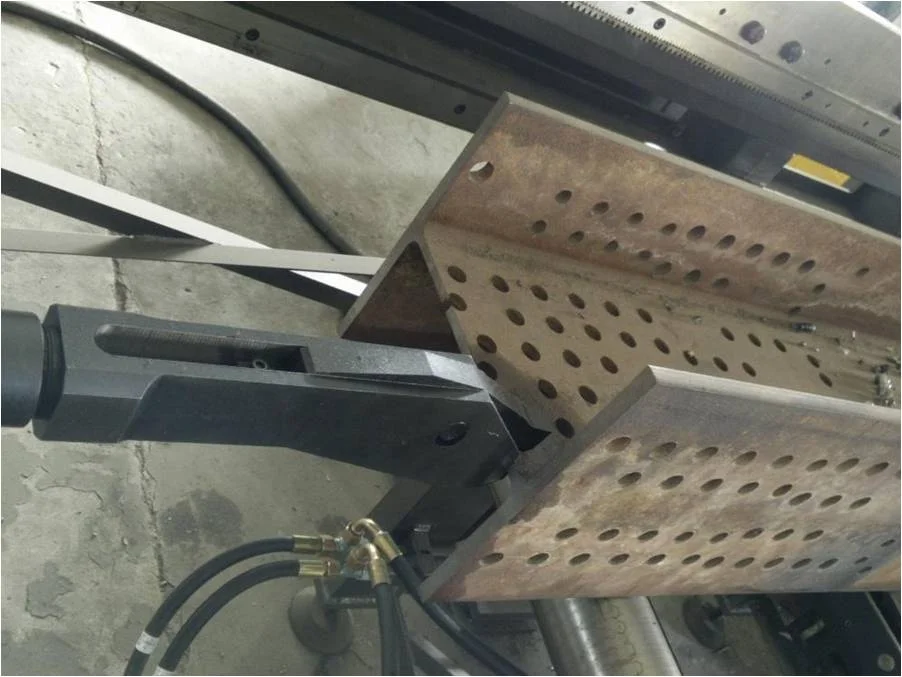

NC carriage clamp feeding for H beams - Precision more higher

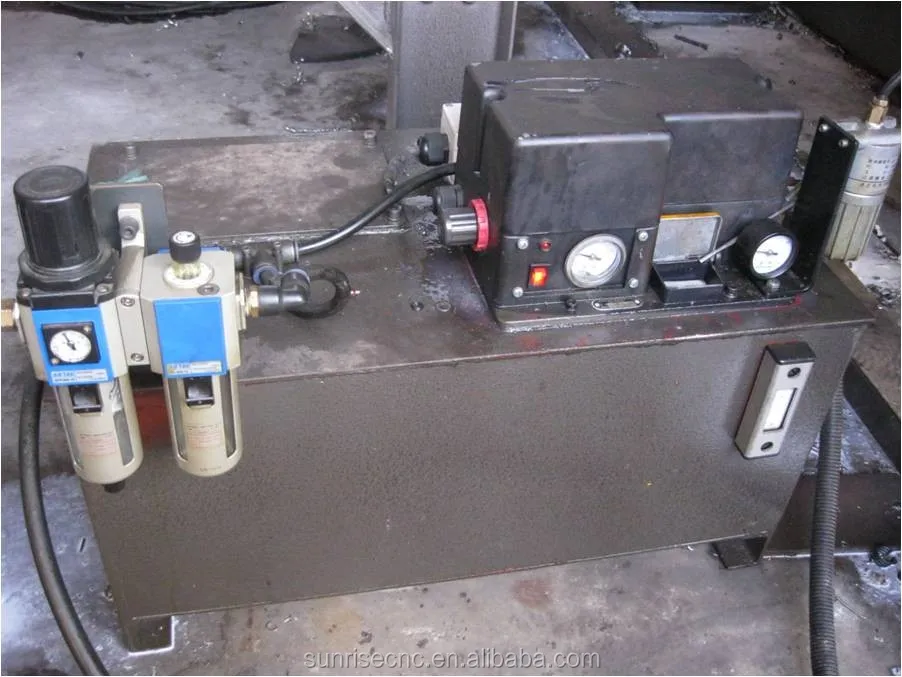

Hydraulic station

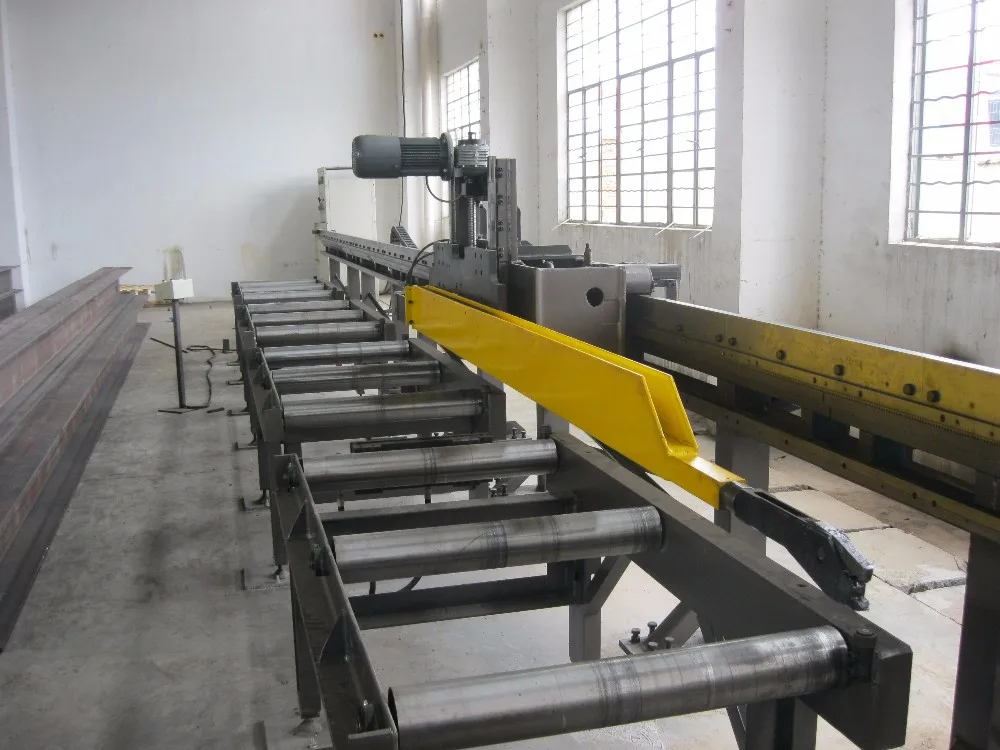

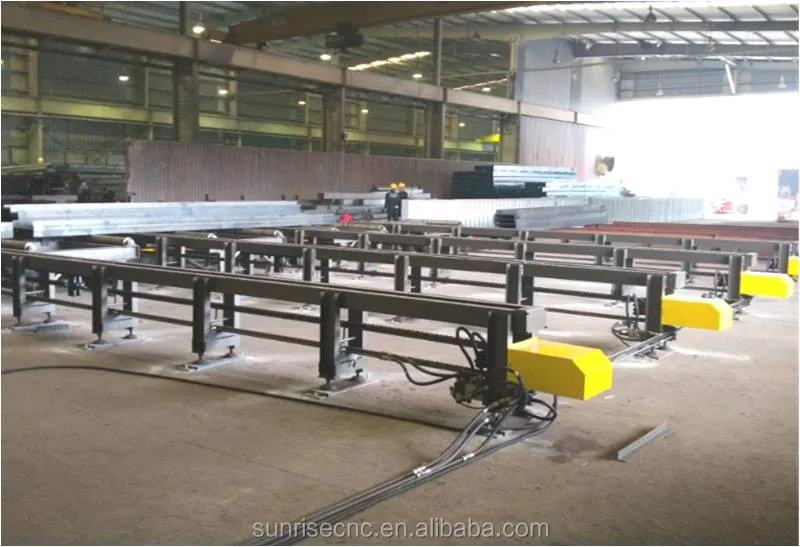

Cross Conveyor - Four Pieces , Every Piece 8 Meters

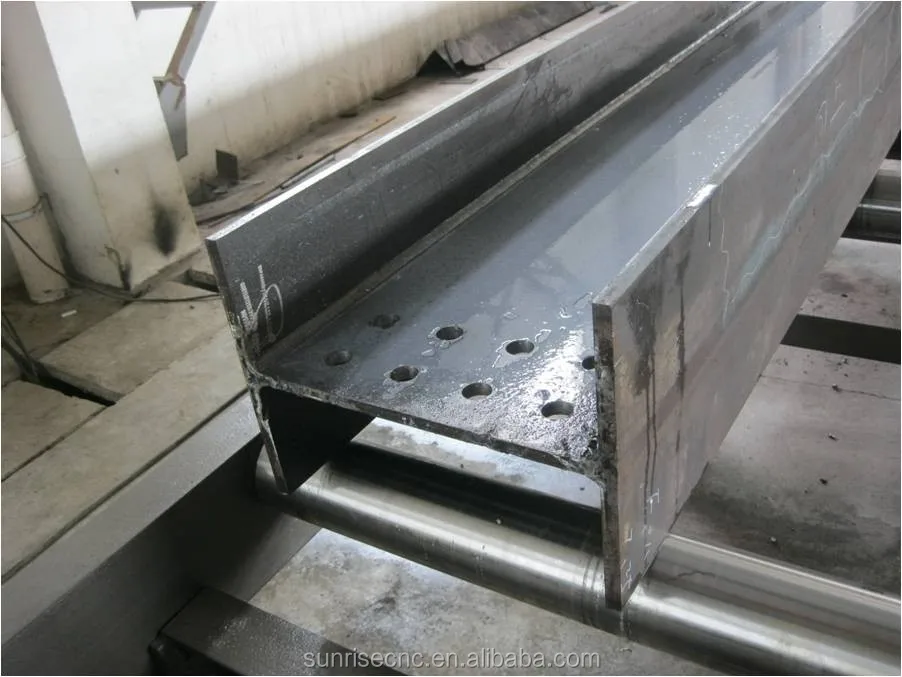

Work Piece

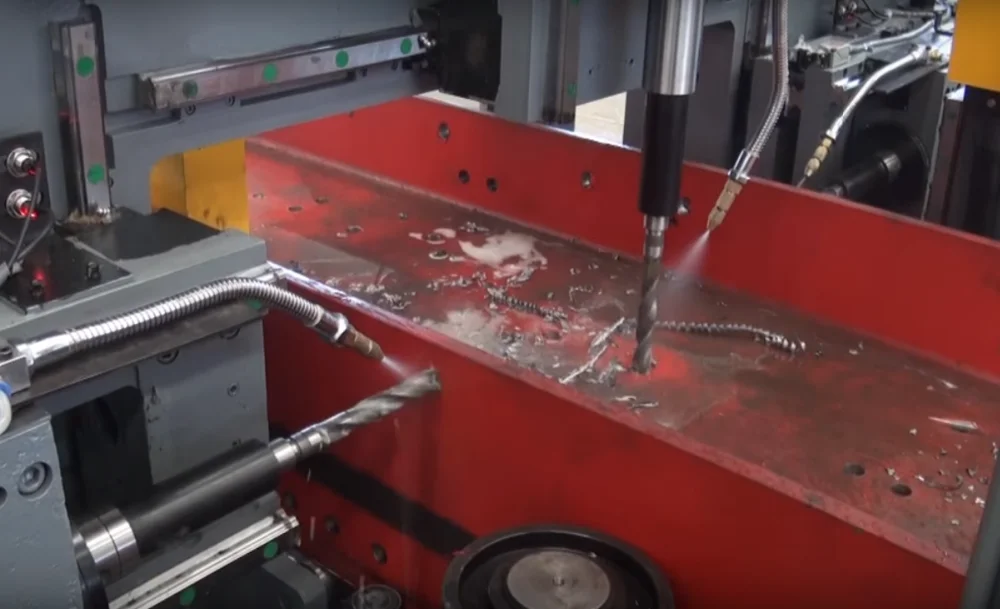

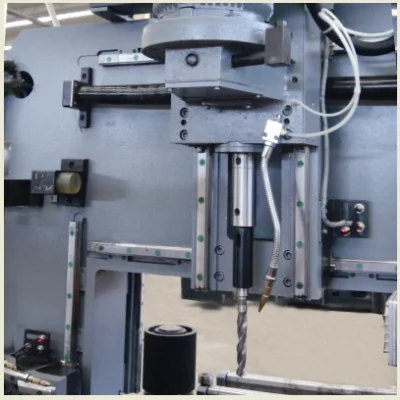

Drilling Units

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

\t Packaging
\t Size	\t About 7000 (L) * 2100 (W) * 3500 (D)
\t Weight	\t 7000kg
\t Packaging Details	\t The normal package is wooden box(Size: LWH).

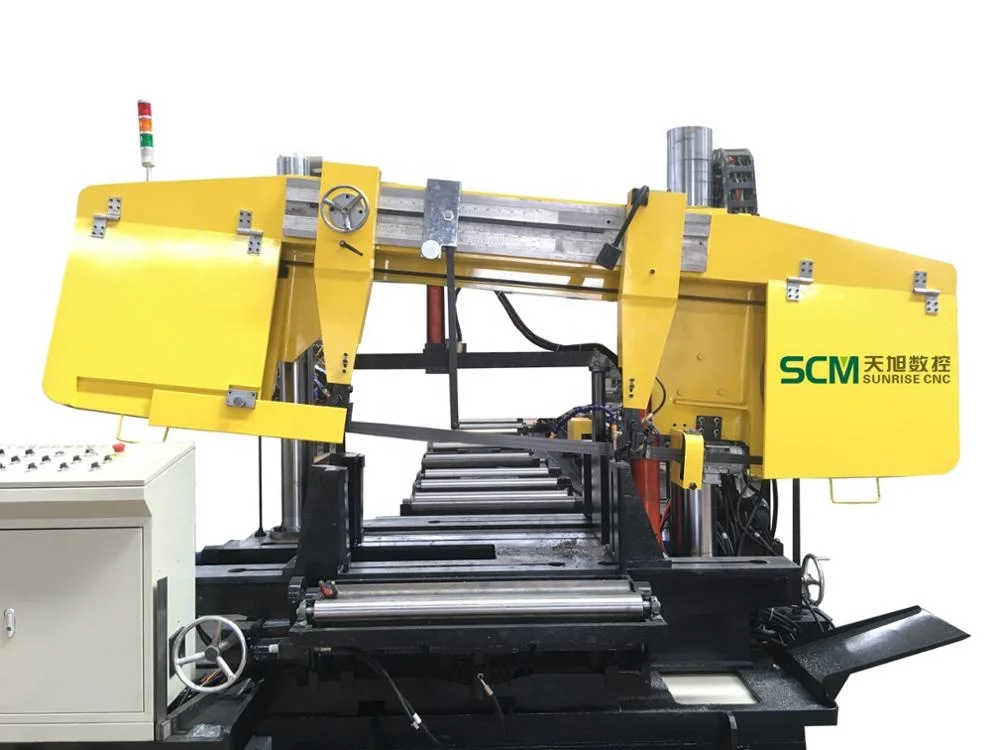

Metal Band Sawing Machine

91.8% Response Rate

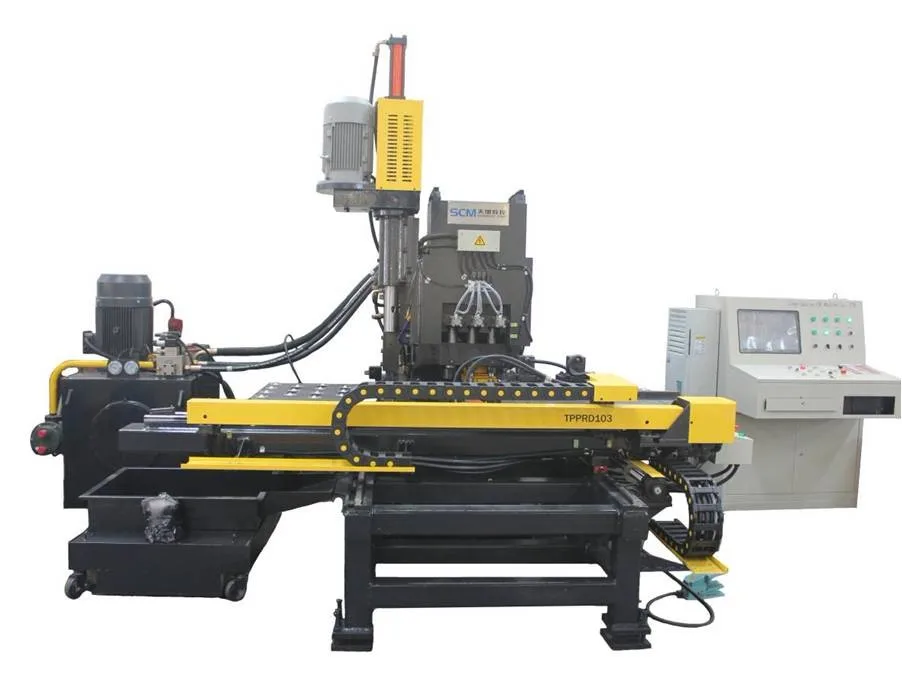

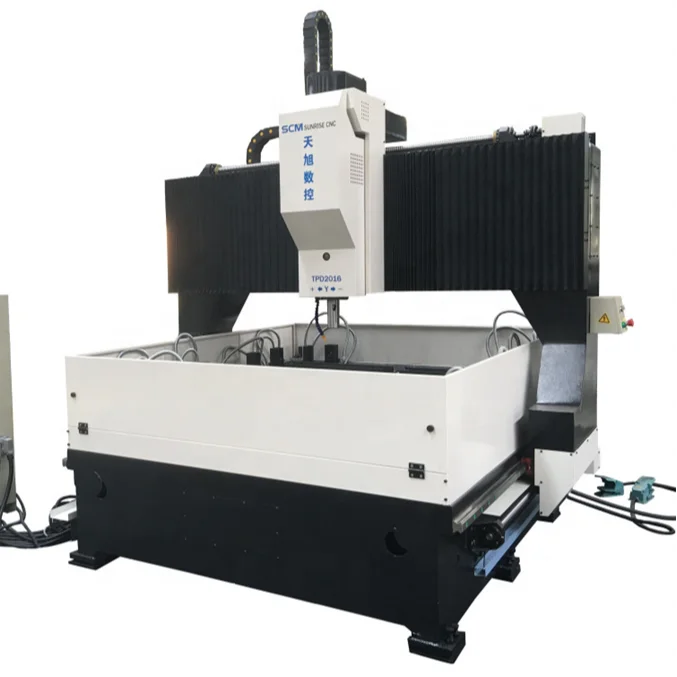

PLC Controlled Drilling Machine for Plates and Flanges

91.8% Response Rate

CNC Metal Sheet Punching and Marking Machine

91.8% Response Rate

FAQ

Q1. Are you a Manufacturer or a trading company?
A1.We are the manufacture, integrating with design, machining and assembling for angle machine.

Q2. Do you have stock product ready to deliver?
A2. In order to satisfy with the customer for fast delivery, we have certain amount of machines in stock, you can check the machine on LIVE-DEMONSTRATION at any time.

Q3. How do you deliver the finished products?
A3. The machine is mostly delivery by sea, rail way or road for some exception. For some urgent part or shipping document we delivered by air or Express like TNT, FEDEX,DHL,UPS,EMS, Etc.

Q4. How can you guarantee the after-sales service?
A4. We have the special after-sales service department, they will provide training program for operation and trouble shouting during installation. And they will visit the customer regularly for service.
all questions will be answered within 3 hours and 90% problem will be solved within 24 hours.

Q5. What's delivery time for the angle machine.
A5. Within 20 days after payment.

Q6. How can you guarantee your finished angle machine quality?
A6. First, the machine will have 8 hours idle running;
Second, we will test the machine with the material working together.
