5 дюймов 720*1280 Modbus IPS TFT ЖК модули плата управления

Сохранить в закладки 62232977451:


Цена:44,00 $ - 45,00 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики



Product Description


Product Description

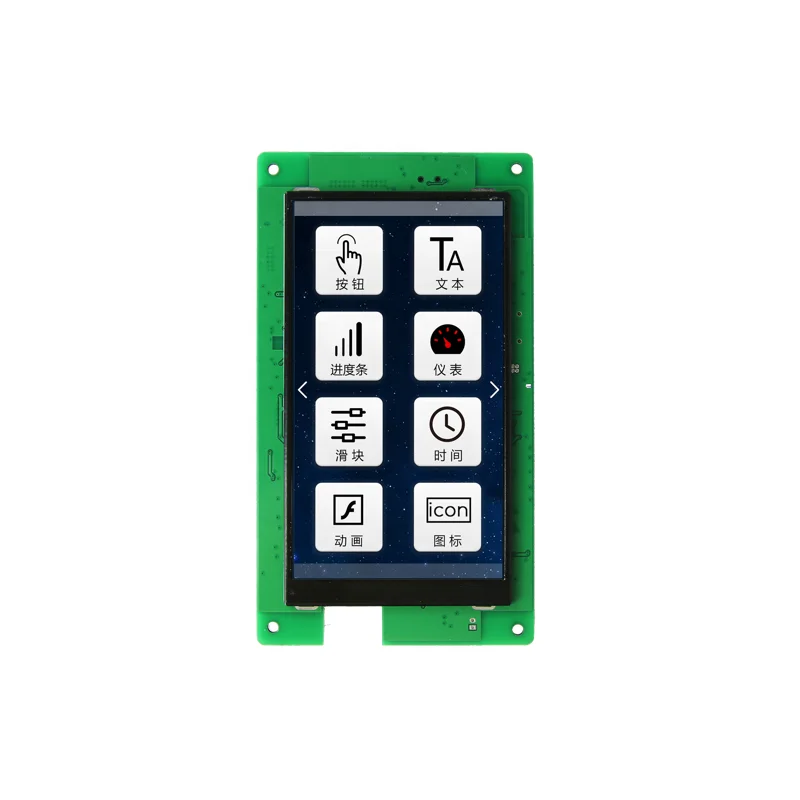

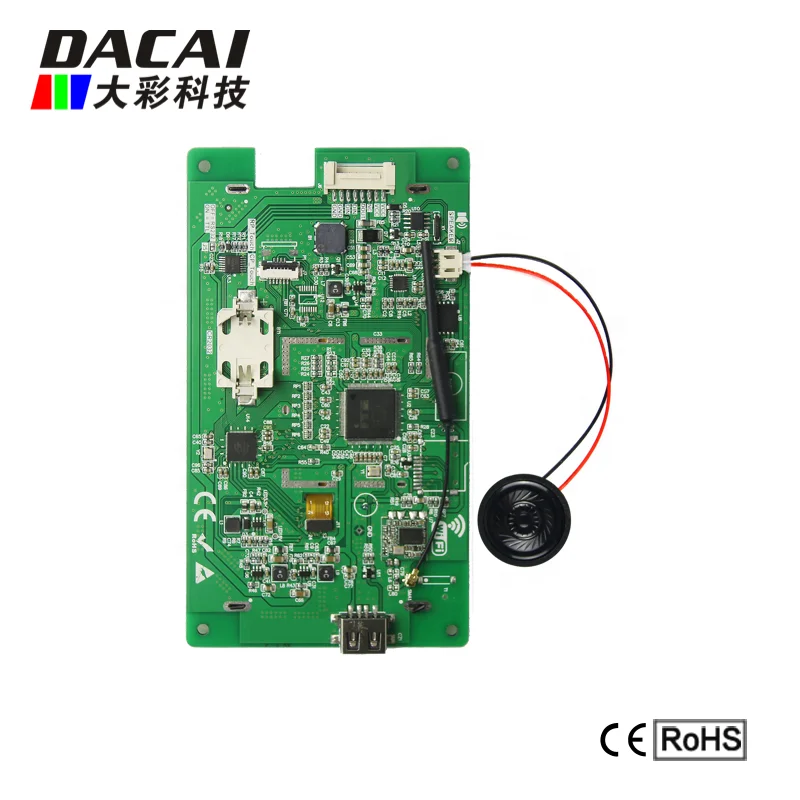

DC72128W050_3VW1_0N is a 5-inch non-touch interface screen with 720*1280 resolution.(The package will not contain speaker and battery,due to international air express policy,thanks for understanding.)




.png




































 LCD Display



Display Type



TFT LCD



Backlight Tube



LED



Brightness(cd/m²)



370



Backlight Life(H)



>20,000



Contrast Ratio



1000:1



Viewing(L/R/T/B)



85/85/85/85
































































































































Product Specification



Product Model



DC72128W050_3VW1_0C(RS232,with WiFi,Capacitive touch)


DC72128W050_3VW1_0N(RS232,with WiFi,Non-touch)



Product Series



IOT Series



Processor



400MHz 32-bit dual-core processor



Operation  System



Embedded real-time operating system(FreeRTOS)



Protocol Type



Default Dacai configuration insructionsets,The host computer can be configured to run MODBUSRTU,XGUS protocol



Size



5.0 inch



Resolution



720*1280



Installation Display



Support 0°/90°/180°/270°rotate display



Memory Space



1Gbit



Font Library



Built-in vector font, edge anti-aliasing,including ASCII,GBK,GB2312 and UNICODE libraries. Any computer font displayis customizable



Image Storage



Support JPEG,PNG (semi-transparent/full transparent)compression,support for any size image storage.Accumulate to store about 807 full-screen images(calculated by size 132KB/sheet,BMP format is not recommended).The image compression ratio is different,this value will float up and down.



Color



65K colour,16-bit RGB



Voltage



4.5-15V(error±0.2V)



Power Consumption



Syandby:0.55W;Darkest backlight non-speaker:1.55W; Darkest backlight with speaker:3.15W;Brightest backlight non-speaker:3.15W;Brightest backlight with speaker: 4.15W



Communicate Interface



RS232/TTL(default 232 level)



Communicate Baudrate



RS232:1200~921600bps,typical Braudrate 115200



Interface Specification



Default HY2.0-8P, FPC1.0-10P is optional



Image Download



U disk/UART/WiFi(U disk must be in FAT32 format, and has never been a computer system boot disk)



Real-time RTC



support countdown,timer,year,month,day,etc.displaying



Active Area of Displaying(AA)



L×W = 110.24mm×62.0mm



Product Dimension(L*W*H)



L×W×H = 143.7mm×81.0mm×16.0mm



Host computer software



VisualTFT®



AV Input



Not Supported



Audio Playing



MP3 audio format (horn 4Ω2W, mono), sharing storage space with pictures. If the sampling rate of the WAV format is 128 kbps, it takes up 0.95 MB/min of storage space.



Specification of Audio Connector



PH2.0-2P



Video Playing



MP4 video format.If a video file with a resolution of  720*1280, a video bit rate of 3500Kbps, an audio code rate of 166Kbps, and a frame rate of 25Hz,it occupies 25.6MB/min



WIFI



USB high-speed WIFI,support NIC mode and hotspot mode,can be configured to wireless serial port transparent transmission mode



Three Anti-paint Process



None






Applications
