Полностью автоматическая машина для изготовления бутылок из ПЭТ горячего наполнения
- Категория: Plastic & Rubber Processing Machinery >>>
- Поставщик: Zhangjiagang Datong Machinery Co. Ltd.
Сохранить в закладки 62238281204:
Описание и отзывы
Характеристики
Product Description
Full Automatic pet bottle making machine for hot filling bottles
Linear blowing machine, independently developed by DATONG via adopting the world's advanced techniques,is a kind of high speed equipment producing PET bottles by high pressure compressed gas. It has reached the top level by automatically arranging, heating and stretching preform.
Technical parameters of blowing machine pet bottle:
Item | DT-3 | DT-4 | DT-6 | ||
Cavity | 3 | 4 | 6 | ||
Theory output | 3300 | 4500 | 6500 | ||
Max.volume | 2l | ||||
Light tube power | 0.75kw | ||||
Maximum heating power | 12kw | 24kw | 40kw | ||
All electric machine installation | 18kw | 25kw | 35kw | ||
Work pressure | 7-9kg/cm2 | ||||
Low-pressure gas consumption | 1000Ltr/min | ||||
Blow bottle pressure | 2.6-3.0Mpa | ||||
Blowing air consuming | ≥2.4m³/min | ≥3.2m³/min | ≥4.8m³/min | ||
Size of the machine | 2.7x1.45x2m | 3.4x1.9x2m | 4.4x1.9x2m | ||
Main body weight | 2000kg | 2600kg | 3200kg | ||

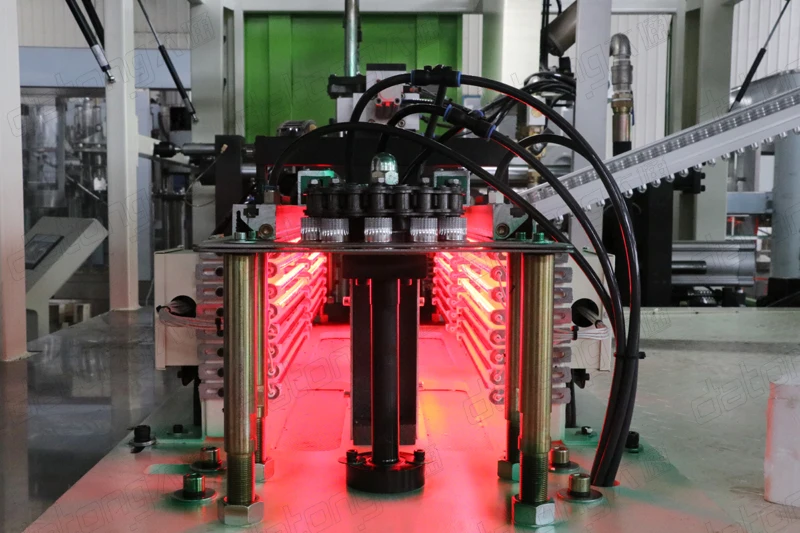

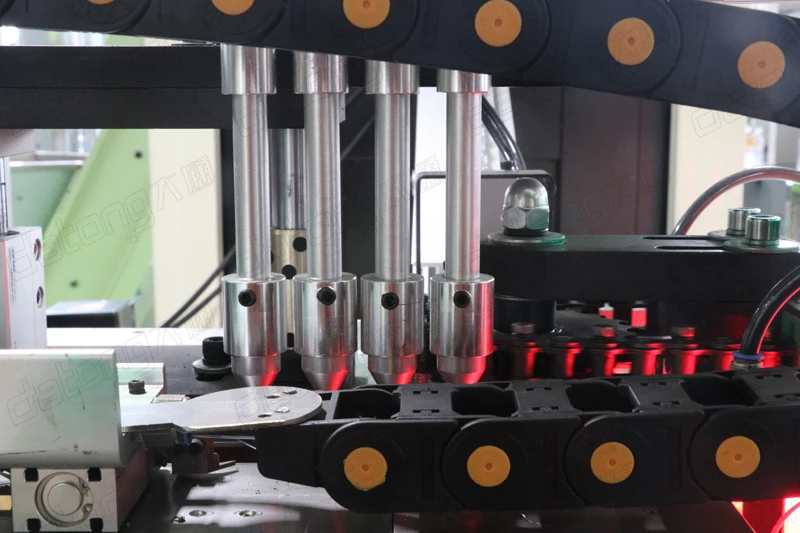

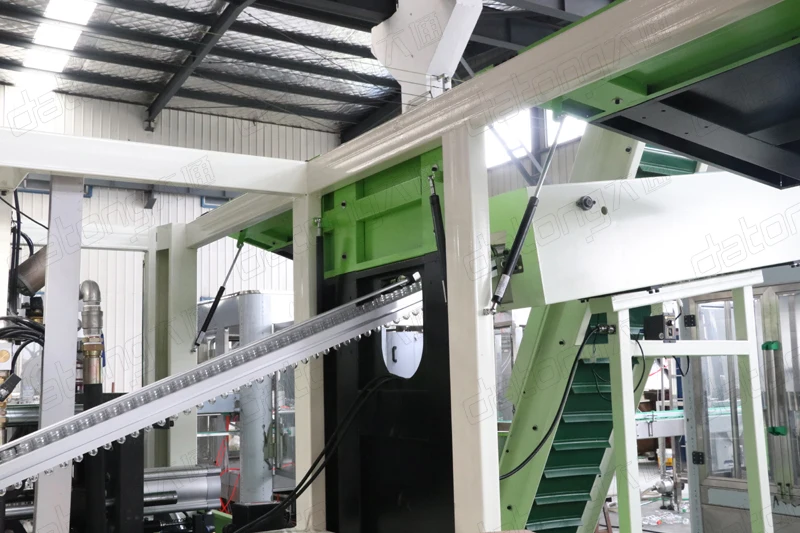

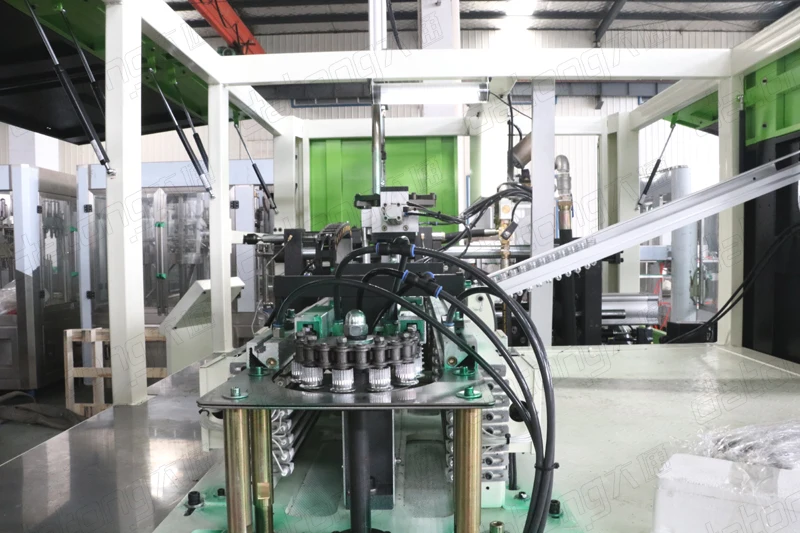

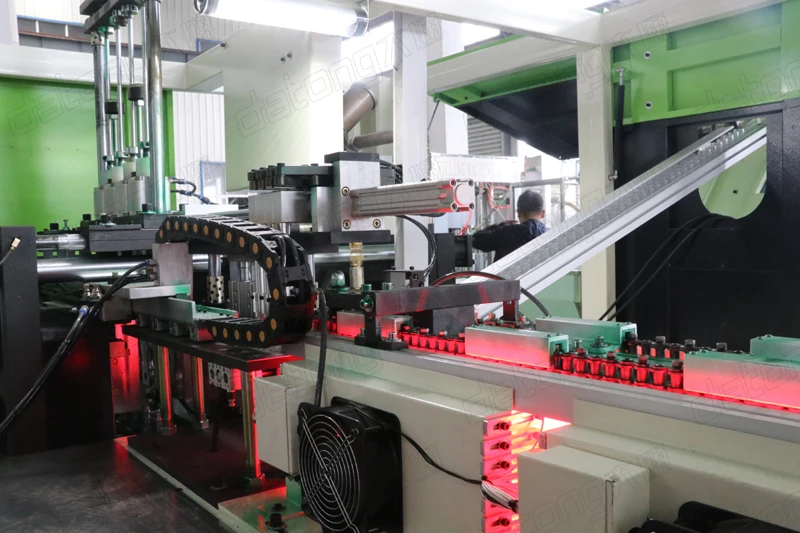

Detailed Images
Automatic bottle blow molding machine
molds
High pressure air compressor
High pressure air tank
Air cooling dryer
Air filters
Low pressure air compressor
Chiller
Features of blowing machine pet bottle:
1. Blowing 0.5-1.5 PET common bottle.
2. Durable PLC micro computer controlling system controls time can be accurate to 0.01 seconds.
3. Special recycling installation for high pressure air reduces the energy consumption.
4. The far-infrared heater uses a way of conversion self-rotating heating and the rail revolution makes the heating even, uick and reliable.
5. Every heating lamp has independent temperature control device, to get ideal perform heating effect.
6. Particular pre-heater design makes perform close while heating. Change space, shorten heating tunnel and reduce energy consumption according to the bottle size while blowing.
7. Simple installation and starting.
2. Durable PLC micro computer controlling system controls time can be accurate to 0.01 seconds.
3. Special recycling installation for high pressure air reduces the energy consumption.
4. The far-infrared heater uses a way of conversion self-rotating heating and the rail revolution makes the heating even, uick and reliable.
5. Every heating lamp has independent temperature control device, to get ideal perform heating effect.
6. Particular pre-heater design makes perform close while heating. Change space, shorten heating tunnel and reduce energy consumption according to the bottle size while blowing.
7. Simple installation and starting.
Full set's connection diagram
Our company
Zhangjiagang Datong Machinery Co.,Ltd was founded in 2002. Actually has been specialized in Water & beverage packaging solutions over 16 years. Modern factory of 6000 square meters, all kinds of advanced processing equipment and testing equipment, experienced technicians, scientific and strict management, constitute DATONG excellence in manufacturing system.Over 40 countries use our machines.
Why choose DATONG?
1.Experience
DATONG Since 2002. We are professional in water&beverage solutions over 16 years.Modern factory of 6000 square meters.over 40 countries' customers are using DATONG machines.
2.Quality control
DATONG machines all parts adopts CNC (computer numerical control machine tools) for processing.Precision was improved greatly.
3. Reasonable Price
DATONG machines are highest cost performance. Our machines and good service worth your cost.
4. Warranty
DATONG provide 24 months long warranty, free parts and effective service in a timely manner. After the warranty, lifelong provide widely favorable technical support and after-sales service.
5. Turn-Key Project
DATONG's Turn-key Project including pre-sale and after-sale service, can provide the whole production line, factory design, design bottle, provide a layout diagram, provide auxiliary materials supply agent information, machine installation and debugging, staff training and so on.
6. After-sale service
DATONG will send engineers to customers factory. Offer installation, debug and technology training to customers.After sales hotline: 0086-512-58662088 .
Certificate
China Zhangjiagang Datong machinery Co.,ltd.focused on water & beverage filling machine since 2002. We have rich experience and mature manufacturing.We have CE and ISO and TUV certificate etc. to prove our strength.
Packing & Delivery
We use wooden packing to protect machines are not damaged during the transit for carbonated drink filling machine.
FAQ
1.Q:Are you a factory or trading company?
A:We are a factory, professional water treatment equipment manufacturer and small bottle water production line with about 16 years experience. Factory covers an area of 6000 square. There have been more than 40 countries use our products.
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Zhaxi economic development zone,Leyu town,zhangjiagang city,jiangsu province,china. about 2 hours away from podong Airport .we will pick you up in the nearest station. All our clients, from home or abroad, are armly welcome to visit us!
3.Q:How long is the warranty of your equipment?
A:2 years warranty after receipt check upon delivery.And we will comprehensively provide you all kinds of technical support services in after-sale !
4.Q:What is the features of our company?
A: We provide turnkey project for customers, including pre-sale and after-sale service; complete production line equipment supply; bottle design; layout programs provide; or provide auxiliary materials purchasing agent supplier information; equipment overseas installation and commissioning; operator training; etc
give me the basic information about you want:
1.what kind products will you produce: water, juice, with gas or others.
2.what is your capacity you want: that how many bottles per hour you want
3.what kind of the bottle: pet bottle or glass bottle; bottle volume;bottle sharp. bestly give me the bottle picture
4.the single machine or the whole line.
So that I can make suitable proposal for you.
A:We are a factory, professional water treatment equipment manufacturer and small bottle water production line with about 16 years experience. Factory covers an area of 6000 square. There have been more than 40 countries use our products.
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Zhaxi economic development zone,Leyu town,zhangjiagang city,jiangsu province,china. about 2 hours away from podong Airport .we will pick you up in the nearest station. All our clients, from home or abroad, are armly welcome to visit us!
3.Q:How long is the warranty of your equipment?
A:2 years warranty after receipt check upon delivery.And we will comprehensively provide you all kinds of technical support services in after-sale !
4.Q:What is the features of our company?
A: We provide turnkey project for customers, including pre-sale and after-sale service; complete production line equipment supply; bottle design; layout programs provide; or provide auxiliary materials purchasing agent supplier information; equipment overseas installation and commissioning; operator training; etc
give me the basic information about you want:
1.what kind products will you produce: water, juice, with gas or others.
2.what is your capacity you want: that how many bottles per hour you want
3.what kind of the bottle: pet bottle or glass bottle; bottle volume;bottle sharp. bestly give me the bottle picture
4.the single machine or the whole line.
So that I can make suitable proposal for you.
