Din Rail Switch Mode Power Supply MDR-40-24 Ac Input Switching Power Supply 60W 12V
Introduction
Technical parameters
Parameters | |
Model Selection | MDR-10;MDR-20;MDR-40;MDR-60; |
Install rail | TS-35/735 or TS-35/15 |
Inlet Stability | ±0.5%;±0.3%;±0.2%;±0.1%; |
Adjustable Range for DC Voltage | ±10% |
AC Input Voltage Range | 90~132VAC/180~264VAC |
AC Inrush Current | Cold-start current 30A/110VAC~60A/230V |
Overload Protection | 105%~130% hiccup mode,auto-recovery |
Over-voltage Protection | 115%~145% |
Withstand Voltage | I/P-O/P:3KVAC, I/P-FG:1.5KVAC, O/P-FG:0.5KVAC,1minute |
Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG:500VAC/100MΩ |
Working Temperature and Humidity | -10℃~+60℃, 20%~90%RH
|
Safety Standards | Design refer to GB4943 |
EMC Standards | Design refer to GB9254, EN55022 Class A |
Internal Structure
Wiring Diagram

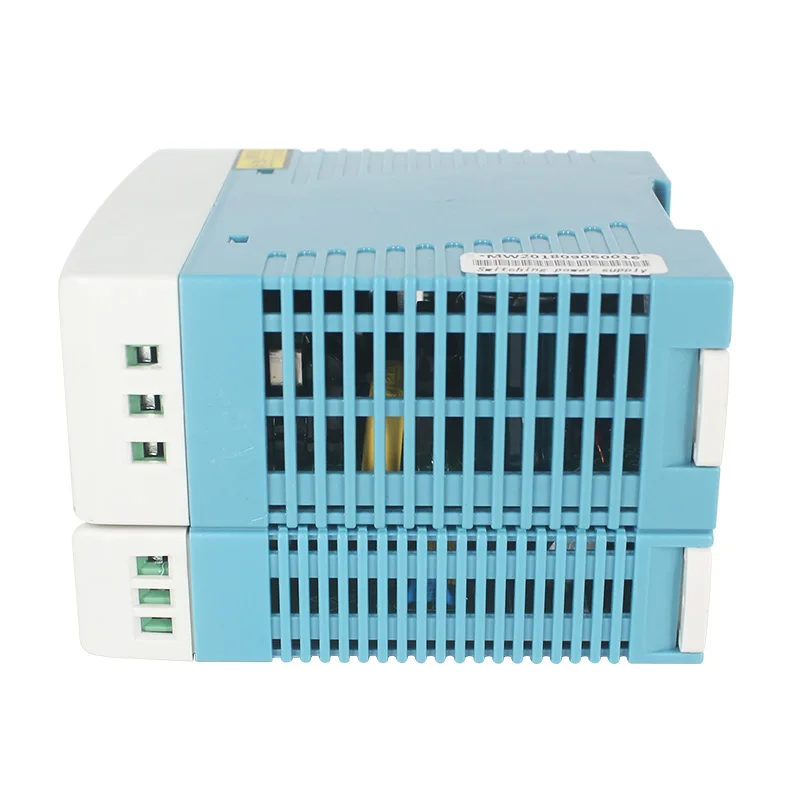

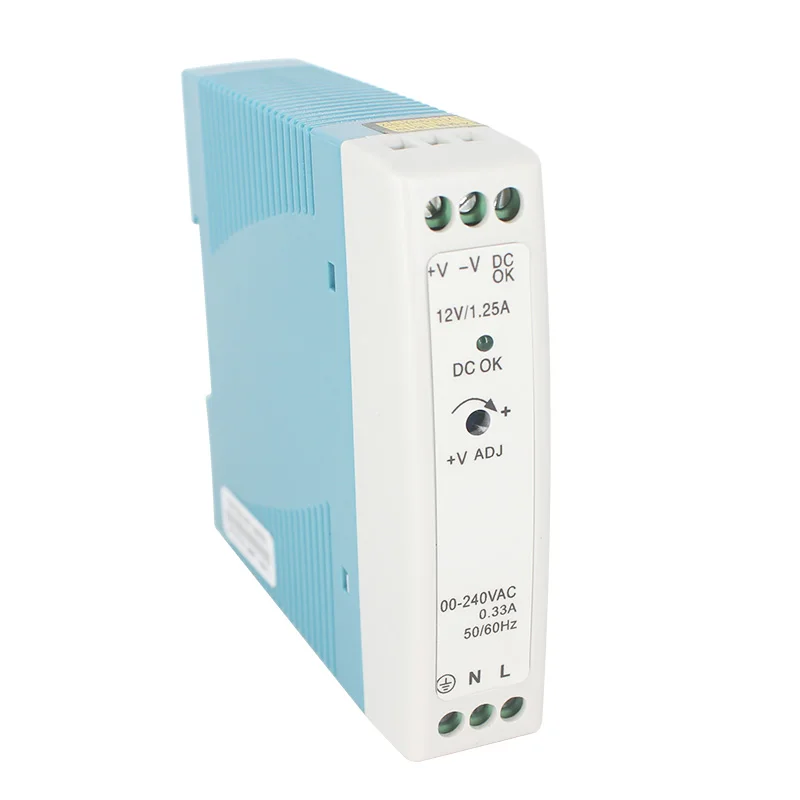

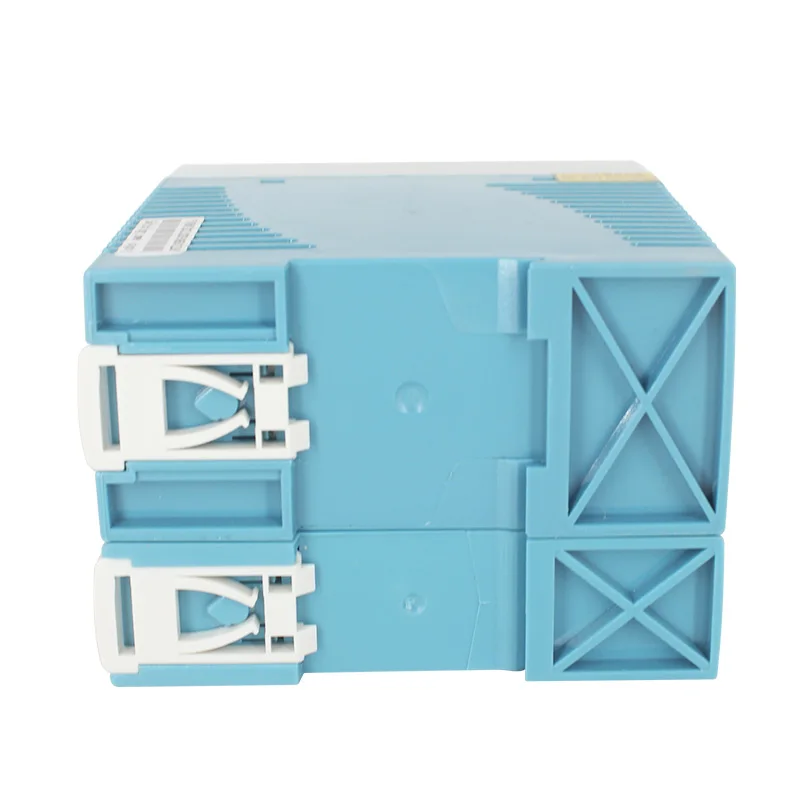

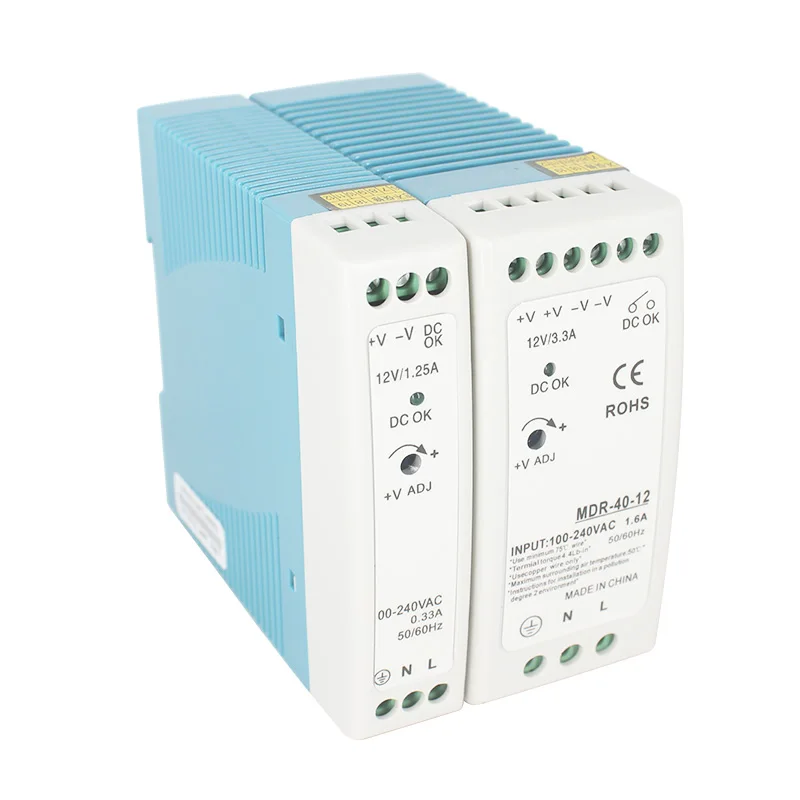

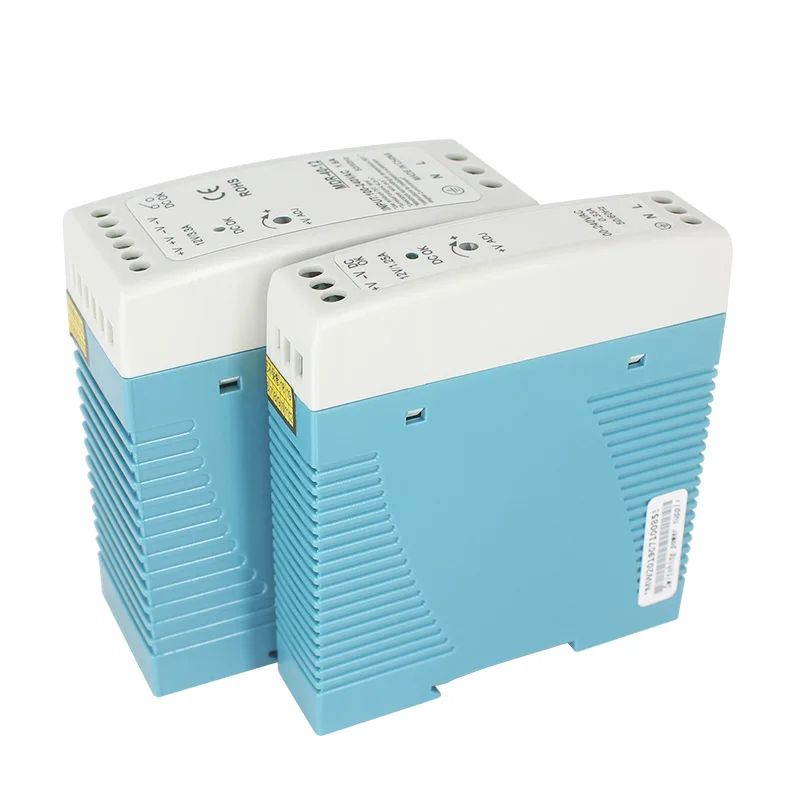

Product Display
Application
Certications
