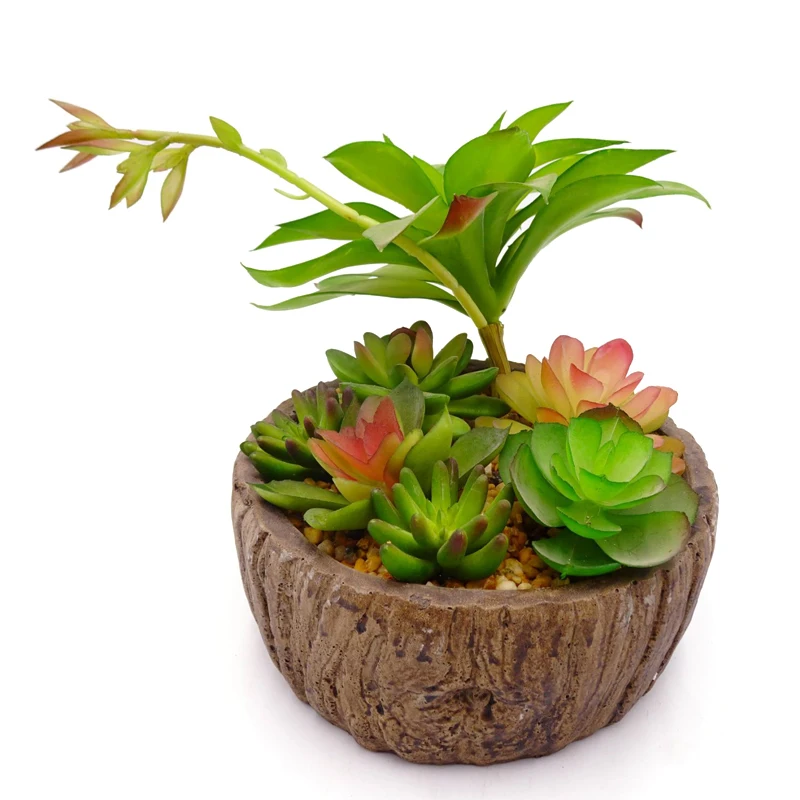

Сезон, сделанные на заказ кактусы, растения в горшках, искусственные растения, суккуленты, искусственные суккуленты в горшках
1,05 $ - 1,20 $
Водонепроницаемый IP67 CV Тип LPV 60 12 60W 12V 5A светодиодный трансформатор для туалетное зеркало со светодиодной подсветкой
- Категория: >>>
- Поставщик: Zhejiang Hengwei Technology Co. Ltd.
Сохранить в закладки 62238962739:
Описание и отзывы
Характеристики
Waterproof IP67 CV type LPV-60-12 60W 12V 5A LED transformer for Mirror light
Product Description
LPV-60W series LED constant voltage waterproof switching power supply
Features:·Constant voltage style power supply
·170~264VAC AC input range
·Small volume,low weight,high efficiency
·Protections: short circuit/over load/over voltage/over temp
·Cooling by free air convection
·Fully encapsulated with IP67 level
·100% full load burn-in test
·2 Years warranty
Model | LPV-60-12 | LPV-60-24 | LPV-60-36 | ------ | |
output | DC voltage | 12V | 24V | 36V | ------ |
Voltage tolerance | ±1% | ±1% | ±1% | ------ | |
Rated current | 5A | 2.5A | 1.7A | ------ | |
Current range | 0~5A | 0~2.5A | 0~1.7A | ------ | |
Rated power | 60W | 60W | 61.2W | ------ | |
Ripple&noise | 100mvp-p | 100mvp-p | 150mvp-p | ------ | |
input | Voltage range | 170~264VAC,235~373VDC | |||
Frequency | 47~63HZ | ||||
AC current | 0.42A/230VAC | ||||
Efficiency | 78% | 80% | 82% | ------ | |
Inrush current | Cold start current 30A/230VAC | ||||
Leakage current | <0.5mA/240VAC | ||||
protection | Over load | Rated output power 105%~135%start over load protection | |||
Protection type: hiccup mode,auto-recovery after fault condition is removed | |||||
Over voltage | 15.6~17.8V | 30.6~33.2V | 42.6~44.2V | ------ | |
Protection type: hiccup mode,auto-recovery after fault condition is removed | |||||
Over temperature | when temperature of transistor inner node is over 150℃,start over temperature protection | ||||
Protection mode: cutoff output,auto-recovery after temperature become normal | |||||
environment | Workingtemp,humidity | -20℃~+60℃,20%~90%RH | |||
Storage temp.humidity | -20℃~+85℃,10%~95%RH non condensing | ||||
Withstand vibration | 10~500HZ,2G 10min/1cycle,period for 60minutes,each axes | ||||
safety | Withstand voltage | I/P-O/P: 1.5KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC | |||
Isolated resistance | I/P-O/P,I/P-FG,O/P-FG: 100M ohms/500VDC | ||||
Fits tandard | Safety standard | Fit UL1012,IP67 protect level | |||
EMC standard | Fit EN55022,CLASSA | ||||
Others | Dimension | 222*30*20mm (L*W*H) | |||
Weight/packing | 0.25kg/80pcs/21kg/0.033 m³/1.18CUFT | ||||
Note | 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. | ||||
Certifications
Company Information
- Founded in 2005,Hengwei electric co.,ltd. Long-term commitment to switching power supply ,LED driver and other new energy product development,production and sales. We carry out the “6S”management and tenet of “survival by quality,development by efficiency”.We have passed the certification of ISO9001 Quality Management System,and other certifications:TUV,CE,PSE,KC,ROHS etc.we are professional in develop and manufacture enclosed type switching power supply,LED waterproof power supply,Din-rail switching power supply,Security Monitor power supply,. several major series total more than 1000 series model.Company’s products are widely applied in LED lamp,LED street light .display screen. Signboard light box,CCTV system, Security . Medical .industrial automation equipment .electric information etc. area .Company’s plant area is about 6000 square meter,,monthly supply capacity can be about two hundred thousand pieces,we own a Variety of advance manufacture facility and testing equipment, such as Samsung SMT machine,Chroma Integrated Tester ,EMC tester ,automatic potting machine,electronic buil-in shelf ,full-automatic crest welder. full-automatic component inserter,. ICT online detector. High and low temperature test chamber,etc.,We insist on each product has a set of precise controlling and managing procedure and criterion in every tache such as design, quality testing ,material choosing, producing ,shipping and after services ,in order to provide the best PQTS to customers(Price,Quality,Transportation,Service)in Hengwei. Now we have stable customers in America,Russia,Ukraine,Czech, South Korea,Chile, India,Dubai, France,Kuwait etc countries&areas and already seted agency in several countries.Inland selling network has widely laid over each province, city ,can provide customers professional technical support and after service at any time.
If you are looking for highly reliable switching power supply,you will be finally convinced that we are your most desirable choice!
Похожие товары

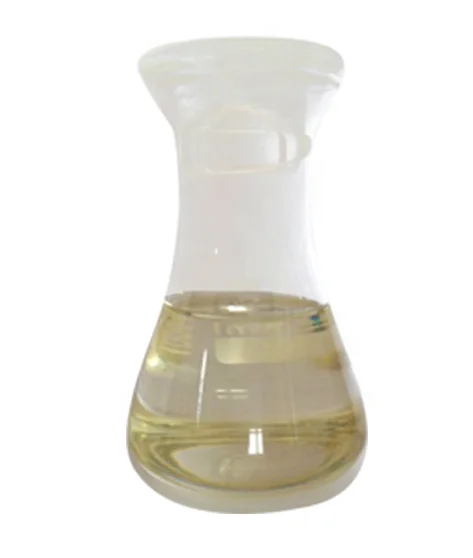

Органическое масло герани по низкой цене для парфюма и косметики
140,00 $ - 195,00 $

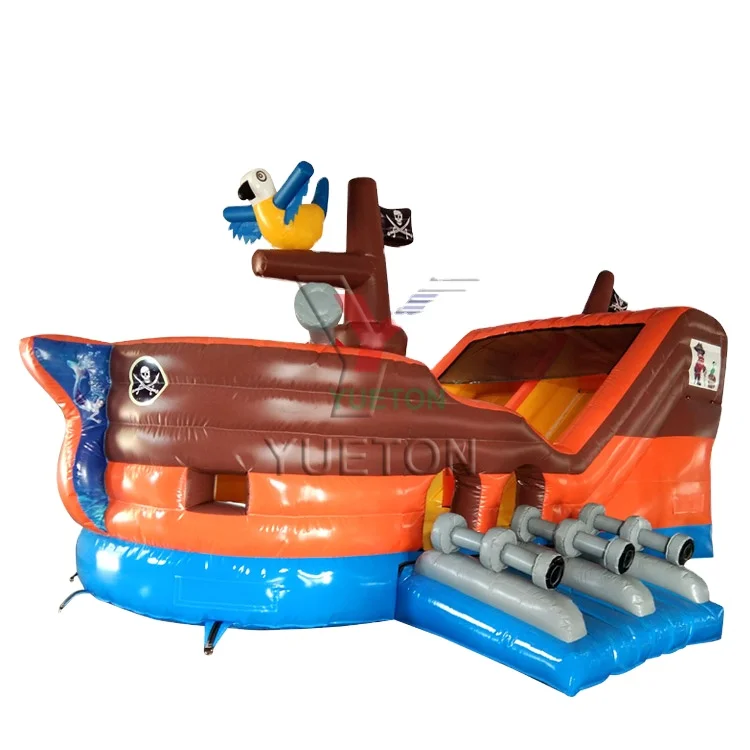

Детские развлечения надувная игра пиратский корабль батут для продажи
1 300,00 $

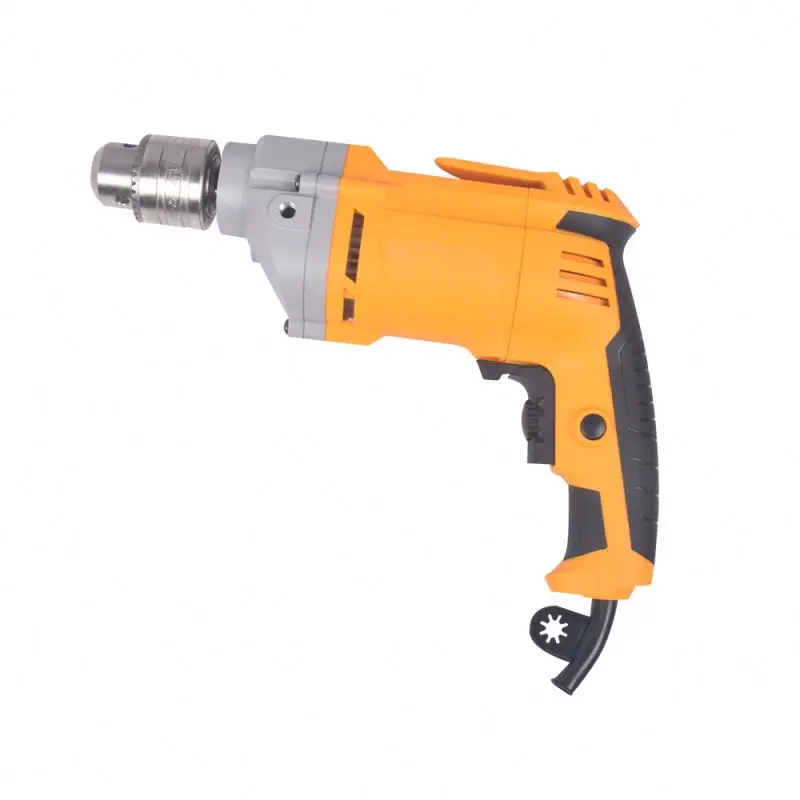

Профессиональная ударная электрическая Беспроводная Дрель 32 мм
19,84 $ - 21,83 $

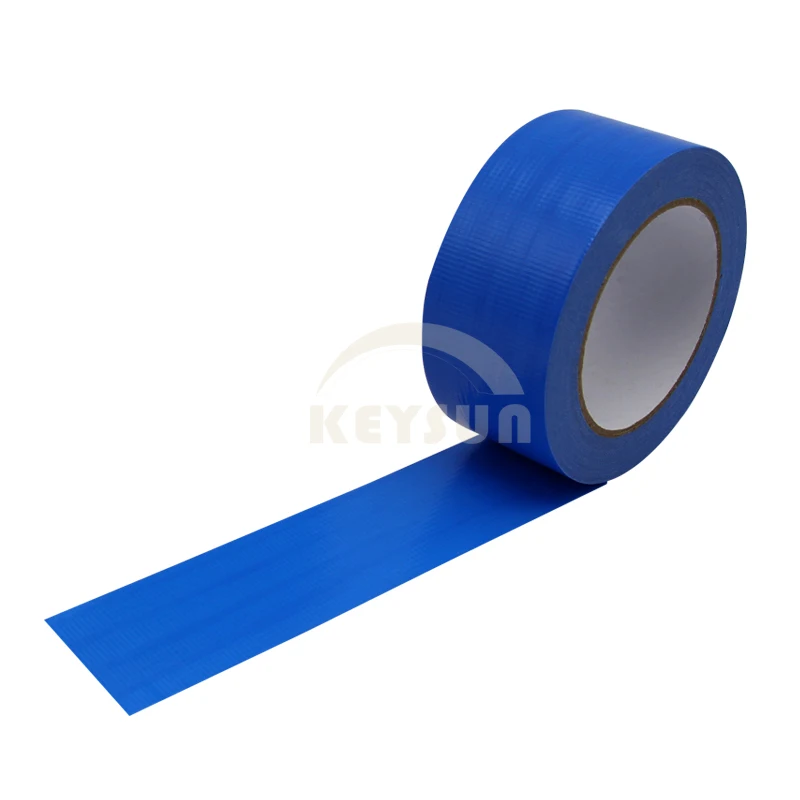

Резиновая полиэтиленовая лента Keysun Stucco

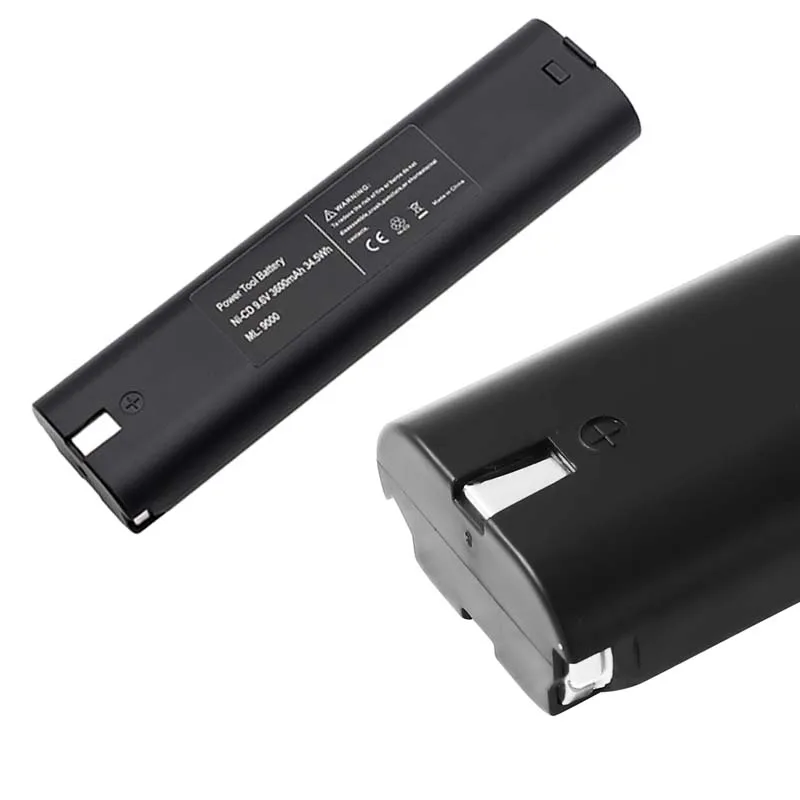

Сменная Аккумуляторная дрель Makita 9,6 V 1500 мА/ч, никель-кадмиевые аккумуляторы (гидридных и никель-кадмиевых типов аккумуляторов) никель-металл-гидридного SC 192696-2 Akku емкостью 1.5Ah батарея
9,00 $ - 10,00 $

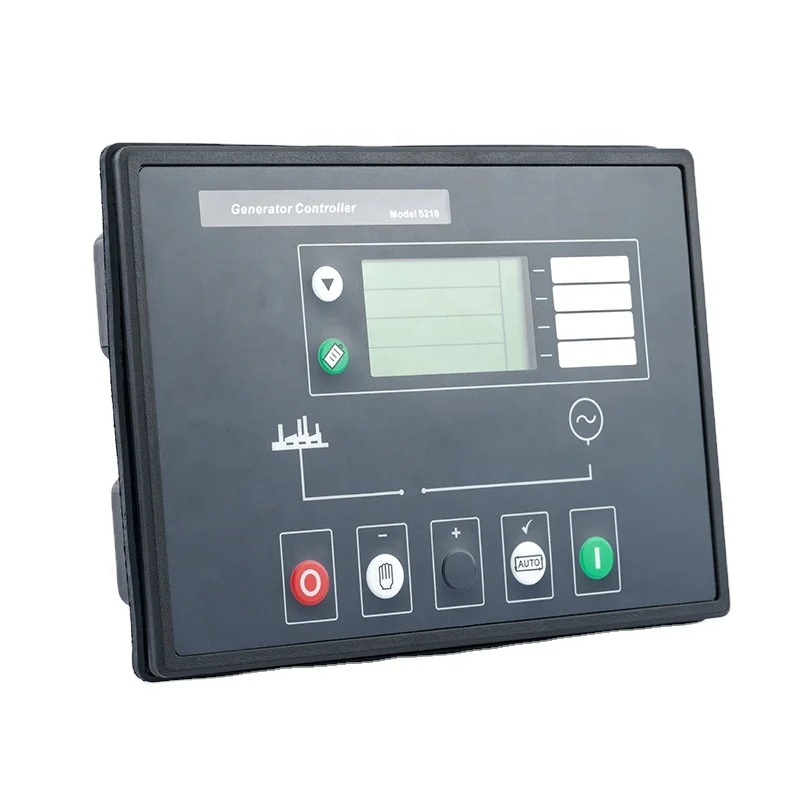

5210 дизельный генератор автоматический старт контроллер запчасти генератора печатная плата панель управления
70,00 $ - 76,00 $

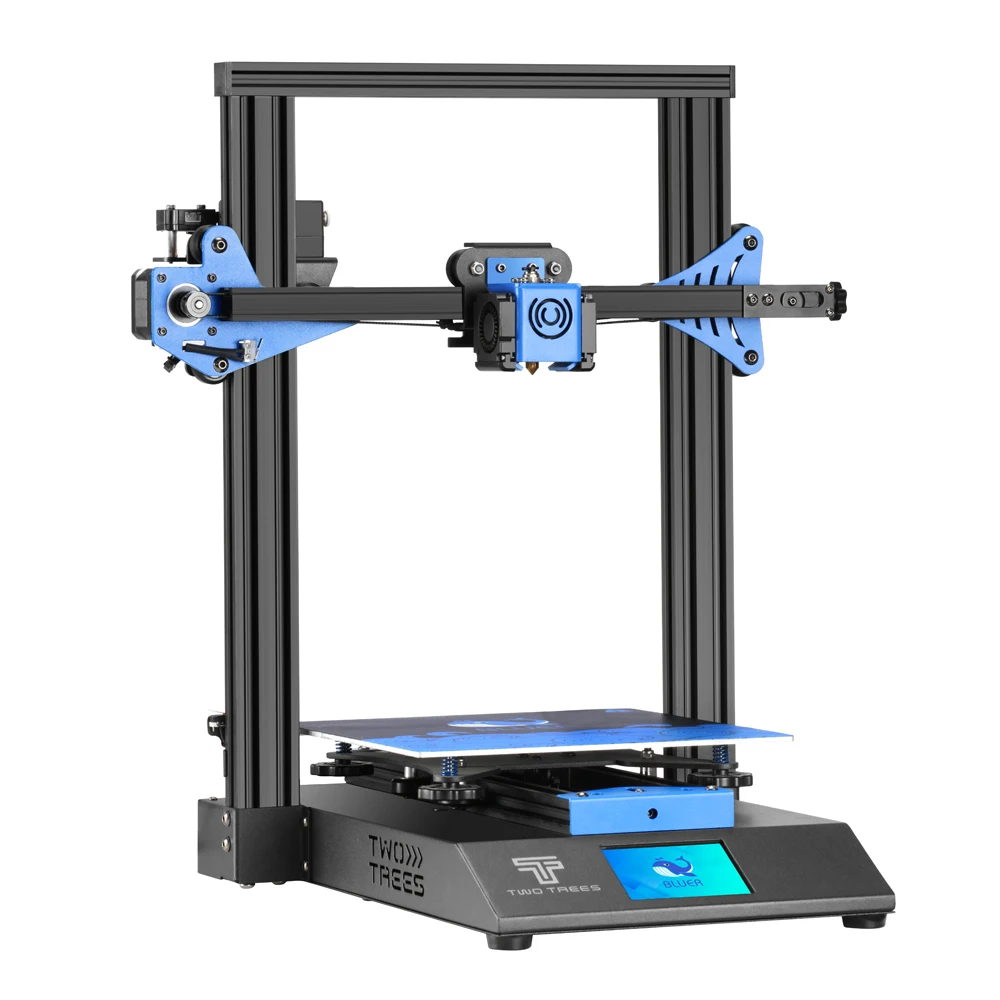

Twotrees BLU-3 V2 Профессиональная многофункциональная высокая точность 3d принтер
