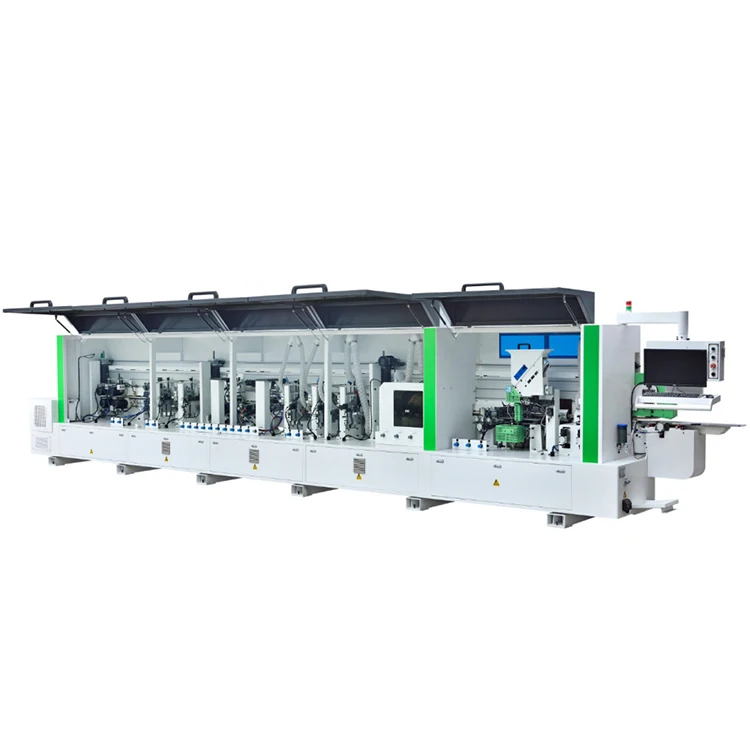

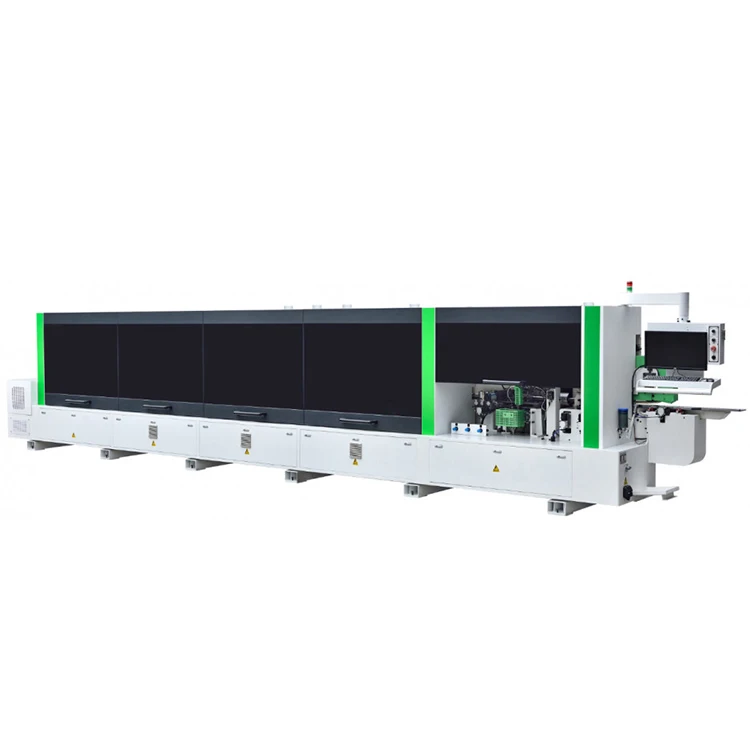

Автоматическая кромкооблицовочная машина для древесины МДФ ПВХ Гуанчжоу
- Категория: >>>
- Поставщик: Qingdao High-Class Service Import & Export Co. Ltd.
Сохранить в закладки 62240220793:
Описание и отзывы
Характеристики
Product Description
Product Application:
Edge banding machine in woodworking is used in banding edge of desks,cabinet,wardrobe and straight line furniture.The edge bander can be PVC,melamine,wood based works and so on,with powerful functions as edge feeding,sticking,material cutting,front-back trimming,roughing,fine finishing,scraping and buffing,with features as follows:
1) Adopt high-power and high frequency motor to improve effect
2)The pressure beam is made of high strength aluminum alloy heavy structure, which makes the material more stable and efficient during operation.
3)The imported trachea has high flexibility, winter frost resistance, no burst, frost resistance, fatigue resistant cable and more extended service life.
4) The frame plate, cold plate welding, after welding after annealing processing, the machine in the production process without affecting the internal stress and deformation.
1) Adopt high-power and high frequency motor to improve effect
2)The pressure beam is made of high strength aluminum alloy heavy structure, which makes the material more stable and efficient during operation.
3)The imported trachea has high flexibility, winter frost resistance, no burst, frost resistance, fatigue resistant cable and more extended service life.
4) The frame plate, cold plate welding, after welding after annealing processing, the machine in the production process without affecting the internal stress and deformation.
Work Steps
Product Paramenters
Edgeband Thickness | 0.4-3mm |
Edgeband Height | 10-65mm |
Edgeband Herght(Pre-milling runs) | 12-36mm |
Panel Thickness | 8-60mm |
Panel Thickness(Pre-milling runs) | 8-32mm |
Feeding Speed | 18-32m/min |
Min. Panel Width | ≥60mm |
Min.Panel Length | 50mm |
Min.Panel Length(Pre-milling runs) | 100mm |
Motor Power | 24.13kw |
Working Pressure | 0.7Mpa |
Overall Dimension(L*W*H) | 9827*1000*1600mm |
Net Weight | 5000kg |
Details Images
Spray Unit
Isolate the glue on the surface of the panel in up and
bottom side
Pre-milling
Remove the possible waving texture on edge to achieve better edge banding affection

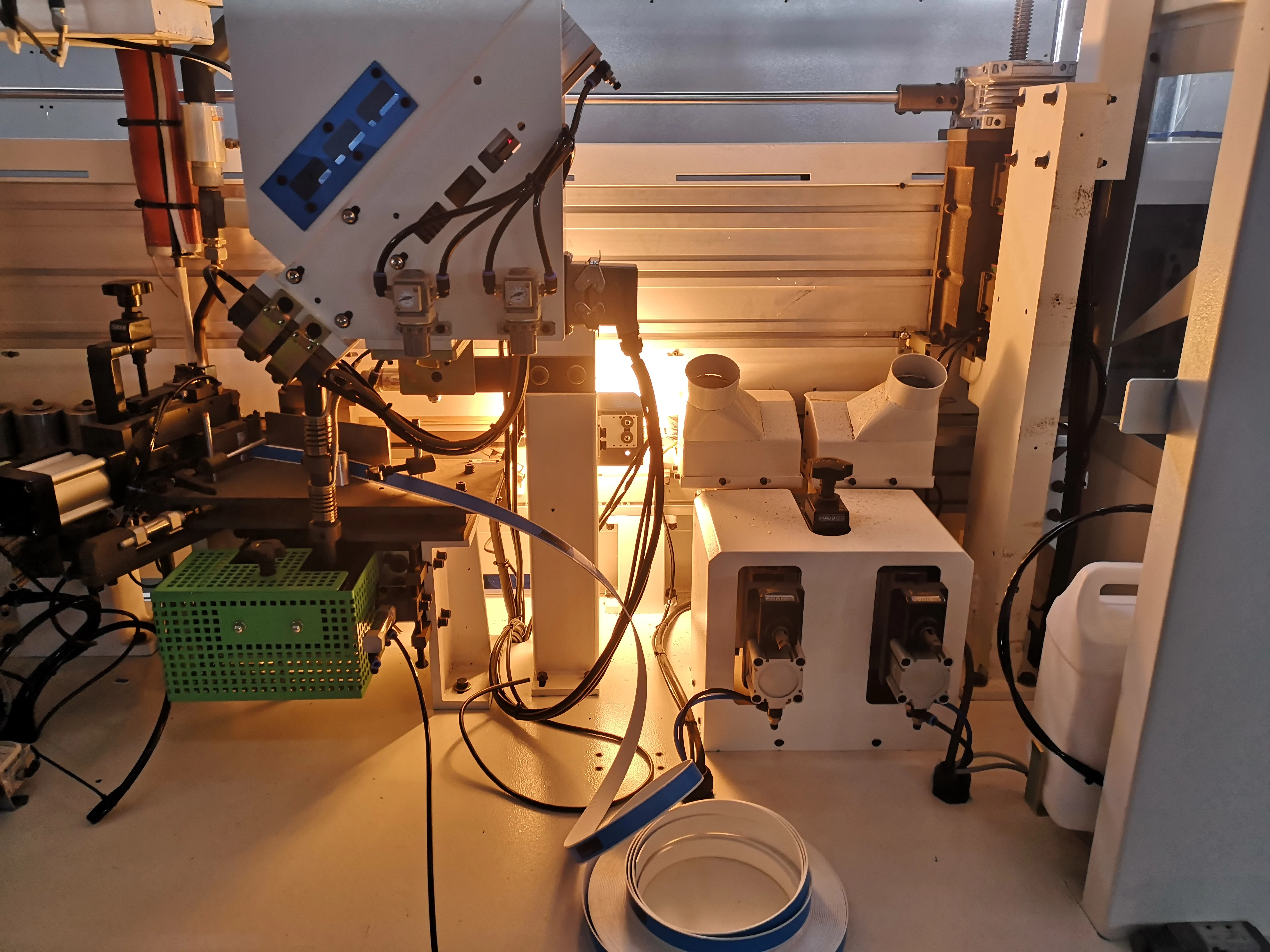

Quick Melt
Includes a pre-melt mechanism and a quick change mechanism.Glue pot changing time reduced to as less 15 minutes

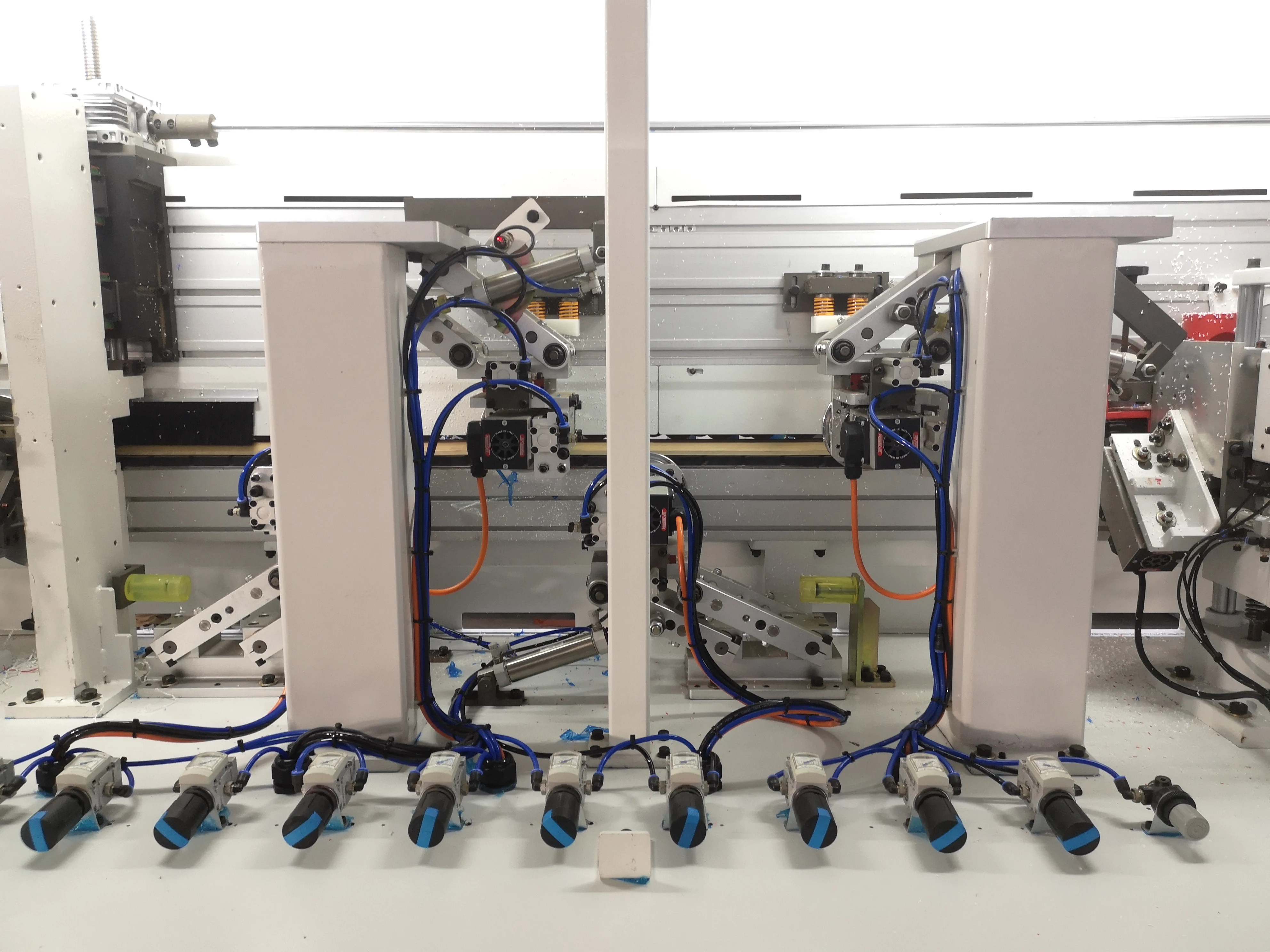

Gluing and Pressing
Spread the glue on both banding panel and band, ensure a more solid adhesion force

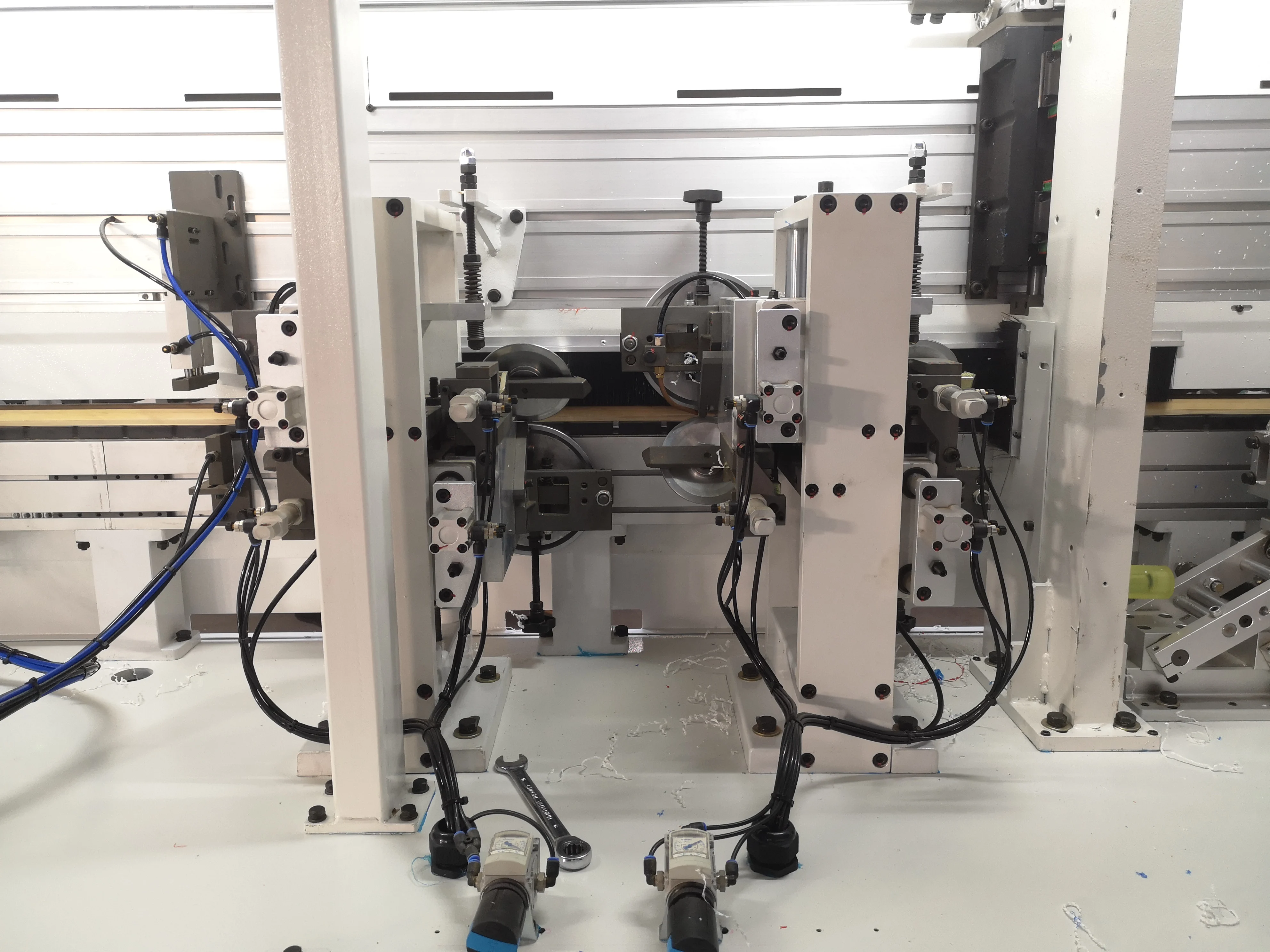

End cutting
High precision trimming with two hardened linear guide

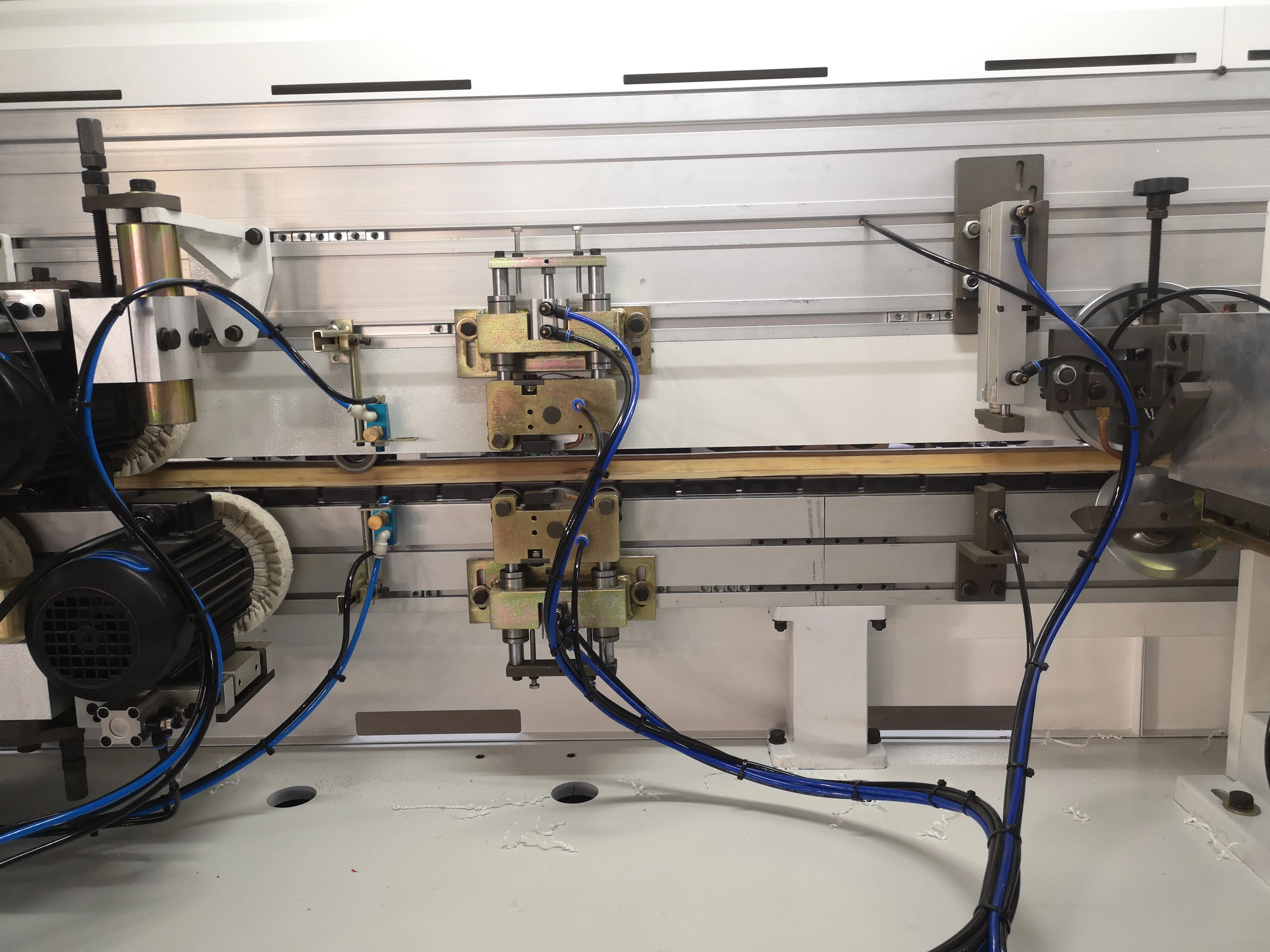

Trimming
Fine trimming of the top and bottom edges. Complete with 2 high-frequency motors
Corner Rounding
Four heads corner rounding: high precision guaranteed perfect look and touch
Scraping
Scraping eliminates the imperfections resulting from previous machining operations on the top and bottom of the edge
Wire Fracture
Remove the wood silk,prevent winding to the polishing wheel to cause the motor to be jammed and burned out
Flat Scraping
Removes excess glue from the top and bottom of the panel
Clean Unit
Clear the residual glue ,keep panel clean
Pneumatic Polishing
The buffing device adopts cotton material polishing wheel to sand the finished edge band more smoothly
Final Product
Company Profile
Our Company：
HICAS group is one leading manufacturing and exporting company of wood working machine in China. We are committed to provide one-stop service to our customers all over the world.
HICAS was established in 2003 with two manufacturing centers in Foshan and Qingdao, covering about 40,000 square meter.
1.Founded in 2003.
2.Owns 2 factories manufacturing nailess plywood box machine, wood pallet machine,wood crate machine, nailless plywood box.
3.Owns 70% Market Share(Nailless plywood box machine) in China.
4.Expertized in R&D, Manufacturing, Marketing,Training, and Service.
5.Professional in consultation of Factory construction and Processing Technology, and Technical Improvement Training.
6.Supply Technical Solution base on Cost Analysis and Optimal Allocation.
HICAS was established in 2003 with two manufacturing centers in Foshan and Qingdao, covering about 40,000 square meter.
1.Founded in 2003.
2.Owns 2 factories manufacturing nailess plywood box machine, wood pallet machine,wood crate machine, nailless plywood box.
3.Owns 70% Market Share(Nailless plywood box machine) in China.
4.Expertized in R&D, Manufacturing, Marketing,Training, and Service.
5.Professional in consultation of Factory construction and Processing Technology, and Technical Improvement Training.
6.Supply Technical Solution base on Cost Analysis and Optimal Allocation.
7.Customer and feedback
Product packaging
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
1. Do you offer installation?
3. How long can we get replacement parts?
Common spare parts can be delivered by express within one week. Some parts can be purchased locally.
4. What technical support do you offer?
1. Technical support by phone, email or WhatsApp/Skype around the clock.
2. Friendly English version manual and operation video.
3. Engineer available to service machinery overseas.
5. Do you have any machines in our country?
6. Can you customized the machine?
Our machines can be customized made according to buyers’ request.
7. What other machine do you offer?
We provide one-stop shop service of woodworking machines for the buyers. Other kinds of woodworking machines, like sanding machine, CNC router, drilling machine, saw machine can be provided as well.
8. Can you set the system to our language?
Our system supports common languages like Chinese, English, Russian, Spanish, French, German
Our machines are almost assembled before loading in container. It is very easy for installation in your workshop. Video guidance and English manual can be provided freely. Engineers can be sent to service in site if the buyer request. all cost in buyer’s account (the machine quotation does not include this cost), including all transportation cost between China and buyer factory (two way), visa and Insurance cost, hotel and eating in buyer country is responsible by buyer, extra labor salary USD200/day.
2. Where can we get replacement parts?
Most of the spare parts are ready in stock. They will be sent to the buyer directly from our warehouse with original prices.
3. How long can we get replacement parts?
Common spare parts can be delivered by express within one week. Some parts can be purchased locally.
4. What technical support do you offer?
1. Technical support by phone, email or WhatsApp/Skype around the clock.
2. Friendly English version manual and operation video.
3. Engineer available to service machinery overseas.
5. Do you have any machines in our country?
Our machines have been sold to more than 20 countries all over the world, like Russia, Singapore, Uzbekistan, The USA,Malaysia,Peru, Colombia, Vietnam, Slovakia, etc.
6. Can you customized the machine?
Our machines can be customized made according to buyers’ request.
7. What other machine do you offer?
We provide one-stop shop service of woodworking machines for the buyers. Other kinds of woodworking machines, like sanding machine, CNC router, drilling machine, saw machine can be provided as well.
8. Can you set the system to our language?
Our system supports common languages like Chinese, English, Russian, Spanish, French, German
