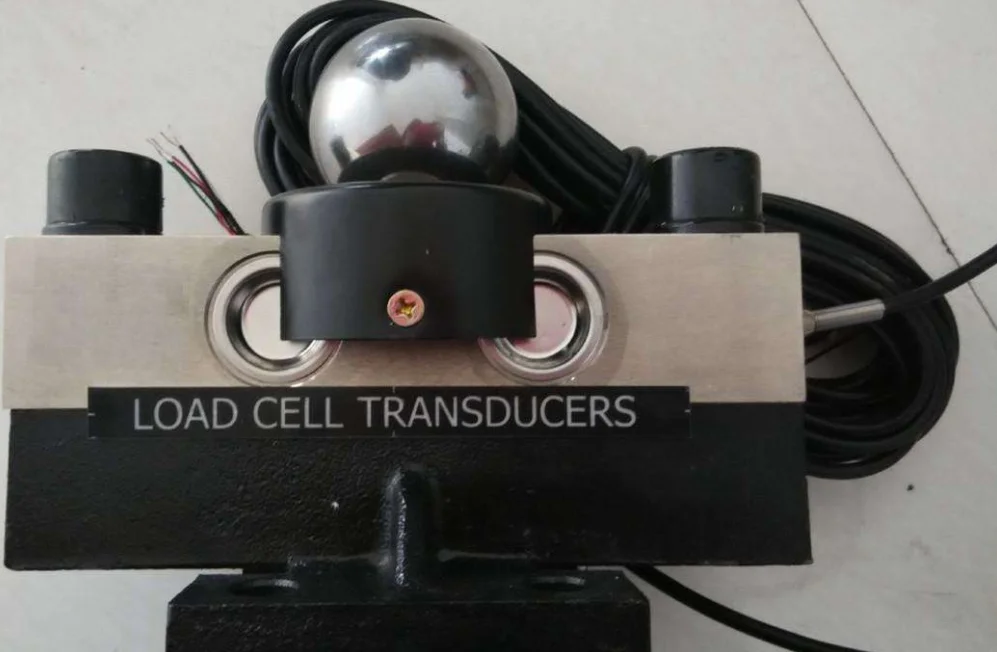

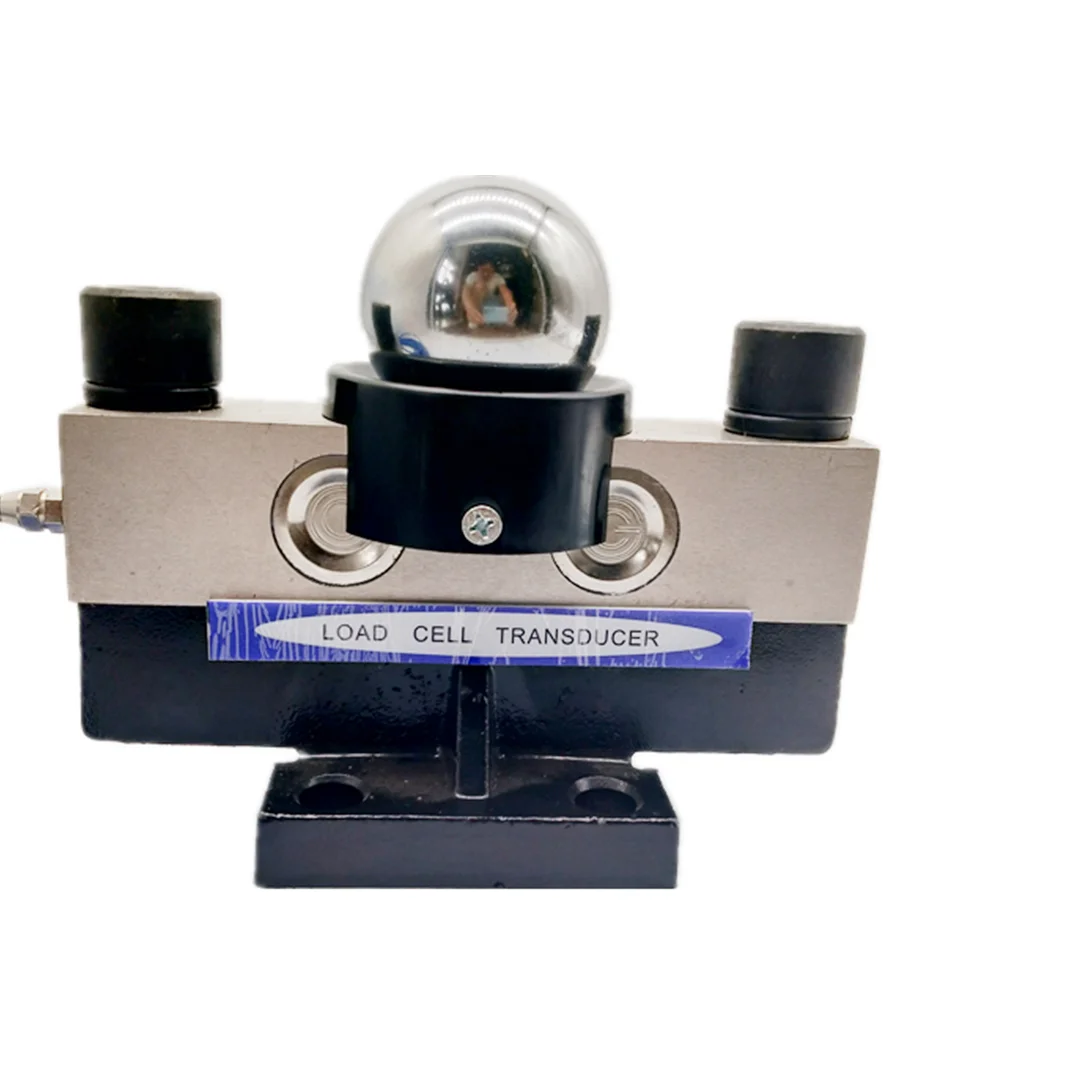

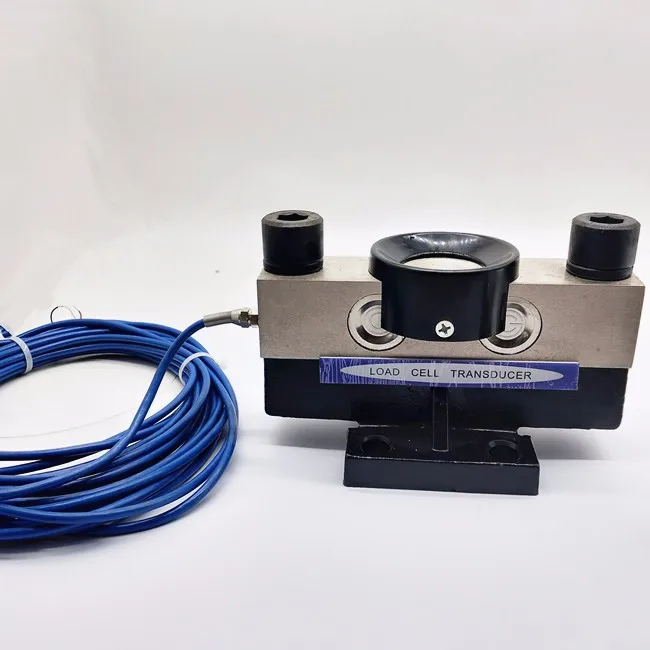

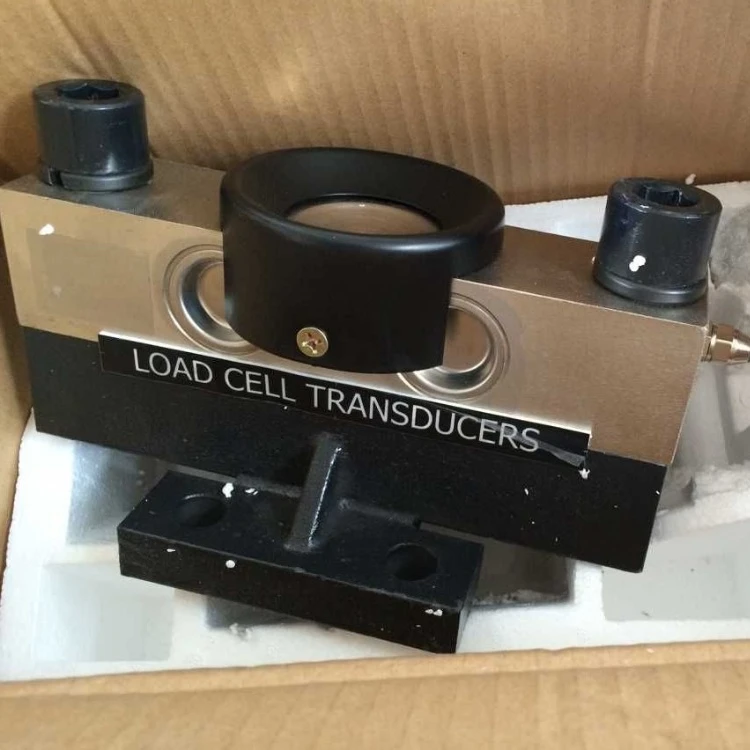

Китай (материк) KELI QS D тензометрический и цифровой датчик
- Категория: >>>
- Поставщик: Taian Zhonghang Weighing Apparatus Co. Ltd.
Сохранить в закладки 62248689811:
Описание и отзывы
Характеристики
Product Description

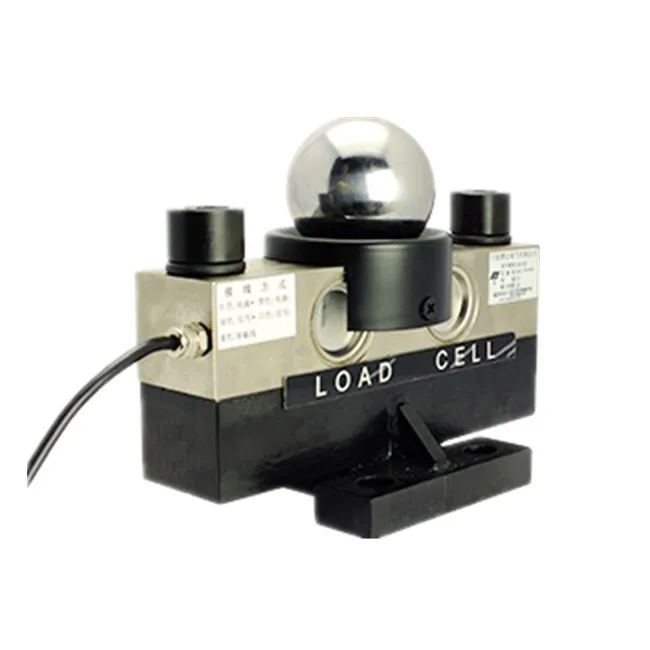

KELI QS-D load cell weight and digital weight sensor
Place of Origin:Shandong, China (Mainland) Brand Name:zemic
Model Number:QS Usage:Pressure Sensor
Theory:Resistance Sensor Output:Analog Sensor
Material:alloy steel rate load:40T
Supplier:China manufacturer / factory Structure:Double shear beam
Model Number:QS Usage:Pressure Sensor
Theory:Resistance Sensor Output:Analog Sensor
Material:alloy steel rate load:40T
Supplier:China manufacturer / factory Structure:Double shear beam
Analog sensor
Capacity: 5t 10t 15t 20t 25t 30t 40t
Production description
A load cell is actually a device that converts a quality signal into a measurable electrical signal output. The sensor should first consider the actual working environment of the sensor. This is the correct choice of the load cell, which is related to the normal operation of the sensor and its service life, and even the reliability and safety of the entire scale. On the basic concepts and evaluation methods of the main technical indicators of the load cell, there are qualitative differences between the old and new national standards. There are several types of S-type, cantilever type, spoke type, plate ring type, bellows type, bridge type, and column type.
Technical Parameter
Application | Truck Scales,Railway Scales |
Rated Load | 40T |
Sensitivity | 2.0±0.002mV/V |
Accuracy Class | C1-C5 |
Creep(30min) | ±0.02%F.S |
Zero balance | ±1%F.S |
TCO | ±0.02%F.S/10 |
TC SPAN | ±0.02%F.S/10 |
Input resistance | 750±10Ω |
Output resistance | 702±3Ω, 703±5Ω(L≥15M), |
Recommend excitation | 10∼12V DC |
Maximum excitation | 12V DC |
insulation resistance | ≥2000MΩ |
Protection Class | IP67(5T)/IP68(10-40T) |
Temperature Range. Compensated | -10∼+40 |
Operating Temp Range | -30∼+70 |
Safe load limit | 150%F.S, 120%F.S ( 40-50T) |
Construction | Alloy Steel-S/-SS;Stainless steel |
Over load limit | 300%F.S. 200%F.S ( 40-50T) |
Cable | Length;5,2m(5t),10m(15t),10/12m(20t) 12/15m(25t),12/16m(30t), 16m(40t)Diameter:6mm |
Feature:
Bridge structure , cup and steel ball mounted , Self-resetting and ceUniquentering , good side force resistance and shock resistance.
Glue sealing & welded sealing,Moisture proof sealed , ideal for hostile environment .
Bridge structure , cup and steel ball mounted , Self-resetting and ceUniquentering , good side force resistance and shock resistance.
Glue sealing & welded sealing,Moisture proof sealed , ideal for hostile environment .
Product structure diagram
Packing & Delivery
Our Company
Title goes here.
Taian Zhonghang weighing Apparatus Co., Ltd is a professional large-scale manufacturer of industrial weighing equipment in China. We started as a truck scale and load cell manufacturer and now 0ur products are extended to OCS electronic hanging scales and electronic platform scales, electronic floor scale, crane scale, load cell, etc.
Warehouse Office Training
Our Service
1. High Quality:
We have strict quality control system, all of our products comply with international quality standards and are greatly in a variety of different markets throughout the world.
2. Outstanding Customer Service:
We are a professional manufacturer and exporter committed to weighing equipments research and manufacture. We have good English speakers and Spanish speakers, will give every clients timely response.
3. Low MOQ & Fast Delivery:
Small order quantity and flexible payment terms, it can meet your promotional business very well.
Fast delivery, it can meet your urgent needs.
Certifications
FAQ
1.How to place an order ?
Please provide us more details of what you want, such as: application, measurement range, output, accuracy, thread type, electric connector and other related parameters.
2.What terms of payment are available ?
We accept T/T, L/C, Trade assurance, Western Union, Paypal, etc.
3.When will you arrange the production ?
We will arrange the production immediately after receiving your payment.
4.How do you ensure good product quality ?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departmentsbefore shipping to our clients.
5.Do you have warranty ?
Yes, we provide 1 year warranty for most of our products. Some products we offer 15month to 24 months warranty.
Похожие товары
Стоматологическая установка новый дизайн tj2688 Gnatus стоматологическое кресло цена индия
850,00 $ - 900,00 $
6x6 6x4 Дизельный Fggghh Человек Автоматическая пневматическая подвеска Benz грузовик 6-колесный самосвал 815 используется 814 самосвалов Mercedes Benz для продажи 5 тонн
15 400,00 $ - 16 000,00 $
Подержанный Ford Raptor 2022 F150
Модуль солнечных панелей 450 ватт 440 ватт 350 Ватт солнечные панели для хранения энергии
0,18 $ - 0,20 $
логотипа на коже 2g внезапный usb 2.0

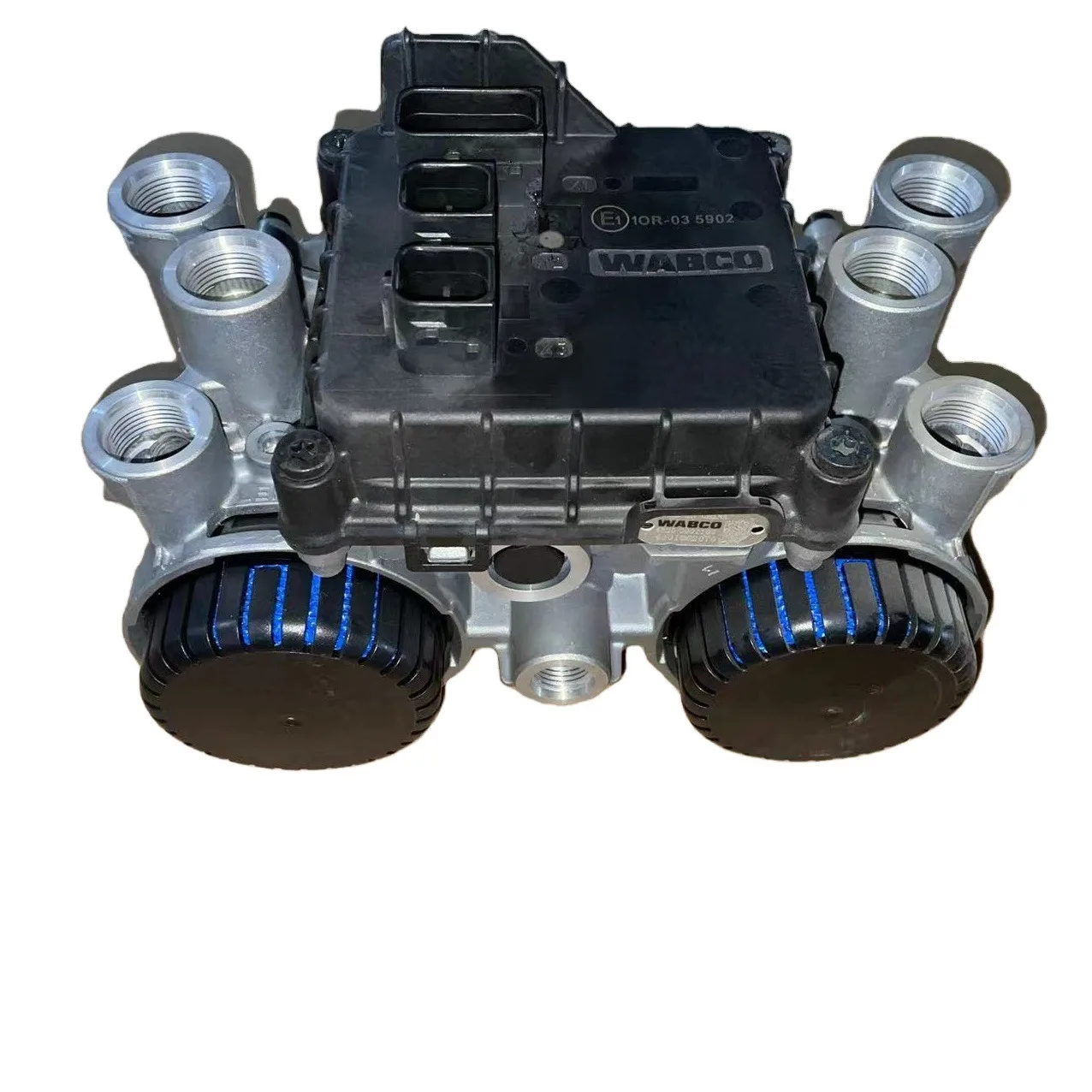

WABCO 4801062070 EBS KAMAZ 5490 54901 6580 VOLVO SCANIA DAF MAN
