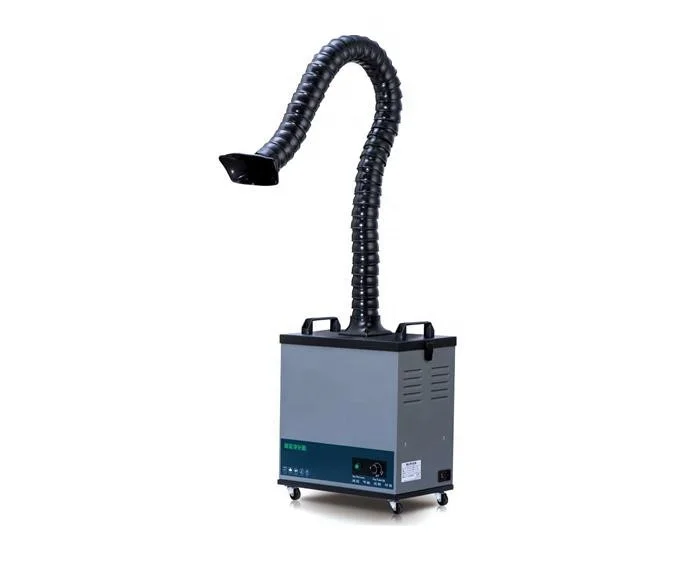

Лабораторный воздушный фильтр, экстрактор дыма для лазера Co2 с вытяжной блендой
175,00 $ - 185,00 $

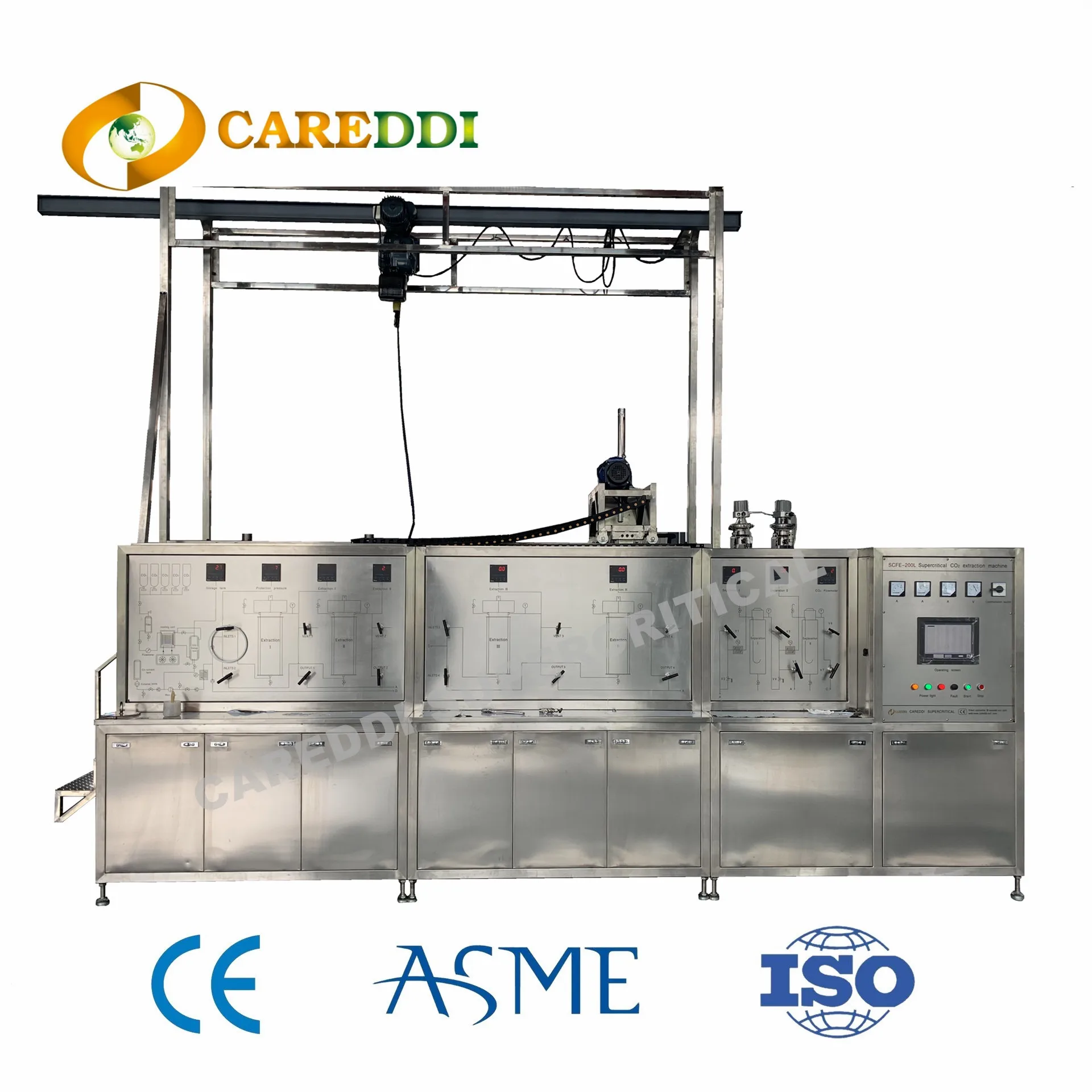

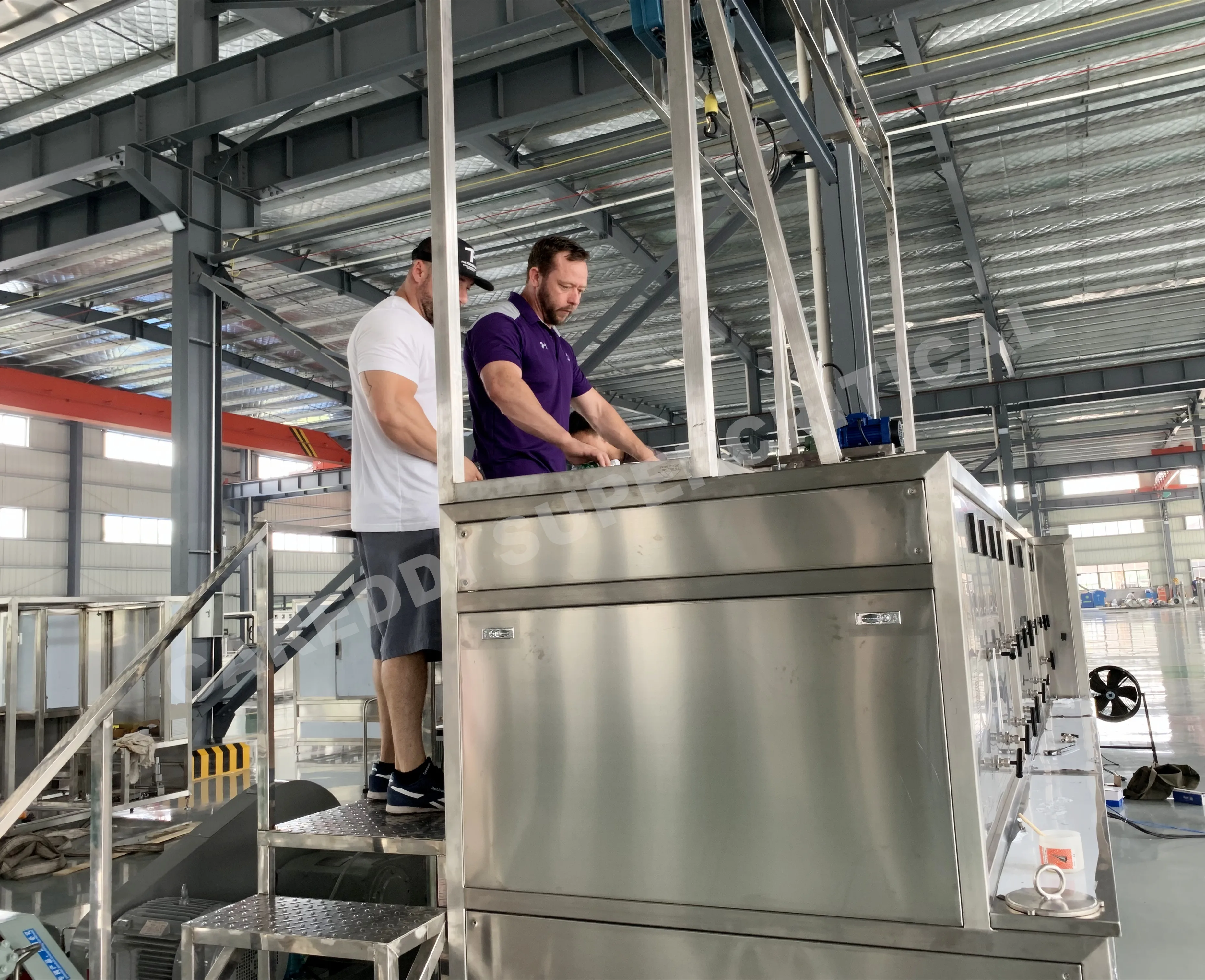

Заводской производитель Сверхкритическая машина для экстракции CO2 в промышленном масштабе травяного эфирного масла
- Категория: >>>
- Поставщик: Careddi Technology Co. Ltd.
Сохранить в закладки 62249595151:
Описание и отзывы
Характеристики
Product Description
BEST SALE TOP MODELS WORLDWIDE
For other different models , please contact us for detailed information.
SCFE120-50-05
5L lab series
Supercritical co2 extractor
Herbal oil extraction machine
SCFE220-50-20
20L(10Lx2)
Supercritical co2 extractor
Hemp CBD oil extraction
SCFE420-40-96
96L (24Lx4)
Supercritical co2 extractor
Hemp CBD oil extraction
SCFE200L
200L (50Lx4)
Supercritical co2 extractor
Herbal oil extraction
SCFE300L
300L (50Lx6)
Supercritical co2 extractor
Hemp CBD oil extraction
SCFE300L
300L (150LX2)
Supercritical co2 extractor
Hemp CBD oil extraction
Characteristics of the Supercritical CO2 fulid equipment:
1. Low critical temperature, suitable for extraction and purification of heat sensitive compound.
2. Being capable to provide insert environment to avoid oxidation of products and affection of effective content of extracts.
3. Fast extraction speed, no toxicity, non-flammable, safe application and no pollution upon environment.
4. No residue of solvent, no nitrate and ions of heavy metal.
Supercritical CO2 applications in food, pharmaceutical, chemical industries:
(1) Decaffeination of coffee and tea
(2) Extraction of essential oils (vegetable and fish oils)
(3) Extraction of flavors from natural resources (nutraceuticals)
(4) Extraction of ingredients from spices and red peppers
(5) Extraction of fat from food products
(6) Fractionation of polymeric materials
(7) Extraction from natural products
(8) Photo–resist cleaning
(9) Precision part cleaning
Super Critical CO2 Extraction Device:
NO | MAIN CONFIGURATION | PARAMETER | ||
1 | Extraction Kettle | 1L, 2L, 5L/50Mpa, 10L, 24L/40Mpa, 50-200L/32Mpa, Dual purpose for solid and liquid, equipped with water jacket for circulated heating with adjustable temperature. | ||
2 | Separation Kettle | 0.3-10L/Mpa, 50-100L/16-22Mpa, Equipped with water jacket for circulated heating with adjustable temperature. | ||
3 | Fine Distillation Column | inner diameter 25X2-3m/30Mpa,35X2-3m/30Mpa, 48X4-6m/30Mpa, 78X4-6m/30Mpa According to technological requirement, 4-section, 6-section or 8-section temperature control are available and relative stuffing can be selected and loaded by customer according to technological requirement. | ||
4 | High Pressure Pump | 20L/40Mpa.h double-plunger, 50L/50Mpa.h double-plunger frequency-modulating, 400L/40Mpa.h three-plunger frequency-modulating, 800l/40Mpa.h three-plunger frequency-modulating, the pump head application. | ||
5 | Take Pump | in the course of extraction, the entraner is used to change polarities of CO2 so as to extend range of application. | ||
6 | Cooling System | equipped with semi-sealed or full-sealed compressor to meet technological requirement. | ||
7 | Heat Exchange and Temperature Control System | according to technological requirement, the heat exchange and temperature control system are equipped for extraction kettle, separtion kettle and fine distillation column respectively to control the temperature of water circulation at -85℃ and the temperature pf oil circulation at -150℃; the digital display double-screen is used to control the temperature of water bath and to measure the temperature of CO2 fluid with accuracy of temperatire control at ±1℃. | ||
8 | Pressure Control (Protection) | equipped with the electro connecting pressure gauge at the outlet of the high pressure pump and set the working prssure to release pressure and make automatic protection in case overpressure occurs; equipped with safety valves for high pressure pump, extraction kettle, separtio kettle, fine distillation column according to their maximum working pressure to release pressure and make automatic protection in case overpressure occurs; equipped with back-pressure valve system at the outlet of the extraction kettle which has stable pressure and is easy to make adjustment. The control accuracy of pressure (dynamic) is ± 0.1MPa. | ||
9 | Display of Flow | the metal rotor flow meter with remote transferable digital display for instant flow and accumulated flow respectively. | ||
10 | Pipelines | all containers, valves, pipe fittings and pipelines contacting with fluid are all made of stainless steel. | ||
11 | Others | three-phase-four-wire power supply with 380V/50Hz and CO2 with foodstuff grade ≥99.5% are prepared by customer itself. | ||
Standard Models
Model No. | Main Specs | |||
1 | SCFE 120-50-01L | 1L/50Mpa/1 Extraction 2 Separation | ||
2 | SCFE 120-50-02L | 2L/50Mpa/1 Extraction 2 Separation | ||
3 | SCFE 120-50-05L | 5L/50Mpa/1 Extraction 2 Separation | ||
4 | SCFE 220-50-06L | (5+1)L/50Mpa/2 Extraction 2 Separation | ||
5 | SCFE 120-40-10L | 10L/40Mpa/1 Extraction 2 Separation | ||
6 | SCFE 220-50-10L | 5Lx2/50Mpa/2 Extraction 2 Separation | ||
7 | SCFE 220-40-20L | 10Lx2/40Mpa/2 Extraction 2 Separation | ||
8 | SCFE 220-40-48L | 24Lx2/40Mpa/2 Extraction 2 Separation | ||
9 | SCFE 420-40-96L | 24Lx4/40Mpa/4 Extraction 2 Separation | ||
10 | SCFE 220-40-60L | 30Lx2/40Mpa/2 Extraction 2 Separation | ||
11 | SCFE 420-40-120L | 30Lx2/40Mpa/4 Extraction 2 Separation | ||
12 | SCFE 220-40-100L | 50Lx2/40Mpa/2 Extraction 2 Separation | ||
13 | SCFE 420-40-200L | 50Lx4/40Mpa/4 Extraction 2 Separation | ||
14 | SCFE 620-40-300L | 50Lx6/40Mpa/6 Extraction 2 Separation | ||
15 | SCFE-100Lx3 | 100Lx3/35Mpa/3 Extraction 2 Separation | ||
16 | SCFE-200Lx3 | 200Lx3/35Mpa/3 Extraction 2 Separation | ||
17 | SCFE-400Lx3 | 400Lx3/35Mpa/3 Extraction 2 Separation | ||
18 | SCFE-600Lx3 | 600Lx3/35Mpa/3 Extraction 2 Separation | ||
19 | SCFE-1000Lx3 | 1000Lx3/35Mpa/3 Extraction 2 Separation | ||
20 | SCFE-1500Lx3 | 1500Lx3/35Mpa/3 Extraction 2 Separation | ||
Certifications
Packing & Delivery
Packaging | ||
Size | 2.3*1.1*M/1.4*1.3*1.5M | |
Weight | 1.2 T | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Packaging | ||
Size | 2.3*1.1*M/1.4*1.3*1.5M | |
Weight | 1.2 T | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
