Extrusion Stainless Steel Pipe Making Machine High End Tube Mill Pipe Roller Machine
Product Description
Machinery main components:
open-book machine
welding machine molding
grinding machines
sizing machine
straight frame
cutting machine
finished frame
The machine is manufacturing stainless steel industrial pipes/tubes widely applied in Mechanical structure,
Construction,Medical use,Refrigeration,Food and Beverage handling equipment,heating elements/Heat
exchanger,Drinlling and Exploration platforms,Aerospace and Nuclear industry etc.
Technical Parameter
| Model | Horizontal Shaft O.D. | Vertical Shaft O.D. | Tube Range | Thickness | Drive Motor | Dimension |
| ZP-I40 | 40mm | 30mm | 8-51mm | 0.3-2.2mm | Front:7.5KW Rear:5.5KW | 29m*1.5m |
| ZP-I50 | 50mm | 30mm | 25-76mm | 0.4-2.5mm | Front:11KW Rear:7.5KW | 32m*1.5m |
| ZP-I60 | 60mm | 40mm | 50-114mm | 0.5-3.0mm | Front:15KW Rear:15KW | 35m*1.8m |
| ZP-I80 | 80mm | 50mm | 89-168mm | 0.8-4.0mm | Front:18.5KW Rear:18.5KW | 40m*2.5m |
| ZP-I100 | 100mm | 60mm | 114-219mm | 1.0-6.0mm | Front:22KW Rear:22KW | 43m*3.0m |
| ZP-I120 | 120mm | 80mm | 168-325mm | 1.5-8.0mm | Front:37KW Rear:37KW | 48m*3.0m |
The Industrial pipe/Tube Production Line Solutions
A ; Adopt first class suppliers, like Siemens,ZhuJiang Gearbox, Dongfeng Auto Parts
B ; Adopt imported CNC machine from Taiwan, Ensure that customers can safe use
C ; Adopt high-tech. Fine motor structure design, Design, Stable performance, Save energy and environmental protection
D ; Humanized operating system design, Easy to learn, Easy operating
E ; All products pass ISO9001 international quality management system certificate, First class, Brand guarantee
F ; Jopar has 30 inventions, Practical patents, Like big tubes(168*0.35mm, 426*10mm)
D ; Our products are mainly exported to India, Japan, Thailand, Vietnam, Indonesia, Malaysia, Russia, Poland, Myanmar, Colombia and so on.
A ; Adopt first class suppliers, like Siemens,ZhuJiang Gearbox, Dongfeng Auto Parts
B ; Adopt imported CNC machine from Taiwan, Ensure that customers can safe use
C ; Adopt high-tech. Fine motor structure design, Design, Stable performance, Save energy and environmental protection
D ; Humanized operating system design, Easy to learn, Easy operating
E ; All products pass ISO9001 international quality management system certificate, First class, Brand guarantee
F ; Jopar has 30 inventions, Practical patents, Like big tubes(168*0.35mm, 426*10mm)
D ; Our products are mainly exported to India, Japan, Thailand, Vietnam, Indonesia, Malaysia, Russia, Poland, Myanmar, Colombia and so on.
company information
TOP 10 HOT SALES PRODUCTS :
TOP 3: High profit margin products decorative GI / SS stainless steel pipe making machine
TOP 4:Hydraulic system steel square pipe making machine / stainless steel pipe welding machine
TOP 5:pipe production line type radiator tube mill for sale
TOP 6:The best square pipe carbon steel tube cold pilger mill price per set
TOP 7:Brand new iron stainless steel rod / round pipe polishing machine for 2inch
TOP 8:Automatic 28 station wheel stainless steel square pipe polishing machine
TOP 9:Good quality experience certificate fabrication stainless steel pipe line
TOP 10:High quality aluminium tube swaging machine for Tapering pipe
our team
Our customers
Packaging & Shipping
FAQ
Q: Which products your company are manufacturing?
A:Our products included Stainless steel pipe making machine, Polishing machine, Embossing machine, Slitting machine and Roll sets etc, Also we have much experiences in this field.
Q: What advantage for the machine?
A:We have Adopt first class suppliers. like Siemens Motor, ZhuJiang Gearbox, Dongfeng Auto Parts on the machine.
Q: Can you print the company name or logo on the products?
A: Yes. We can print your logo or company name on the products by Stamping or Coating
Q: What payment terms you can accept?
A: We can accept payment terms by T/T(30% deposit, 70% before shipment), D/P or L/C at sight
Q: When is your company delivery time?
A: Our delivery time is within 45 days , It depend on your quantity.
Q: How many workers will need to operate the machine?
A: If the worker know how to operation the machine, then one worker can operate two machine in the same time.
Q: How long will take to change the roller on the machine?
A: If one worker to change the roller, will need about 3 hours to change , But sometime is according to the worker whether have enough familiar to decide.
Q: How many tons for normal machine to production per month?
A: Our machine is according to the model to decide , under the situation, one machine can produce 70 tons per month.
Q: Whether your machine can ensure ovality to make the pipe?
A: Yes, our machine component used top famous CNC from Taiwan, to make the component will have high accuracy. We assurance 100% of tube will ovality . also we testing the machine before delivery.
Q: How we get from the machine for after service?
A: We will supply technical support for installation , operation and maintain etc ,Also we can arrange the technical engineer to your company .
Contact Us
Похожие товары
Экологичные многоразовые Бамбуковые банки для крема с PP пластиковой внутренней бамбуковой крышкой контейнер для ухода за кожей
1,00 $ - 1,50 $

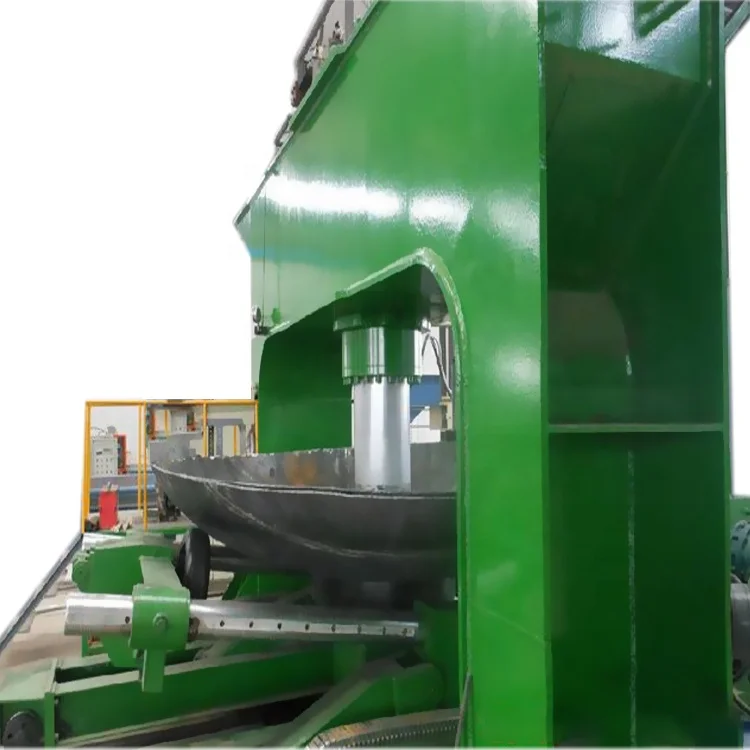

Трубчатая Концевая формовочная машина smalt, штамповочная машина
19 715,00 $ - 21 150,00 $
Индивидуальные кофейные кружки, упаковочные коробки, бумажные подарочные коробочки для кружек, 11 унций
0,11 $ - 1,07 $

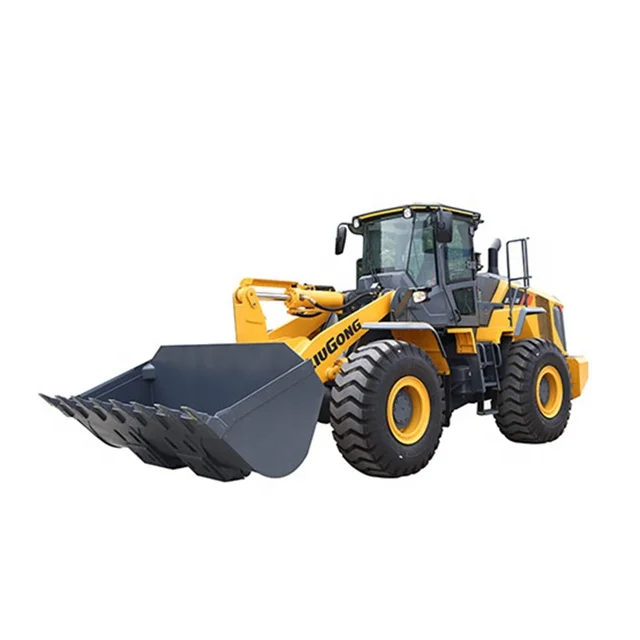

Фронтальный погрузчик с шарнирным соединением LIUGONG 856H 5 тонн, цена
Двусторонняя кисть для туши и бровей, одноразовая Двусторонняя Кисть для макияжа

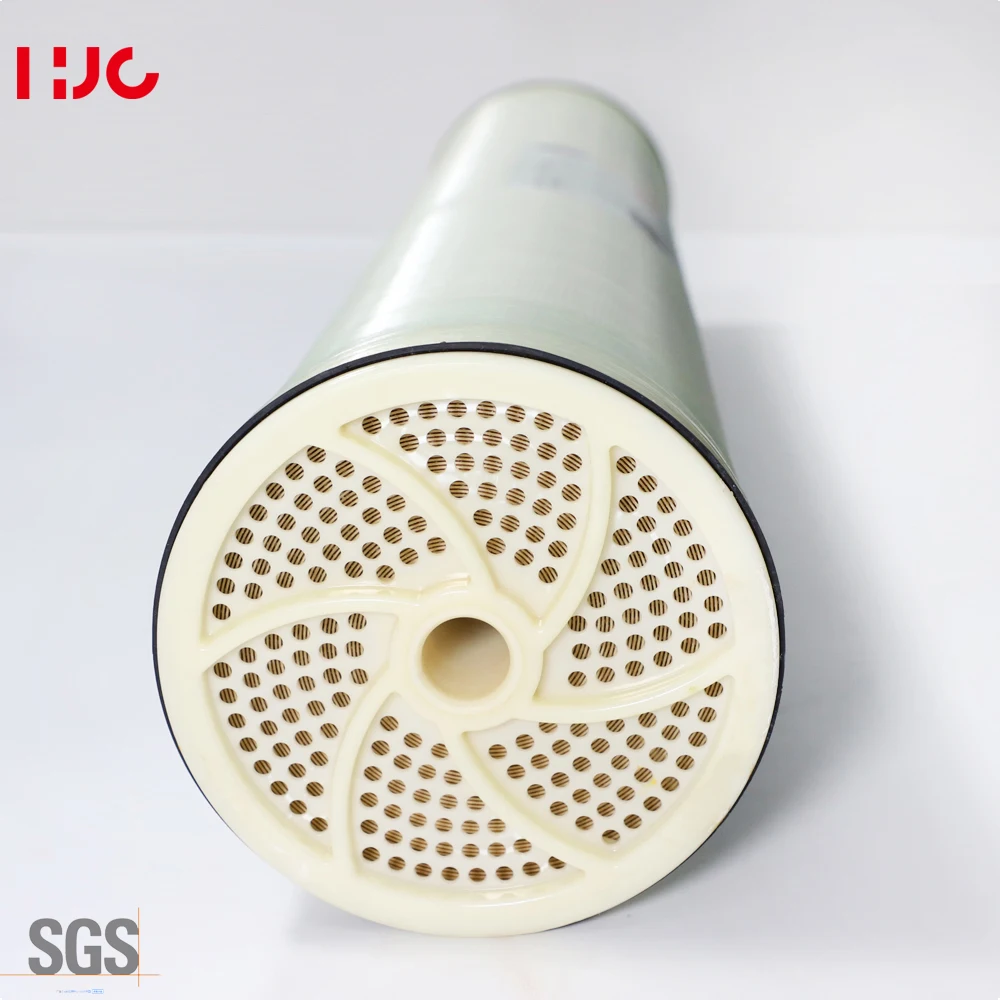

New product 8' ro end side port membrane housing RO Membrane SW 8040 for RO Plant
