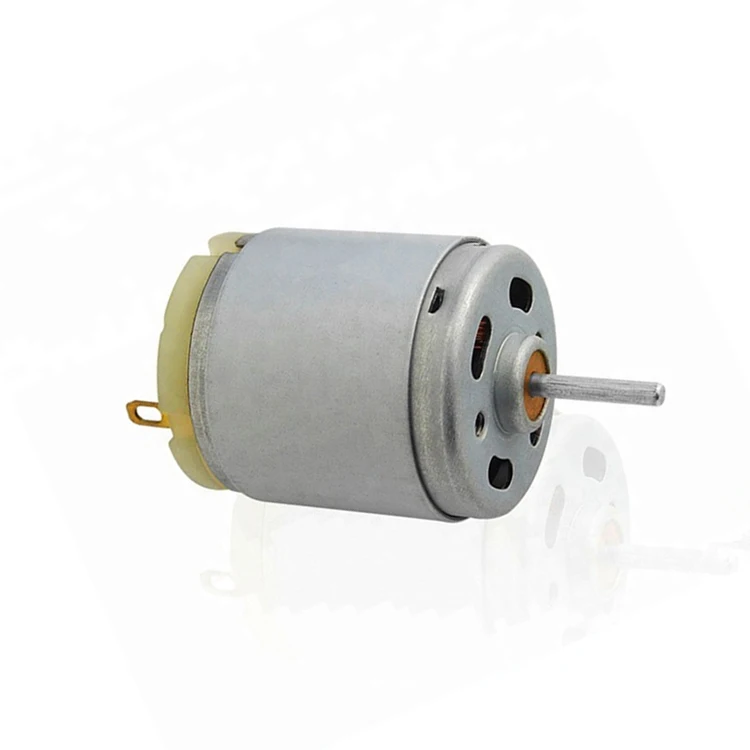

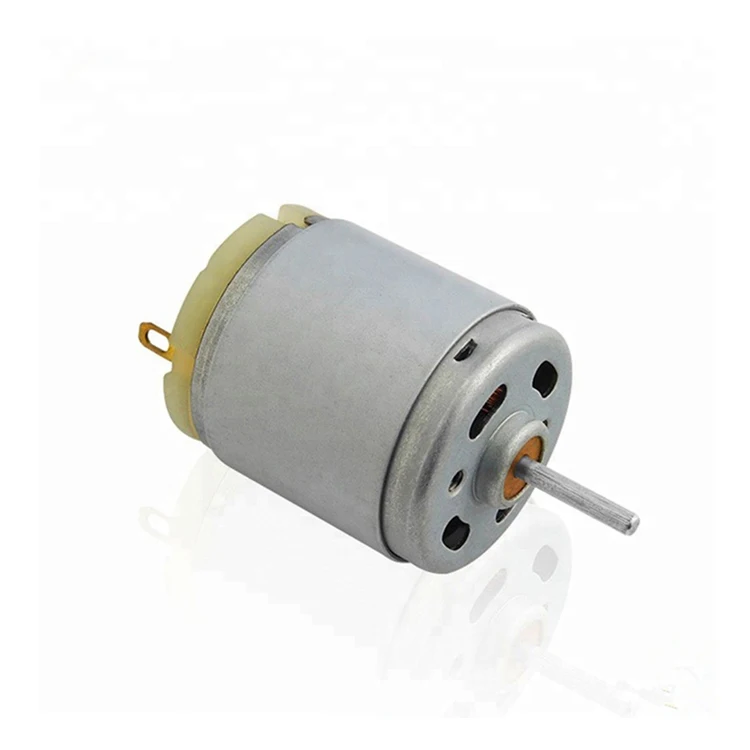

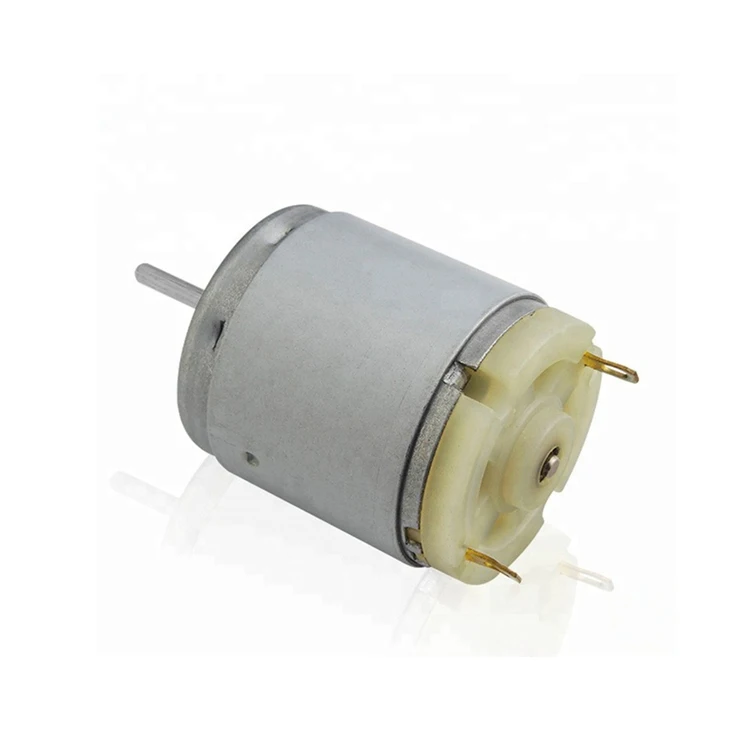

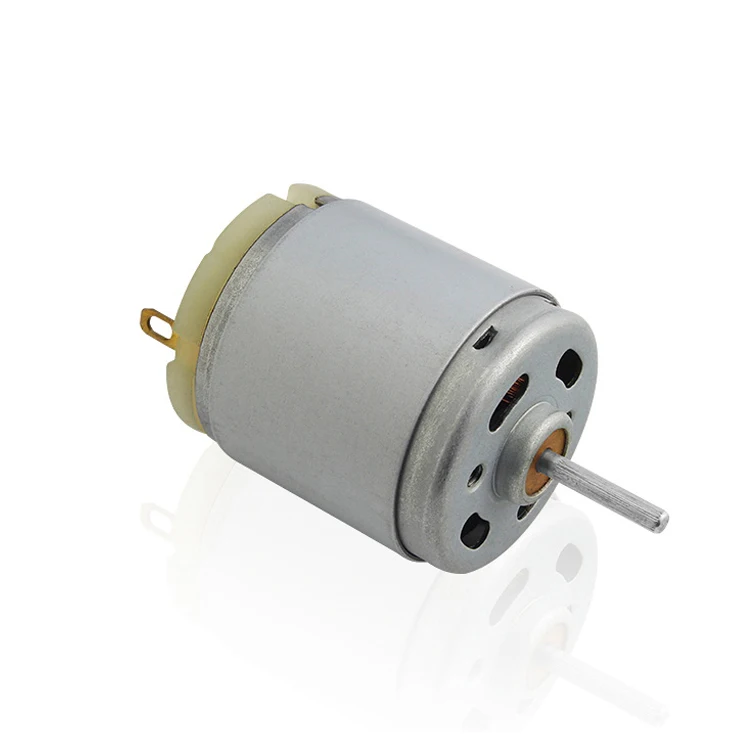

vibrator motor for massager

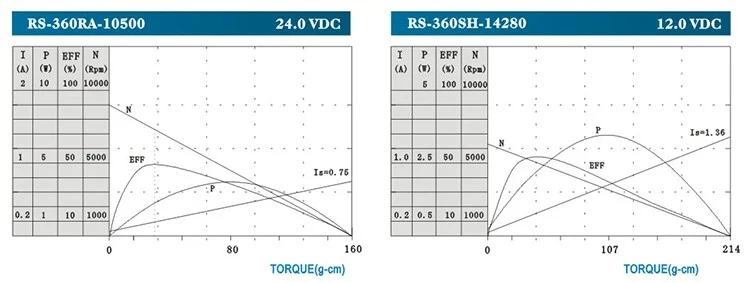

| RS-360RA-10500 | RS-360SA-21135 | RS-360SH-10500 | RS-360SH-14280 | ||
| Voltage | Operating range (V) | 12-30 | 6-15 | 12-30 | 8-30 |
| Nominal (V) | 24 | 12 | 24 | 12 | |
| No Load | Speed (r/min ) | 9000 | 13500 | 7000 | 6300 |
| Current (A) | 0.06 | 0.22 | 0.053 | 0.085 | |
| Maximum Efficiency | Speed (r/min) | 7310 | 10980 | 5600 | 5040 |
| Current (A) | 0.19 | 0.96 | 0.2 | 0.34 | |
| Torque (g.cm) | 30 | 70.8 | 45.9 | 42.8 | |
| Output (W) | 2.25 | 7.98 | 2.63 | 2.21 | |
| EFF (%) | 49 | 69.3 | 55 | 54.3 | |
| Stall | Torque (g.cm) | 160 | 380 | 230 | 214 |
| Current (A) | 0.75 | 4.2 | 0.79 | 1.36 |









Q1. Can you make a motor with custom specifications?
A1. Yes, of course.
Q2. Can you change the length of the shaft?
A2. Yes, and we made d-cut shaft, threaded shaft too.
Q3. Does the motor rotate in both directions (CW and CCW)?
A3. We can make it according to your needs.
Q4. What is delivery time for a sample?
A4. It depends, normally 1 week.
Q5. What is delivery time for mass production?
A5: 2 weeks after confirmation.
Q6. Do you have quality control?
A6: Yes, 100% inspection on all motors.
Q7. Do you have warranty?
A7: Yes, one year.
Q8: Are you a real factory?
A8: Yes, we are a manufacturer of 20 years.
Q9: How much does a sample cost?
A9: We provide free samples if no special demands on the motors. Customized design motors, we charge sample fee as well and refund the charge when mass production come.
Q10: What are your payment terms?
A10: TT, LC, DP etc. We can discuss about it.
Q11: Do you accept PayPal?
A11: Yes, but only for small orders and samples orders.
Q12: How do you handle shipment?
A12: a) For samples and small orders, we usd DHL, TNT,UPS express door to door.
b) For mass production, We prefer shipment by sea but it is not a must.
