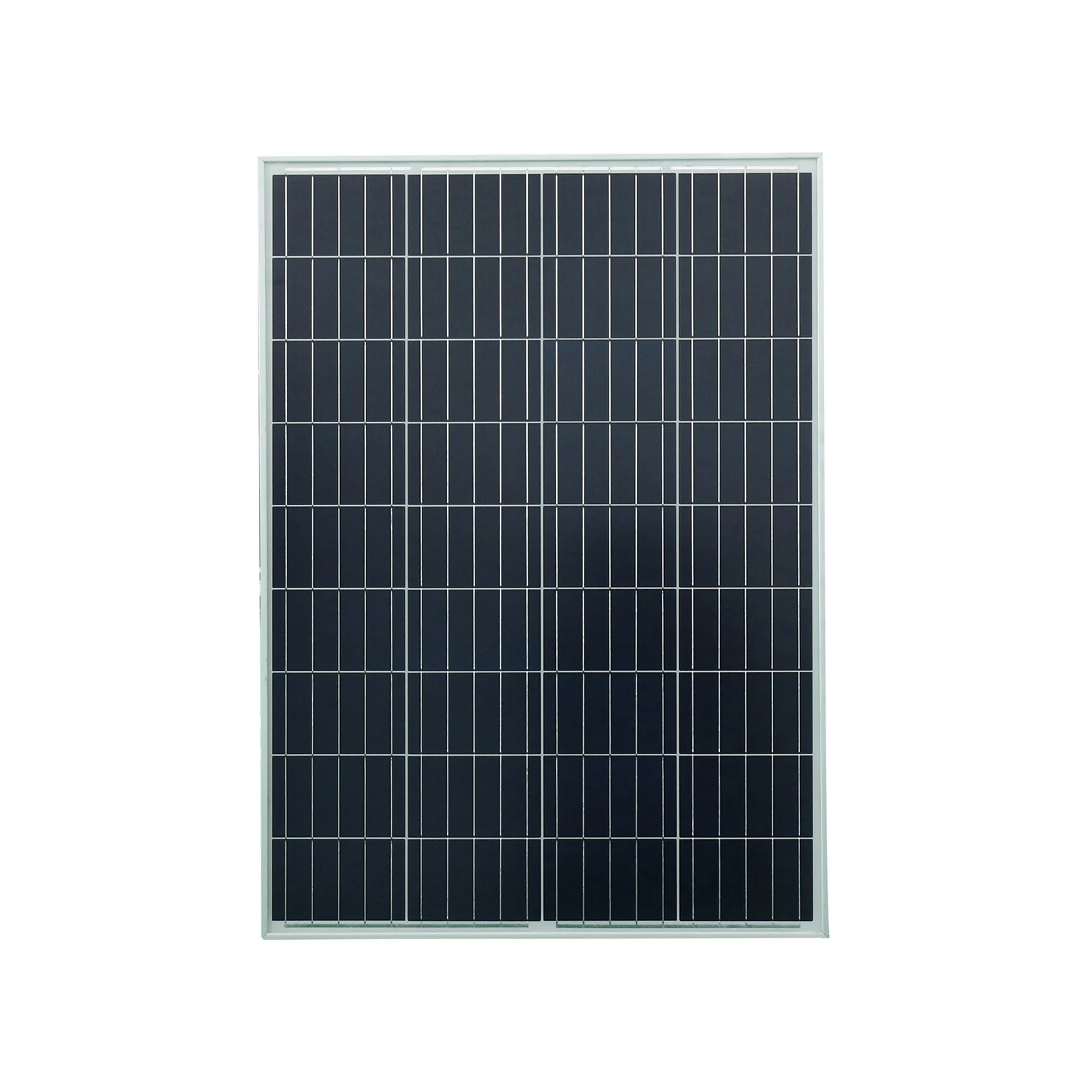

Поликристаллическая солнечная панель 60 ячеек 270 Вт 275 280 285

Поликристаллическая солнечная панель 60 ячеек 270 Вт 275 280 285

Категория: >>>
Поставщик: Shenzhen Topsky Energy Co. Ltd.

Цена:*

Количество:

В избранное

Описание и отзывы

Характеристики

Hi, I am Sunny chen. Thanks for your interesting

Tel:+86-13417506105

Whatsapp:+86-13417506105
Skype:topskysolar09
Email: sales09(at)topsky-tech.com
Website: //www.topsky-tech.com

Product Description

The power output shall not be less than 97.5% of the minimum power output stated in the product data sheet in the first year of the product's life cycle.The loss of power output shall not exceed 0.7% per year thereafter, ending with 80.7% in the 25th year.

Typical Mechanical Characteristics
Dimension	1640 x 992 x 35 mm
Weight	18.1 KG
Frame	Anodized Aluminum Profile
Front Glass	White Toughened Safety Glass, 3.2 mm
Cell Encapsulation	EVA
Back Sheet	Composite Film
Cells	6x10 Polycrystalline Solar Cells (5BB 156.75 x 156.75 mm)
Junction Box	Rated Current ≥ 13A, IP ≥ 67, TUV&UL
Cable	Length 900 mm, 1 x 4 mm²
Connector	Compatible with MC4

Electrical Characteristics at Standard Test Conditions (STC)
Module Type	CSUN 285-60P	CSUN 280-60P	CSUN 275-60P	CSUN 270-60P
Maximum Power - Pmpp (W)	285	280	275	270
Positive Power Tolerance	0~3%	0~3%	0~3%	0~3%
Open Circuit Voltage - Voc (V)	38.6	38.5	38.4	38.3
Short Circuit Current - Isc (A)	9.49	9.36	9.27	9.19
Maximum Power Voltage - Vmpp (V)	31.6	31.4	31.3	31.2
Maximum Power Current - Impp (A)	9.02	8.92	8.79	8.67
Module Efficiency	17.52%	17.21%	16.90%	16.60%
Electrical data relates to standard test conditions (STC) : irradiance 1000W /㎡ ; AM 1.5 ; cell temperature 25℃ measuring uncertainty of power is within ±3%. Certified in accordance with IEC61215, IEC 61730-1/2

Electrical Characteristics at Normal Operating Cell Temperature (NOCT)
Module Type	CSUN 285-60P	CSUN 280-60P	CSUN 275-60P	CSUN 270-60P
Maximum Power - Pmpp (W)	210	206	203	198
Maximum Power Voltage - Vmpp (V)	35.7	35.6	35.5	35.4
Maximum Power Current - Impp (A)	7.66	7.54	7.47	7.41
Open Circuit Voltage - Voc (V)	29.2	29.1	29.0	28.9
Short Circuit Current - Isc (A)	7.18	7.06	7.00	6.88
Electrical data relates to normal operating cell temperature (NOCT) : irradiance 800W /㎡ ; wind speed 1 m/s ; cell temperature 45℃ ; ambient temperature 20℃ measuring uncertainty of power is within ±3%

Temperature Characteristics			Maximum Ratings
Voltage Temperature Coefficient	-0.292%/K	Maximum System Voltage (V)	1000&1500
Current Temperature Coefficient	+0.045%/K	Series Fuse Rating (A)	20
Power Temperature Coefficient	-0.408%/K	Reverse Current Overload (A)	27

Packaging			System Design
Container 20'	360 pcs.	Temp. Range	-40℃ to +85℃
Container 40'	840pcs.	Hail	Max. diameter of 25mm with impact speed of 23m/s
Container 40'HC	910pcs.	Max. Capacity	Snow 5400 Pa, wind 2400 Pa
		Application Class	A
		Safety Class	Ⅱ
