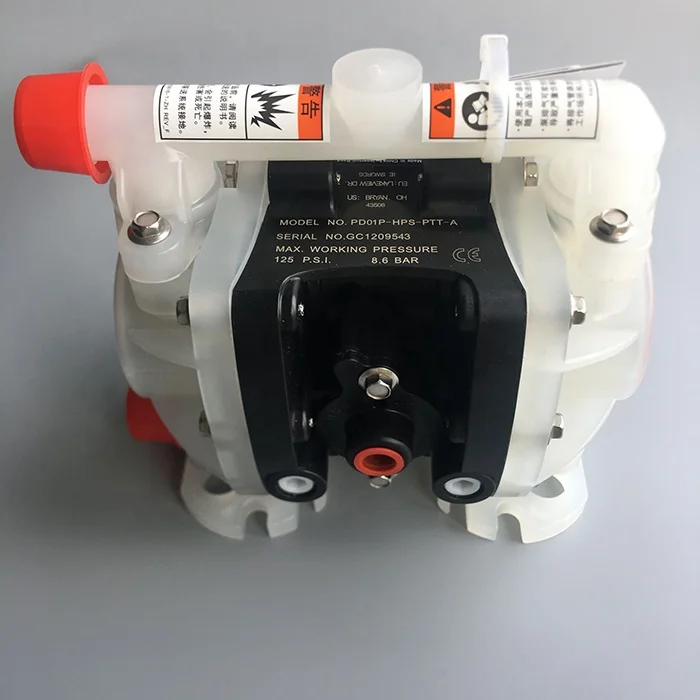

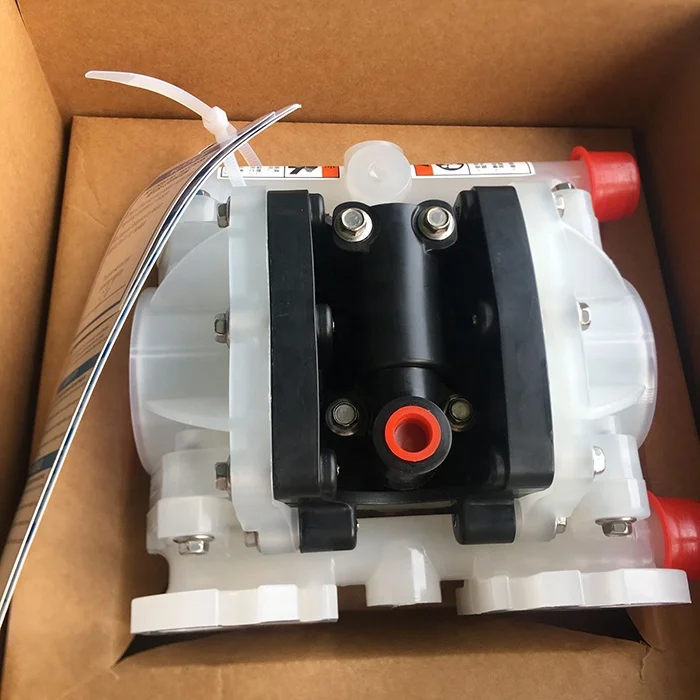

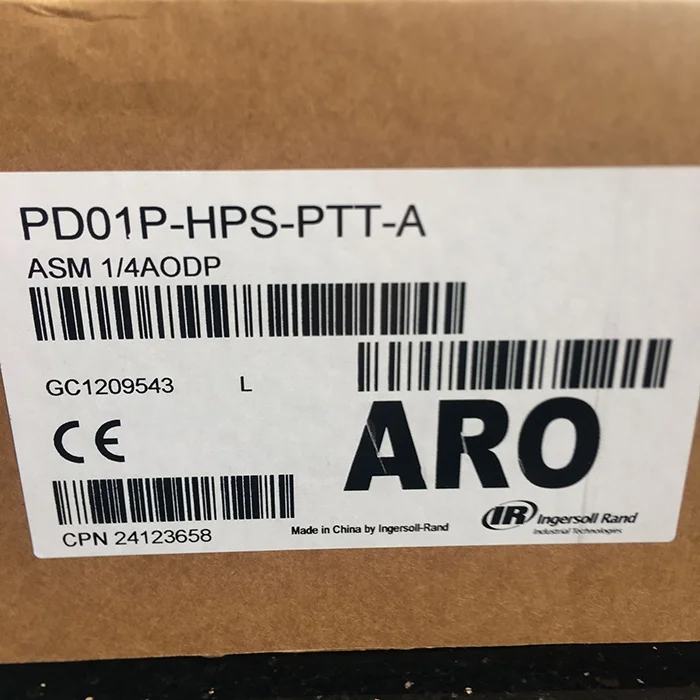

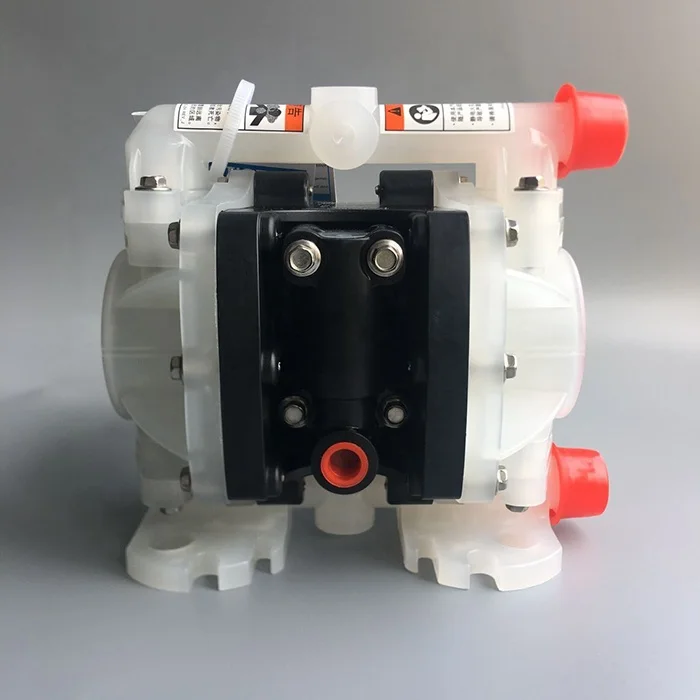

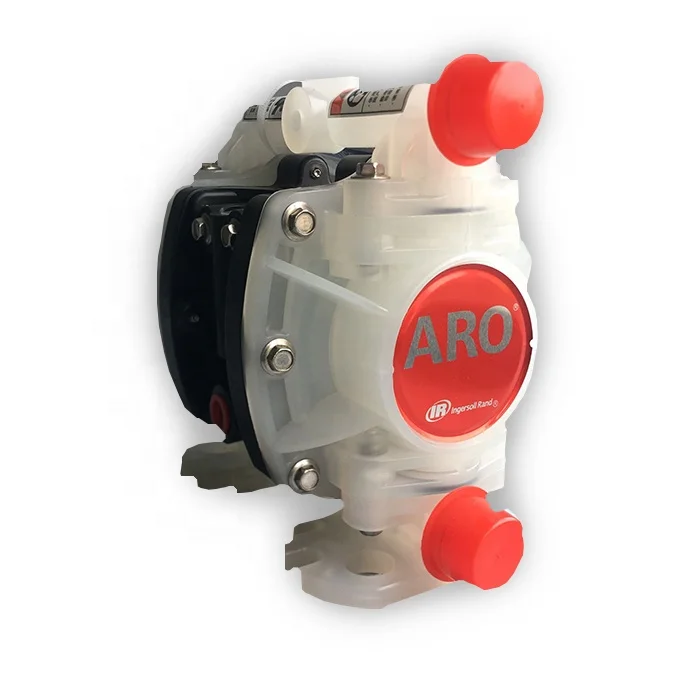

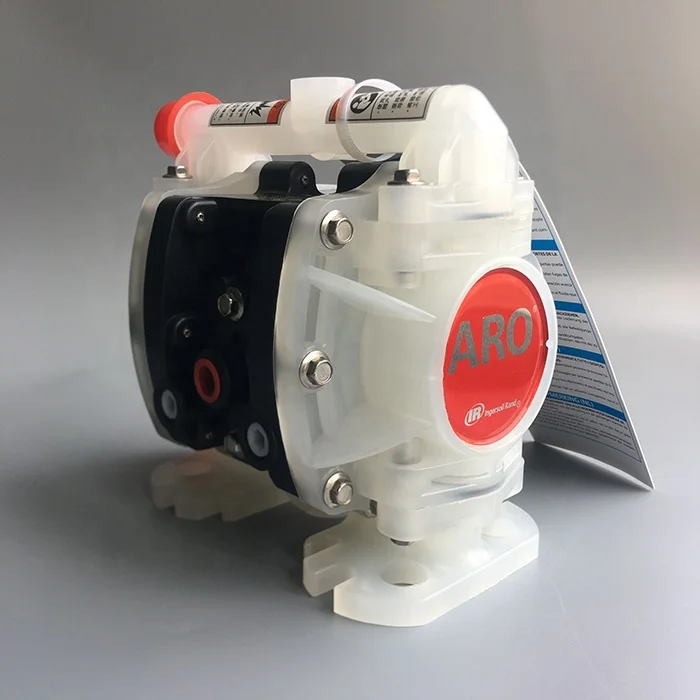

PD01P HPS PTT A ARO 1/4 дюйма Пневматический диафрагменный насос AODD

Описание и отзывы

Характеристики

PD01P-HPS-PCC-A ARO AODD Pneumatic diaphragm solvent transfer pump,mini positive displacement pump,solvent transfer

For detailed part numbers, prices, and inventory, please contact us.The above prices are for reference only.

Guangzhou Litai Machinery Equipment Co.,Ltd.

Mrs. Carrie:+86 138 2607 1186
Web:https://litipumps.en.alibaba.com
Address:510, Block A, Wanhao Wanjia, No. 3766 Huangpu East Road, Guangzhou, Guangdong, China 510760

1/4" Non-Metallic Diaphragm Pump

COMPACT SERIES PUMPS

Part of our Compact Series of pumps, our 1/4" pumps feature big performance in a compact package.They feature flow rates up to 5.3 GPM (20 LPM), a wide range of material options , multi-port versions and the unique hybird male/female threaded fluid connections.

Features

• Compact Design


• 360° Mounting Versatility optional flex checks


• Ideal for OEM Applications


• Creates a 31-feet of suction lift

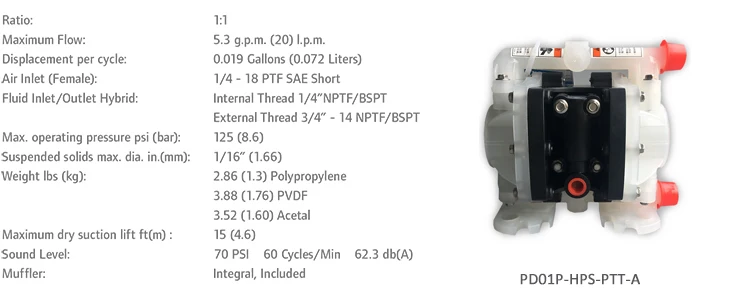

Specifications

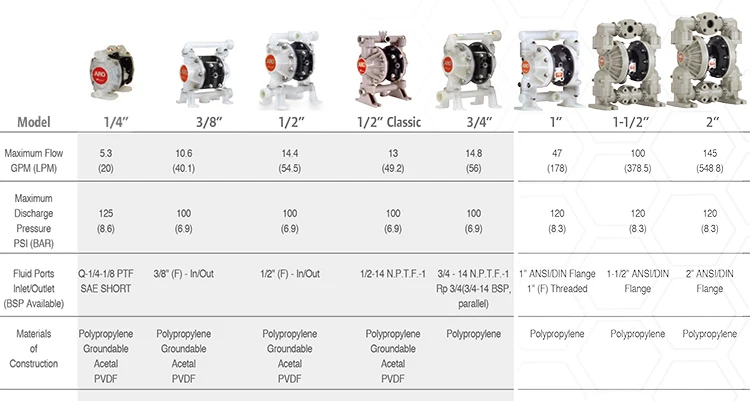

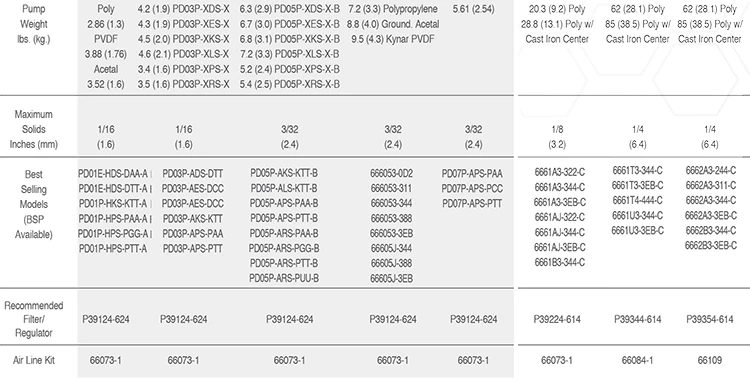

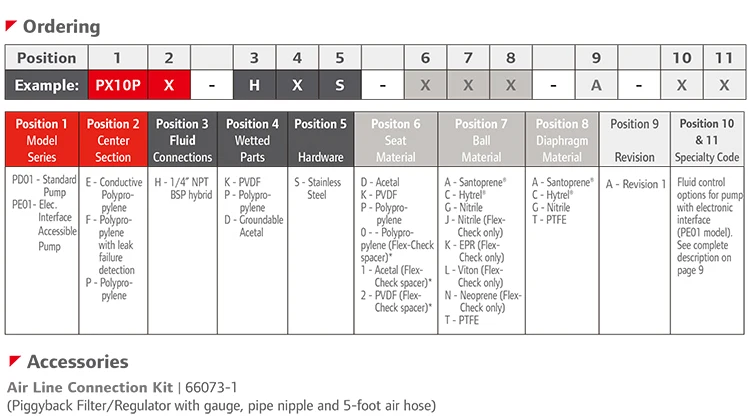

Description of most popular models

Pro Series Non-Metallic Model Diaphragm Pump Options Overview

ARO Pro Series air operated diaphragm pumps are ideal for general industrial and OEM installation applications. They can easily pump from clean, light viscosity fluids to corrosive, abrasive medium viscosity fluids and can transfer large particles without damage. Due to their pneumatic motor, they could be used in potentially explosive areas. Most of the ARO® diaphragm pumps are ATEX certified (CE Ex11 2GD X).

Our pumps offer the ability to vary the flow outlet and discharge pressure as slow as 0.26 gallons (1liter) per minute up to 275 gallons (1040 liter) per minute for our larger sizes and adjust fluid pressure up to 123 p.si. (8.5 bar), by using just an air filter / regulator and a needle valve.

Problems with Peristaltic Hose Pumps?

If peristaltic hose pump maintenance is giving your wallet the squeeze, diaphragm pumps could be a more cost-effective solution.

Centrifugal pump problems making you frustrated?
Tired of troubleshooting your centrifugal pump?
ARO^® AODD pumps have a wide variety of advantages that can solve many common centrifugal pump problems, including:

• Self-priming


• Deadheading without damage or energy use


• Wide reliable pressure and flow operating range


• Greater flow control


• More broad chemical compatibility and/or viscosity range


• Smaller footprint, size and weight


• Lower capital investment


• Process Ready standard on EXP Series

Centrifugal Pump Problems & AODD Solutions

If any of the applications or conditions outlined below are part of your process, an AODD pump probably should be considered.

These are five common issues or applications where an AODD pump could be a better solution.

• Shear Sensitive Liquids – Pumps tend to shear liquids more as speed is increased, and centrifugal pumps are high speed pumps. This makes an AODD pump a better choice to handle shear sensitive liquids. Diaphragm pumps operate at lower speeds, are gentler on products, and are usually preferred in these types of applications.


• Suction Lift Applications – AODD pumps are capable of creating a suction lift. Standard ANSI centrifugal pumps do not create a vacuum and cannot create a suction lift. Diaphragm pumps are the logical choice when a suction lift is required.


• Variations in Flow – Centrifugal pumps do not operate well when being run too far off the middle of the curve. If a lower or higher flow is needed, efficiency is reduced or can result in cavitation damage, shaft deflection, and premature pump failure. An AODD pump is well suited for varying flow.


• Variations in Pressure or Viscosity – AODD pumps have stall capability. If pumping pressure increases in an application, an AODD pump will easily dead head, or stop pumping. Meanwhile a centrifugal pump will continue to build pressure until something fails, the pump is severely damaged, or both. Some liquids can vary in viscosity due to temperature or chemical reaction. A rise in viscosity alter the flow rate, efficiency, and increase pressure. AODD pumps are the right choice for applications with viscosity fluctuations.


• Metering – AODD pumps are an ideal choice for metering applications. They deliver constant flow, allowing them to easily meet process requirements.

Guangzhou Litai Machinery Equipmeng Co.,Ltd. is a professional company specializing in fluid industry product supply and system technology services.

The main professiona agents sell products:

Pneumatic diaphragm pumps: imported pneumatic diaphragm pumps such as Sandpiper, Ovell, ARO, Wilden, Versa-Matic, VERDER, GRACO

Dosing pumps:NIKKISO, EIKO, PULSAFEEDER, MiltonRoy brand and other metering pump.

Barrel pumps: STANDARD

Q1: What's your business range?

A: Our professional agents, sales agents of various brands of metering pump, pneumatic diaphragm pump,barrel pump.

Q2: How about the quality of the managements?

A: We have a complete quality control system, all of our products will be fully pre-inspection by QC departments before shipping to you. We have the certification of ISO, CE, we could send the certification test of our company to you.

Q3: Can you offer OEM or design services?

A: Yes, we have our own design department and production tools. We can make OEM products according to your requirements.

Q4: What are your terms of payment ?

A: Generally,  dollar settlement. Very encouraging RMB settlement, so we can offer you some discounts. We could accept T/T, Paypal, Western Union, Credit Assurance.

Q5: What is the delivery time after payment?

A: Generally,we will arrange the shipment within 7 days after received payment.

Q6: How about warranty?

A: 12 months warranty.

For more favorable price and more comprehensive information,please contact us, we will provide the timely feedback!
