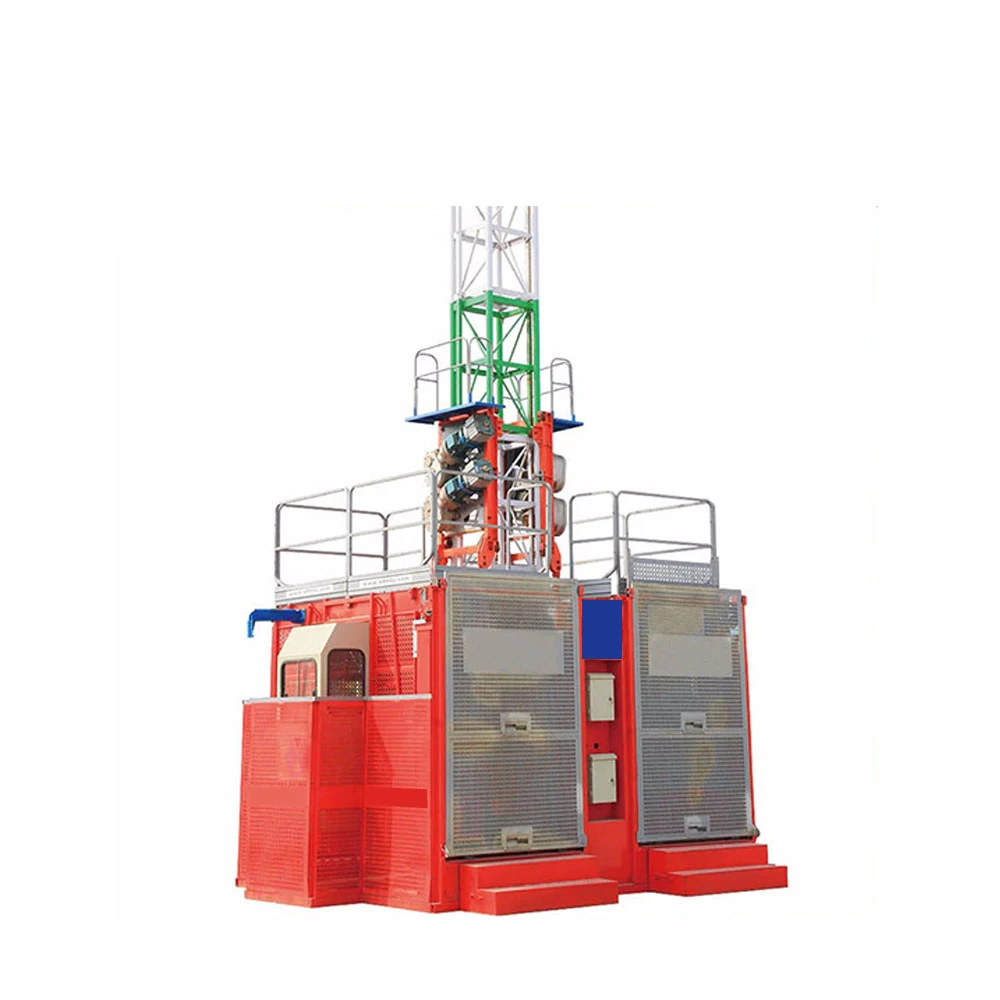

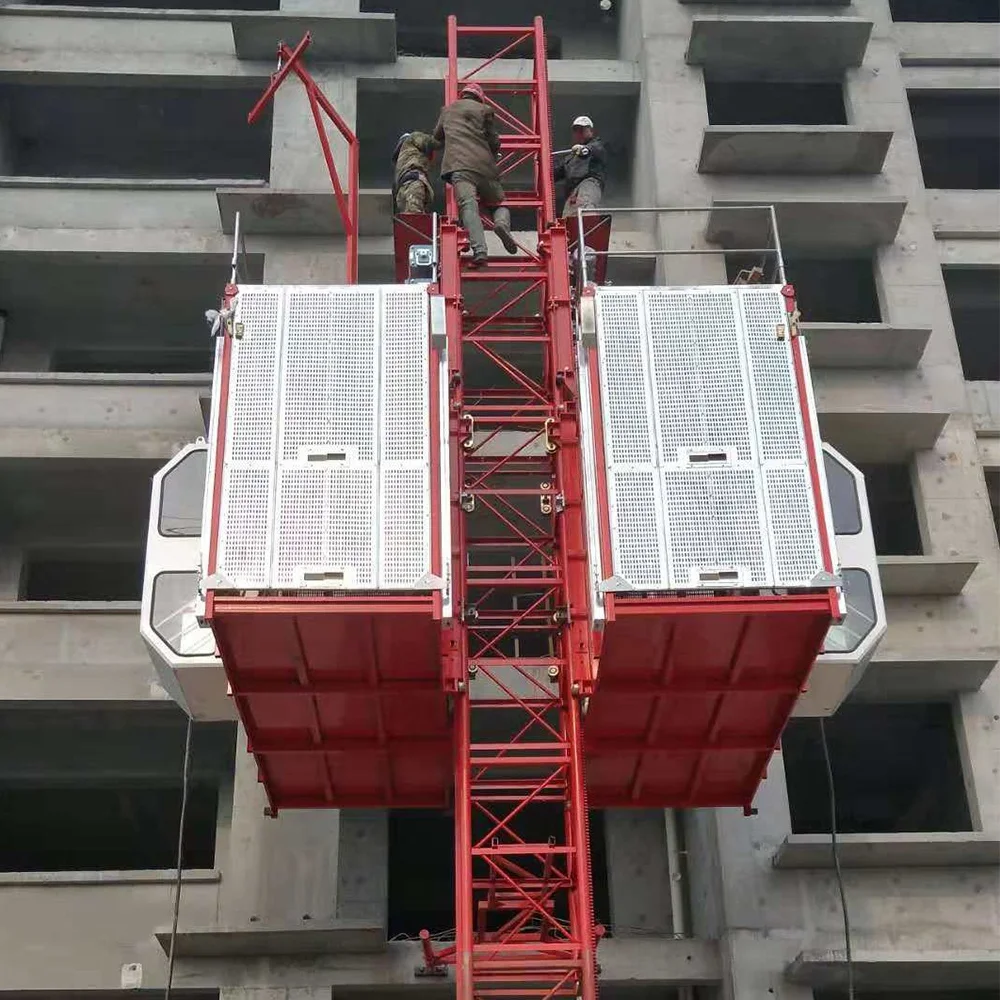

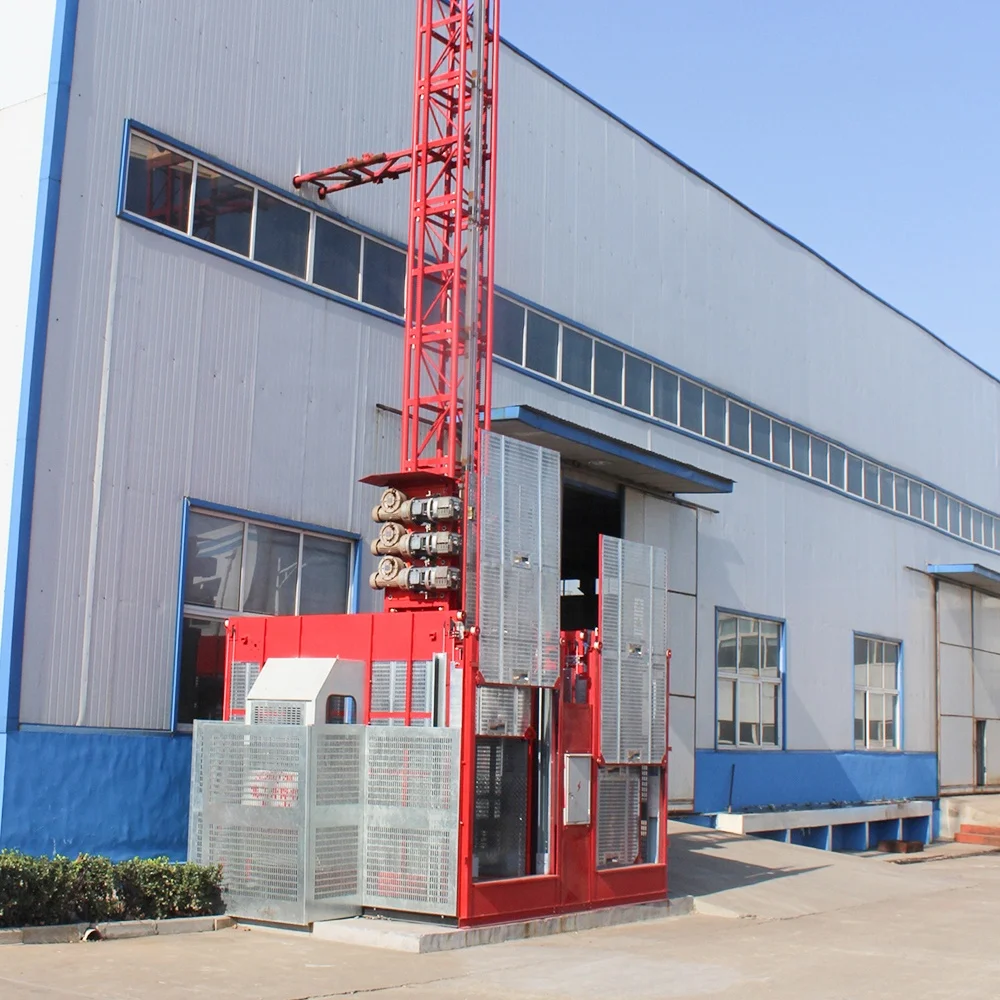

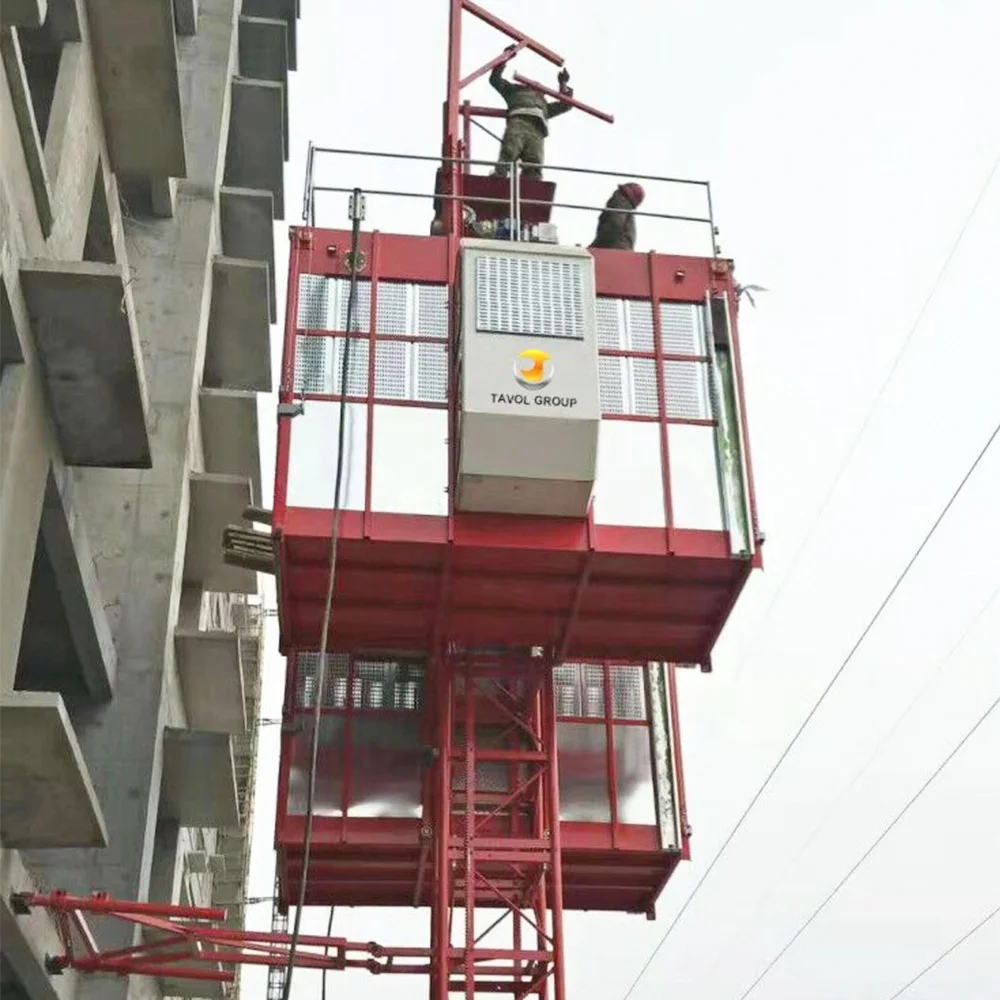

Строительный Лифт SC 200/200 строительный
- Категория: Строительные подъемники >>>
- Поставщик: Shandong Tavol Group Co. Ltd
Сохранить в закладки 62258549087:
Описание и отзывы
Характеристики
Related Products
Welcome to Contact
Ms. Kelley
slsl66 @ tavolgroup.com
Ms. Kelley
slsl66 @ tavolgroup.com
86 156 2134 6916
Main Parameters for Building Construction Hoist
1.High quality of motor, low noise
2.Strong load ability, low voltage start
3.Reasonable optimization design, compact structure, convenient installation and debugging
4.Running the lift elevator before the delivery
5.Driving mechanism refueling debugging, no need to refuel at site
6.Selects the high quality gear reducer and anti dropping device
2.Strong load ability, low voltage start
3.Reasonable optimization design, compact structure, convenient installation and debugging
4.Running the lift elevator before the delivery
5.Driving mechanism refueling debugging, no need to refuel at site
6.Selects the high quality gear reducer and anti dropping device
Item | Item | SC200/200 | SC100/100 | |
Basic parameters | Free standing height(m) | 50 | 24 | |
Max. Lifting height (m) | 150 | 100 | ||
3 | Rated load(Kg) | 2*2000 | 2*1000 | |
Motor power(Kw) | (2*3)*11 | 2*7.5 | ||
5 | Lifting speed(m/min) | 33 | 33 | |
6 | Main cable | 3×20mm2 +2(National standard) | 3×20mm2 +2(Nationals tandard) | |
Standard section | Mast size(mm) | 650×650×1508 | 650×650×1508 | |
8 | Main limb material(steel tube) | φ76×4.5/Q345B | φ76×4.2/Q345B | |
Cage | Cage inner dimensions(m) | 3×1.3×2.2 | 3×1.3×2 | |
Distribution Box
Motor
Falling Protector
Mast
Cage
Operation Board
Floor Cell Box
Trolley Wheel
Electric Cable
Details for Building Construction Hoist

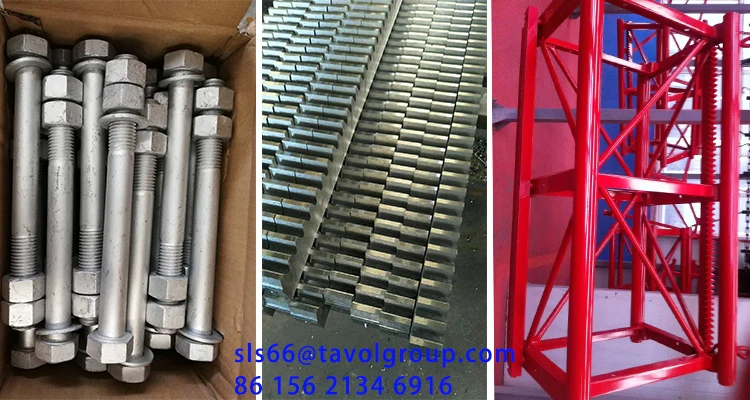

1. Steel Parts for Building Construction Hoist
1.1 Mast: 650L*650W*1508H mm
1.2 Main limb: φ76×4.5, Q345B steel
1.3 Frame: high strength 5mm steel plate bending and welding , with high strength and toughness
1.4 Gear: each mast equipped with 2 pcs of gear (raw material 60# steel )
1.5 Locating pin: The surface with filamentous, not easy to fall off, easy to install
1.6 High stengthen bolts: M24*240 , class 8.8. Each mast equipped with 4 sets of bolts .
1.2 Main limb: φ76×4.5, Q345B steel
1.3 Frame: high strength 5mm steel plate bending and welding , with high strength and toughness
1.4 Gear: each mast equipped with 2 pcs of gear (raw material 60# steel )
1.5 Locating pin: The surface with filamentous, not easy to fall off, easy to install
1.6 High stengthen bolts: M24*240 , class 8.8. Each mast equipped with 4 sets of bolts .

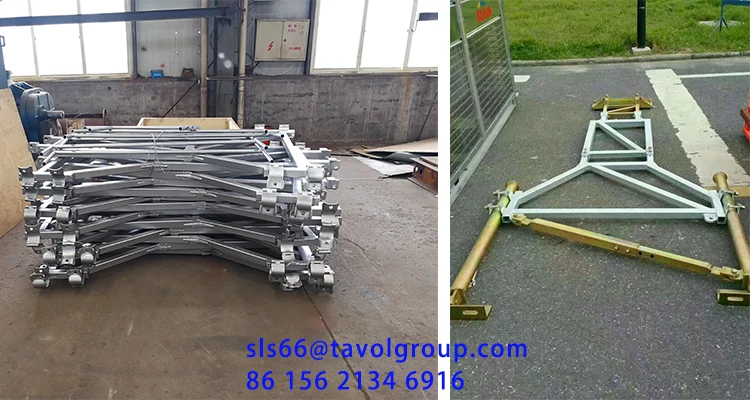

2. Wall Tie for Building Construction Hoist
Every 5 pcs of masts with 1 units of wall tie .
The distance from mast center to building is 3.2 to 3.6 m
The distance from mast center to building is 3.2 to 3.6 m

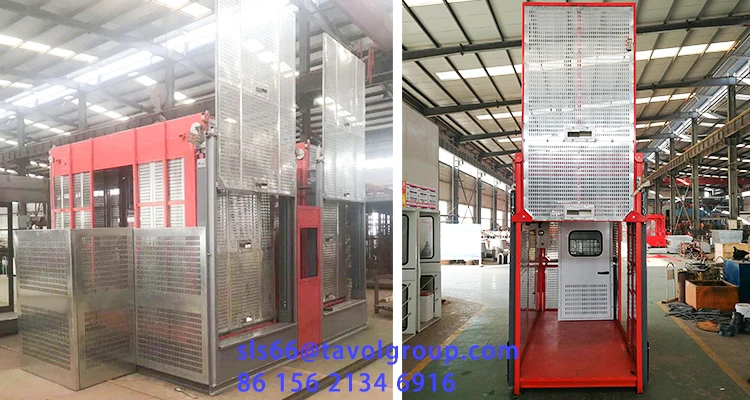

3. Cage for Construction Lifter
3.1 Mast: 3000L *1300W * 2400 H mm
3.2 Bottom floor: 4 mm checkered plate
3.3 Top roof: 4 mm checkered plate
3.4 Four sides wall: 6 mm steel plate
3.5 Decorative panel: Punched galvanized sheet, thickness 1.2mm
3.6 Safety device: JAQ4.0, each cage with 1 set of safety device .Above maintenance gate , easy to be maintenance
3.7 Limit switch: each cage has 1 unit
3.2 Bottom floor: 4 mm checkered plate
3.3 Top roof: 4 mm checkered plate
3.4 Four sides wall: 6 mm steel plate
3.5 Decorative panel: Punched galvanized sheet, thickness 1.2mm
3.6 Safety device: JAQ4.0, each cage with 1 set of safety device .Above maintenance gate , easy to be maintenance
3.7 Limit switch: each cage has 1 unit
4. Cabin for Construction Lifter
Each cage has 1 unit of cabin
4. Electric Box for Construction Lifter
4.1 Schneider contactor
4.2 Each cage with 1 unit of electric box
4.2 Each cage with 1 unit of electric box
5. Power Cable for Construction Lifter
Model 3*20mm2 + 2 , Chinese standard cable
6. Operate System for Building Construction Hoist
With weight display , current display , floor display , switch device, lighting device , electrolock device , emergency stop device , bell device , up/down device
Certifications

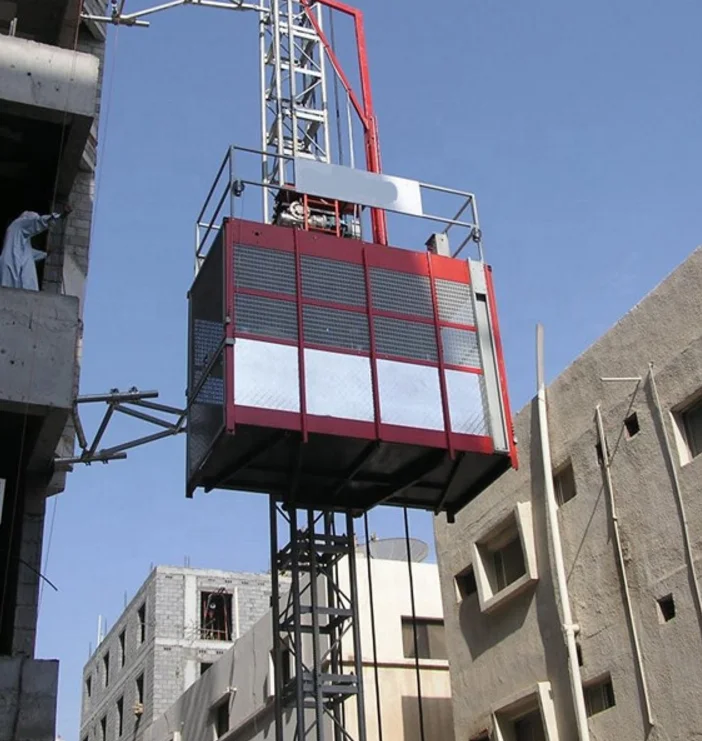

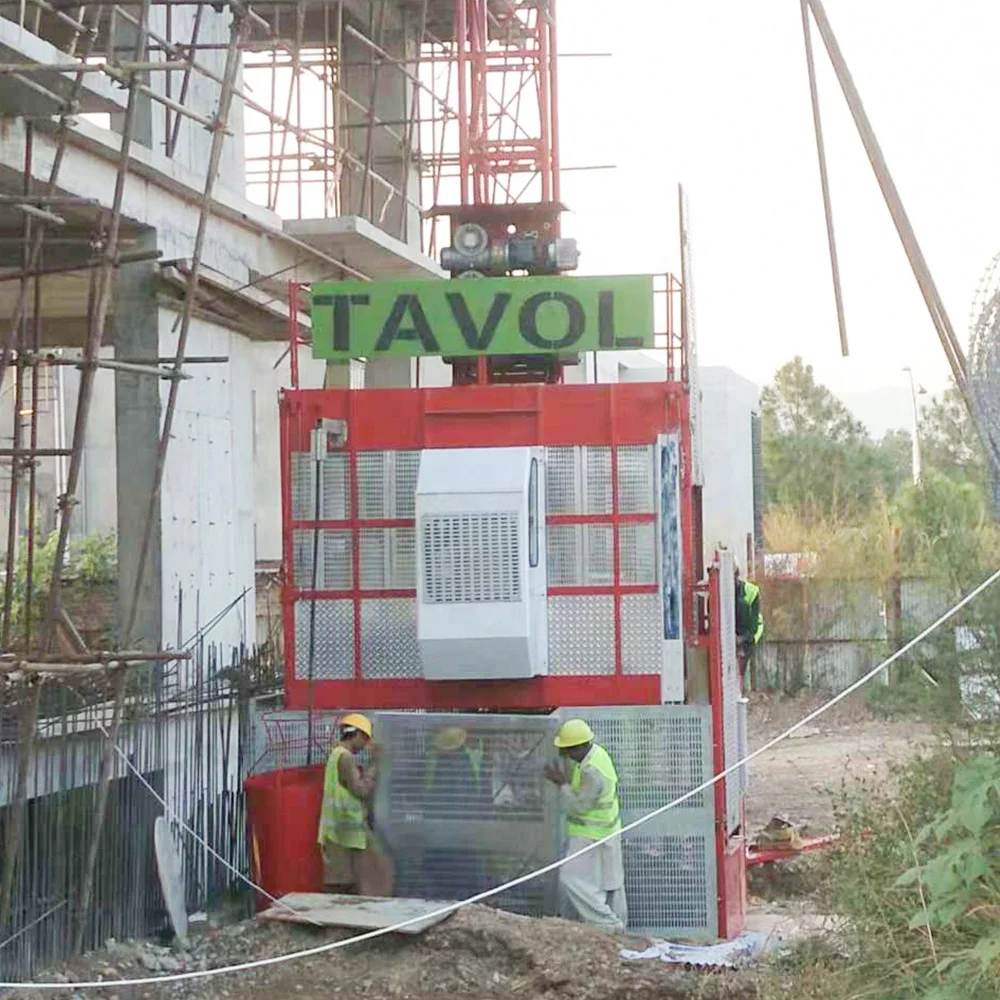

Successful Project
Project in Thailand
Project in Brazil
Project in India
Our Services
Pre-sale Service
1. We can customize products according to client's demand. Various types of construction lifts for your choice.
2. Good Quality & Factory Price & Quick Response & Reliable Service are what we are trying best to offer you
3. All of our products are produced by our professional workmen and we have high efficiency sales team, you can totally trust us.
4. We have more than 30 years experience in designing and manufacturing, we cherish every order from our honored clients.
After your selection
1. We will count cheapest shipping cost and make invoice to you at once.
2. Test each machine before delivery to ensure their quality, then send out to you after your payment.
After-sale Service
1. Our engineers are available to guide the operators abroad.
2. We are very glad that customer give us some suggestion for price and products.
3. If you have any question, please contact us freely by sls66 at tavolgroup.com or 86 156 2134 6916
1. We can customize products according to client's demand. Various types of construction lifts for your choice.
2. Good Quality & Factory Price & Quick Response & Reliable Service are what we are trying best to offer you
3. All of our products are produced by our professional workmen and we have high efficiency sales team, you can totally trust us.
4. We have more than 30 years experience in designing and manufacturing, we cherish every order from our honored clients.
After your selection
1. We will count cheapest shipping cost and make invoice to you at once.
2. Test each machine before delivery to ensure their quality, then send out to you after your payment.
After-sale Service
1. Our engineers are available to guide the operators abroad.
2. We are very glad that customer give us some suggestion for price and products.
3. If you have any question, please contact us freely by sls66 at tavolgroup.com or 86 156 2134 6916
Company information
Tavol Cranes Group is the professional crane and lift platform manufacturer in China .
We design, manufacture, installation, repair, maintenance, trade and export following products:
+ Overhead Crane, Gantry Crane etc
+ Top Kit Tower Crane and Flat Top Tower Crane etc
+ Material Building Elevator, Passenger& Material Building Elevator etc
+ Electric Walking Scissor Lift, Stationary Scissor Lift, Warehouse Cargo lift, Dock Ramp etc
+ Overhead Crane, Gantry Crane etc
+ Top Kit Tower Crane and Flat Top Tower Crane etc
+ Material Building Elevator, Passenger& Material Building Elevator etc
+ Electric Walking Scissor Lift, Stationary Scissor Lift, Warehouse Cargo lift, Dock Ramp etc
If you have any question, please contact us freely by sls66 at tavolgroup.com or 86 156 2134 6916
We are sure we will be your best choice .
We are sure we will be your best choice .
Contact Us
If you are interested in the Construction Lift, please no hesitate to contact us with following parameters:
1.Load capacity?
2.Single cage or double cage?
3.Building height?
Welcome to Contact
Ms Kelley
+86 156 2134 6916
sls66 (at) tavolgroup. com
1.Load capacity?
2.Single cage or double cage?
3.Building height?
Welcome to Contact
Ms Kelley
+86 156 2134 6916
sls66 (at) tavolgroup. com
