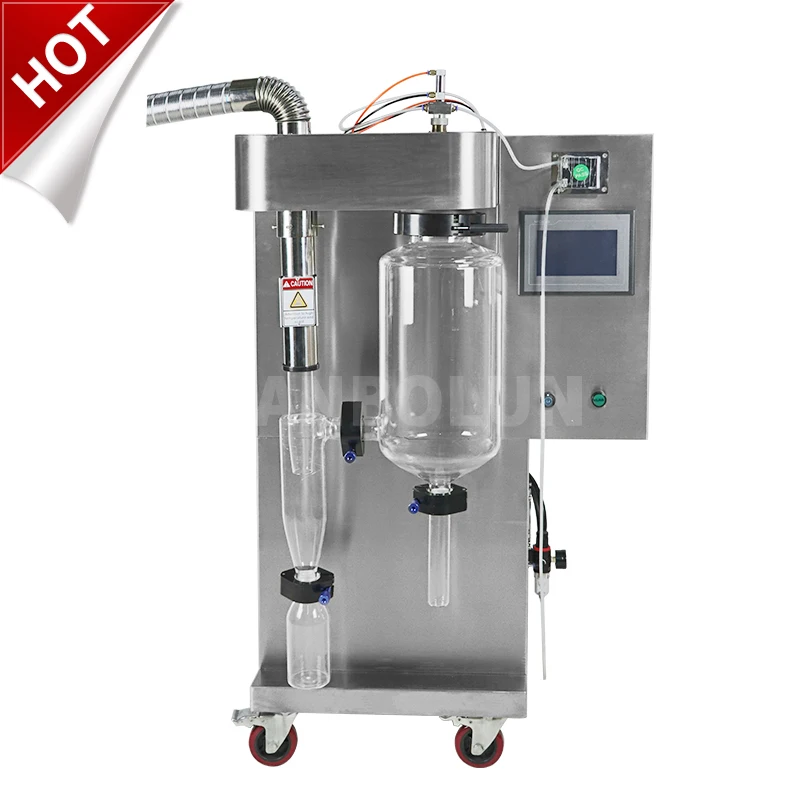

Лучшее качество яичный порошок распылительная сушилка/яйцо мощность спрей сушка/яйцо мощность делая машину
13 000,00 $
Миниатюрная керамическая графеновая сушильная машина Lab 1 5 2L сушилка для яиц кофе чая молока порошка
- Категория: Spray Drying Equipment >>>
- Поставщик: Xiamen Ollital Technology Co. Ltd.
Сохранить в закладки 62260015424:
Описание и отзывы
Характеристики
Product Description
Spray drying machine is especially suitable for drying the heat sensitive materials, after drying, there's no need for smashing and sorting, so as to reduce the operation procedures and save your time.
Product parameters
Model | OLT-SD8000B |
Max capacity | 1500-2000ml/h |
Temperature range of Inlet air | 30C -300C |
Temperature range of outlet air | 40C -120C |
Precision of temperature | ± 1 C |
Dryer time | 1.0-1.5 S |
Speed of squirmy pump | 30-2000ml/h |
Consume of dryer air | 0-330m3 /h, max pressure: 686Pa |
Consume of spray air | 0-4.2m3 /h, spray pressure: 2-5bar |
Spray system | 2 liquid nozzles with standard 1.0mm jet options of 0.5/0.7/1.5/2.0/2.5mm |
Spray direction | Downwards co-current |
Power | 4.5KW 108V-240V |
Equipment size (L * W* H) | 650*850*1380mm |
Net weight | 100KG |
Package Size (L * W* H) | 700*900*1500mm |
Gross weight | 125KG |
Main Features
1. High efficient jet imported. 2. LCD touch screen displays temperature, airflow, air pressure, pump speed and jet cleaner
frequency.
3. Auto controlling: one touch on/off, once processing parameters are set, peristaltic pump will be auto started; screen displays animation of the whole process of experiment.
4. Manual controlling is available, be able to adjust technical parameters during the process of experiment.
5. With jet cleaner (stylet), its frequency can be automatically adjusted.
6. Power off thermal-protection, push off button and the equipment will stop at once, except draught fan, make sure equipment won't be burned out by incorrect operation (Forcibly shut fan).
7. Spray chamber, cyclone separator, and receiving tank are all made of transparent heat-resistant high-borosilicate glass; it creates a no-pollution environment for the drying process. All the spare parts are easy to install and wash.
8. Build in oil-free air compressor. The sound is low than 60db, and following the GMP standards.
9. Two-flow spray atomizing structure, whole machine is made of high quality stainless steel, compact design no accessory equipment is needed.
10. Use PID controller, the accuracy of heating temperature is around±1°C.
11. A filter has been equipped to the inlet unit to prevent the sample from contamination.
12. The self-priming peristaltic pump delivers the sample liquid from a container through a small diameter jet into the main chamber to avoid secondary pollution. To make sure the process conducted steady and smoothly.
13. Narrow size distribution, more than 95% of the dry powders are in the same range of particles.
14. Automatic jet cleaner (stylet) prevents the jet from becoming blocked and variably controlled.
15. Innovative tower wall purging device, improves the material recycling rate.
frequency.
3. Auto controlling: one touch on/off, once processing parameters are set, peristaltic pump will be auto started; screen displays animation of the whole process of experiment.
4. Manual controlling is available, be able to adjust technical parameters during the process of experiment.
5. With jet cleaner (stylet), its frequency can be automatically adjusted.
6. Power off thermal-protection, push off button and the equipment will stop at once, except draught fan, make sure equipment won't be burned out by incorrect operation (Forcibly shut fan).
7. Spray chamber, cyclone separator, and receiving tank are all made of transparent heat-resistant high-borosilicate glass; it creates a no-pollution environment for the drying process. All the spare parts are easy to install and wash.
8. Build in oil-free air compressor. The sound is low than 60db, and following the GMP standards.
9. Two-flow spray atomizing structure, whole machine is made of high quality stainless steel, compact design no accessory equipment is needed.
10. Use PID controller, the accuracy of heating temperature is around±1°C.
11. A filter has been equipped to the inlet unit to prevent the sample from contamination.
12. The self-priming peristaltic pump delivers the sample liquid from a container through a small diameter jet into the main chamber to avoid secondary pollution. To make sure the process conducted steady and smoothly.
13. Narrow size distribution, more than 95% of the dry powders are in the same range of particles.
14. Automatic jet cleaner (stylet) prevents the jet from becoming blocked and variably controlled.
15. Innovative tower wall purging device, improves the material recycling rate.
Applications
1. Chemical industry:hydrated silica, concrete additives, barium sulfate, basic chromic sulfate, alumina, titania, kaolin,
ferrite, steatite, carbide, fertilizers, dyes, scouring agents, ACR assistants, latex, water purifiers, resins, plastics,cryolite.
2. Food Industry: dextrin, maltose, albumen powder, vitelline powder, compound sugar, granular grease, instant coffee,
amylum,flavors, garden stuff. It is applied in drying of some kinds of liquid material, such as solutions, emulsions,
suspensions,liquid pastes, etc.
3. Dairy: skim milk powder, whole milk powder, soy milk powder, ice cream powder, milk extract powder, etc.
4. Pharmaceutical industry: Chinese drugs and western medicine powder, antibiotics, biochemical products, vitamins,
pesticides,hydrolyzed proteins, enzymes, single cell proteins, etc.
5. Building material industry: ceramic body, frit, superfine powder.
6. Environmental protection: flue gas desulfurization, disposal of black liquor and wastewater of pharmaceutical factories.
7. Others: fishmeal waste, feed, etc.
ferrite, steatite, carbide, fertilizers, dyes, scouring agents, ACR assistants, latex, water purifiers, resins, plastics,cryolite.
2. Food Industry: dextrin, maltose, albumen powder, vitelline powder, compound sugar, granular grease, instant coffee,
amylum,flavors, garden stuff. It is applied in drying of some kinds of liquid material, such as solutions, emulsions,
suspensions,liquid pastes, etc.
3. Dairy: skim milk powder, whole milk powder, soy milk powder, ice cream powder, milk extract powder, etc.
4. Pharmaceutical industry: Chinese drugs and western medicine powder, antibiotics, biochemical products, vitamins,
pesticides,hydrolyzed proteins, enzymes, single cell proteins, etc.
5. Building material industry: ceramic body, frit, superfine powder.
6. Environmental protection: flue gas desulfurization, disposal of black liquor and wastewater of pharmaceutical factories.
7. Others: fishmeal waste, feed, etc.
Detailed Images
Accessories
No | Name | Quantity |
1 | Drying Chamber | 1 |
2 | Cyclone | 1 |
3 | Fan | 1 |
4 | Peristaltic pump | 1 |
5 | Air compressor | 1 |
6 | Collection bottle 500ml | 1 |
7 | Sample collection tube | 1 |
8 | Silicone tube 6mm | 1 |
9 | Nozzle | 1 |
10 | Black Clamp | 1 |
11 | Nozzle cleaner | 1 |
12 | Power wire | 1 |
Company Profile
Packing & Delivery
