New Arrival 170Degree Wide Angle Cctv Network Eye Video Peephole Wifi Door Camera Ip Wireless Motion Detection Alarm
Note: with 2 Way audio/tf card slot ,support on vif P2P ,rtsp !
Two Way Audio
When surveillance videos can't satisfy you, we provide you real-time two-way audio. Camera is built with microphone and speaker. So you can talk to your kids via your smartphone remotely whenever you want.
This models is an Special Mini IP Camera With Unique IPC Board ,it is Custom Made for other client !
So the senor is IMX307E +XM530 Dsp ,It is an ordinary Chip and Senor,1080p real HD starlight ,with 1920*1080P video record 25fps pal .ntsc 30fps
it iswidely used inHelmet , Industrial equipment, medical instrument , Laboratory Instruments etc.
in addation ,the camera support P2P On vif compatible with NVR ,such as xiongmai . Da hua .Hik vision NVR etc
for more products infomation ,pls go to our store page !
if you have other requirement ,welcome contact with us free !
Built-in Microphone
Access the camera through the APP and observe the activities outside the house at any time.
Support iCSEE APP
Connect the camera via APP's WIFI and local mode
Please follow the steps below.
Customizable Motion Detection Events
You can createmultiple motion detection settings for camera, including Human Body Detection,Line Crossing Detection, Intrusion Detection and Specific Region Detection.
Motion Detection & Email Alert & Alarm Sound
When someone breaks into shooting area, the camera will make alarm sound and alarm messages will be pushed to your Phone APP.
Support Xmeye NVR
VMS:
Local Website:
Smartphone Setting
Downloaded On Phone(IOS&Android)
APP :XMEyeoriCSee
H.265 advantages
1. It is approximate 2 times as effective as H.264.
2. Reduces file size up to 50% with the same quality.
3. Supports resolution up to 7680 × 4320 (8K).
4. Reduces video noise and increases dynamic range.
5. Extend far greater video quality experience compared to H.264
Features:
1. H.265 2MP
2. H.265support dual-stream,AVI;0.1M~8Mpbs variable;1~30f/s variable;
3. Color 0.1Lux; B/W 0.01Lux;
4. 1 RJ45 Ethernet interface, 10/100M automatically adapting;
5. Support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc network protocol;
6. Support ON VIF, and mobile monitoring;
7. Metal case.
Specification :
| Specification | ||||
| Model NO. | GS-S2AD166WTCMFE | |||
| System | ||||
| Operating system | Embedded RTOS,dual-core 32bit DSP,pure hard compression ,watch dog | |||
| Video | ||||
| Sensor/DSP | 1/2.8" IMX307E CMOS StarLight image sensor | |||
| Max.image Resolution | 1920*1080P 2.1Megapixel | |||
| Frame Rate | PAL 25fps @ 1080P ,NTSC 30fps @ 1080P | |||
| Main Stream | 1920x1080P | |||
| Sub Stream | D1 CIF 704 × 576; 352 × 288 | |||
| Compression | H.265x | |||
| Door Lens | 1.66mm Lens 160Degree | |||
| Min. Illumination | Color 0.001Lux; B/W 0.01Lux; | |||
| Noise reduction | Support 2D/3D | |||
| Night Vision | N/A/lens with 650nm IR filter | |||
| Storage | Via PC/Mobile Phone/NVR With HDD/TF Card slot | |||
| Electronic Shutter | 1/20~1/30000s | |||
| Wide dynamic | Support digital | |||
| APP | XMEYE/ICSEE | |||
| Adudio | ||||
| Audio Input | with audio ,microphone build outside(2 way audio) | |||
| Network | ||||
| Interface | 5V Port+reset +tf card slot | |||
| Protocol | support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc | |||
| Compliance | ON VIF Profile S | |||
| PC Client and Browser | IE6.0 and above,, Mozilla Firefox, m ac Safari | |||
| Mobile device | i phone, i pad, Android Phone, Tablets | |||
| WIFI | yes, IEEE 802.11 b/g/n | |||
| PoE | Optional | |||
| Reliability | Comprehensive lightning protection, in line with national and international standards; 7 * 24 hours 65’C high temperature stable and reliable testing (including mounted m achine testing) | |||
| ELECTRICAL | ||||
| Power Consumption | 1.8W | |||
| Adapter Requirement | 5V 2A | |||
| General | ||||
| Ingress Protection | IP54 | |||

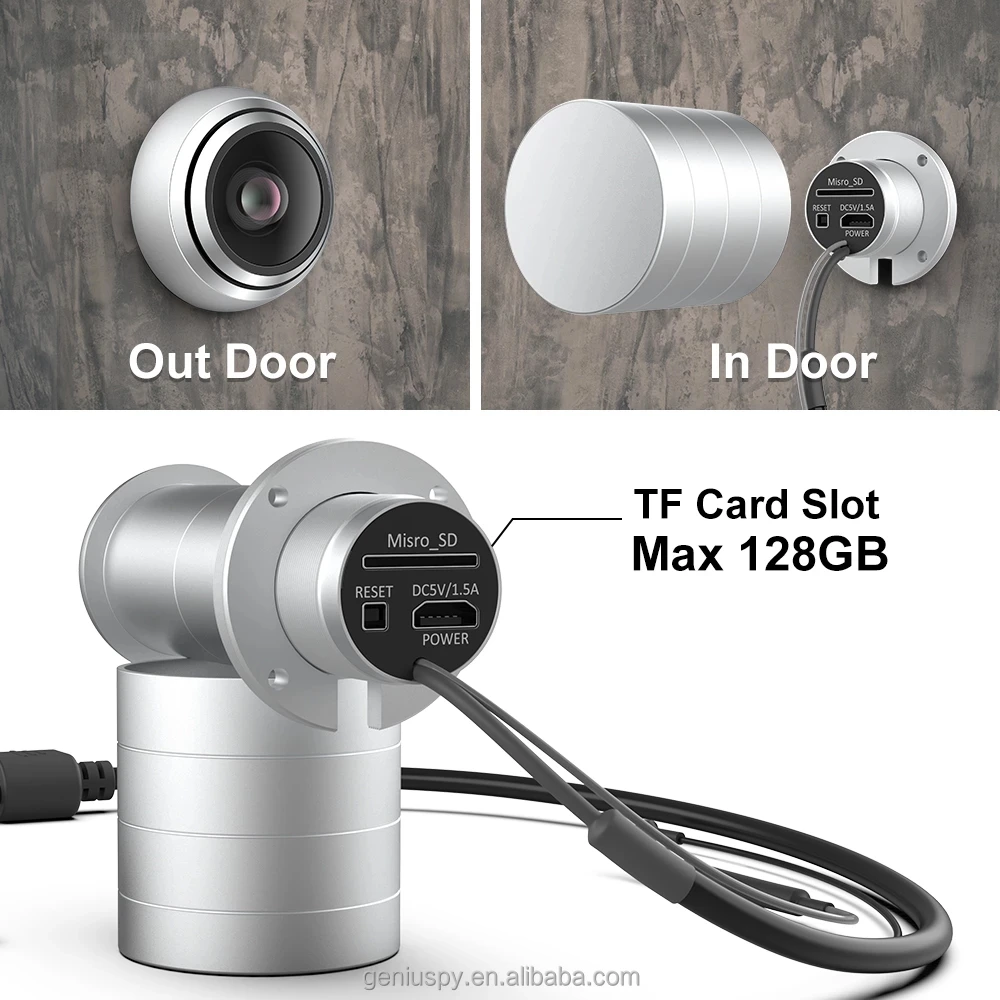

| TF Card Storage | max support 128gb | |||
| Working Temps | –20°c~70°c | |||
| Working Humidity | 20%~85% (non condensation) | |||
| Reset | support | |||
| Camera Size | / | |||
| Net weight | 0.35Kg | |||
| Gross weight | 0.55Kg | |||
| Software Download | http: //www.xiongmaitech.com/en/index.php/service/down/83 | |||
| SDK Download | http: //open.xmeye.net/en/en | |||
| Notice: | For More Models pls search''geniu''in alibaba Site | |||
Q & A
1, IP camera default IP address:192.168.1.XXX
User name:admin,password:empty(null)
If there is a problem with "Can not find the Device", it is the default ip address is not in the same network segment as your router.
Please click "Edit Device" to change the camera's ip address,
For example, if your router's ip address is 192.168.0.1, then you need to change the camera's ip address to 192.168.0.XX.
"DeviceManage" It can find and change the IP address, upgrade the firmware.
2, P2P website: "www.xmeye.net" ,please use IE and install ActiveX,only IE supports Multi Language.Chrome,Safari just support Chinese .
then please input your P2P ID,user name and password to login and preview.
Access to the IPC through the web, only one screen can be displayed.
There are multiple IPC, please use client software to manage(such as: CMS VMS SNVR)
3,The camera's port information.
ON VIF 2.0 Port 8899 ;RTSP Port 554 ;HTTP Port 80;Media Port 34567;E-mail default port 25; SLL protocol Port 465.
4,Does the cameras can be compatible with other manufacturers NVR?
Please confirm whether other manufacturers NVR support on vif protocol.
Our camera's on vif protocol is on vif Profile S, does not support HTTPS protocol;
Auto focus camera, other manufacturers NVR can only zoom, can not focus.
5, The camera all supports Motion Detect,FTP,Email alarm, RTSP.
A,How to set up motion detection?
Access to IPC via IE (or CMS software), device configuration - alarm function - motion detection - on and save.
B, About FTP
FTP upload video and pictures, pictures will always upload, video files larger, after the alarm, the video file will be completed to upload.
We suggest the Sever-U and FileZilla FTP Server to upload the video or image.
C,For the Email alarm,please use Email server which supports SMTP ( Hotmail ,Yahoo not support SMTP ,it not supports Gmail temperately since the server problem ) .
D, RTSP URL for VLC media Player :
RTSP port: 554
rtsp: // (IP): (PORT) / user = (USER) & password = (PWD) & channel = (Channel) & stream = (Stream) .sdp? Real_stream
Example:
rtsp: //10.6.10.25: 554 / user = admin & password = & channel = 1 & stream = 0.sdp? Real_stream (stream = 0 primary stream 1 auxiliary stream)
If it is through the public network need to RTSP port open (default is 554), the port in the network service-RTSP can be set
6, About DDNS
Mapped media TCP port: 34567 and HTTP port: 80 (Note: mapping need to be changed to non-80)
Note: The two ports in the network settings can be viewed, can be modified
What domain names are supported?
- CN99 / DynDns / Oray / NO-IP / MYQ-SEE
7.
Q:When I finish the steps to add the camera to the CMS list,why it notify “ Can’t find the Device “ even I can see the default ip address 192.168.1.10 in the menu .
F: It is the IP Address conflict ,the default ip address is not in the same network segment as your router.
Please click “Edit Device “ to change the camera’s ip address to make them in the same network segment !
For example ,if your router’s ip address is 192.168.0.1 ,then you need to change the camera’s ip address to 192.168.0.XX .
Package contents:
1 x Camera 1x Adapter 1 x English User Manual
Notice :Dear,all customer ,because cd disk is easy damaged by rude transport and Most
of the Customer ‘s Computer Without CD CD-ROM disk drive,it is hard to copy the files
from the CD Disk! In addation ,the CD Disk Polluting the environment after used !
Software will be sent to your emails or leave message in aliexpress when you paid!pls contact with our SALES team if you need !
To Customers :
Thanks for your attention to our products.if you have any question ,pls fell free to contact with us !
we will replyed you within 24hours!!!
