Product Description
SFU Ball Screw
Products Features
Dewo Ball Screw that achieves low noise, small torque fluctuations and long-term maintenance-free operation by using a ball cage. Using a screw shaft ground to high accuracy. In the DIN standard compliant Ball Screw, balls under a load roll in the raceway cut between the screw shaft and the nut while receiving the axial load, travel along the groove of a deflector embedded inside the nut to the adjacent raceway, and then circulate back to the loaded area. Thus, the balls perform infinite rolling motion.
Advantages
1,High Precision
2,Heavy Load
3,High efficiency and reversibility
Dewo Ball Screw that achieves low noise, small torque fluctuations and long-term maintenance-free operation by using a ball cage.
Specification:
| Specification model | Nominal diameter | Nominal guide | Steel ball diameter | Flange type | Number of cycles | D(g6) | D1 | D2 | D3 | L | B | G | H | Dynamic load Ca | Static load |
| SFU01204-3 | 12 | 4 | 2.38 | d<=32 | 3 | 22 | 42 | 32 | 4.8 | 35 | 8 | M6 | 30 | 4 | 6.7 |
| SFU01604-3 | 16 | 4 | 2.38 | d<=32 | 3 | 28 | 48 | 38 | 5.5 | 36 | 10 | M6 | 40 | 4.35 | 9.2 |
| SFU01605-3 | 16 | 5 | 3.18 | d<=32 | 3 | 28 | 48 | 38 | 5.5 | 42/44 | 10 | M6 | 40 | 7.65 | 13.2 |
| SFU01605-4 (Waist type) | 16 | 5 | 3.18 | d<=32 | 4 | 28 | 48 | 38 | 5.5 | 50 | 10 | M6 | 40 | 7.65 | 13.2 |
| SFU01610-4 | 16 | 10 | 2.78 | d<=32 | 2(Double head) | 28 | 48 | 38 | 5.5 | 42/44 | 10 | M6 | 40 | 7.36 | 12.8 |
| SFU02005-3 | 20 | 5 | 3.18 | d<=32 | 3 | 36 | 58 | 47 | 6.7 | 42/44 | 10 | M6 | 40 | 8.6 | 17.1 |
| SFU02510-3 | 25 | 10 | 4.76 | d<=32 | 3 | 40 | 62 | 51 | 51 | 85 | 15 | M6 | 44 | 8.7 | 20.5 |
| SFU02510-4 (Waist type) | 25 | 10 | 4.76 | d<=32 | 4 | 40 | 62 | 51 | 6.8 | 85 | 15 | M6 | 48 | 8.7 | 20.5 |
| SFU03205-3 | 32 | 5 | 3.18 | d<=32 | 5 | 50 | 80 | 65 | 9 | 52 | 12 | M6 | 62 | 16.9 | 51 |
| SFU03205-4 (Waist type) | 32 | 4 | 3.18 | d<=32 | 4 | 50 | 80 | 65 | 9 | 52 | 12 | M6 | 62 | 16.9 | 51 |
| SFU03210-3 | 32 | 10 | 6.35 | d<=32 | 3 | 50 | 80 | 65 | 9 | 74 | 12 | M6 | 62 | 26.1 | 53.1 |
| SFU03210-4 (Waist type) | 32 | 10 | 6.35 | d<=32 | 3 | 50 | 80 | 65 | 9 | 90 | 12 | M6 | 62 | 26.1 | 53.1 |
| SFU04005-5 | 40 | 5 | 3.18 | d>=40 | 5 | 63 | 93 | 78 | 9 | 55 | 14 | M6 | 70 | 19 | 66.2 |
| SFU04005-4 (Waist type) | 40 | 4 | 3.18 | d>=40 | 4 | 63 | 93 | 78 | 9 | 55 | 14 | M6 | 70 | 19 | 66.2 |
| SFU04010-3 | 40 | 10 | 6.35 | d>=40 | 3 | 63 | 93 | 78 | 9 | 71 | 14 | M8 | 70 | 30.1 | 71 |
| SFU04010-4 (Waist type) | 40 | 10 | 6.35 | d>=40 | 4 | 63 | 93 | 78 | 9 | 93 | 14 | M8 | 70 | 30.1 | 71 |
| SFU04020-3 | 40 | 20 | 6.35 | d>=40 | 3(Double head) | 63 | 93 | 78 | 11 | 94 144 | 14 | M8 | 70 | 40.3 | 98.4 |
| SFU05010-4 | 50 | 10 | 6.35 | d>=40 | 4 | 63 | 110 | 93 | 9 | 95 | 16 | M8 | 85 | 53.1 | 155 |
| SFU04005-5 | 40 | 5 | 3.18 | d>=40 | 5 | 63 | 93 | 78 | 9 | 55 | 14 | M8 | 70 | 19 | 66.2 |
| SFU04005-4 (Waist type) | 40 | 4 | 3.18 | d>=40 | 4 | 63 | 93 | 78 | 9 | 55 | 14 | M8 | 70 | 19 | 66.2 |
| SFU04010-3 | 40 | 10 | 6.35 | d>=40 | 3 | 63 | 93 | 78 | 9 | 71 | 14 | M8 | 70 | 30.1 | 71 |
| SFU04010-4 (Waist type) | 40 | 10 | 6.35 | d>=40 | 4 | 63 | 93 | 78 | 9 | 93 | 14 | M8 | 70 | 30.1 | 71 |
| SFU04020-3 | 40 | 20 | 6.35 | d>=40 | 3(Double head) | 63 | 93 | 78 | 9 | 94 144 | 14 | M8 | 70 | 40.3 | 98.4 |
| SFU05010-4 | 50 | 10 | 6.35 | d>=40 | 4 | 75 | 110 | 93 | 11 | 95 | 16 | M8 | 85 | 53.1 | 155 |
| SFU06310-5 | 63 | 10 | 6.35 | d>=40 | 5 | 90 | 125 | 108 | 11 | 97 | 18 | M8 | 95 | 60.7 | 206 |
| SFU08010-5 | 80 | 10 | 6.35 | d>=40 | 6 | 105 | 145 | 125 | 13.5 | 101 | 20 | M8 | 110 | 66.6 | 265 |
Drawing

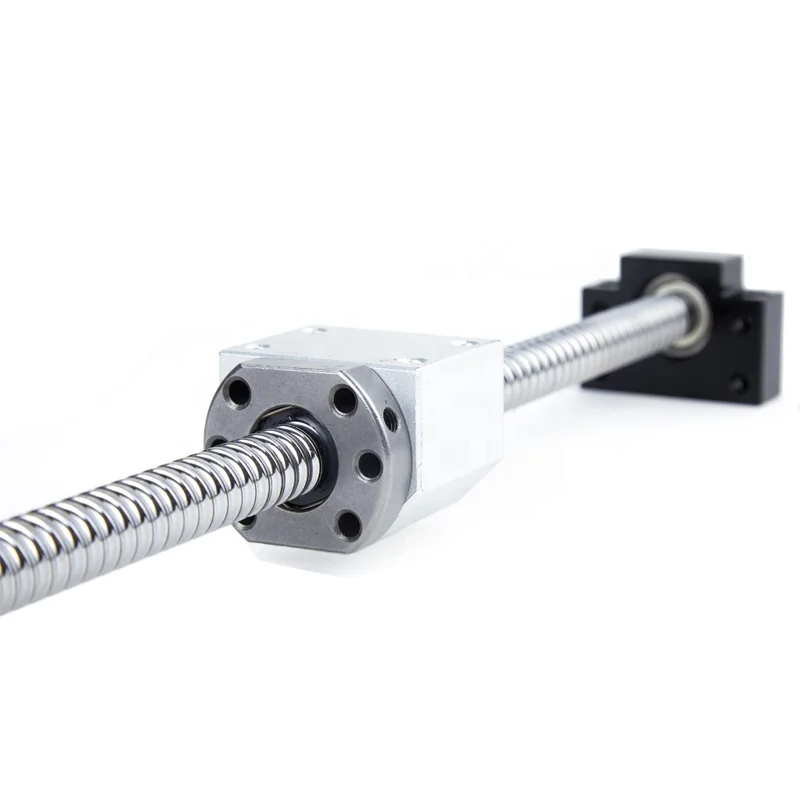

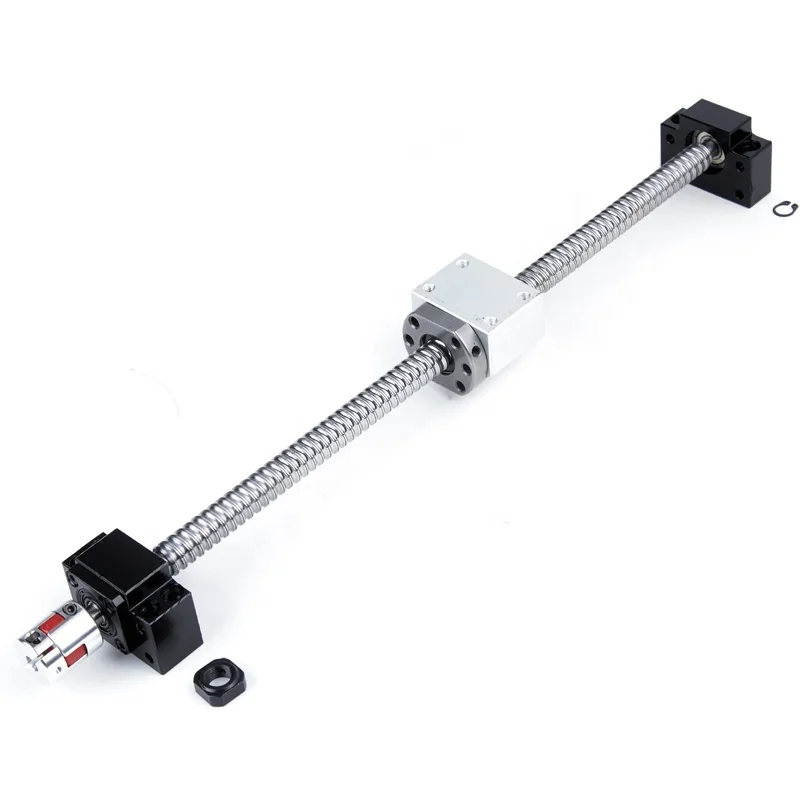

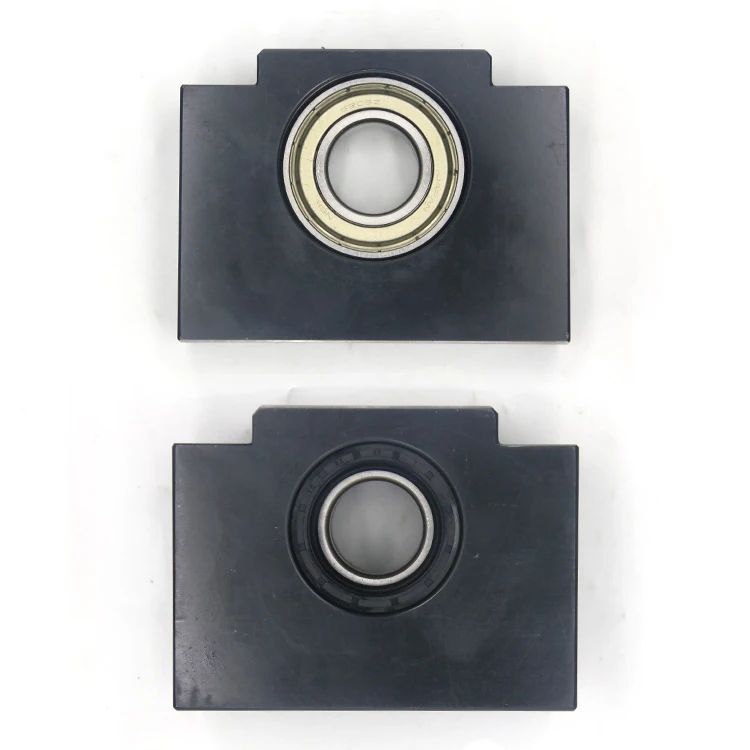

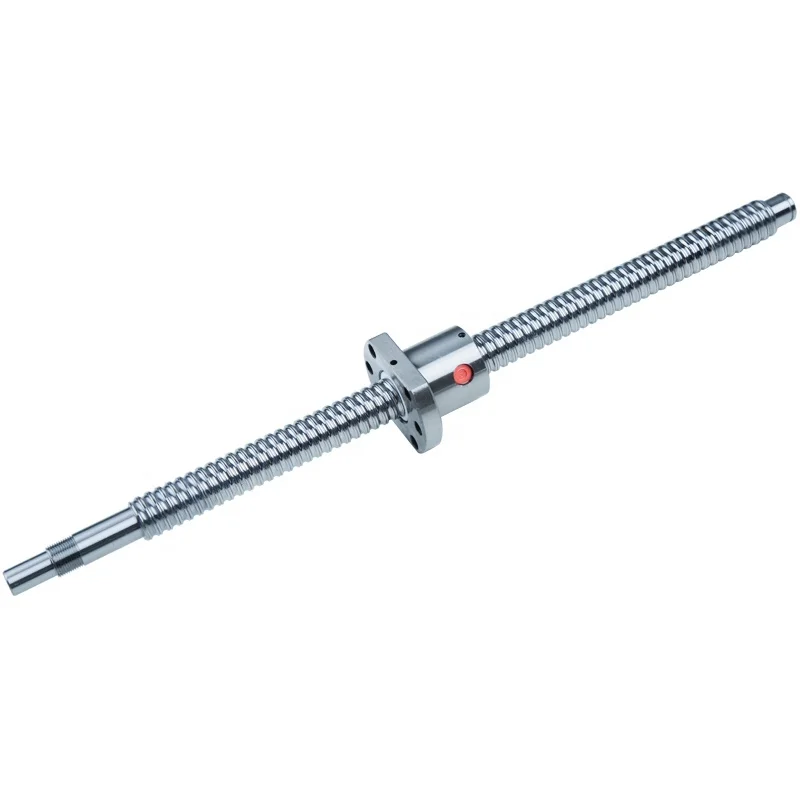

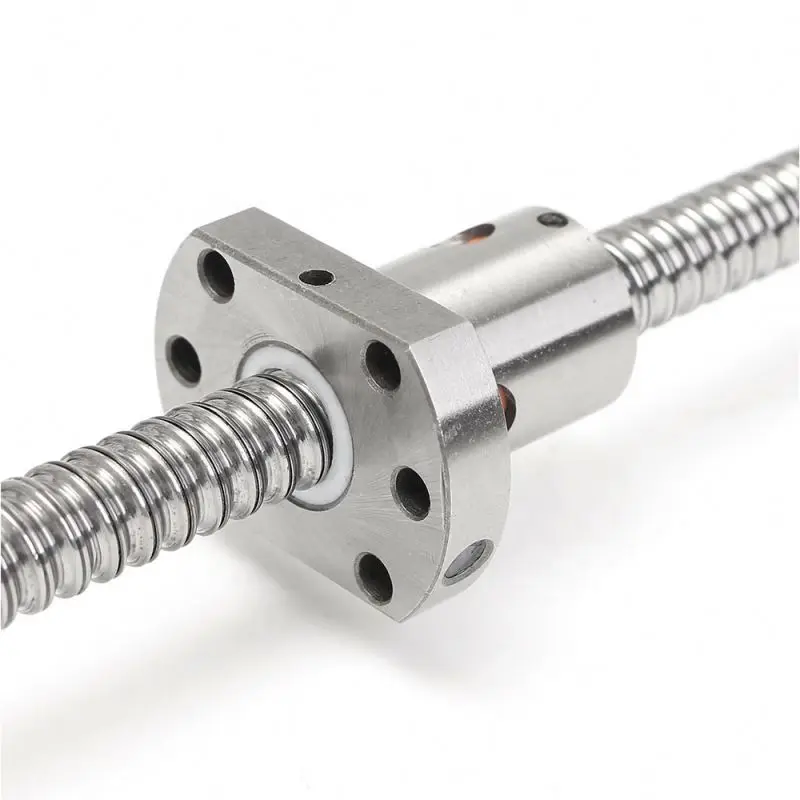

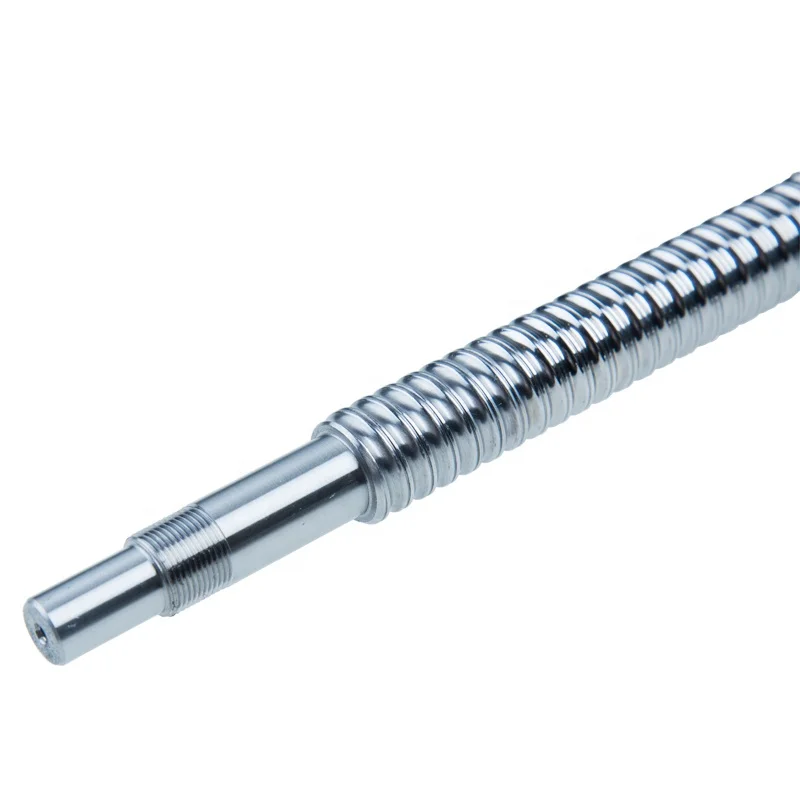

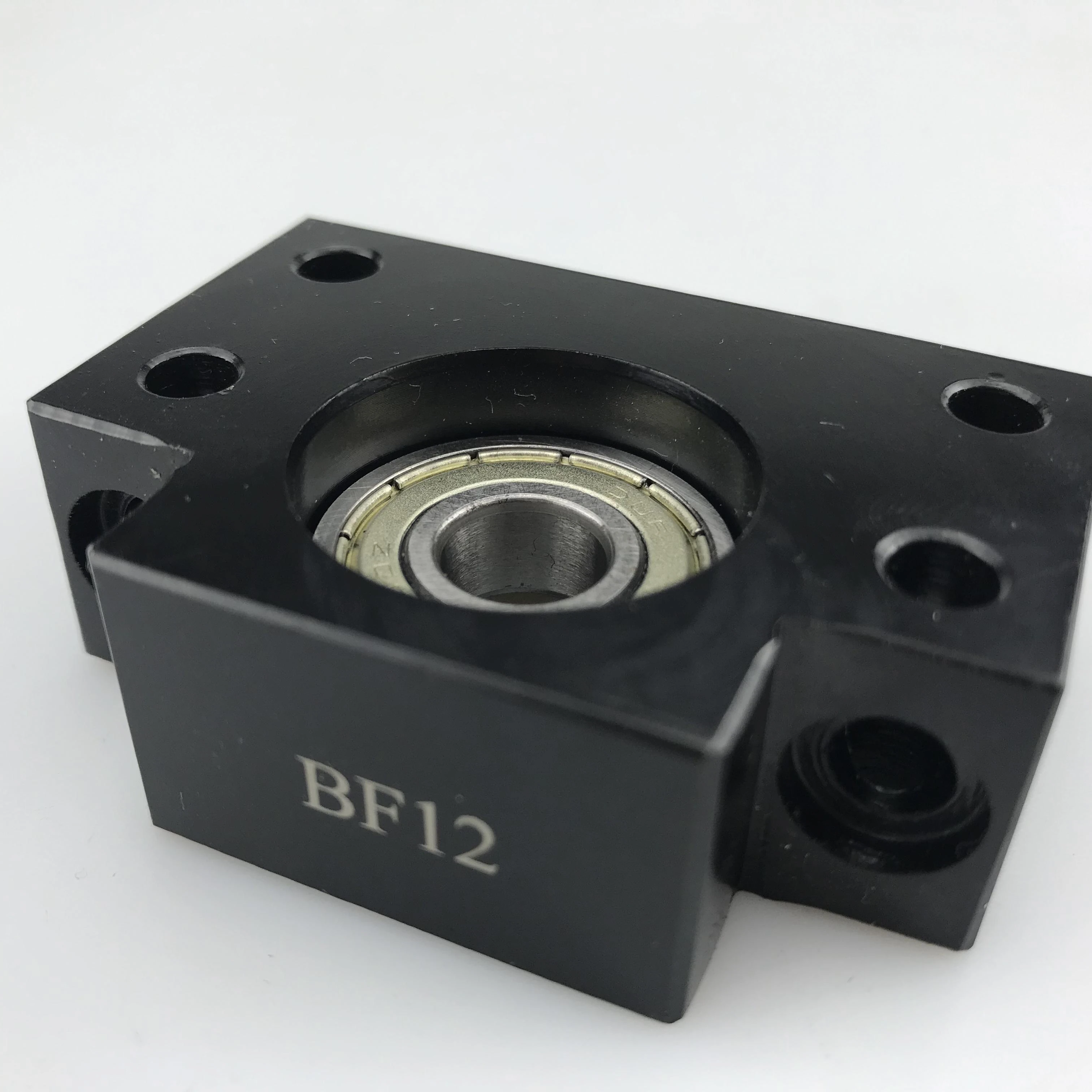

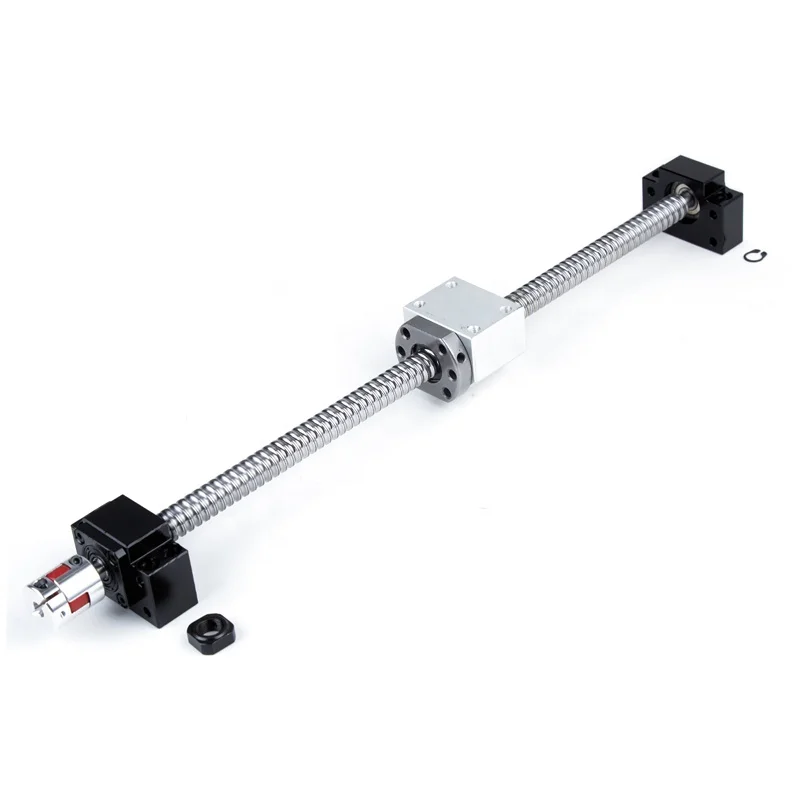

Photos
Aplication:
Company Information
Changzhou Dewo Motor Co., Ltd, located in Changzhou city, Jiangsu Province, has been specilized in the field of exporting stepper motor, motor driver, BLDC motor and PM motor for several years. We have two our own production base and a strong R&D team.
Till now, Dewo has a variouty of specifications of hybrid stepper motors, and different linear stepper motor, geared stepper motor, stepper motor with brake. Because of its long working life, stable performance and low failure rate, our products are well received by customers. We have got the certification of CE, RoHS and ISO9001:2008.
If you are interested in any of our products, please feel free to visit our website and contact us directly for more informations. We are looking forward to cooperate with you!
Certifications:
Contact Informations:
Changzhou Dewo Motor Co.,Ltd
Website: //dewochina.com
Address: Dai Luo Road 135,Luoyang Town, Wujin District, Changzhou City, Jiangsu Province, China
FAQ
1.Q:Can I get some samples first?
A:Sure, we are honored to offer you samples for your check.
2.Q:Do you have the products in stock?
A:Our products are manufactured according to your order except the normal products.
3.Q:What's the delivery time?
A:It usually takes about 7 working days,but the exact delivery time might be different for different order or at different time.
4.Q: How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality control from the beginning to the end of the production. Every product will be fully assembled and carefully tested before packed.
5.Q:What's your warranty terms?
A: We offer different warranty terms for different products. Please contact with us for details.
