Светодиодная автоматическая паяльная паста печатная машина GL1200

Сохранить в закладки 62262662554:


Цена:*

Количество:

  • В избранное

Описание и отзывы

Характеристики


LED automatic solder paste printing machine GL1200


Technical parameters































automatic solder paste printing machine GL1200
Item:
Details:
































































































































Model

GL1200


Item

Min   Size



737X737mm



Max   Size



1500X750mm



Thickness



25~40mm



PCB   Min Size



80X50mm



PCB   Max Size



1200X350mm



PCB   Thickness



0.4~6mm



PCB   Warpage



<1%



Transport   Height



900±40mm



Transport   Direction



Left-Right;Right-Left;Left-Left;Right-Right



Transport   Speed



Max   1500mm/S Programmable



Support System



Magnetic   Pin/Up-down table adjusted/supportblock



Clamping System



 Elastic side clip / Z direction sheet



Squeegee   Speed



6~200mm/sec



Squeegee   Pressure



0~15Kg   Pressure control



Squeegee   Angle



60°/55°/45°



Squeegee   Type



Stainless   steel(Standard), plastic



Stencil   Separation Speed



0.1~20mm/sec   Programmable



Cleaning   System



Dry,Wet,Vacuum   (Programmable)



Table   Adjustment ranges



X:±10mm;Y:±10mm;θ:±2°



 Machine




Repeat   Position Accuracy



±0.015mm



Printing   Accuracy



±0.03mm




Cycle Time



<15s   (Exclude Printing & Cleaning)



Product   Changeover



<5Min



Air   Required



4.5~6Kg/cm2



Power   Input



AC:220±10%,50/60HZ   1Φ 3KW



Control   Method



PC   Control



Machine   Dimensions



2200(L)X1200(W)X1500(H)mm



Machine   Weight



Approx:1500Kg

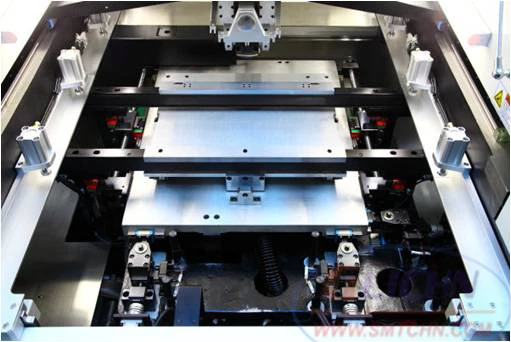

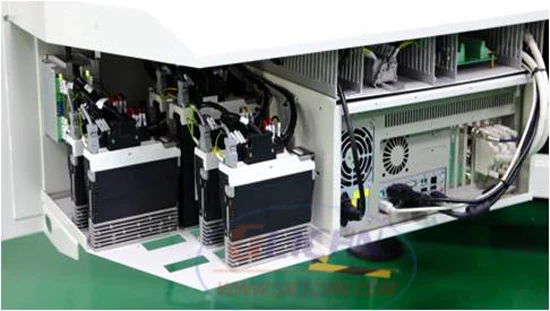

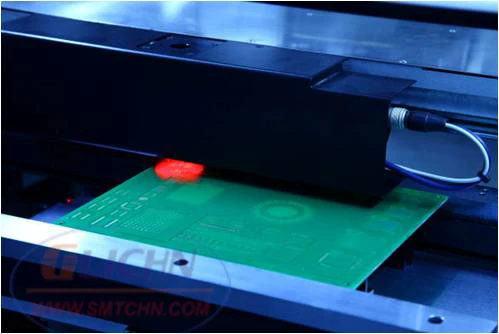

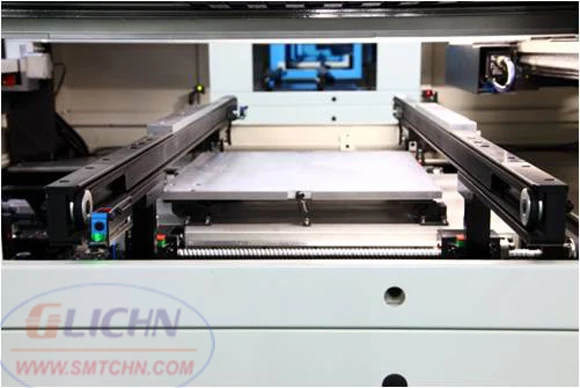

 LED paste printing.jpgLED solder printing 2.jpgLED solder printing 6.jpgLED mounter 1.jpgLED mounter 4.jpg



Packaging & Shipping


Packing method:
1)Standard box package for light and small item;
2)Strong wood package for heavy and large equipment;
SMT machine packaging 33.jpg
Shipping way:
1)By air ,for sample and small package ,wordwide express like DHL,UPS,FedFX,EMS....
2)By sea, for large package and quantity;
3)By car or other ways as customer requested;


SMT transportation.jpg

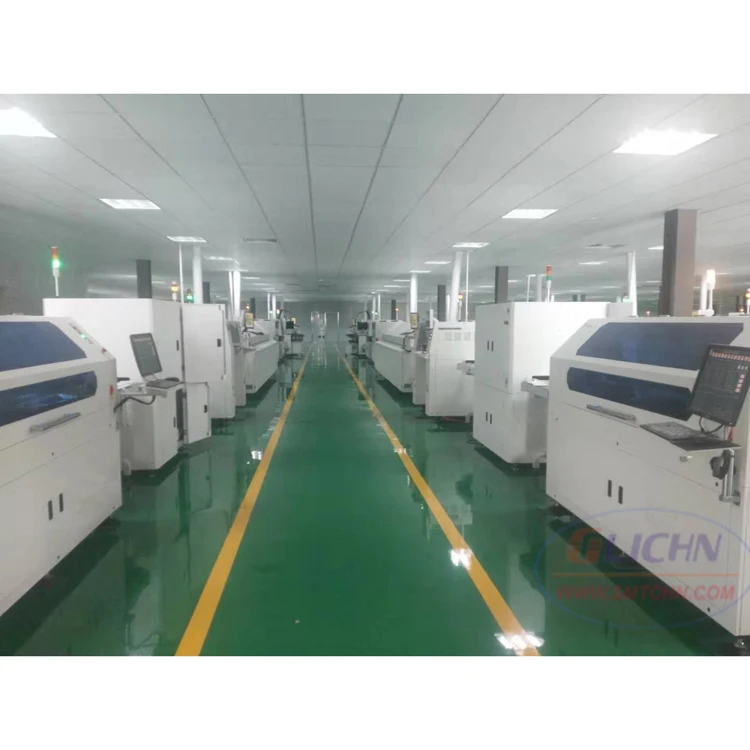

Company introduction


GLICHN found in 2010,Specializing in SMT equipment manufacturing services and sales of peripheral products. Factory is located in shunyi district of Beijing and shenzhen baoan district
SMT class:pick and place machine,small and middle size reflow oven, manual and semi-automatic solder paste printer,PCB loader and unloader,PCB magazine rack,SMD component counter,solder paste and chip production line etc.
THT Class:wave soldering machine, Spray tin stove,cut foot and forming machine,Plug-in production line etc
Others :Spin coater,Dispensing machine,nozzles,feeder,belt ,driver, motor,cylinder,High temperature tape,valve,etc


smt pcb assembly.jpg





Our Service


1. We’ll have a good check and a test before shipping out.
2. We provide you the friendly English User manual or the operating videos for free;
3. 24 hours technical support by email or Skype or Trade Manager or Calling.
4. 1 year machine parts free warranty;
5.Engineers available to service machinery overseas.





FAQ


1 set machine, mixed order is also welcome.
a. How can I buy this machine from you? ( Very easy and flexible !)
b.Consult us about this product on line or by e-mail.
c. Negotiate and confirm the final price , shipping , payment methods and other
terms for machine.
d.Send you the proforma invoice and confirm your machine order.
e. Make the payment according to the method put on proforma invoice.
f. We prepare for your machine order in terms of the proforma invoice after confirming your full payment. And 100% quality check before shipping.
g.Send your machine order by air or by sea.
Why choose us ?
a. Best price & Best shipping & Best service
b. Ten years of experience in research and development production and sales
c. Six years of alibaba gold supplier
d. Trade assurance





Contact us


smt pcb assembly karen.jpg
